Vente-unique ARNEGA 150 cm Wall-Mounted Vanity Unit Instruction Manual

1. Úvod

Thank you for choosing the Vente-unique ARNEGA 150 cm Wall-Mounted Vanity Unit. This manual provides essential information for the safe assembly, installation, and proper use of your new bathroom furniture. Please read these instructions carefully before beginning assembly and retain them for future reference.

Image 1.1: The ARNEGA 150 cm wall-mounted vanity unit installed in a bathroom, featuring a white finish and ribbed front panels.

2. Bezpečnostní informace

Please observe the following safety precautions during assembly, installation, and use of the vanity unit:

• Přečtěte si všechny pokyny: Před montáží se ujistěte, že rozumíte všem krokům.
• Používejte vhodné nástroje: Ensure you have the correct tools for assembly and wall mounting.
• Montáž na stěnu: This unit is designed to be wall-mounted. Ensure the wall structure is suitable to support the weight of the unit and its contents. Consult a professional if unsure.
• Bezpečná instalace: Improper installation can lead to the unit falling, causing injury or damage. Always secure the unit firmly to the wall.
• Vystavení vodě: While the unit is moisture-resistant, avoid prolonged exposure to standing water. Wipe up spills immediately.
• Bezpečnost dětí: Keep small parts away from children during assembly. Do not allow children to climb on or hang from the unit.
• Hmotnostní limity: Do not overload drawers or the top surface.

3. Obsah balení

Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact Vente-unique customer support.

• Vanity unit frame (MDF)
• Komponenty zásuvek (2 sady)
• Push-to-open drawer slides (2 sets)
• Mounting hardware (screws, wall plugs - specific to wall type may be required)
• Návod k montáži (tato příručka)

Note: Sinks, faucets, and plumbing fixtures are not included with this vanity unit.

4. Nastavení a montáž

This unit requires self-assembly and wall mounting. It is recommended that two people assemble and install this unit for safety and ease.

4.1 Potřebné nástroje

• Šroubovák (hlava Phillips)
• Drill and drill bits (appropriate for wall type)
• Úroveň
• Měřicí páska
• Tužka
• Ochranné brýle

4.2 Montážní kroky

1. Unpack components: Opatrně vyjměte všechny díly z obalu a položte je na čistý, měkký povrch, abyste zabránili poškrábání.
2. Sestavte rám: Follow the diagrams provided in the separate assembly sheet (if applicable) to connect the main panels of the vanity unit frame using the provided fasteners. Ensure all connections are secure.
3. Install drawer slides: Attach the drawer slides to the inside of the vanity unit frame according to the instructions. Ensure they are level and aligned.
4. Sestavte zásuvky: Construct the two drawers, ensuring the ribbed front panels are correctly oriented. Install the push-to-open mechanisms onto the drawers.
5. Insert drawers: Carefully slide the assembled drawers onto the installed drawer slides. Test the push-to-open function.

4.3 Montáž na stěnu

The ARNEGA vanity unit is designed for wall mounting. Proper installation is crucial for safety.

1. Determine mounting height: Decide on the desired height for your vanity unit, considering the height of your sinks and user comfort.
2. Označte vrtací body: Hold the assembled unit against the wall at the desired height and use a level to ensure it is perfectly horizontal. Mark the drilling points for the wall brackets/fasteners. Refer to the technical drawing for mounting points.
3. Vyvrtejte otvory: Drill holes at the marked points using an appropriate drill bit for your wall type (e.g., masonry, drywall). Insert wall plugs if necessary.
4. Secure unit: With assistance, lift the unit and align the mounting points with the drilled holes. Secure the unit to the wall using the provided screws or suitable wall fasteners. Ensure the unit is firmly attached and does not wobble.
5. Install plumbing: Once the unit is securely mounted, proceed with the installation of your sinks and plumbing according to their respective instructions.

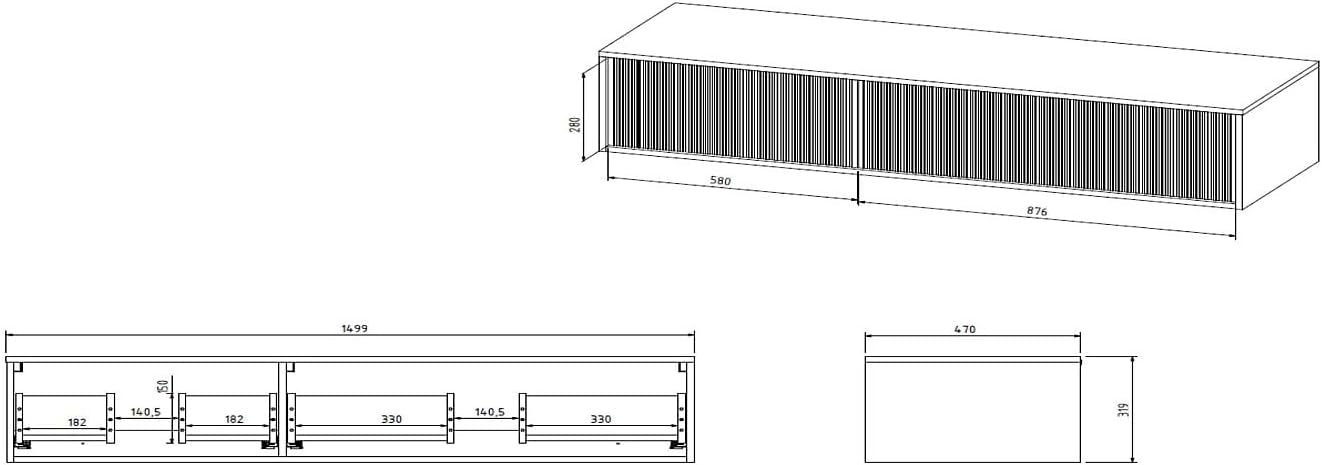

Image 4.1: Technical drawing illustrating the dimensions (150 cm length, 47 cm depth, 32 cm height) and internal structure of the ARNEGA vanity unit.

Obrázek 4.2: Přední strana view of the ARNEGA vanity unit, showcasing its textured design.

Obrázek 4.3: Úhlové view of the ARNEGA vanity unit, emphasizing its wall-mounted design.

5. Provoz

The ARNEGA vanity unit features two spacious drawers with a push-to-open mechanism for convenient access.

• Otevírání zásuvek: Gently push on the center of the drawer front. The drawer will release and extend slightly. Pull the drawer open completely.
• Zavírání zásuvek: Push the drawer firmly until it clicks into its closed position.
• Skladování: Utilize the two large drawers for organizing bathroom essentials. Avoid placing excessively heavy items in the drawers to ensure smooth operation and prevent damage to the slides.

Image 5.1: The ARNEGA vanity unit with its two push-to-open drawers extended, showing the internal storage capacity.

6. Údržba

Proper care will ensure the longevity and appearance of your ARNEGA vanity unit.

• Čištění: Otřete povrchy měkkým, damp cloth. For stubborn marks, use a mild, non-abrasive cleaner specifically designed for furniture. Avoid harsh chemicals, abrasive pads, or solvents.
• vlhkost: Although the unit is moisture-resistant, it is not waterproof. Immediately wipe away any water spills or condensation to prevent damage to the MDF material. Ensure good ventilation in the bathroom.
• Mechanismy zásuvek: Periodically check the drawer slides and push-to-open mechanisms for smooth operation. If they become stiff, a small amount of silicone spray can be applied to the slides (avoiding contact with wood surfaces).
• Spojovací materiál: Occasionally check all assembly and mounting fasteners to ensure they remain tight. Retighten if necessary.

7. Řešení problémů

8. Specifikace

9. Záruka a podpora

Vente-unique products are covered by legal guarantees. For specific details regarding your product's warranty, please refer to the terms and conditions of sale at the time of purchase or contact Vente-unique customer service.

• Vrácení: This product is eligible for 30-day returns. Please refer to the retailer's return policy for full details.
• Náhradní díly: Informace o dostupnosti náhradních dílů nejsou v současné době k dispozici.
• Zákaznická podpora: For assistance with assembly, missing parts, or any other inquiries, please contact Vente-unique customer support through their official channels.

You can visit the Vente-unique brand store for more information: Vente-unique Brand Store
