Uživatelská příručka k solární nabíječce Gallagher S60

1. Úvod

The Gallagher S60 Solar Fence Charger is a 0.6 Joule energizer designed for electric fences up to 6 miles. It features solar-powered lithium battery technology for reliable off-grid power, suitable for containing livestock, poultry, and protecting gardens from wildlife. This manual provides essential information for the safe and effective installation, operation, and maintenance of your S60 energizer.

Obrázek 1: Přední strana view of the Gallagher S60 Solar Fence Charger.

2. Bezpečnostní informace

Please read and understand all safety instructions before installing or operating the Gallagher S60 Solar Fence Charger. Failure to follow these instructions may result in electric shock, fire, or damage to the product.

• Nebezpečí úrazu elektrickým proudem: Electric fences deliver a high voltage pulse. Avoid contact with the fence line.
• Děti a zvířata: Keep children and untrained animals away from electric fences.
• Základy: Ensure the energizer is properly grounded using a dedicated ground rod.
• Ochrana před bleskem: For added protection, consider installing a lightning diverter.
• Údržba: Disconnect the energizer from the fence and ground before performing any maintenance.
• Vystavení vodě: While weather-resistant, avoid submerging the energizer in water.

3. Obsah balení

Ověřte, zda jsou v balení přítomny všechny komponenty:

• Gallagher S60 Solar Fence Energizer with integrated solar panel
• Internal rechargeable lithium battery (pre-installed)
• Fence lead
• Zemní vedení
• Uživatelská příručka (tento dokument)

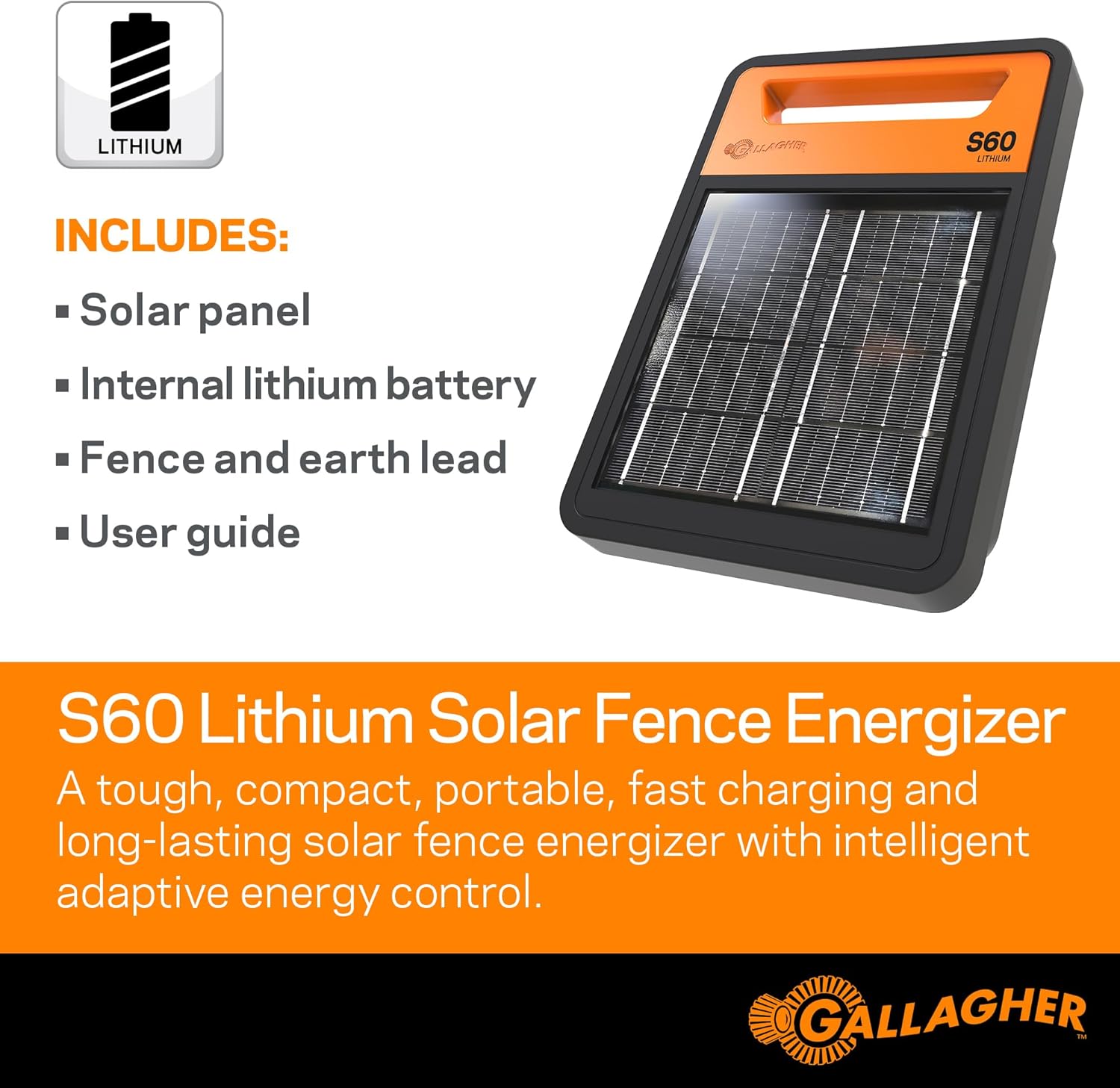

Figure 2: Included components with the S60 Lithium Solar Fence Energizer.

4. Konec produktuview

The Gallagher S60 is a compact and portable solar energizer designed for ease of use and reliable performance in various outdoor conditions. Its key features include:

• Integrovaný solární panel: Efficiently converts sunlight into energy to charge the internal battery.
• Lithium Battery Technology: Provides faster charging, longer power retention, and superior performance even in cloudy conditions or extreme temperatures.
• Intelligent Adaptive Energy Control: Optimizes power output and battery longevity.
• Odolná konstrukce: UV-stabilized casing, tempered glass solar panel, and sealed electronics ensure long-term performance in sun, rain, and snow.
• Přenosný design: Lightweight at 4.9 lbs with an integrated carry handle for easy relocation.

Figure 3: The S60's Solar Lithium Technology ensures continuous power in various weather conditions.

5. Nastavení a instalace

The Gallagher S60 is designed for quick and easy installation. Follow these steps for optimal performance:

1. Vyberte umístění: Select a mounting location that receives maximum direct sunlight throughout the day. Avoid shaded areas from trees, buildings, or other obstructions.
2. Namontujte Energizer: The S60 can be mounted on various types of posts, including Y-steel posts, T-steel posts, wood posts, ground rods, or ring top posts. Secure the energizer firmly to the chosen post.
3. Připojení k plotu: Connect the red fence lead from the energizer to your electric fence line. Ensure a secure connection.
4. Připojte se k zemi: Connect the green ground lead from the energizer to a suitable ground rod. The ground rod should be driven into moist soil for effective grounding.
5. Počáteční poplatek: Allow the energizer to charge in direct sunlight for at least 3 days before connecting it to the fence, especially if it's new or has been stored for a long period. This ensures the internal lithium battery is fully charged for optimal performance.

Figure 4: The S60 is ready to use after mounting and connecting to the fence and earth.

Figure 5: Multiple mounting options for the S60 energizer.

6. Návod k obsluze

The Gallagher S60 Solar Fence Charger operates automatically once installed and charged. It harnesses solar energy to power your electric fence.

• Automatický provoz: The energizer will automatically begin pulsing once sufficient charge is present in the battery and it is connected to the fence and ground.
• Výkon: The S60 delivers a clean, consistent pulse to fences up to 6 miles under typical conditions, providing 0.6 Joules of stored energy.
• Správa baterie: The integrated lithium battery and intelligent adaptive energy control system manage power usage, ensuring the fence remains energized even during periods of low sunlight.
• Kontrolky: (If applicable, check product for specific indicators) Some models may feature indicator lights for battery status or fence performance. Refer to the energizer unit for any visual indicators.

Figure 6: The S60 provides portable power for rotational grazing and pasture management.

Figure 7: The S60 provides self-sufficient power regardless of weather conditions.

7. Údržba

Regular maintenance ensures the longevity and optimal performance of your Gallagher S60 Solar Fence Charger.

• Čistý solární panel: Pravidelně čistěte povrch solárního panelu měkkým hadříkemamp hadříkem odstraňte prach, nečistoty a úlomky. Čistý panel zajišťuje maximální absorpci slunečního záření a účinnost nabíjení.
• Check Fence Line: Regularly inspect your fence line for vegetation growth, broken insulators, or any other issues that could cause shorts and reduce energizer performance.
• Kontrola připojení: Ensure all fence and ground connections are tight and free from corrosion. Loose or corroded connections can impede power flow.
• Základy: Verify that the ground rod remains firmly in the soil and that the soil around it is adequately moist. Add water if necessary during dry periods.
• Péče o baterie: The internal lithium battery is designed for long life. If storing the energizer for an extended period, ensure it is fully charged and store it in a cool, dry place. Periodically expose it to sunlight to maintain charge.

8. Řešení problémů

If your Gallagher S60 Solar Fence Charger is not performing as expected, refer to the following troubleshooting guide:

9. Specifikace

10. Záruka a podpora

For warranty information and technical support, please refer to the official Gallagher website or contact Gallagher customer service directly. Keep your proof of purchase for warranty claims.
