Airturn BT500-S6
Uživatelská příručka k nožnímu spínači Airturn BT500-S6 Bluetooth
Model: BT500-S6 (bt500s6-bs510)
Zavedení
The Airturn BT500-S6 is a versatile and robust Bluetooth footswitch designed for musicians, presenters, and performers who require hands-free control of their devices. With six individually programmable switches, the BT500-S6 offers impressive flexibility and control over various applications and devices. Its Bluetooth 5 connectivity ensures a wireless connection with a range of up to 60 meters, making it an indispensable tool for controlling page turns, starting/stopping recordings, scrolling text, or managing effects and loops during performances or presentations.
This manual provides detailed instructions for setting up, operating, and maintaining your Airturn BT500-S6 to ensure optimal performance and longevity.
Obsah balení
- 1 x Airturn BT500-S6 Bluetooth Footswitch
- 1 x USB nabíjecí kabel
- 1 x Patch Cable
- 1 x Keepdrum USB Power Adapter
Figure 1: Airturn BT500-S6 Footswitch and included USB power adapter.
Nastavení
1. Nabíjení zařízení
Before first use, ensure your Airturn BT500-S6 is fully charged. Connect the supplied USB charging cable to the footswitch and the Keepdrum USB power adapter. Plug the adapter into a standard wall outlet. The charging indicator light on the device will show its status. A full charge provides over 200 hours of battery life.
Obrázek 2: Zadní view of the Airturn BT500-S6 Footswitch, showing the power input and two 6.35mm jack inputs.
Figure 3: Close-up of the Keepdrum USB power adapter with a Type-A USB port.
2. Installing the AirTurn Manager App
The free AirTurn Manager app is required for full functionality and customization of your BT500-S6. Download it from your device's app store (e.g., Apple App Store for iOS, Google Play Store for Android).
3. Párování Bluetooth
- Turn on your Airturn BT500-S6 by pressing the power button. The power indicator light will illuminate.
- Ensure Bluetooth is enabled on your tablet, smartphone, or computer.
- Otevřete na svém zařízení nastavení Bluetooth a vyhledejte dostupná zařízení.
- Select "Airturn BT500-S6" from the list of discovered devices to initiate pairing.
- Once paired, the Bluetooth indicator light on the footswitch will confirm the connection.
Návod k obsluze
Základní operace
The BT500-S6 features six large, quiet foot switches designed for comfortable and precise control. Each switch can be programmed to perform various functions, such as page turning, scrolling, media control, or MIDI commands.

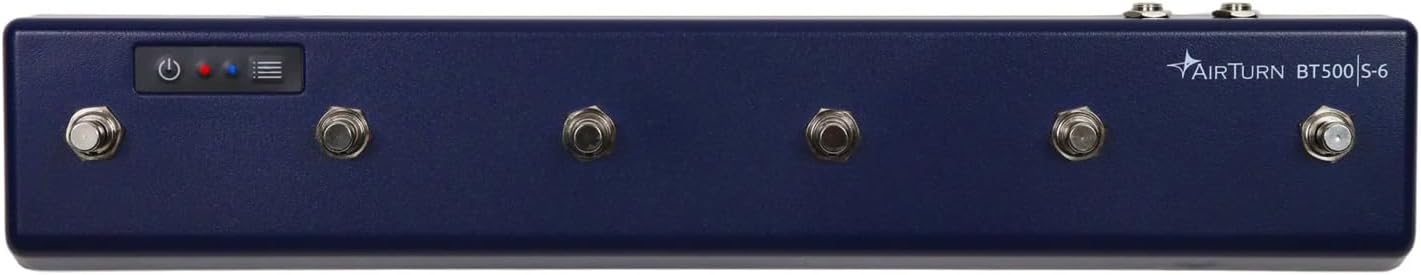

Obrázek 4: Nahoře view of the Airturn BT500-S6 Footswitch, showing the six foot switches and indicator lights.
Figure 5: A foot in a sneaker positioned directly over the Airturn BT500-S6 Footswitch, illustrating how it is used.
Customizing Switch Functions
Use the AirTurn Manager app to customize the function of each of the six switches. The app allows you to:
- Assign keyboard commands (e.g., arrow keys for page turning).
- Configure MIDI commands for controlling music software and instruments.
- Set up custom actions for specific applications.
- Adjust sensitivity and debounce settings.
External Pedal Inputs
The BT500-S6 includes two 6.35mm (1/4 inch) jack inputs for connecting external expression or volume pedals. These inputs expand the control capabilities of your footswitch, allowing for even more versatile performance options. Refer to the AirTurn Manager app for configuring these external inputs.
Figure 6: Close-up of the two 6.35mm jack inputs on the Airturn BT500-S6 Footswitch, labeled 1 and 2.
Připojení více zařízení
Up to 8 AirTurn devices can be used simultaneously, allowing for complex setups and collaborative performances. Ensure each device is properly paired and configured through the AirTurn Manager app.
Údržba
Čištění
To clean your Airturn BT500-S6, use a soft, dry cloth. For stubborn dirt, a slightly damp cloth with mild soap can be used, ensuring no liquid enters the device's ports or openings. Do not use abrasive cleaners or solvents.
Péče o baterie
- Zařízení pravidelně nabíjejte, i když jej nepoužíváte často, abyste zachovali jeho stav.
- Vyhněte se častému úplnému vybíjení baterie.
- Pokud zařízení delší dobu nepoužíváte, skladujte jej na chladném a suchém místě.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Zařízení se nezapne. | Slabá baterie. | Charge the device using the supplied USB cable and power adapter. |
| Nelze spárovat přes Bluetooth. | Bluetooth is off on host device; device out of range; interference. | Ensure Bluetooth is enabled. Move closer to the host device. Restart both devices. Check for other Bluetooth devices causing interference. |
| Switches are unresponsive. | Incorrect app settings; device not properly paired; low battery. | Check settings in the AirTurn Manager app. Re-pair the device. Charge the device. |
| External pedals not working. | Incorrect connection; settings not configured in app. | Ensure pedals are securely connected to the correct jack inputs. Configure pedal functions within the AirTurn Manager app. |
Specifikace
| Funkce | Detail |
|---|---|
| Název modelu | Airturn BT500-S6 |
| Číslo modelu | bt500s6-bs510 |
| Konektivita | Bluetooth 5 |
| Rozsah | Až 60 metrů (200 stop) |
| Životnost baterie | Over 200 hours per charge |
| Počet spínačů | 6 (programovatelný) |
| Externí vstupy | 2 x 6.35mm (1/4 inch) jack inputs for expression/volume pedals |
| Rozměry (D x Š x V) | 38.7 x 5 x 6.9 cm (15.24 x 1.97 x 2.72 palce) |
| Hmotnost | 460 gramů (1.01 lb) |
| Materiál | Plast |
| Kompatibilita | Tablets, Smartphones, PCs, Macs (Bluetooth compatible) |
Záruka a podpora
For warranty information and technical support, please refer to the official AirTurn webnebo se obraťte na jejich zákaznický servis. Uschovejte si účtenku jako doklad o koupi pro případné reklamace.
Official AirTurn Webmísto: www.airturn.com
