Zavedení
This manual provides instructions for the safe and effective use of your DURATECH 10-Piece Reversible Ratcheting Wrench Set. This set includes both SAE and Metric sizes, designed for various fastening applications. Please read this manual thoroughly before using the tools and retain it for future reference.
Image: The complete DURATECH 10-Piece Reversible Ratcheting Wrench Set, including both SAE and Metric wrenches, neatly arranged with its rolling storage pouch.
Vlastnosti produktu
- Offset 25° Design: Both box ends feature an offset design, providing a large tilt angle for improved access in confined spaces.
- Off-Corner Loading: The box end design grips fasteners on the flats, reducing the risk of rounding and allowing for efficient work.
- Double-Ended Reversible Design: Each box end includes a reversing lever, enabling direction changes without removing the wrench from the fastener.
- 12-Point Ratchet Gear: Compatible with hexagon nuts, 12-point nuts, and other fastener shapes.
- Vysoce kvalitní konstrukce: Manufactured from carbon steel and A3 steel with a sandblasting finish and black electrophoresis treatment for rust resistance. The body is secured by 4 rivets for durability.
- Pohodlné úložiště: Includes a rolling pouch for organized storage and easy transport.
Obrázek: Detailní záběr view of a single wrench highlighting key features: black electrophoresis treatment, large size stamp, reversing switch, 12-point box, rivet fixation, and full metal construction for strength.
Nastavení
The DURATECH 10-Piece Reversible Ratcheting Wrench Set comes pre-assembled and ready for use.
- Rozbalte sadu: Carefully remove all wrenches from the packaging and the rolling pouch.
- Kontrola nástrojů: Before first use, inspect each wrench for any signs of damage or manufacturing defects. Do not use damaged tools.
- Familiarize with Sizes: Identify the SAE and Metric sizes included in your set. Sizes are conveniently stamped on both ends of each wrench.

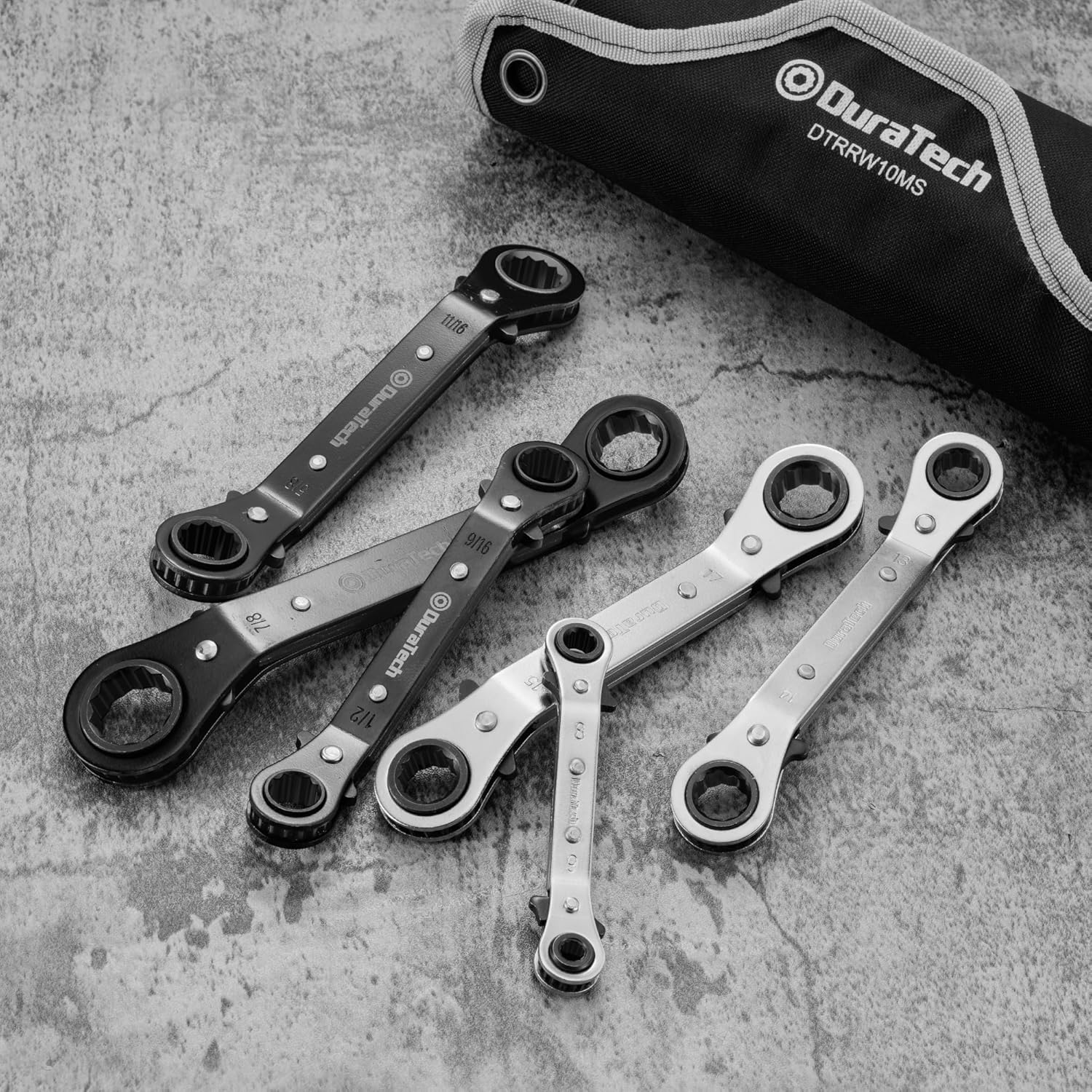

Image: The DURATECH wrench set laid out next to its rolling storage pouch, demonstrating how the tools are stored and organized.
Návod k obsluze
Follow these steps for effective and safe operation of your ratcheting wrenches.
- Vyberte správnou velikost: Choose the wrench that precisely matches the size of the fastener (nut or bolt head). Using an incorrect size can damage the fastener or the wrench.
- Umístění klíče: Place the box end of the wrench over the fastener. The 25° offset design allows for better clearance in tight areas.
- Zapojení rohatkového mechanismu: Ensure the 12-point box end fully engages the fastener.
- Change Direction (if needed): To change the direction of the ratcheting action (tightening or loosening), simply flip the reversing lever located on each box end. This eliminates the need to remove and re-position the wrench.
Image: A close-up showing the reversing switch on the ratcheting wrench, with arrows indicating the two directions of operation.
- Použij sílu: Apply steady, even pressure to turn the fastener. The off-corner loading design helps prevent rounding of the fastener.
- Práce ve stísněných prostorech: The offset angle and reversible ratcheting mechanism are particularly useful for accessing fasteners in restricted areas.
Image: A hand holding a wrench, illustrating the 25-degree tilt angle of the offset design, useful for reaching fasteners in tight spots.
Image: An animated illustration demonstrating the smooth ratcheting action of the wrench head as it turns a fastener.
Image: A mechanic using a DURATECH ratcheting wrench to work on a component under a vehicle, demonstrating its practical application.
Údržba
Proper maintenance ensures the longevity and performance of your DURATECH wrenches.
- Čištění: After each use, wipe the wrenches clean with a dry cloth to remove dirt, grease, and debris. For stubborn grime, use a mild degreaser and then wipe dry.
- Mazání: Periodically apply a light coat of machine oil to the ratcheting mechanism to ensure smooth operation.
- Skladování: Store the wrenches in the provided rolling pouch in a dry environment to prevent rust and corrosion. Avoid storing in damp nebo vlhkých podmínkách.
- Inspekce: Regularly inspect the wrenches for any signs of wear, damage, or corrosion. Replace any damaged tools immediately to prevent injury or further damage to fasteners.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Klíč sklouzává na spojovacím prvku | Incorrect wrench size; fastener is rounded; excessive force applied at an angle. | Ensure correct wrench size is used. Replace rounded fasteners. Apply force straight onto the wrench. |
| Ratcheting mechanism feels stiff | Lack of lubrication; dirt or debris in mechanism. | Clean the mechanism and apply a light machine oil. |
| Wrench shows signs of rust | Improper storage; exposure to moisture. | Clean off rust with a rust remover and apply a protective oil. Store in a dry place. |
Specifikace
| Funkce | Detail |
|---|---|
| Značka | DURATECH |
| Číslo modelu | 6931213201998 |
| Materiál | Carbon Steel, A3 Steel |
| Dokončit | Sandblasting, Black Electrophoresis Treatment |
| Standard měření | SAE & Metric (Dual) |
| SAE Sizes Included | 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 7/8" |
| Zahrnuté metrické velikosti | 6 mm, 8 mm, 10 mm, 12 mm, 13 mm, 14 mm, 15 mm, 17 mm, 19 mm, 21 mm |
| Styl hlavy | Offset Double Box End |
| Ratchetování | Yes, Reversible |
| Počet bodů | 12-bodový |
| Hmotnost položky | 2.43 kilogramů (5.35 liber) |
| Rozměry balení | 10.39 x 4.37 x 3.19 palce |
Image: A visual representation of the various SAE and Metric wrench sizes included in the set, along with their corresponding ratcheting gear tooth counts.
Záruka a podpora
For warranty information or technical support regarding your DURATECH 10-Piece Reversible Ratcheting Wrench Set, please contact DURATECH customer service.
- Výrobce: LONGYOU YIYANG IMPORT AND EXPORT CO.,LTD
- Značková prodejna: Visit the DURATECH Store on Amazon
- Plány ochrany: Mohou být k dispozici k zakoupení další ochranné plány. Podrobnosti vám sdělí váš prodejce.
