1. Úvod
The ECOMAX EMAM1090A Air Mover is a high-efficiency blower fan designed for various drying, ventilation, and dehumidifying tasks. It features a powerful motor providing up to 950 CFM airflow, multiple operating angles, and a compact, stackable design for ease of use and storage. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your air mover.
Figure 1: ECOMAX EMAM1090A Air Mover
This image displays the ECOMAX EMAM1090A Air Mover from a front-right perspective, showcasing its compact black housing, integrated handle, and the air intake and exhaust grilles.
2. Bezpečnostní pokyny
Před použitím tohoto spotřebiče si přečtěte všechny pokyny. Nedodržení těchto pokynů může vést k úrazu elektrickým proudem, požáru nebo vážnému zranění.
- Always connect the air mover to a grounded outlet. Do not modify the plug.
- Do not operate the air mover with a damaged cord or plug. If the cord or plug is damaged, contact customer support.
- Keep the air mover away from water and moisture. Do not immerse in water.
- Ensure hands are dry before handling the plug or operating the controls.
- Do not block air intake or exhaust openings. Keep them free from debris.
- Do not use the air mover in areas where flammable liquids or gases are present.
- Unplug the unit from the power source before cleaning, servicing, or moving.
- The unit features a circuit breaker with a reset button for safe operation and overload protection for the power outlets. If the unit stops working, check the circuit breaker and reset if necessary.
- When using the daisy chain feature, ensure the total current draw of all connected devices does not exceed the air mover's rated capacity to prevent overload.
- Tento spotřebič není určen pro použití osobami (včetně dětí) se sníženými fyzickými, smyslovými nebo duševními schopnostmi nebo nedostatečnými zkušenostmi a znalostmi, pokud na ně nedohlíží osoba odpovědná za jejich bezpečnost nebo jim nebyla poskytnuta instrukce ohledně používání spotřebiče.
3. Konec produktuview
Familiarize yourself with the components of your ECOMAX Air Mover.
Obrázek 2: Klíčové vlastnosti
This diagram highlights the main features of the ECOMAX EMAM1090A Air Mover, including the circuit breaker for safety, the daisy chain power outlets, the 3-hour max timing function, 3-speed operation, 3 user positions (flat, 45°, 90°), the powerful blower, non-skid feet, and the sturdy handle for easy lifting and carrying.
- Pevná rukojeť: Integrated for easy lifting and transportation.
- Ovládací panel: Includes power switch, speed selector, and timer controls.
- Přívod vzduchu: Grille where air enters the unit.
- Výfuk vzduchu: Grille where air is expelled.
- Protiskluzové nožičky: Zajistěte stabilitu během provozu.
- Napájecí zásuvky: Two integrated outlets with overload protection for daisy-chaining multiple units.
- Jistič: Resettable safety device to protect against electrical overloads.
- 10 ft Power Cord: Poskytuje ample reach and can be wrapped around the handle for storage.
Figure 3: Power Outlets and Circuit Breaker
Tento obrázek nabízí detailní záběr view of the two integrated power outlets and the reset button for the circuit breaker, located on the top of the air mover.
Obrázek 4: Ovládací panel
Tento obrázek ukazuje detailní view of the control panel, featuring the switches for speed selection and the timer function (ON, 3H, OFF).
4. Nastavení
- Rozbalení: Carefully remove the air mover from its packaging. Inspect the unit for any signs of damage.
- Umístění: Position the air mover on a stable, level surface. Ensure the air intake and exhaust are clear of obstructions.
- Nastavení úhlu: The air mover can be positioned in three different angles (0°, 45°, 90°) to direct airflow as needed. Simply place the unit on the desired side to achieve the angle.
Figure 5: Three User Positions
This image demonstrates the air mover's versatility, showing it positioned flat (0 degrees), at a 45-degree angle, and at a 90-degree angle, suitable for directing airflow into various spaces like under cabinets.
5. Návod k obsluze
The ECOMAX Air Mover offers 3-speed modes and a timing function for flexible operation.
- Zapnutí/vypnutí: Use the main power switch on the control panel to turn the unit ON or OFF.
- Výběr rychlosti: Rotate the speed selector switch to choose between three airflow settings: Low, Medium, and High. Adjust the speed according to the drying or ventilation requirements.
- Funkce časovače: The air mover includes a built-in timer. Rotate the timer switch to select:
- NA: The unit will operate continuously.
- 3H: The unit will operate for 3 hours and then automatically shut off.
- OFF: The unit will turn off.
Figure 6: Automatic Timer Shut Off
This graphic illustrates the timer function of the air mover, indicating settings from 0 to 3 hours for automatic shut-off, allowing for energy saving and unattended operation.
- Daisy Chain Operation: For larger areas or increased airflow, multiple ECOMAX Air Movers can be connected in a daisy chain. Plug additional units into the integrated power outlets on the primary air mover. Ensure the total current draw does not exceed the primary unit's rated capacity to avoid tripping the circuit breaker.
Figure 7: Daisy Chain Feature

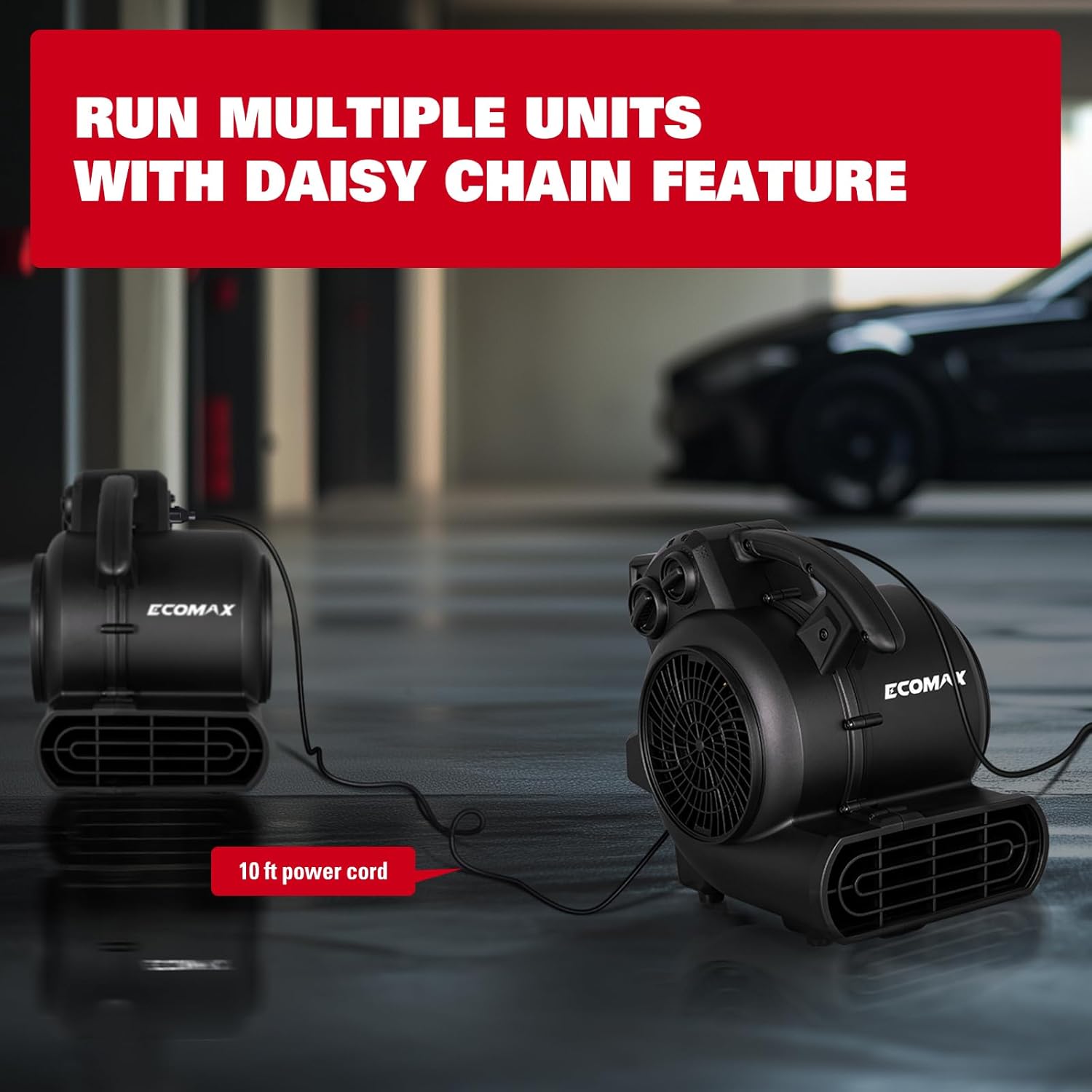

This image shows two ECOMAX Air Movers connected in series using the daisy chain feature, demonstrating how multiple units can be linked to expand the blowing range, set in a garage environment.
6. Údržba
Regular maintenance ensures optimal performance and extends the lifespan of your air mover.
- Čištění: Unplug the unit before cleaning. Use a soft, damp cloth to wipe down the exterior. Do not use harsh chemicals or abrasive cleaners. Periodically check and clean the air intake and exhaust grilles to remove dust and debris that may obstruct airflow.
- Úložný prostor pro kabel: The 10 ft power cord can be conveniently wrapped around the integrated handle for neat storage and transport.
Figure 8: Cord Wrap
This image shows the power cord neatly wrapped around the sturdy handle of the ECOMAX Air Mover, illustrating the convenient storage feature.
7. Řešení problémů
If you encounter issues with your ECOMAX Air Mover, refer to the following table for common problems and solutions.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Jednotka se nezapne. | Žádné napájení. Vypnul se jistič. | Ensure the unit is properly plugged into a live outlet. Press the reset button on the circuit breaker. |
| Snížené proudění vzduchu. | Zablokovaný přívod nebo odvod vzduchu. Problém s motorem. | Check and clear any obstructions from the grilles. Pokud problém přetrvává, kontaktujte zákaznickou podporu. |
| Jednotka se během provozu náhle zastaví. | Jistič se vypnul kvůli přetížení. Funkce časovače aktivována. | Reduce the load on the daisy chain outlets and press the reset button. Check the timer setting; if set to '3H', it will shut off after 3 hours. |
| Neobvyklý hluk nebo vibrace. | Loose components or internal obstruction. | Unplug the unit immediately. Inspect for visible obstructions. If none, contact customer support. |
8. Specifikace
Technical details for the ECOMAX EMAM1090A Air Mover.
| Funkce | Detail |
|---|---|
| Název modelu | EMAM1090A |
| Značka | ECOMAX |
| Proud vzduchu | 950 kubických stop za minutu (CFM) |
| Počet úrovní výkonu | 3 (nízká, střední, vysoká) |
| Blowing Angles | 0°, 45°, 90° |
| svtage | 120 voltů |
| Wattage | 230 wattů |
| Úroveň hluku | 60 dB |
| Rozměry produktu | 12.8"H x 12.8"Š x 9.92"V |
| Hmotnost položky | 11.13 libry |
| Zdroj napájení | Elektrický kabel |
| Délka kabelu | 10 stop |
| Speciální funkce | Adjustable Tilt, Lightweight, Portable, Timer, Daisy Chain, Stackable, Circuit Breaker |
| Vnitřní/venkovní použití | Krytý |
| UPC | 810941034411 |
9. Záruka a podpora
The ECOMAX EMAM1090A Air Mover comes with a 3letá omezená zárukaTato záruka se vztahuje na vady materiálu a zpracování při běžném používání. Uschovejte si prosím doklad o koupi pro případ uplatnění záruky.
For warranty service, technical support, or any questions regarding your product, please contact ECOMAX customer support through the retailer where the product was purchased or refer to the official ECOMAX webstránky pro kontaktní informace.
Please refer to the product manual for full details regarding warranty terms and conditions.
