Uživatelská příručka k hornímu ovládacímu panelu Balboa Water Group G8390 ML900

1. Úvod

This manual provides essential instructions for the installation, operation, and maintenance of your Balboa Water Group G8390 ML900 12-button topside control panel. This panel is designed for use with Balboa EL/GL series control systems in hot tubs and spas. Please read this manual thoroughly before proceeding with installation or operation to ensure proper function and safety.

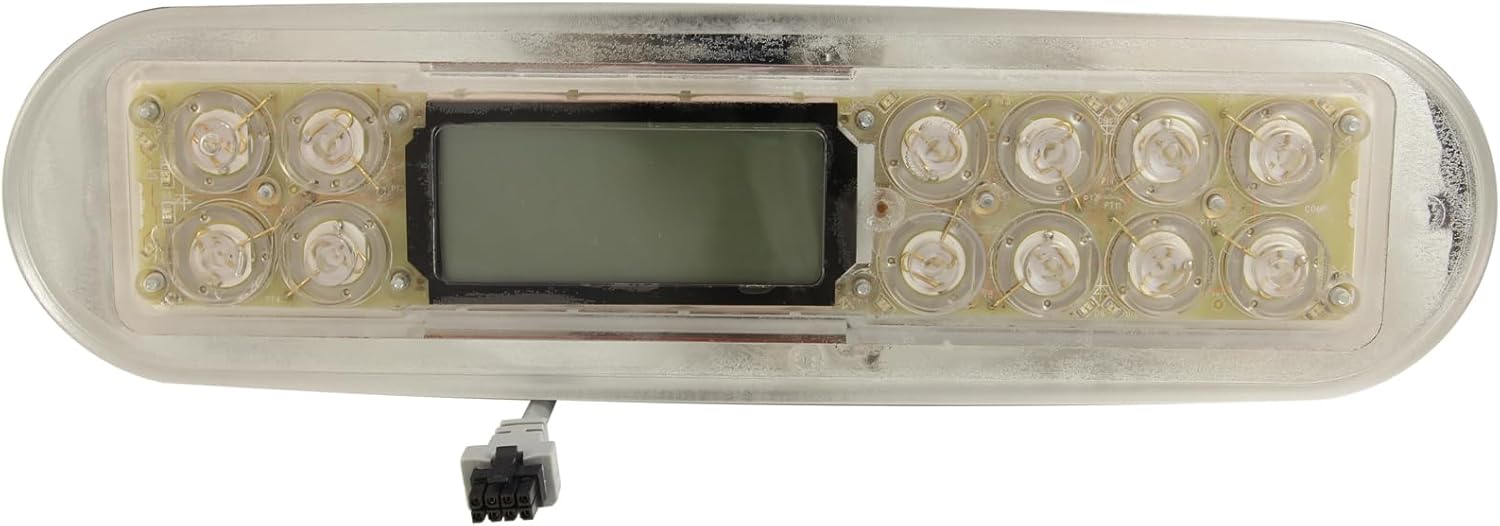

Obrázek 1.1: Přední view of the Balboa Water Group G8390 ML900 topside control panel. This image shows the clear casing, the central LCD display, and the arrangement of the 12 button locations.

2. Vlastnosti produktu

• Model: ML900
• Výrobce: Skupina Balboa Water
• Typ horní strany: Elektronický ovládací panel
• Konfigurace tlačítka: 12 buttons (overlay not included)
• Kompatibilita: Designed for Balboa EL/GL control systems
• Typ konektoru kabelu: Molex, 8pinový
• Délka kabelu: 6 stop (1.83 metrů)
• Velikost panelu: 11-5/8 inches x 3-1/8 inches (29.53 cm x 7.94 cm)
• Tvar horní strany: Ovál

3. Nastavení a instalace

Proper installation is crucial for the safe and effective operation of your topside control panel. If you are unsure about any step, it is recommended to consult a qualified spa technician.

3.1 Bezpečnostní opatření

• Odpojit napájení: Always ensure the main power to the spa or hot tub is completely disconnected at the circuit breaker before beginning any installation or maintenance.
• Voda a elektřina: Exercise extreme caution when working with electrical components near water.
• Profesionální instalace: If you are not comfortable with electrical work, seek assistance from a certified professional.

3.2 kroky instalace

1. Odstraňte starý panel (pokud je k dispozici): Carefully disconnect the old topside panel from the spa pack. Note the routing of the cable.
2. Připravte montážní povrch: Ensure the mounting surface on the spa shell is clean, dry, and free of debris. The panel size is 11-5/8" x 3-1/8".
3. Trasovací kabel: Feed the 6-foot cable of the new ML900 topside panel through the designated opening in the spa shell to the control system.
4. Connect to Spa Pack: Locate the 8-pin Molex connector port on your Balboa EL/GL control system. Carefully align and firmly plug the topside panel's Molex connector into this port. Ensure a secure connection.
5. Montážní panel: Position the new ML900 topside panel into the opening. Many panels use adhesive backing (often 3M VHB tape, as seen on the back of the unit) for a secure, watertight seal. Press firmly around the edges to ensure full adhesion.
6. Ověřte pečeť: After mounting, visually inspect the perimeter of the panel to confirm a tight, watertight seal against the spa shell.

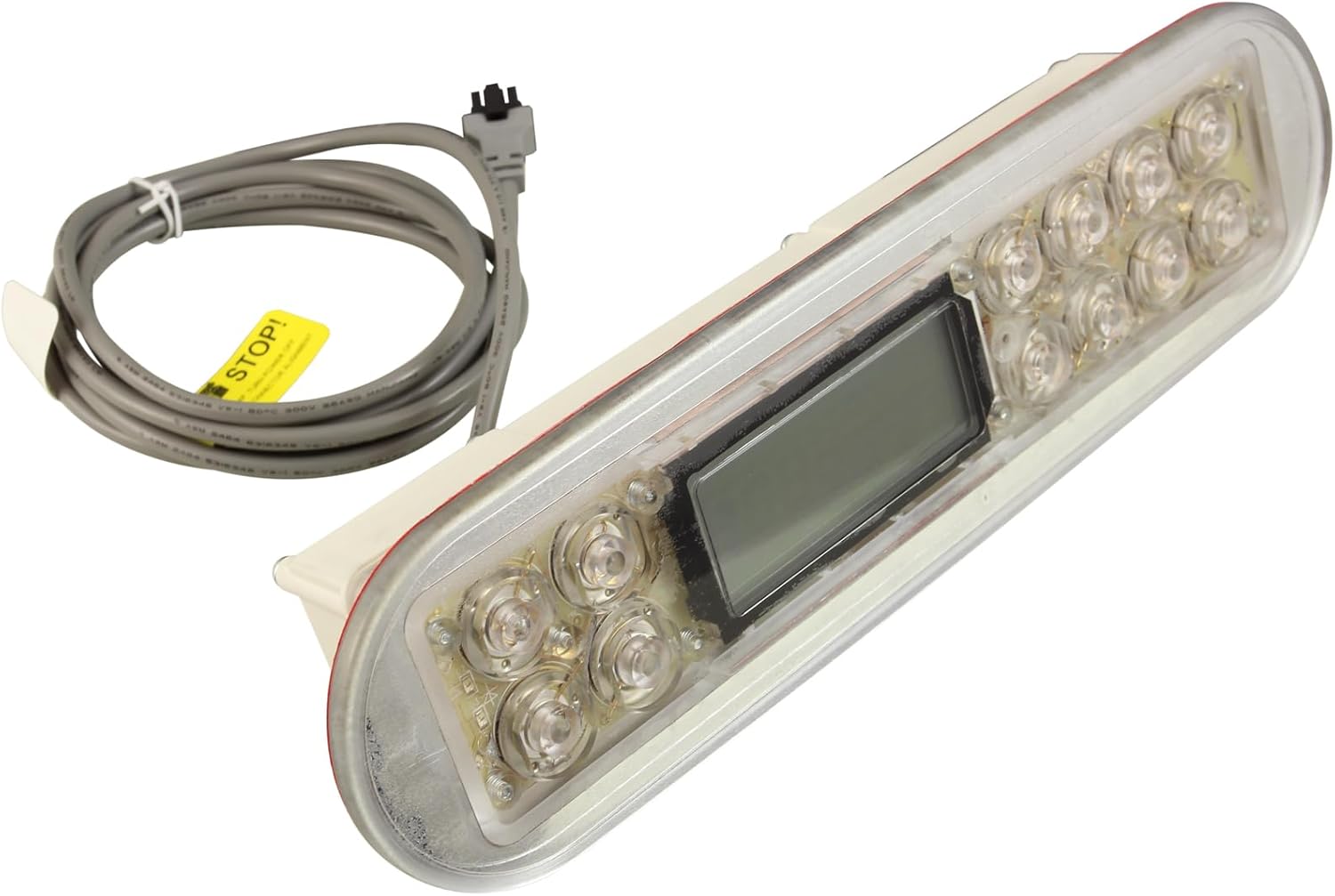

Obrázek 3.1: Úhlové view of the Balboa Water Group G8390 ML900 topside control panel, showing the attached 6-foot Molex cable. This cable connects the panel to the spa's main control system.

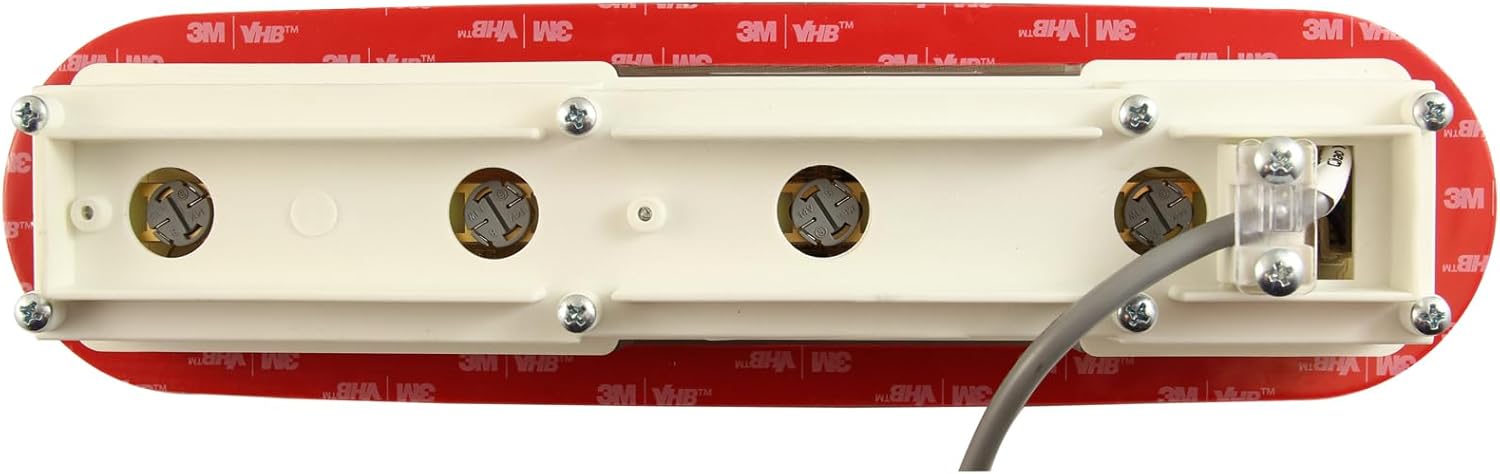

Obrázek 3.2: Zadní view of the Balboa Water Group G8390 ML900 topside control panel. This image highlights the mounting points and the 3M VHB adhesive tape used for securing the panel to the spa shell, ensuring a watertight seal.

4. Návod k obsluze

The Balboa ML900 topside panel provides intuitive control over your spa's functions. While specific button labels are not included with this panel (it is sold without an overlay), the typical functions for a 12-button Balboa ML900 panel are described below. Refer to your spa's specific owner's manual for exact button assignments and operational modes.

4.1 Běžné funkce tlačítek

• Jets 1 / Pump 1: Activates or cycles the primary jet pump. Press once for low speed (if applicable), press again for high speed, a third time to turn off.
• Jets 2 / Pump 2: Activates or cycles the secondary jet pump (if equipped). Functions similarly to Jets 1.
• Světlo: Turns the spa light on or off. Some systems may offer multiple presses for different light modes or colors.
• Zahřívací / Nahoru šipka: Zvyšuje požadovanou teplotu vody.
• Šipka chlazení / dolů: Snižuje požadovanou teplotu vody.
• Mode / Program: Cycles through different operating modes (e.g., Standard, Economy, Sleep) or accesses programming menus.
• Ventilátor: Activates or cycles the air blower (if equipped).
• Aux / Extra: Controls auxiliary features such as a third pump, waterfall, or other accessories.

4.2 Zobrazení informací

The central LCD display shows important information such as the current water temperature, set temperature, operating mode, and various status indicators (e.g., heater on, filter cycle active, error codes). Consult your spa's main control system manual for a detailed explanation of all display icons and messages.

5. Údržba

Regular maintenance ensures the longevity and optimal performance of your topside control panel.

• Čištění: Povrch panelu pravidelně otírejte měkkým hadříkemamp cloth. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the display and plastic components.
• Zkontrolujte těsnění: Periodically check the seal around the panel for any signs of wear or damage that could allow water intrusion.
• Kontrola kabelů: Ensure the cable connecting the panel to the spa pack is not pinched, cut, or damaged.

6. Řešení problémů

If you encounter issues with your topside control panel, refer to the following common troubleshooting steps. For more complex problems or error codes, consult your spa's main control system manual or contact a qualified technician.

• Panel Not Responding / Blank Display:
  • Ensure the spa has power and the circuit breaker is on.
  • Check the Molex connector at the spa pack to ensure it is firmly seated.
  • Zkontrolujte kabel, zda není viditelně poškozen.
• Tlačítka nefungují:
  • Ensure the panel surface is clean and free of debris that might obstruct button presses.
  • If only specific buttons are unresponsive, there might be an internal issue requiring professional service.
• Nesprávný údaj teploty:
  • This is often related to the temperature sensor in the spa's heater or plumbing, not the topside panel itself. Consult your spa's main manual.
• Chybové kódy na displeji:
  • Balboa control systems display specific error codes (e.g., "FLO", "HL", "DR"). Refer to your spa's main control system manual for a complete list of codes and their meanings.

7. Specifikace

8. Záruka a podpora

For specific warranty information regarding your Balboa Water Group G8390 ML900 topside control panel, please refer to the documentation provided with your spa or contact Balboa Water Group directly. Support for operational issues should first be directed to your spa manufacturer or a certified spa technician, as the topside panel functions in conjunction with the spa's main control system.

Kontaktní informace společnosti Balboa Water Group: Navštivte prosím oficiální stránky Balboa Water Group webweb s nejaktuálnějšími kontaktními údaji a zdroji podpory.
