ATLETICA HyperBase Multi-Station Instruction Manual

1. Úvod

The ATLETICA HyperBase is a versatile all-in-one strength training station designed for comprehensive full-body workouts. It integrates a Power Rack, a Smith Machine, and a dual cable pull system with two 90 kg weight stacks. Additional features include Jammer Arms, a multi-grip pull-up bar, weight plate holders, a landmine trainer, and a wide range of accessories to enhance exercise variety.

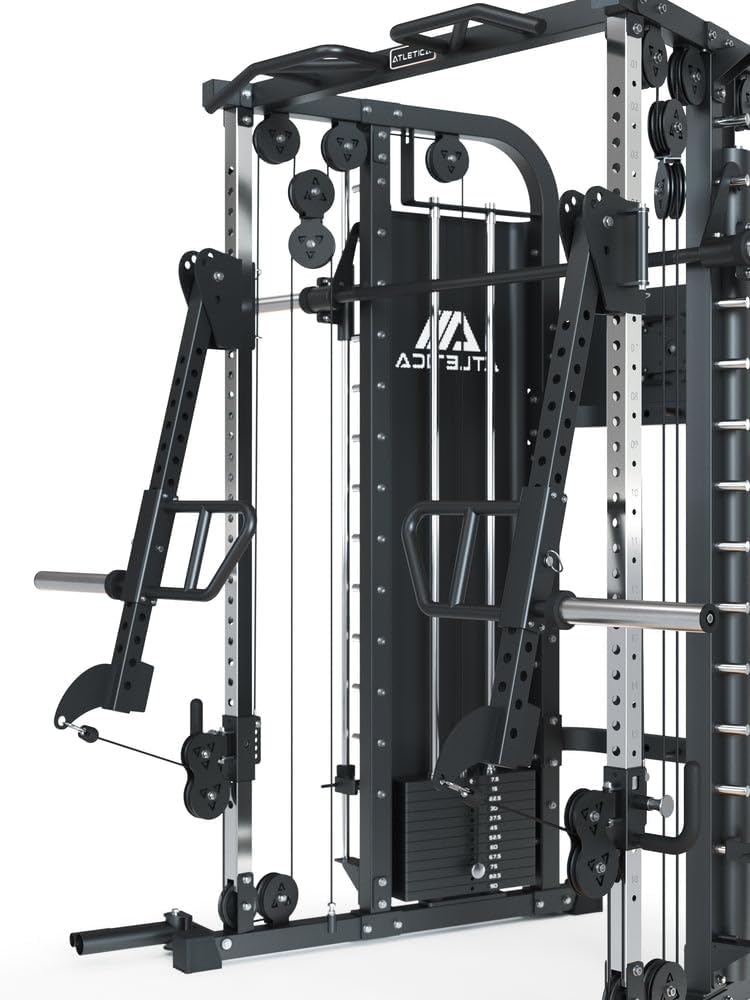

Obrázek 1: Přední strana view of the ATLETICA HyperBase Multi-Station, showcasing its integrated components including the Power Rack, Smith Machine, and cable system.

2. Bezpečnostní informace

Before using the ATLETICA HyperBase, please read and understand all safety instructions. Failure to follow these instructions may result in serious injury.

• Poraďte se s lékařem: Před zahájením jakéhokoli nového cvičebního programu se vždy poraďte se zdravotníkem.
• Správná montáž: Ensure the unit is correctly assembled according to the separate assembly manual. Verify all bolts and fasteners are securely tightened before each use.
• Kontrola vybavení: Before each workout, inspect the multi-station for any signs of wear, damage, or loose components. Do not use the equipment if any part is damaged or appears unstable.
• Use Spotters: When performing heavy lifts, especially with the Power Rack or Smith Machine, always use safety spotters or a trained assistant.
• Udržujte správnou formu: Use correct exercise technique to prevent injury. If you are unsure about proper form, seek guidance from a qualified fitness professional.
• Vyčistit oblast: Keep the area around the multi-station clear of obstructions, children, and pets during use.
• Hmotnostní limity: Do not exceed the maximum weight capacity for any component as specified in the 'Specifications' section.
• Zabezpečené přílohy: Ensure all cable attachments, J-hooks, and safety spotters are securely fastened before beginning an exercise.

3. Nastavení a kontroly před použitím

The ATLETICA HyperBase requires assembly. Refer to the dedicated assembly manual provided with your product for detailed step-by-step instructions. Once assembled, perform the following checks before initial use and periodically thereafter:

1. Strukturální integrita: Confirm all frame components are correctly aligned and all bolts, nuts, and washers are present and securely tightened.
2. Kabelový systém: Check all cables for fraying, kinks, or damage. Ensure pulleys rotate freely and cables run smoothly through them. Verify that the weight stacks move up and down without obstruction.
3. Smith Machine Bar: Test the smooth movement of the Smith machine bar along its guide rails. Ensure the safety hooks engage and disengage properly at all positions.
4. J-Hooks and Safety Spotters: Verify that J-hooks and safety spotter arms are securely inserted into the uprights and can bear weight.
5. Stabilita: Gently shake the entire unit to ensure it is stable and does not wobble. Adjust leveling feet if necessary.

4. Návod k obsluze

4.1 Power Rack

The Power Rack section allows for free weight exercises using a barbell (not included). Use the adjustable J-hooks to hold the barbell and the safety spotter arms to catch the barbell in case of a failed lift.

• Adjusting J-Hooks: Insert the J-hooks into the desired height holes on the uprights. Ensure both hooks are at the same height and fully seated.
• Adjusting Safety Spotters: Insert the safety spotter arms into the desired height holes below your lifting range. Ensure both arms are at the same height and fully seated.

Obrázek 2: Přední strana view of the HyperBase, highlighting the Smith Machine bar and adjustable J-hooks for free weight exercises.

4.2 Smith Machine

The integrated Smith Machine provides a guided barbell path for exercises, offering increased safety and stability, especially when training alone. The bar features 13 safety hooks.

• Engaging/Disengaging Safety Hooks: Rotate the Smith machine bar to engage or disengage the safety hooks from the uprights.
• Začáteční pozice: Set the bar at the desired starting height by rotating it to engage the hooks, then load weights. To begin, rotate the bar to disengage the hooks and lift.
• Bezpečnostní zastávky: Utilize the adjustable safety stops on the guide rails to limit the bar's lowest point, providing an additional layer of safety.

4.3 Dual Cable Pull Station

The dual cable system features two independent 90 kg weight stacks, allowing for a wide range of exercises targeting various muscle groups. The pulleys are connected from below to the weight blocks.

• Úprava hmotnosti: Insert the selector pin into the desired weight plate on each stack. Ensure the pin is fully inserted.
• Body připojení: Attach desired handles, ropes, or bars to the carabiners on the cable ends.
• Nastavení výšky kladky: Adjust the height of the pulleys by pulling the adjustment pin and sliding the pulley mechanism up or down the uprights. Ensure the pin locks securely into place.

Obrázek 3: Strana view of the HyperBase, illustrating the dual cable system with its weight stacks and adjustable pulley mechanisms.

4.4 Jammer Arms

The Jammer Arms expand the exercise possibilities, allowing for dynamic movements like chest presses, shoulder presses, leg presses, rows, and squats. They can be used independently or connected with the included straight bar.

• příloha: Securely attach the Jammer Arms to the designated points on the multi-station.
• Načítání: Load weight plates onto the sleeves of the Jammer Arms.
• Connecting Bar: For exercises requiring a connected movement, attach the straight bar between the two Jammer Arms.

4.5 Landmine Trainer

The Landmine Trainer attachment allows for rotational and compound exercises, enhancing core strength and muscle endurance.

• Bar Insertion: Insert one end of a standard barbell (not included) into the sleeve of the landmine attachment.
• Cvičení: Perform exercises such as Lumberjack squats, landmine deadlifts, single-arm presses, and Russian twists.

4.6 Multi-Grip Pull-Up Bar

The integrated pull-up bar offers multiple grip positions (wide, neutral, close) to target different back and arm muscles.

• Grip Selection: Choose the grip that best suits your exercise and comfort level.
• Správná forma: Ensure a controlled movement throughout the exercise, avoiding swinging.

5. Údržba

Regular maintenance ensures the longevity and safe operation of your ATLETICA HyperBase.

• Čištění: Wipe down the frame and upholstery (if applicable) with a damp Po každém použití otřete hadříkem, abyste odstranili pot a nečistoty. V případě potřeby použijte jemný, neabrazivní čisticí prostředek.
• Kontrola kabelů: Periodically inspect all cables for signs of wear, fraying, or damage. Replace damaged cables immediately.
• Mazání: Apply a silicone-based lubricant to the guide rods of the weight stacks and the Smith machine bar rails every few months, or as needed, to ensure smooth operation.
• Kontrola upevňovacích prvků: Regularly check all bolts, nuts, and screws for tightness. Re-tighten any loose fasteners to prevent instability and noise.
• Kontrola kladky: Ensure all pulleys rotate freely and are free from debris. Clean if necessary.

Obrázek 4: Detail view of the HyperBase's pulley system and adjustment mechanisms, important for regular inspection and maintenance.

6. Řešení problémů

This section addresses common issues you might encounter with your ATLETICA HyperBase.

7. Specifikace

• Model: HyperBase
• Reference výrobce: 555-1138
• Značka: Atletica
• Hmotnost produktu: 520 kg
• Materiál: Kov
• Barva: Černý
• Dual Weight Stacks: 2 x 90 kg
• Max Tension Level (Cable System): 180 kg (This refers to the combined resistance from both 90kg stacks, often with a 1:1 pulley ratio)
• Smith Machine Bar: 50 mm diameter, integrated
• Vlastnosti: Power Rack, Smith Machine, Dual Cable Pull, Jammer Arms, Landmine Trainer, Multi-Grip Pull-Up Bar, Weight Plate Holders

8. Záruka a podpora

ATLETICA is committed to providing high-quality fitness equipment and customer satisfaction.

• Záruka: The ATLETICA HyperBase comes with a lifetime warranty on the main frame. Please refer to your purchase documentation for specific terms and conditions regarding other components.
• Zásady vrácení: A 100-day return policy is typically offered. Please check with your retailer for exact details.
• Zákaznická podpora: For any questions, technical assistance, or warranty claims, please contact ATLETICA Specialized Customer Service. Contact details can usually be found on the ATLETICA webwebu nebo vaší nákupní faktuře.
