Návod k použití stylusu Uogic

1. Úvod

Thank you for choosing the Uogic Stylus Pen. This manual provides detailed instructions for the setup, operation, and maintenance of your new stylus pen. Designed for seamless integration with Microsoft Surface devices and other MPP 1.5/2.0 compatible touchscreen devices, this pen offers a natural and precise writing experience.

Co je v krabici:

• 1 x Uogic Stylus Pen (with one tip installed)
• 2 x náhradní hroty
• Nabíjecí kabel 1 x USB-C
• 1 x Uživatelská příručka

Figure 1.1: Uogic Stylus Pen (Black)

The Uogic Stylus Pen, shown in black, is designed for precise digital input on compatible devices. Its sleek design and advanced features make it ideal for writing, drawing, and navigating.

2. Začínáme

2.1 Charging the Stylus Pen

The Uogic Stylus Pen features fast USB-C charging. Before first use, or when the battery is low, charge the pen using the provided USB-C cable.

• Connect the USB-C charging cable to the pen's charging port.
• Druhý konec kabelu připojte k USB zdroji napájení (např. k USB portu počítače, síťovému adaptéru).
• A full charge takes approximately 40 minutes, providing up to 80 hours of continuous use. A 20-minute charge can provide up to 90% battery life.

Figure 2.1: USB-C Fast Charging

This image illustrates the USB-C charging capability of the stylus pen, highlighting its fast charging times and long battery life.

2.2 Powering On and Initial Use

The Uogic Stylus Pen does not require Bluetooth pairing for basic functionality. Simply turn it on and start using it.

1. Press and hold the upper button on the stylus pen for 1 second to power it on.
2. The indicator light will illuminate, signifying that the pen is ready for use.
3. The pen automatically enters sleep mode after 10 minutes of inactivity to conserve power.

Figure 2.2: Quick Start Guide

This image demonstrates how to quickly start using the stylus pen by pressing and holding the upper button, with no Bluetooth pairing required.

3. Operating Your Stylus Pen

3.1 Smooth Writing and Pressure Sensitivity

The Uogic Stylus Pen supports 1024 levels of pressure sensitivity, allowing for a natural and precise writing and drawing experience. The CNC-crafted, gold-plated nib ensures smooth lines without broken contacts.

Figure 3.1: Smooth Writing Technology

This image details the internal components of the pen tip, emphasizing the gold-plated copper core for precise and delay-free writing.

3.2 Eraser and Right-Click Functions

The stylus pen is equipped with two functional buttons for enhanced productivity:

• Dolní tlačítko: Functions as an Guma. Press and hold this button while touching the screen to erase content.
• Horní tlačítko: Functions as a Klikněte pravým tlačítkem button. Press and hold this button before touching the pen to the tablet screen to activate right-click menus or functions.

Obrázek 3.2: Funkce tlačítek

This image clearly labels the right-click and eraser buttons on the stylus, explaining their respective functions for easy editing.

3.3 Odmítnutí dlaně

With palm rejection technology, you can comfortably rest your hand on the screen while writing or drawing. The device will only register input from the pen tip, preventing accidental marks from your palm.

Figure 3.3: Palm Rejection Feature

This image visually confirms the palm rejection feature, allowing users to write naturally without needing special gloves.

3.4 Magnetické uchycení

The Uogic Stylus Pen features two built-in magnets, allowing it to securely attach to the side of compatible Surface devices (e.g., Surface Pro/Go/Book) for convenient storage and transport.

4. Kompatibilita

The Uogic Stylus Pen is compatible with a wide range of devices running Windows 10/11 and supporting MPP 1.5/2.0 protocol. Please refer to the list below for specific compatible models. Note that only Windows systems support Bluetooth functions, though the pen's core features do not require Bluetooth.

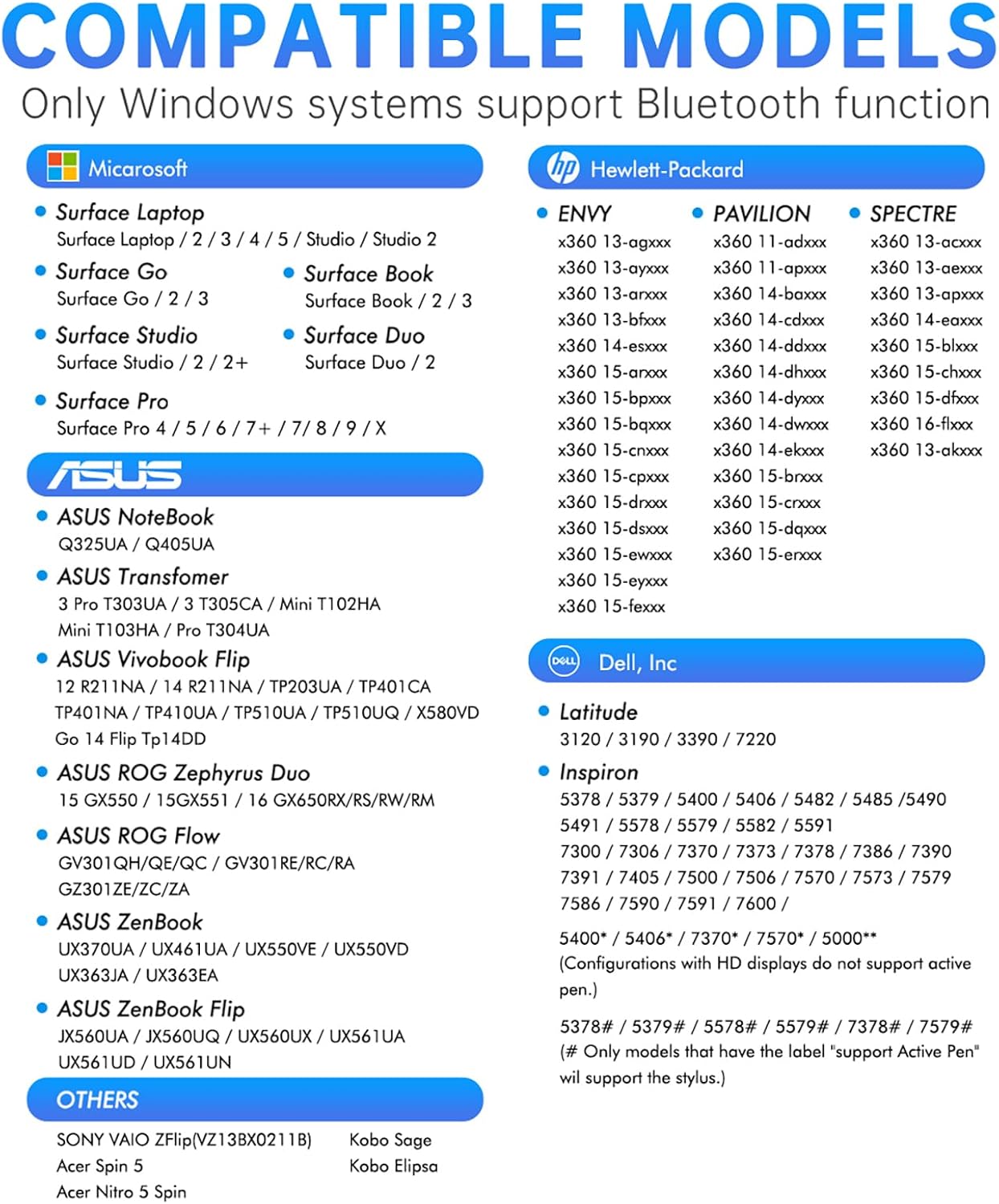

Figure 4.1: Compatible Models List

This image provides a comprehensive list of Microsoft Surface, HP, ASUS, and Dell devices that are compatible with the Uogic Stylus Pen.

Key Compatible Devices:

• Microsoft Surface: Surface Pro (3rd gen and later versions), Surface Go (1st/2nd/3rd gen), Surface Book (1st/2nd/3rd gen), Surface Studio (1st/2nd gen, 2+), Surface Laptop (1st/2nd/3rd/4th/5th gen), Surface Laptop Studio, Surface Duo (1st/2nd gen).
• HP ENVY, Pavilion, Spectre: Various x360 models (e.g., 13-apxxxx, 15-drxxxx, 11-adxxxx, 14-dhxxxx, etc.).
• ASUS: Notebook (Q325UA/Q405UA), Transformer (T303UA/T305CA/Mini T102HA/T103HA/T304UA), Vivobook Flip (various models), ROG Zephyrus Duo (15 GX550/15GX551/16 GX650RX/RS/RW/RM), ROG Flow (GV301QH/QE/QC), Zenbook (UX370UA/UX461UA/UX550VE/UX550VD/UX363JA/UX363EA), Zenbook Flip (JX560UA/JX560UQ/UX561UA/UX561UD/UX561UN).
• Dell: Latitude (3120/3190/3390/7220), Inspiron (various 5xxx and 7xxx models).
• ostatní: SONY VAIO Flip (VZ13BX2211B), Kobo Sage, Kobo Elipsa, Acer Spin 5, Acer Nitro 5 Spin.

5. Péče a údržba

5.1 Výměna hrotů pera

The Uogic Stylus Pen comes with replaceable tips. If the pen tip becomes worn or damaged, follow these steps to replace it:

1. Gently pull the old pen tip straight out from the stylus.
2. Insert a new replacement tip firmly into the pen until it clicks into place.

5.2 Péče o baterii

• Vyhněte se častému úplnému vybíjení baterie.
• Store the pen in a cool, dry place when not in use for extended periods.
• K nabíjení používejte pouze dodaný kabel USB-C nebo jeho certifikovaný ekvivalent.

5.3 Čištění

To clean your stylus pen, gently wipe it with a soft, dry, lint-free cloth. Do not use harsh chemicals or abrasive materials.

6. Řešení problémů

If you encounter issues with your Uogic Stylus Pen, please refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact Uogic customer support.

7. Specifikace

8. Záruka a podpora

Uogic stands behind the quality of its products. Your Stylus Pen comes with a Záruka 12 měsíců bez starostí od data nákupu.

For any questions, technical assistance, or warranty claims, please contact our friendly customer service team. We aim to provide quick responses within 12 hours.

Kontaktní údaje: Please refer to the contact details provided on the product packaging or the official Uogic webweb s nejaktuálnějšími informacemi o podpoře.

9. Oficiální produktová videa

No official product videos were available for embedding at this time.
