1. Úvod
Thank you for choosing the HyperMotion SWING HYP9 Playground Set. This comprehensive outdoor play structure is designed to provide hours of fun and physical activity for children aged 3 years and above. It features a robust and durable construction, offering a variety of play options including swings, a slide, a trapeze, a basketball hoop, and a football goal. This manual provides essential information for safe assembly, operation, maintenance, and troubleshooting to ensure a long-lasting and enjoyable experience.
The set is built with high-quality materials, including a powder-coated steel frame, ensuring high resistance to weather conditions and UV rays. Its energetic green color blends well with outdoor environments.
2. Bezpečnostní pokyny
VAROVÁNÍ: Nedodržení těchto bezpečnostních pokynů může vést k vážnému zranění.
- Tento výrobek je určen pouze pro venkovní použití.
- Doporučeno pro děti od 3 let.
- Adult supervision is required at all times when children are using the playground set.
- Ensure the playground set is installed on a level surface, at least 2 meters away from any structures or obstructions such as fences, garages, houses, overhanging branches, or laundry lines.
- The maximum load capacity for the entire frame is 300 kg.
- The maximum load capacity per swing seat is 45 kg.
- Do not allow more than 6 children to use the set simultaneously.
- Always ensure the set is properly anchored to the ground using the provided fixation anchors before use.
- Regularly inspect all components for wear, damage, or loose connections. Replace worn or damaged parts immediately.
- Do not modify the product in any way. Use only original replacement parts.
- Remove children from the play area during strong winds or adverse weather conditions.
- Ensure children wear appropriate clothing and footwear, avoiding loose items that could get caught.
3. Obsah balení
The HyperMotion SWING HYP9 Playground Set includes the following components:
- 1 x Main Steel Frame Structure
- 2 x Single Swings with adjustable ropes
- 1 x Double Swing
- 1 x Skluzavka
- 1 x Gymnastic Trapeze
- 1 x Basketball Hoop with net
- 1 x Football Goal with net
- Fixation Anchors
- All necessary assembly hardware (bolts, nuts, washers, etc.)
Obrázek 3.1: Přesview of all playground set components.
4. Nastavení a montáž
Assembly of the HyperMotion SWING HYP9 Playground Set is required. For safe and efficient assembly, it is highly recommended that dva dospělí work together.
- Výběr webu: Choose a level outdoor area for installation. Ensure there is at least 2 meters of clear space around the entire perimeter of the playground set.
- Rozbalte komponenty: Carefully unpack all parts and verify against the package contents list.
- Sestavte rám: Follow the detailed instructions provided in the separate assembly manual (not included in this general user manual) to construct the main steel frame. Ensure all bolts are securely tightened.
- Připevnění herních prvků: Once the main frame is stable, attach the slide, swings, trapeze, basketball hoop, and football goal according to the assembly manual.
- Kotvení: After full assembly, use the provided fixation anchors to secure the playground set firmly to the ground. This is crucial for stability and safety during use.

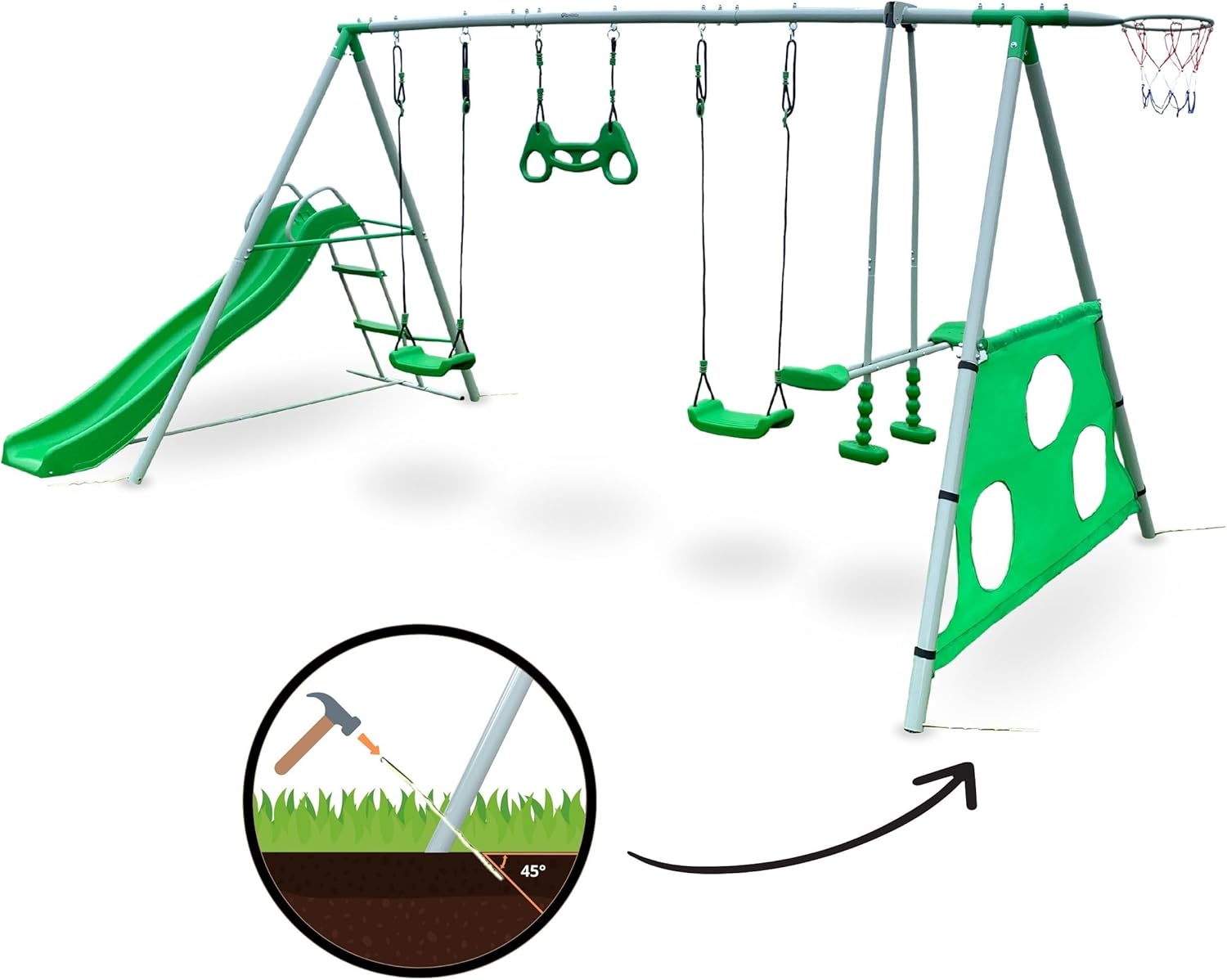

Figure 4.1: Proper anchoring of the playground set frame.
- Závěrečná kontrola: Before first use, perform a thorough inspection to ensure all connections are tight, all parts are correctly installed, and the set is stable.

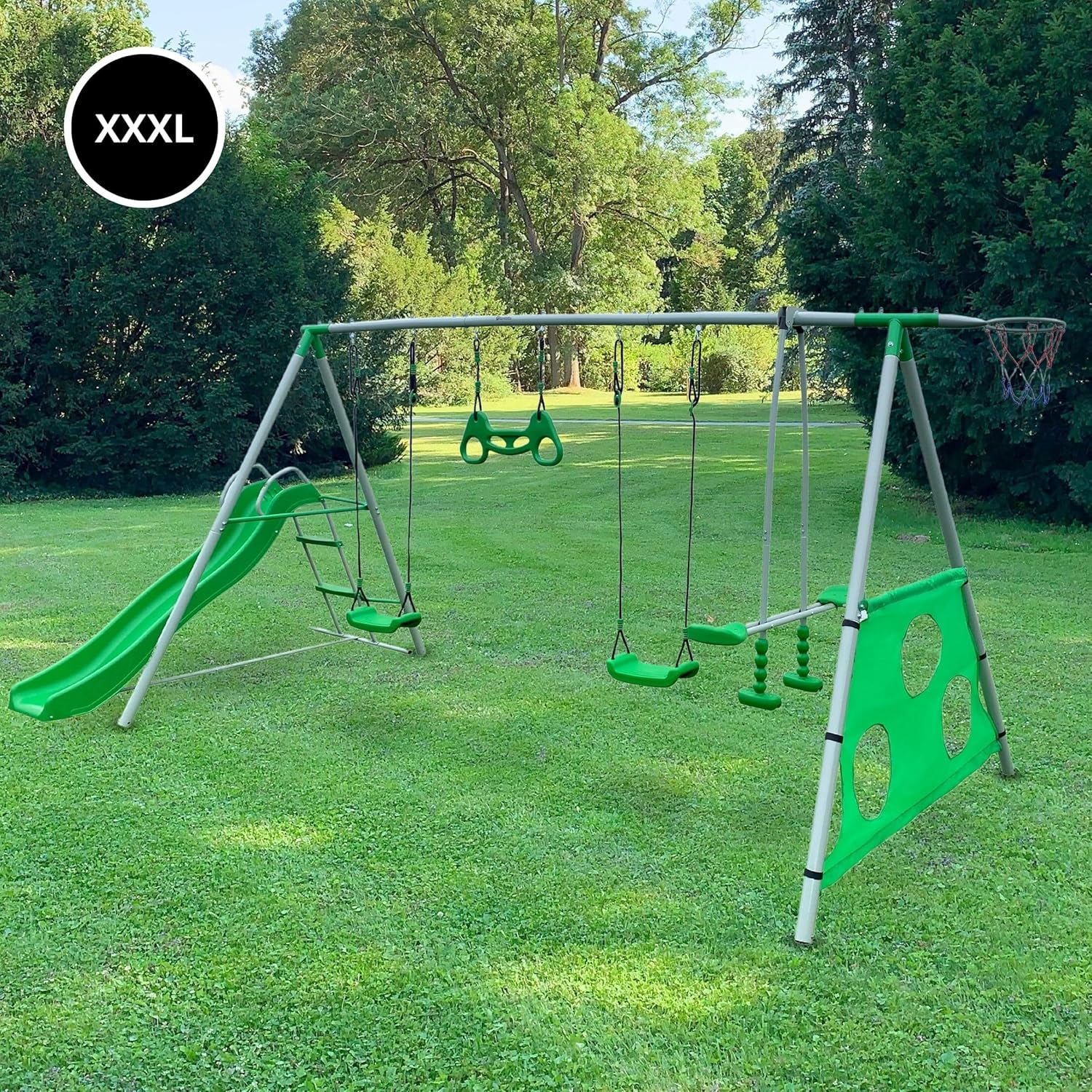

Figure 4.2: Fully assembled playground set in an outdoor setting.

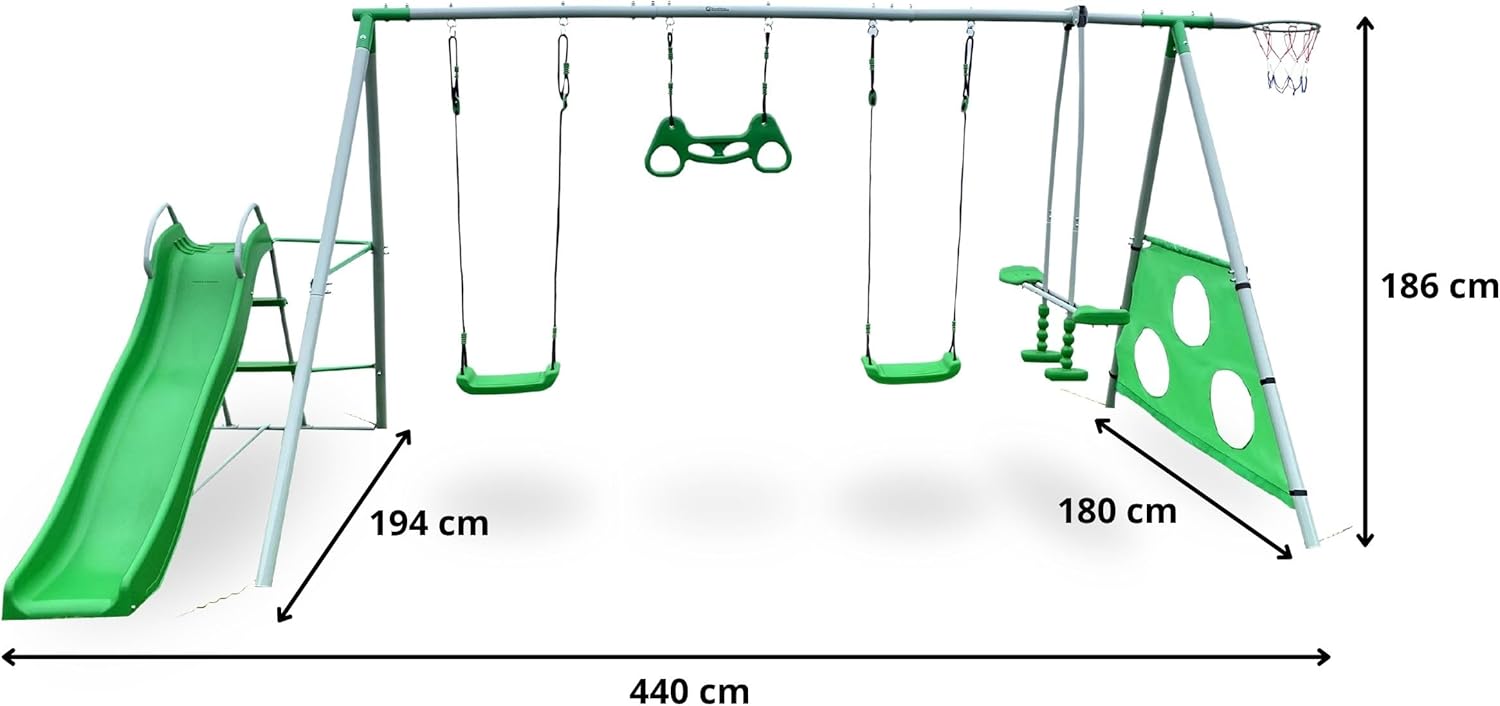

Figure 4.3: Dimensions of the assembled playground set.
5. Návod k obsluze
The HyperMotion SWING HYP9 Playground Set offers multiple play activities. Ensure children understand and follow safety guidelines for each component.
- Swings (Single and Double):
The swing ropes are adjustable by up to 30 cm to accommodate children of different heights. Ensure the swing seats are at a safe height for the child using them. Always hold onto the ropes firmly while swinging. Do not stand on the swing seats.
- Skluzavka:
Children should slide feet first and one at a time. Ensure the landing area at the bottom of the slide is clear.
- Gymnastic Trapeze:

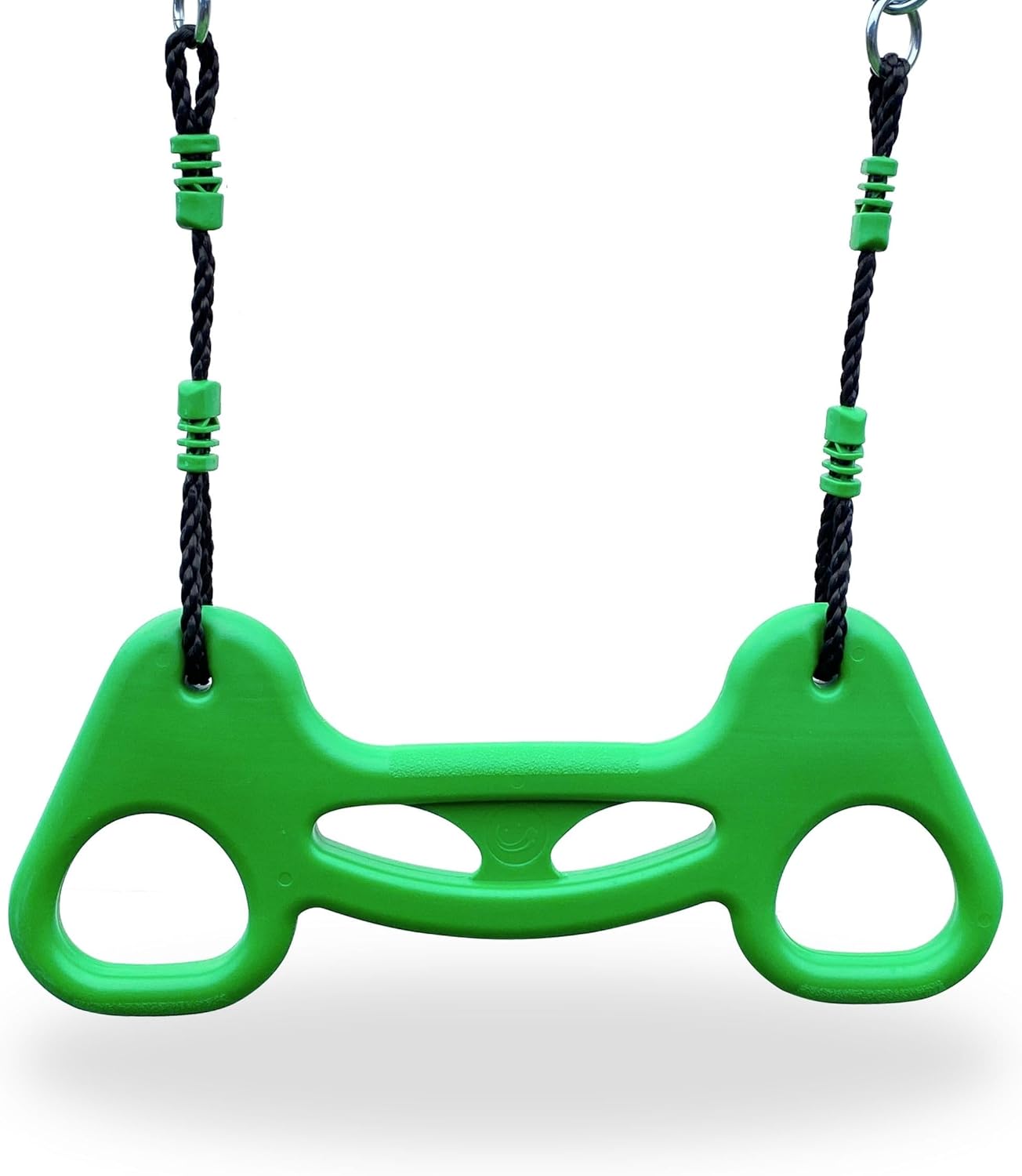

Figure 5.1: Detail of the gymnastic trapeze.
The trapeze is designed for children to hang and swing. Ensure a firm grip before attempting any maneuvers. Only one child should use the trapeze at a time.
- Basketbalový koš:

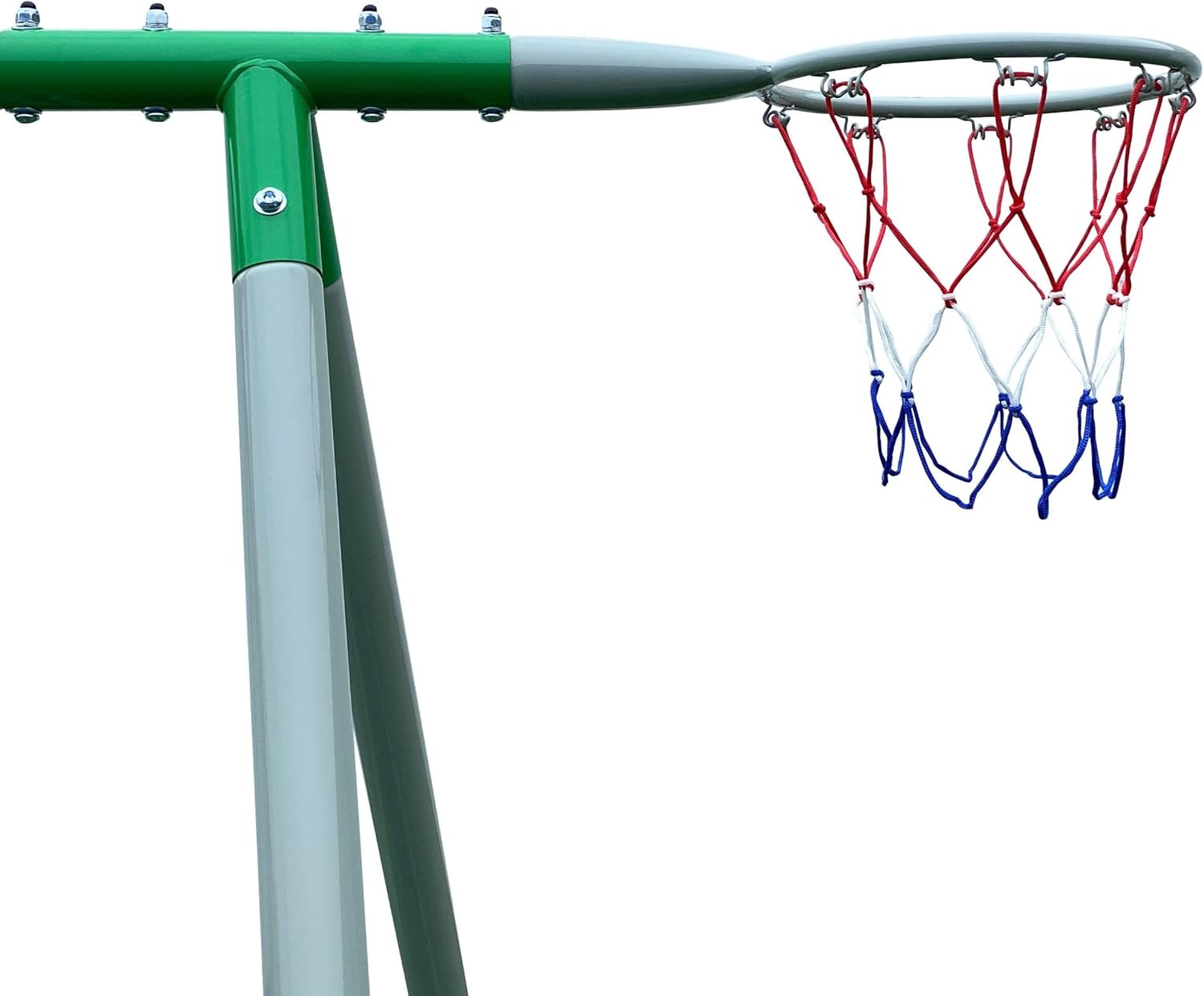

Figure 5.2: Detail of the basketball hoop.
Use a lightweight basketball. Do not hang on the basketball hoop or net.
- Football Goal:
Figure 5.3: Detail of the football goal with targets.
Use a lightweight football. The goal features targets for enhanced play. Do not climb on the football goal structure.
Figure 5.4: Child engaging with the basketball and football features.
6. Údržba
Regular maintenance will extend the life of your HyperMotion SWING HYP9 Playground Set and ensure continued safety.
- Čištění: Clean the frame and plastic components with a damp hadříkem a jemným mýdlem. Nepoužívejte abrazivní čisticí prostředky.
- Inspection (Monthly):
- Check all nuts and bolts for tightness. Tighten as necessary.
- Inspect all ropes, chains, and connections for wear, fraying, or damage.
- Examine plastic parts (seats, slide, trapeze) for cracks or excessive wear.
- Ensure ground anchors are still firmly in place.
- Zkontrolujte, zda se neobjevily ostré hrany nebo výčnělky.
- Ochrana proti počasí: The set is designed to be weather-resistant and UV-resistant. However, during extreme weather conditions (e.g., heavy snow, prolonged rain, strong winds), consider covering the set or disassembling certain components if possible to prevent damage.
- Mazání: Periodically check moving parts for smooth operation. Apply a suitable lubricant if necessary, ensuring it is safe for children's products.
7. Řešení problémů
This section addresses common issues you might encounter with your playground set.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Sada se zdá nestabilní nebo vratká. | Loose bolts; uneven ground; insufficient anchoring. | Tighten all bolts. Relocate to a level surface. Ensure anchors are fully engaged and secure. |
| Swings are not moving smoothly or making noise. | Friction in hangers; worn ropes/chains. | Apply a suitable lubricant to swing hangers. Inspect ropes/chains for wear and replace if necessary. |
| Parts appear worn or damaged. | Normal wear and tear; exposure to harsh elements. | Discontinue use of damaged part immediately. Contact HyperMotion for replacement parts. |
If you encounter a problem not listed here, or if the suggested solutions do not resolve the issue, please contact HyperMotion customer support.
8. Specifikace
| Funkce | Detail |
|---|---|
| Značka | HyperMotion |
| Číslo modelu | SWING HYP9 |
| Barva | Zelený |
| Celkové rozměry (D x Š x V) | 440 cm x 194 cm x 186 cm |
| Hmotnost produktu | 32 kg |
| Materiál rámu | Práškově lakovaná legovaná ocel |
| Jiné materiály | PP, PE, Polyester |
| Maximum Frame Load Capacity | 300 kg |
| Maximum Seat Load Capacity (each) | 45 kg |
| Průměr lana | 10 mm |
| Nastavení délky lana | 30 cm |
| Montáž Vyžadována | Ano |
| Doporučený věk | 3+ let |
Figure 8.1: Key product specifications at a glance.
9. Záruka a podpora
Specific warranty information for the HyperMotion SWING HYP9 Playground Set is not provided in this manual. Please refer to your purchase documentation or the retailer's webpodrobnosti o záručním krytí naleznete na webu.
For any questions, concerns, or to inquire about replacement parts, please contact HyperMotion customer support directly.
Výrobce: HyperMotion
Kontaktní údaje: Please visit the official HyperMotion website or the retailer's support page for contact details.
Poznámka: Informace o dostupnosti náhradních dílů nejsou momentálně k dispozici.
10. Oficiální produktová videa
Na základě poskytnutých údajů o produktu nejsou k dispozici žádná oficiální produktová videa od prodejce, která by bylo možné vložit do této příručky.
