Uživatelská příručka k digitálnímu LED budíku Abovsare F800

1. Úvod

This manual provides detailed instructions for the setup, operation, and maintenance of your Abovsare F800 Digital LED Alarm Clock. Please read this manual thoroughly before using the product to ensure proper function and longevity.

Image 1.1: The Abovsare F800 Digital LED Alarm Clock, showcasing its large, multi-color display and ambient lighting.

2. Konec produktuview

2.1 Obsah balení

Ověřte, zda jsou v balení přítomny všechny položky:

• Abovsare F800 Digital LED Alarm Clock
• Dálkové ovládání
• Napájecí kabel USB
• CR2032 Battery (for memory function)
• Návod k použití
• Wall Mounting Accessories (guide, screws)

Image 2.1: Included components: clock unit, remote, USB cable, CR2032 battery, and mounting hardware.

2.2 Klíčové vlastnosti

• Velký LED displej: High-definition, 13-inch LED screen for clear visibility.
• 12 RGB Digit Colors: Customize the display digits with 12 different color options via remote control.
• Noční osvětlení okolního prostředí: Features 14 distinct color ambient lights at the base, usable as a night light.
• Nastavitelný jas: Five levels of brightness can be set manually, plus an automatic dimming function.
• Time & Calendar Alternation: Option to cycle between time display (10 seconds) and calendar display (5 seconds).
• Funkce paměti: Built-in memory retains time data even if power is disconnected (requires CR2032 battery).
• Možnosti montáže: Can be wall-mounted or placed on a desktop using the folding bracket.
• Funkce alarmu: Integrated alarm clock feature.

3. Pokyny k nastavení

3.1 Připojení napájení

The Abovsare F800 Digital LED Alarm Clock is powered by a corded electric connection. It is not battery operated for its primary functions and must be plugged in to work.

1. Connect the provided USB power cable to the clock's USB port.
2. Connect the other end of the USB cable to a 5V/1A or 5V/2A USB adapter (not included, unless specified as "adapter include" in your purchase) or a compatible USB port.
3. Ensure the connection is secure. The clock display should illuminate.

3.2 Memory Battery Installation

A CR2032 battery is required for the memory function, which preserves time settings during power outagnebo když jsou hodiny odpojené ze zásuvky.

1. Najděte přihrádku na baterie na zadní straně hodin.
2. Insert one CR2032 battery, ensuring correct polarity (+/-).
3. Bezpečně uzavřete přihrádku na baterie.

3.3 Možnosti montáže

The clock offers both wall-mounting and desktop placement options.

• Umístění na počítači: Extend the folding bracket located on the back of the clock to stand it upright on any flat surface.
• Montáž na stěnu: Use the integrated wall hanging holes and the provided mounting accessories (screws, guide) to securely attach the clock to a wall.

Obrázek 3.1: Zadní strana view illustrating the wall hanging holes and the folding bracket for versatile placement.

4. Návod k obsluze

All primary settings and adjustments are performed using the included remote control.

4.1 Nastavení času a data

1. Press the "SET" button on the remote control to enter time setting mode.
2. Use the directional arrows (Up/Down) to adjust the hour, and (Left/Right) to move between hour, minute, year, month, and day settings.
3. Stiskněte znovu tlačítko „SET“ pro potvrzení každého nastavení a přechod k dalšímu.
4. To switch between 12-hour and 24-hour format, press the "12/24H" button on the remote.

Obrázek 4.1: Příkladample of the clock displaying time in both 12-hour (AM/PM) and 24-hour formats.

4.2 Nastavení alarmu

1. Press the "ALARM" button on the remote control.
2. Use the directional arrows to set the desired alarm time.
3. Press "ALARM" again to confirm.
4. To activate or deactivate the alarm, press the "ALARM ON/OFF" button. An alarm icon will appear on the display when active.

Image 4.2: The alarm bell icon indicates that the alarm function is currently active.

4.3 Nastavení jasu displeje

The clock offers five levels of manual brightness adjustment and an automatic dimming feature.

• Ruční nastavení: Press the "BRIGHTNESS" button on the remote control repeatedly to cycle through the five brightness levels (100%, 70%, 50%, 20%, Off).
• Automatické stmívání: The clock automatically adjusts its brightness based on the time of day:
  • AM 7:00 - PM 6:59: High Brightness
  • PM 7:00 - PM 10:59: Medium Brightness
  • PM 11:00 - AM 6:59: Low Brightness

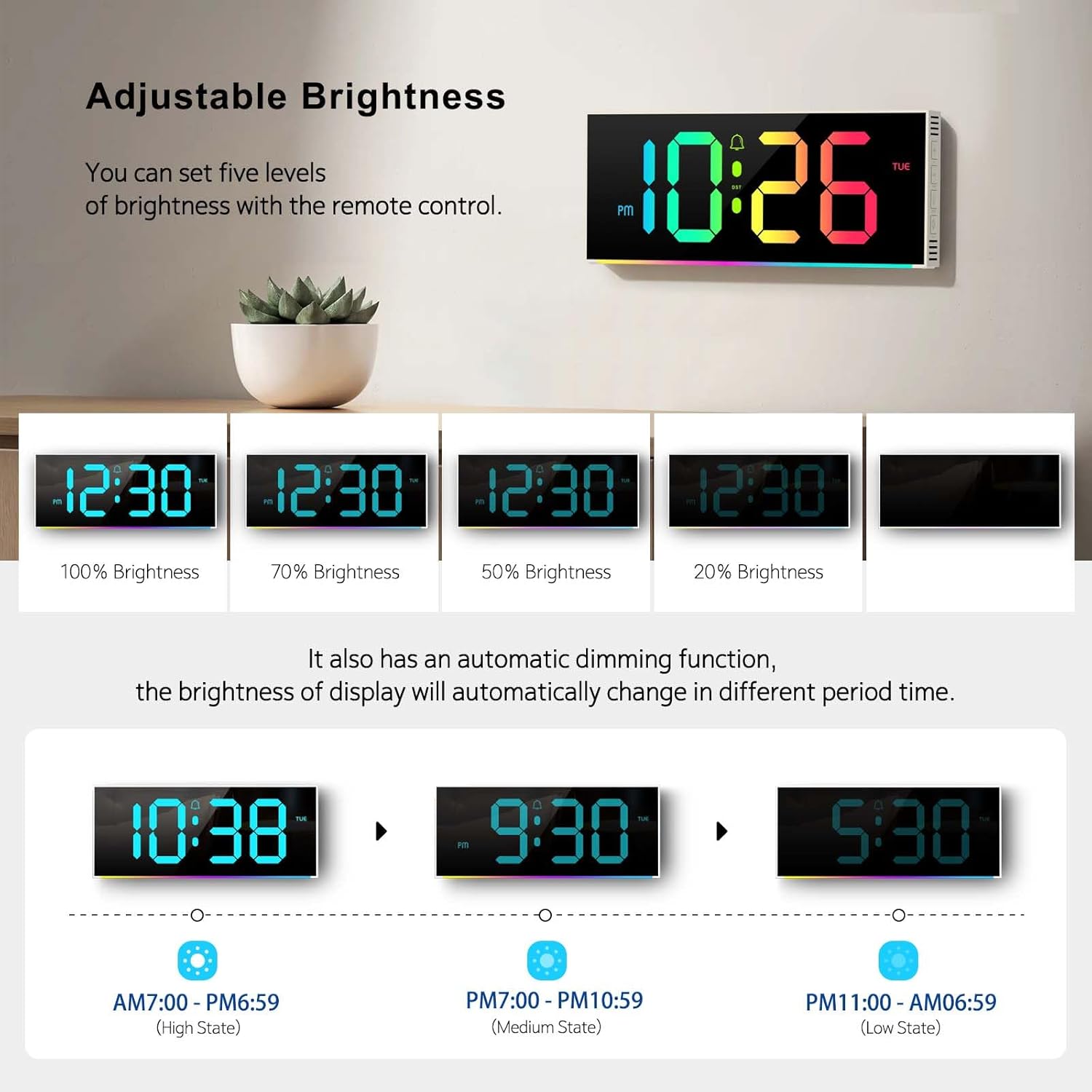

Image 4.3: Visual representation of the five brightness levels and the automatic dimming schedule.

Image 4.4: Detailed diagram of the clock's automatic dimming function based on time periods.

4.4 Changing Digit Colors

The clock digits can be displayed in 12 different RGB colors.

1. Press the "COLOR" button on the remote control to cycle through the available digit colors.
2. Select your preferred color.

Obrázek 4.5: Příkladamples of the 12 different RGB digit colors that can be selected using the remote control.

4.5 Controlling Ambient Night Light

The clock features 14 different ambient light colors at its base.

1. Press the "AMBIENT LIGHT" button on the remote control to turn the ambient light on/off or cycle through the colors.
2. Select your desired ambient light color.

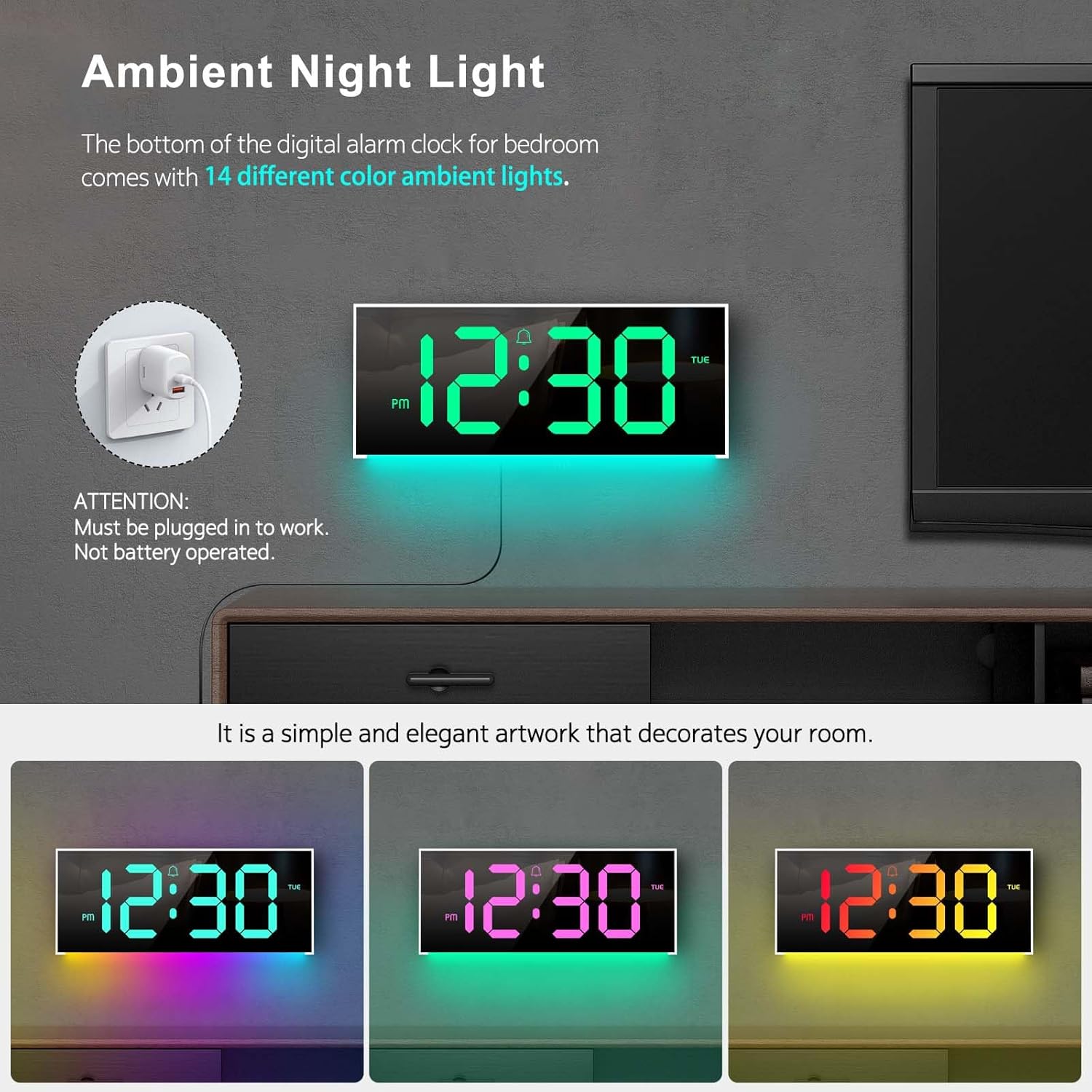

Image 4.6: The clock's ambient night light feature, displaying different color options in a room environment.

Image 4.7: The ambient night light feature providing subtle illumination, with examprůzné barvy.

4.6 Time and Calendar Alternation

The clock can be set to alternate between displaying the time and the calendar.

1. Press the "ALT" button on the remote control to activate or deactivate the alternation mode.
2. When active, the display will show the time for 10 seconds, then switch to the calendar for 5 seconds, and continuously cycle.

Image 4.8: The clock demonstrating the alternation between time display and calendar display.

5. Údržba

To ensure the longevity and optimal performance of your Abovsare F800 Digital LED Alarm Clock, follow these maintenance guidelines:

• Čištění: Use a soft, dry cloth to gently wipe the display and exterior surfaces. Avoid abrasive cleaners, solvents, or spray directly onto the clock.
• Moc: Always use a 5V/1A or 5V/2A adapter. Using an incorrect power source may damage the device.
• Prostředí: Chraňte hodiny před přímým slunečním zářením, extrémními teplotami a vysokou vlhkostí.
• Výměna baterie: Replace the CR2032 memory battery annually or if you notice the clock losing time settings after a power disconnection.

6. Řešení problémů

7. Specifikace

• Značka: Abovsare
• Model: F800
• Typ displeje: LED
• Rozměry produktu: 11.6 cm Š x 4.8 cm V
• Zdroj napájení: Corded Electric (USB, requires 5V/1A or 5V/2A adapter)
• Baterie paměti: 1 x CR2032 (vyžadováno)
• Materiál rámu: Plast
• Typ montáže: Stolní nebo nástěnná
• Speciální vlastnosti: Adjustable Brightness, Alarm, Ambient Night Light, Large LED display, Remote Control, Time & Calendar Alternation
• Hmotnost položky: 1.23 libry

8. Záruka a podpora

Abovsare provides a Záruka 12 měsíců bez starostí pro tento produkt, zajištění kvality a spokojenosti zákazníků.

V případě jakýchkoli dotazů, obav nebo potřeby podpory se prosím obraťte na náš tým zákaznických služeb. Nabízíme 24hodinový zákaznický servis abychom vám pomohli.

Kontaktní metoda: Please reach out to us via the buyer-seller message system on the platform where you purchased the product.
