MOTOPOWER MP0515A 12V Car Battery Load Tester & MP69040 OBD2 Scanner User Manual

1. Úvod

This manual provides comprehensive instructions for the MOTOPOWER MP0515A 12V Car Battery Load Tester and the MOTOPOWER MP69040 OBD2 Scanner. It covers setup, operation, maintenance, and troubleshooting to ensure safe and effective use of both devices. Please read this manual thoroughly before operating the equipment.

2. Bezpečnostní informace

Always observe the following safety precautions when using the battery tester and OBD2 scanner:

• Wear appropriate eye protection and protective clothing when working near vehicle batteries.
• Ensure adequate ventilation in the work area to disperse any battery gases.
• Avoid creating sparks or open flames near the battery, as batteries can produce explosive gases.
• The MP0515A tester features reverse-hookup and over-voltage ochrana pro bezpečný provoz.
• The MP69040 OBD2 scanner is not compatible with new energy vehicles or hybrid vehicles. Verify vehicle compatibility before use.
• Keep both devices dry and clean. Do not expose to rain or moisture.

3. Obsah balení

Váš balíček by měl obsahovat následující položky:

• MOTOPOWER MP0515A 12V Car Battery Load Tester with attached clamps
• MOTOPOWER MP69040 OBD2 Scanner with integrated OBD2 cable
• Uživatelská příručka (tento dokument)

4. Konec produktuview

4.1 MOTOPOWER MP0515A 12V Car Battery Load Tester

The MP0515A is designed to quickly assess the health of 12V vehicle batteries and the performance of the alternator/charging system. It features a digital voltmeter and LED indicators for clear results.

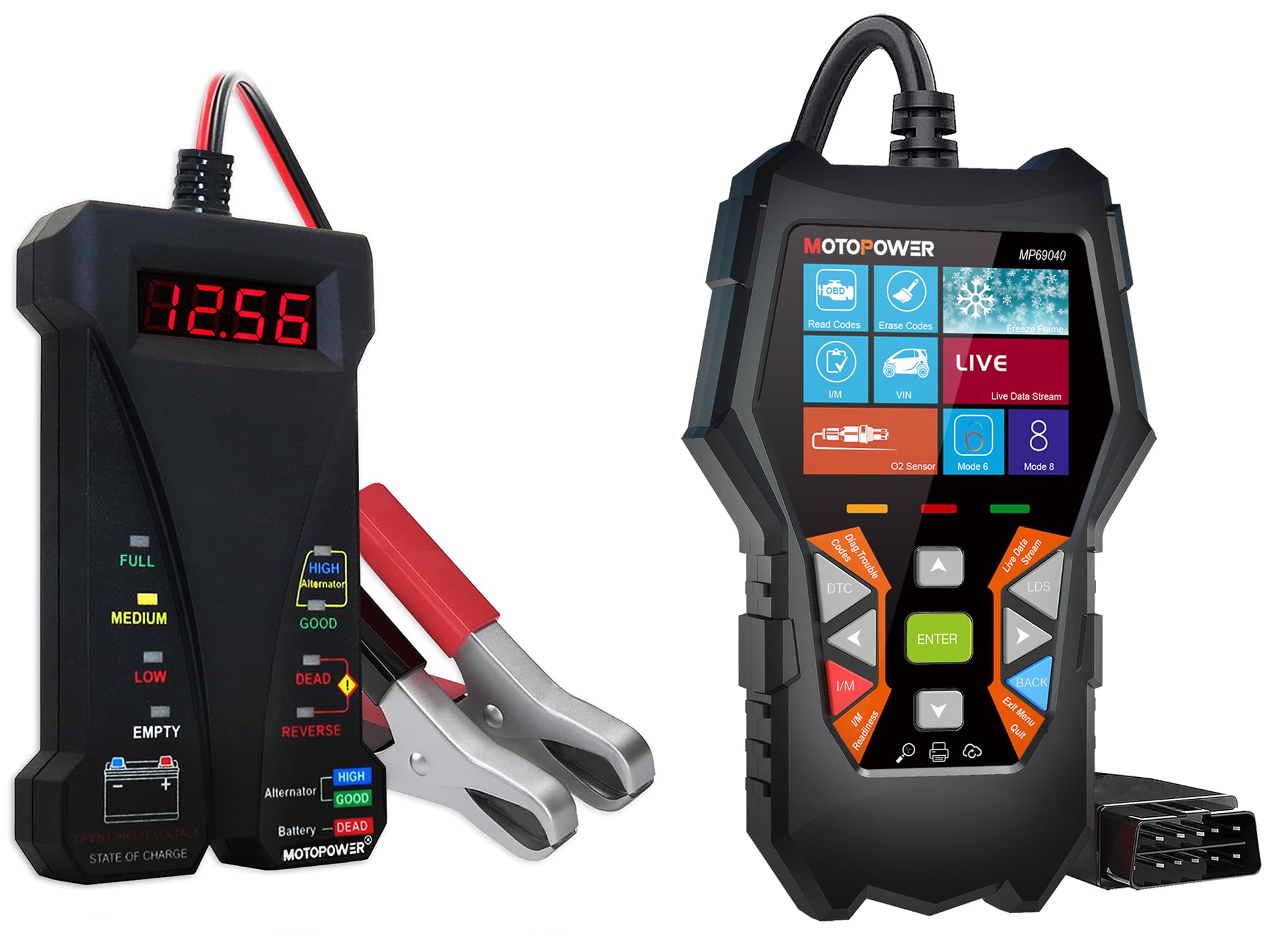

Image: MP0515A displaying voltage and alternator status during a charging system test.

• svtage Test: Digitální displej zobrazuje objemtage from 4-20V DC with 0.01V accuracy.
• Battery Status LED Display: Indicators for FULL, MEDIUM, LOW, EMPTY.
• Alternator Output Analyze: Indicators for HIGH, GOOD, DEAD, REVERSE.
• Kompatibilita: Suitable for Regular Flooded, AGM, GEL, and EFB 12V batteries.

Image: MP0515A connected to a battery, highlighting its compatibility with different 12V battery types.

4.2 MOTOPOWER MP69040 OBD2 Scanner

The MP69040 is an advanced OBD2 diagnostic tool designed to read and clear diagnostic trouble codes (DTCs), display live data, and perform various other diagnostic functions for OBDII/EOBD compliant vehicles.

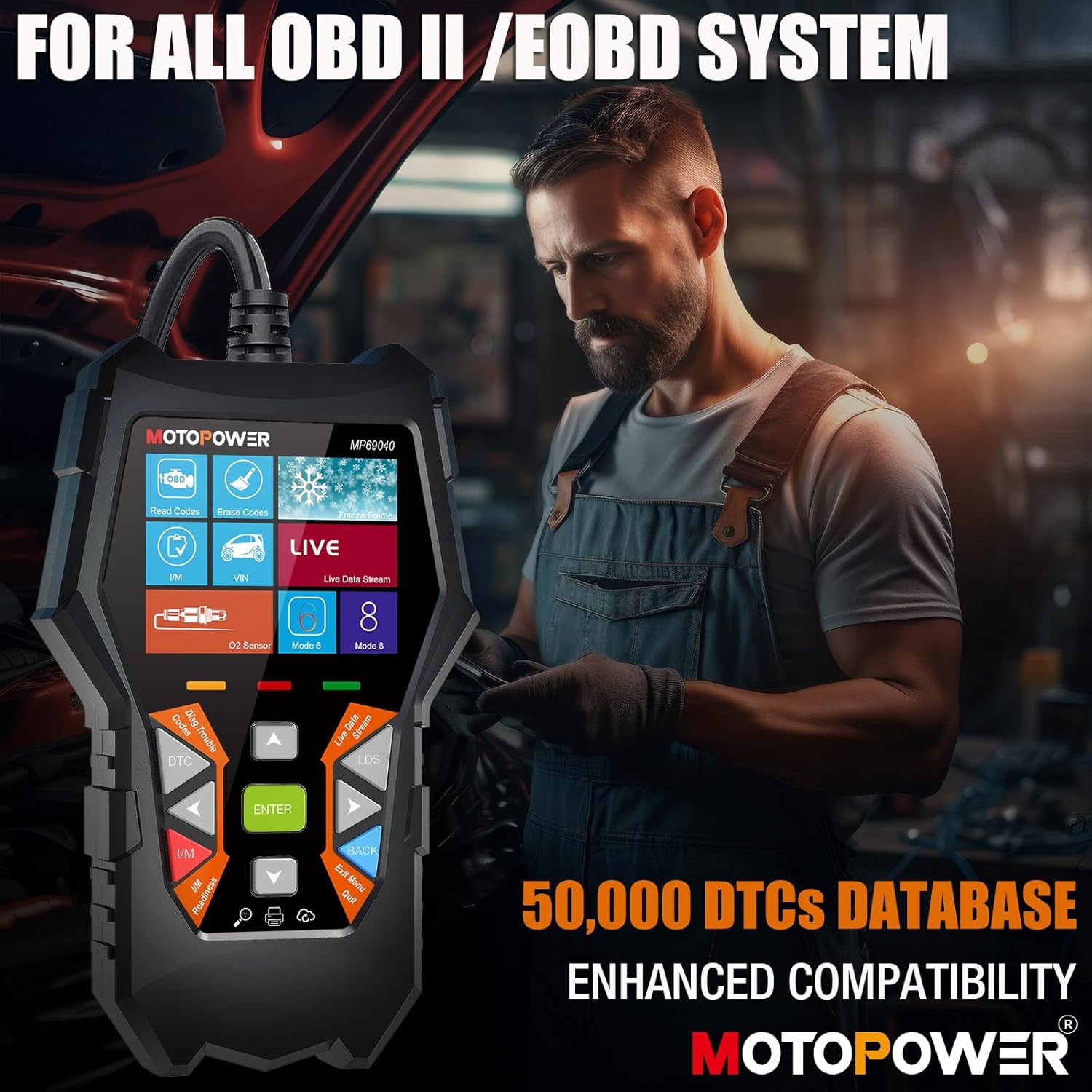

Image: MP69040 scanner showing its interface and broad OBDII/EOBD system compatibility.

• Zobrazit: 2.8-inch TFT color screen for clear readability.
• Kompatibilita: Supports all OBDII protocols (KWP2000, J1850 VPW, ISO9141, J1850 PWM, CAN). Compatible with 1996 US-based, 2003 EU-based, and 2008 Asian-based cars, light trucks, and SUVs.
• Vlastnosti: Read/Erase Codes, Live Data Stream, VIN information, O2 Sensor test, I/M Readiness, 50,000 DTCs database.
• Uživatelské rozhraní: User-friendly system interface with 10 built-in languages.
• Aktualizace: Lifetime free online updates.

Image: MP69040 displaying its 2.8-inch color screen and intuitive menu options.

5. Nastavení

5.1 MP0515A 12V Car Battery Load Tester Setup

1. Ujistěte se, že je vypnuté zapalování vozidla a veškeré příslušenství.
2. Připojte červený kladný (+) třamp of the tester to the positive (+) terminal of the 12V vehicle battery.
3. Připojte černý záporný (-) třamp of the tester to the negative (-) terminal of the 12V vehicle battery.
4. Ensure both connections are secure and free from corrosion. The tester will power on automatically.

5.2 MP69040 OBD2 Scanner Setup

1. Vyhledejte 16pinový datový konektor (DLC) vozidla, který se obvykle nachází pod palubní deskou na straně řidiče.
2. Plug the MP69040's OBD2 cable firmly into the vehicle's DLC.
3. Turn the vehicle's ignition to the 'ON' position (engine off or running, depending on the test). The scanner will power on automatically.

6. Návod k obsluze

6.1 MP0515A 12V Car Battery Load Tester Operation

Image: MP0515A illustrating the simple steps for testing both battery and alternator.

6.1.1 Battery Status Test (Vehicle Off)

1. Ensure the MP0515A is correctly connected to the 12V battery with the vehicle's engine off.
2. Observe the digital voltage displej.
3. Read the battery status indicated by the LEDs on the levá strana of the tester:
   • PLNÝ: Baterie je plně nabitá.
   • STŘEDNÍ: Battery has a moderate charge.
   • NÍZKÝ: Battery charge is low, consider charging.
   • PRÁZDNÝ: Battery is discharged or critically low.

Image: MP0515A performing a battery test, showing voltage and charge level LEDs.

6.1.2 Alternator / Charging System Test (Vehicle Running)

1. Ensure the MP0515A is correctly connected to the 12V battery.
2. Start the vehicle's engine and let it run at idle.
3. Observe the digital voltage display. A healthy charging system typically shows around 13.5V to 14.5V.
4. Read the alternator status indicated by the LEDs on the pravá strana of the tester:
   • VYSOKÝ: Výstup alternátoru objtage je příliš vysoké.
   • DOBRÝ: Alternator output is within normal operating range.
   • DEAD: Alternator is not charging the battery.
   • ZVRÁTIT: Indicates incorrect polarity connection (clamps reversed).

6.2 MP69040 OBD2 Scanner Operation

Image: MP69040 showcasing its various diagnostic capabilities and user interface.

1. After connecting the scanner to the vehicle's DLC and turning the ignition ON, the device will power up and display the main menu.
2. Use the directional buttons (UP/DOWN/LEFT/RIGHT) to navigate through the menu options.
3. Stiskněte tlačítko ENTER tlačítko pro výběr možnosti nebo potvrzení akce.
4. Klíčové funkce:
   • Číst kódy: Načítá diagnostické chybové kódy (DTC) z počítače vozidla.
   • Vymazat kódy: Clears DTCs from the vehicle's computer. This will turn off the Check Engine Light (MIL).
   • Živá data: Zobrazuje parametry dat v reálném čase ze senzorů a modulů vozidla.
   • Připravenost I/M: Kontroluje stav monitorů souvisejících s emisemi.
   • VIN: Displays Vehicle Identification Number and other vehicle information.
5. Chcete-li opustit menu nebo se vrátit na předchozí obrazovku, stiskněte ZADNÍ tlačítko.

Image: MP69040 showing live data stream, including engine RPM and fuel pressure, for accurate diagnosis.

7. Údržba

• Keep both the MP0515A and MP69040 clean and dry. Wipe with a soft, damp V případě potřeby otřete hadříkem. Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla.
• Zařízení skladujte na chladném a suchém místě mimo dosah přímého slunečního záření a extrémních teplot.
• Regularly inspect the cables and connectors for any signs of damage, wear, or corrosion. Replace if damaged.
• For the MP69040, ensure you perform lifetime free updates as they become available to maintain optimal performance and compatibility. Refer to the MOTOPOWER webstránky s pokyny k aktualizaci.

8. Řešení problémů

8.1 MP0515A Battery Tester Troubleshooting

• Displej zobrazuje „LO“: Baterie objtage is under 4V DC. The battery may be severely discharged or faulty.
• Display shows "HI": Baterie objtage is above 20V DC. This is outside the normal operating range for a 12V system and may indicate a charging system fault or incorrect application.
• "REVERSE" LED is lit: The positive and negative clamps are connected to the wrong battery terminals. Disconnect immediately and reconnect with correct polarity.
• No display/No power: Zajistěte třamps are securely connected to the battery terminals and the battery has sufficient voltage (nad 4V).

8.2 MP69040 OBD2 Scanner Troubleshooting

• Skener se nezapne: Check that the OBD2 cable is securely connected to the vehicle's DLC and the vehicle's ignition is in the 'ON' position. Verify the vehicle's battery is not dead.
• "Link Error" or "Communication Error": Ensure the OBD2 cable is properly connected. Verify the vehicle is OBDII/EOBD compliant and not a new energy or hybrid vehicle. Try turning the ignition off and on again, or try on a different compatible vehicle if available.
• Obrazovka zamrzla/nereaguje: Disconnect the scanner from the vehicle, wait a few seconds, and reconnect.

9. Specifikace

10. Záruka a podpora

For warranty information, technical support, or any questions regarding your MOTOPOWER MP0515A Battery Load Tester or MP69040 OBD2 Scanner, please contact MOTOPOWER customer service. Refer to the product packaging or the official MOTOPOWER webstránky pro kontaktní údaje.
