Outsunny Tunnel Greenhouse 600 x 300 x 200 cm Instruction Manual

Zavedení

Thank you for choosing the Outsunny Tunnel Greenhouse. This manual provides essential information for the safe assembly, operation, and maintenance of your greenhouse. Please read it thoroughly before installation and keep it for future reference.

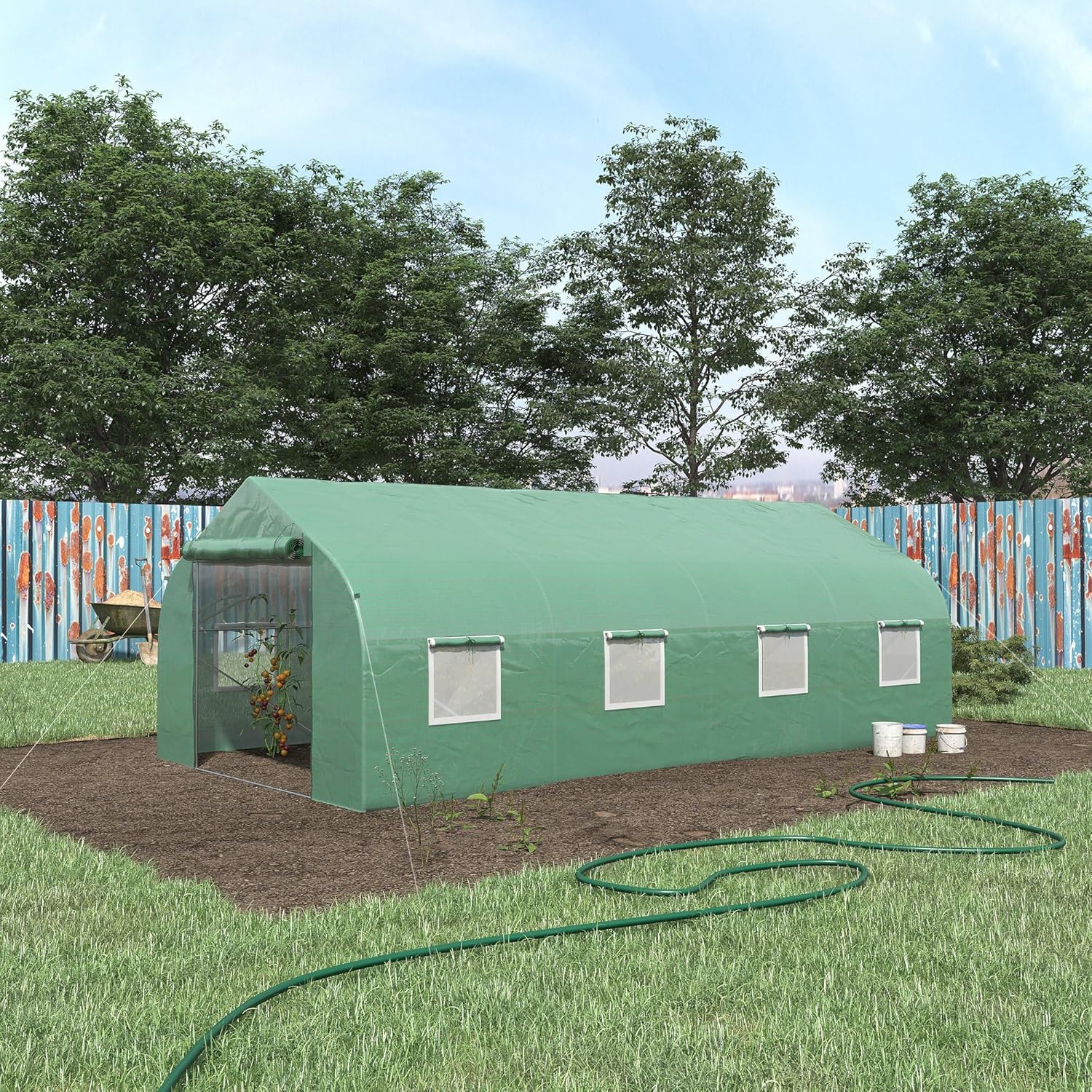

Image: The Outsunny Tunnel Greenhouse, a spacious green structure with roll-up windows, set up in a garden environment.

This spacious tunnel greenhouse measures 595 cm in length, 300 cm in width, and 210 cm in height, offering an exploitable ground surface of 18 m². It is designed for cultivating fruits, vegetables, and flowers, providing a protected environment for your plants.

Bezpečnostní informace

• Always assemble the greenhouse on a level and stable surface.
• Před použitím se ujistěte, že jsou všechny součásti bezpečně upevněny.
• Do not use the greenhouse in extreme weather conditions such as strong winds, heavy snow, or hail. Disassemble or secure it appropriately to prevent damage.
• Udržujte děti a domácí zvířata mimo oblast montáže.
• Wear appropriate safety gear during assembly, including gloves.
• Bury the extended edge of the PE cover deeply into the soil (at least 15 cm) to enhance stability against wind.
• Use the provided spiral ground stakes and tie-down ropes to firmly secure the greenhouse to the ground.

Obsah balení

Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, please contact Outsunny customer support.

• Galvanized Metal Frame Components (various tubes and connectors)
• High-Density PE Cover (140 g/m²)
• Rolovací dveře na zip
• 8 Roll-up Mesh Windows
• Spiral Ground Stakes
• Tie-down Ropes
• Attachment Balls
• Lepicí páska
• Assembly Guide (illustrated)

Image: A detailed diagram highlighting the selected materials: tear-resistant PE cover, inclined support tubes, and a galvanized steel frame, emphasizing heat preservation, UV protection, and bird resistance.

Nastavení a montáž

Follow the illustrated guide provided with your product for detailed step-by-step instructions. The following points are crucial for a stable and durable assembly:

1. Sestava rámu: Construct the galvanized metal frame according to the diagrams. Ensure all tubes are correctly connected and secured. The frame features oblique reinforcements, a front crossbar, and central tubes for enhanced stability. The tubes are 25mm in diameter with a 0.5mm thickness for strength.

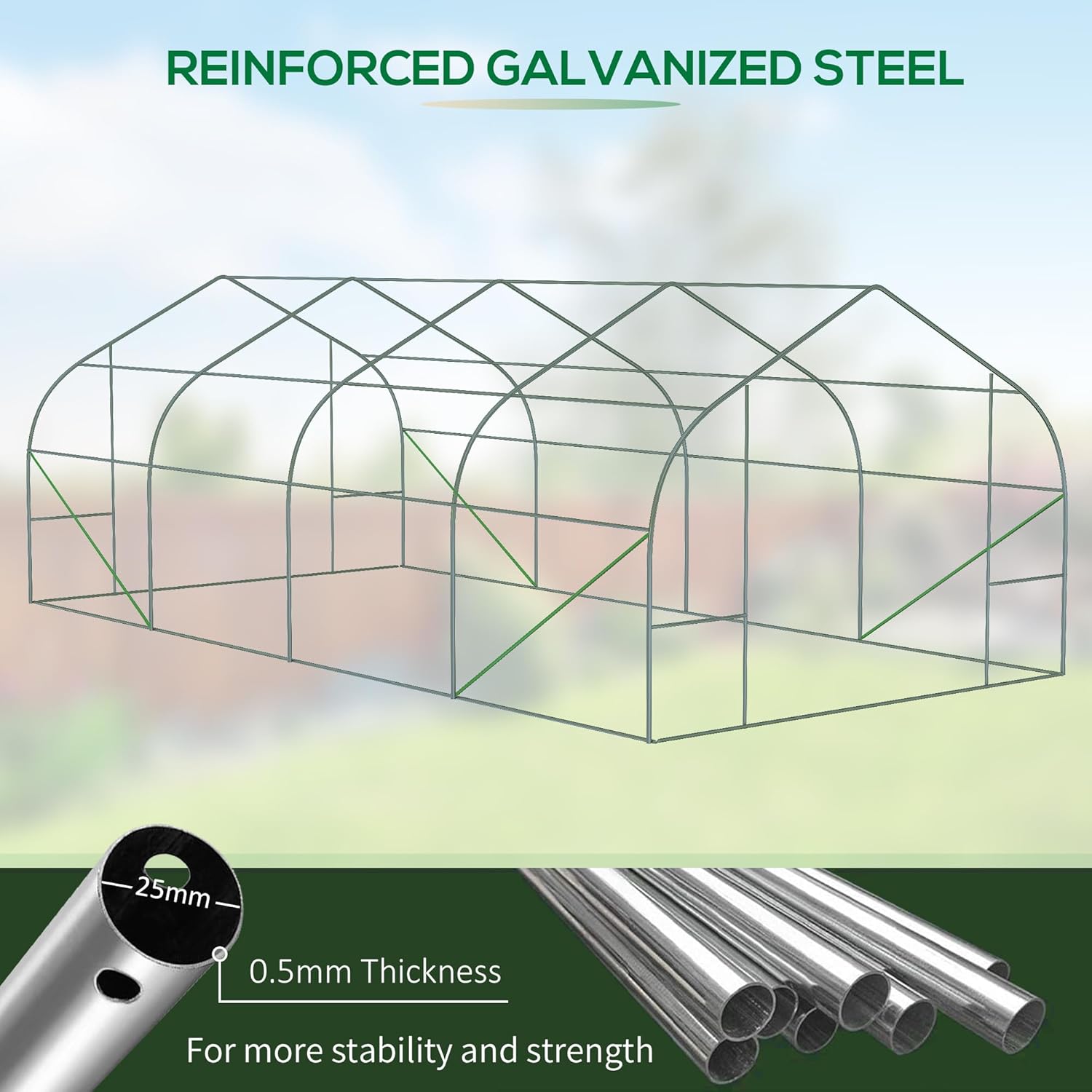

Image: A technical drawing illustrating the reinforced galvanized steel frame structure, highlighting the 25mm diameter and 0.5mm thickness of the tubes for stability.
2. Instalace krytu: Carefully drape the high-density PE cover over the assembled frame. The cover has a 25 cm extension designed for easy installation and ground anchoring.
3. Zemní kotvení: Bury the 15 cm extended edge of the PE cover deeply into the soil to prevent wind from lifting the greenhouse.


Image: Instructions for securing the greenhouse: the 15 cm extended edge of the cover should be buried in the soil, and the four tie-down ropes should be fastened to the ground using spiral stakes.

4. Zajištění lany a kolíky: Use the provided tie-down ropes and spiral ground stakes to firmly fix the greenhouse to the ground. Ensure the ropes are taut.
5. Window and Door Attachment: Attach the roll-up mesh windows and the zippered door. Use the attachment balls to connect the cover to the frame where necessary. Apply the adhesive tape to cover any exposed screws on the frame to prevent damage to the cover.


Obrázek: Podrobný views of key components: a roll-up mesh window for air circulation, a roll-up zippered door for easy access, an attachment ball for securing the cover to the frame, and adhesive tape to protect the cover from screws.

Návod k obsluze

The Outsunny Tunnel Greenhouse is designed for optimal plant growth. Proper operation involves managing ventilation and access.

• Větrání: The greenhouse features 8 roll-up side windows with mosquito nets and tie-down cords. Roll up the windows to allow for maximum air circulation and temperature regulation, especially on warm days. The mosquito nets prevent pests from entering while maintaining airflow.
• Přístup: The roll-up zippered door provides easy access for tending to your plants, watering, and harvesting. Roll it up and secure it with the provided ties when entering or exiting, or for extended ventilation.
• Ovládání klimatu: Adjust the windows and door based on external weather conditions to maintain an ideal internal environment for your plants. Close them during colder periods or strong winds to protect plants.

Image: A collage demonstrating the versatility of the greenhouse for cultivating various plants, including fruits, vegetables, and flowers, highlighting the joy of planting and harvesting.

Údržba

• Čištění: Regularly clean the PE cover with mild soap and water to remove dirt and debris, ensuring maximum light penetration. Avoid abrasive cleaners.
• Kontrola rámu: Periodically check the galvanized metal frame for any signs of rust, damage, or loose connections. Tighten any loose bolts or connections.
• Kontrola krytu: Inspect the PE cover for tears or punctures. Small tears can be repaired with appropriate greenhouse repair tape to prevent them from enlarging.
• Kontrola ukotvení: Ensure the ground stakes and tie-down ropes remain secure, especially after strong winds or heavy rain. Re-tension ropes if necessary.
• Zimní skladování: In regions with heavy snowfall or extreme winter conditions, it is recommended to disassemble the greenhouse and store the components in a dry, protected area to prolong its lifespan.

Odstraňování problémů

Specifikace

Image: A comprehensive diagram illustrating the key dimensions of the greenhouse, including length (595 cm), width (300 cm), and height (210 cm), along with window and door measurements.

Záruka a podpora

Konkrétní informace o záruce pro tento produkt se mohou lišit v závislosti na regionu a prodejci. Viz dokumentace k nákupu nebo záruční podmínky prodejce. webpodrobnosti o záručním krytí naleznete na webu.

For technical assistance, missing parts, or any other inquiries, please contact Outsunny customer support or the retailer from whom you purchased the product. While information on spare parts availability is not provided, customer support can guide you on potential solutions.

Kontaktní informace často najdete na Značkový obchod Outsunny nebo prostřednictvím vaší nákupní platformy.
