Zavedení
Thank you for choosing the Philips Smart Pedestal Fan Series 3000. This fan is designed to provide powerful and quiet cooling for your home. This manual provides essential information for the safe and efficient use of your appliance. Please read it thoroughly before first use and keep it for future reference.
The Philips Smart Pedestal Fan Series 3000 (CX3550/01) in black, designed for powerful yet quiet cooling.
Konec produktuview
The Philips Smart Pedestal Fan Series 3000 combines maximum cooling power with minimal noise. It features SilentWings technology for quiet operation, adjustable height for versatile use as a pedestal or table fan, and smart control via the Philips Air+ app.
This image illustrates the adjustable height of the fan, showing its dimensions as a pedestal fan (125 cm height, 40 cm width, 37.2 cm depth) and a table fan (82 cm height).
Nastavení a montáž
The fan is designed for easy assembly. Follow these general steps for initial setup:
- Vybalte všechny součásti z krabice.
- Assemble the base and attach the main pole.
- Attach the fan motor unit to the pole.
- Secure the front and rear grilles, ensuring the fan blades are correctly positioned.
- Připojte napájecí kabel.
Refer to the detailed assembly instructions provided in the product packaging for specific steps and diagrams.
All components of the fan laid out, demonstrating its modular design for straightforward assembly and cleaning.
Návod k obsluze
Your Philips Smart Pedestal Fan offers multiple ways to control its functions for personalized comfort.
Ovládací panel
The fan features an intuitive control panel located on the motor unit.
The fan's control panel features buttons for power, speed adjustment, mode selection, oscillation, and timer settings.
- Vypínač: Stisknutím zapnete nebo vypnete ventilátor.
- Nastavení rychlosti: Select from 3 available speeds to adjust airflow intensity.
- Výběr režimu: Choose between different modes such as Natural Breeze and Silent Sleep.
- Kmitání: Activate or deactivate the automatic 90-degree horizontal oscillation.
- Časovač: Set the fan to operate for a specific duration (1-12 hours).
Ovládání aplikací Philips Air+
For enhanced control and smart features, download the Philips Air+ app on your smartphone.

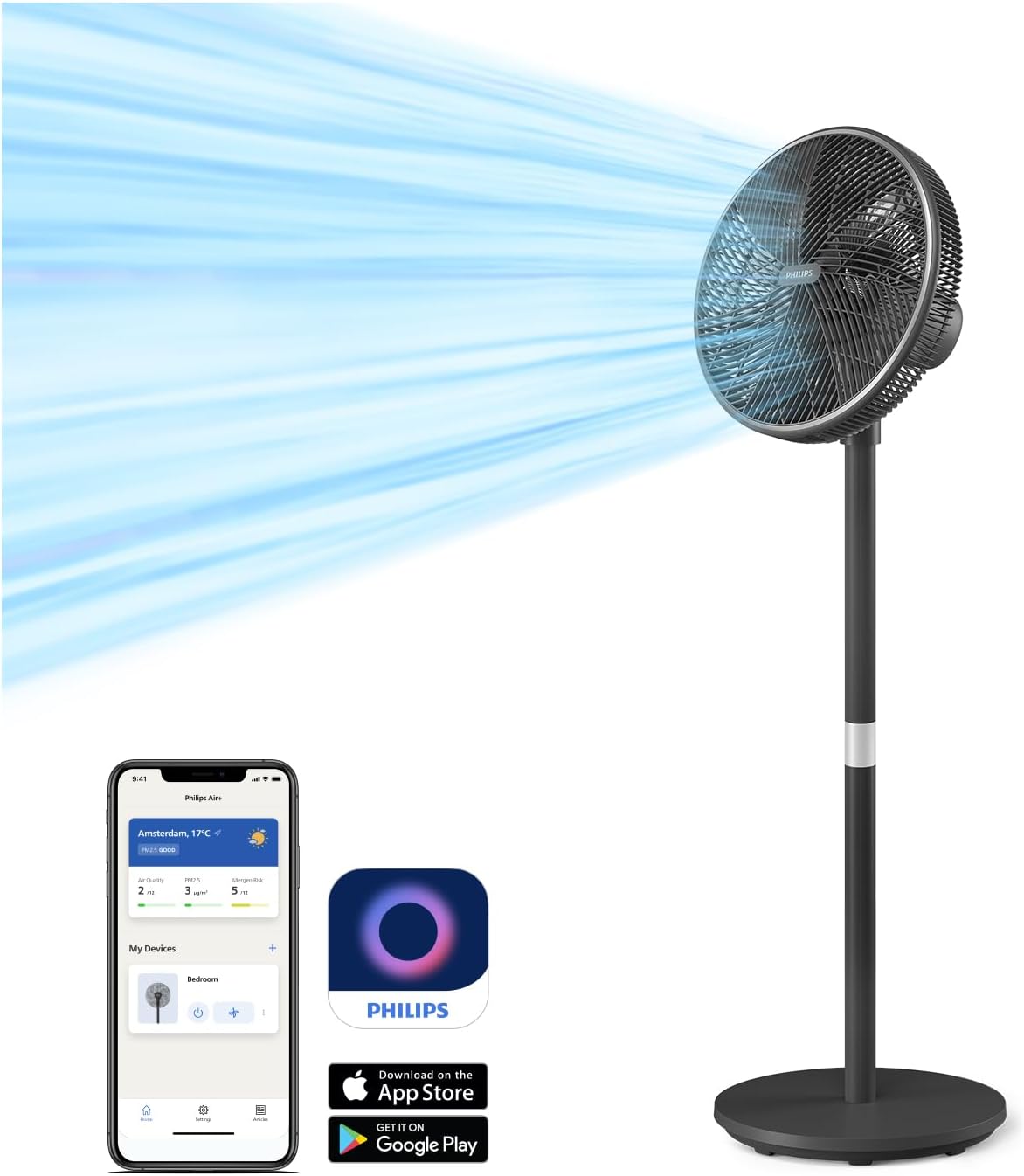

The Philips Air+ app allows remote control of fan settings, including speed, modes, and scheduling.
- Download the Philips Air+ app from the App Store or Google Play.
- Follow the in-app instructions to pair your fan with your device.
- Control all fan functions remotely, set schedules, and monitor room conditions.
Provozní režimy
- Režim přirozeného vánku: This mode simulates a gentle, refreshing outdoor breeze, providing a comfortable indoor experience throughout the year.
The Natural Breeze mode simulates a gentle, refreshing outdoor breeze, providing year-round comfort.
- Silent Sleep Mode: Designed for peaceful nights, this mode gradually reduces the fan speed over a 30-minute period, promoting restful sleep and energy saving.
The Silent Sleep Mode gradually reduces fan speed over 30 minutes, promoting restful sleep and energy saving.
Nastavitelné funkce
- Kmitání: The fan features automatic horizontal oscillation up to 90 degrees to distribute air evenly across the room.
- Vertikální sklon: The fan head can be manually tilted vertically up to 30 degrees to direct airflow as needed.
- Nastavitelná výška: The fan can be easily converted from a pedestal fan to a table fan to suit your environment and cooling needs.

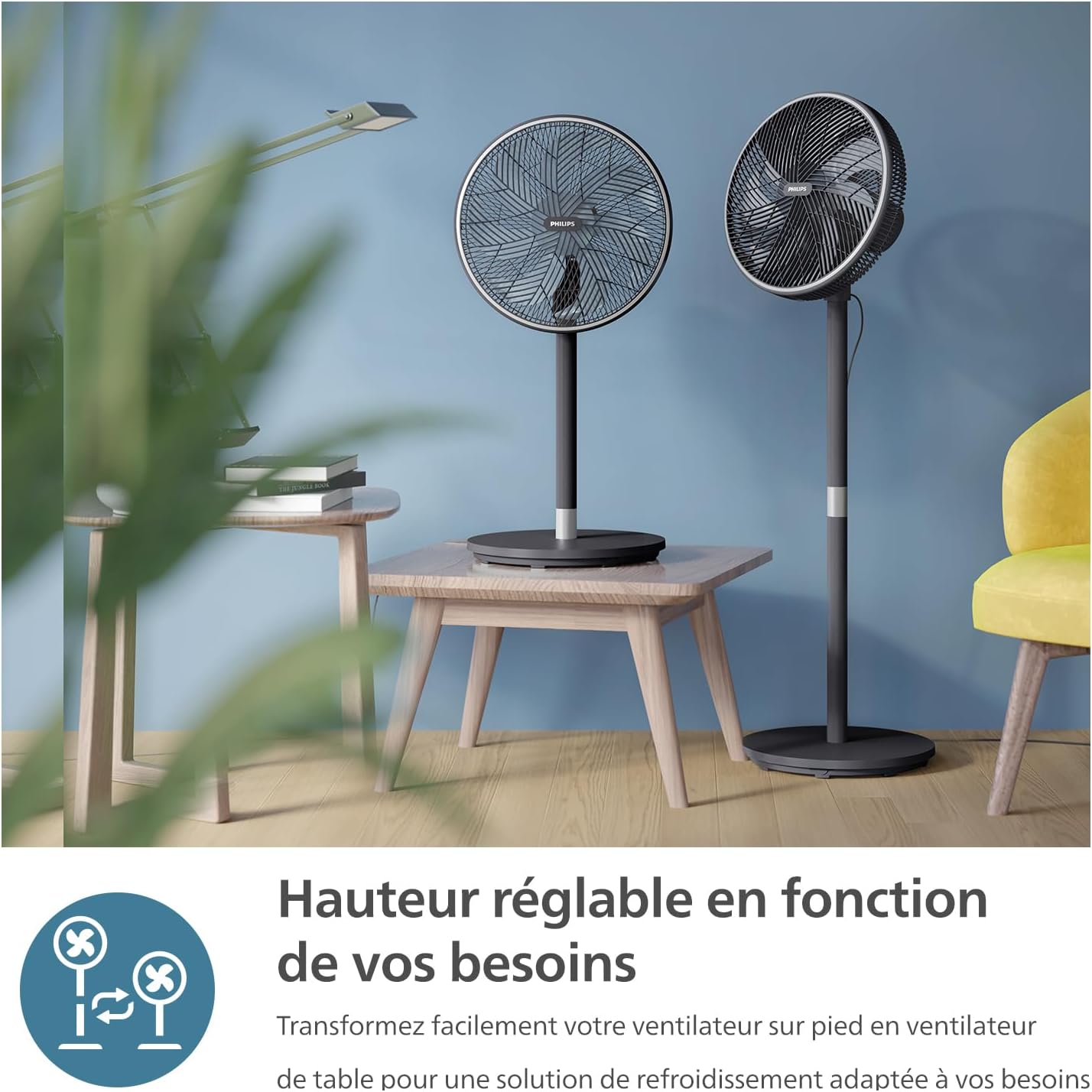

The fan's versatile design allows it to be easily converted from a pedestal fan to a table fan to suit various environments.
- Funkce časovače: Personalize your cooling experience with the timer function, allowing you to set the fan to turn off automatically after 1 to 12 hours.
The fan includes a timer function, allowing users to set operation for 1 to 12 hours for personalized comfort.
Údržba a čištění
Regular cleaning helps maintain the fan's performance and extends its lifespan. Always unplug the fan before cleaning.
- Čištění exteriéru: Vnější povrchy otřete měkkým, damp tkanina. Nepoužívejte abrazivní čisticí prostředky nebo rozpouštědla.
- Mřížka a lopatky: The fan's intuitive design allows for easy disassembly of the grilles and blades for thorough cleaning. Remove dust and debris using a soft brush or vacuum cleaner. Ensure all parts are dry before reassembly.
Odstraňování problémů
Pokud narazíte na problémy s ventilátorem, podívejte se na následující běžná řešení:
- Ventilátor se nezapne: Ujistěte se, že je napájecí kabel bezpečně zapojený do funkční elektrické zásuvky. Zkontrolujte, zda bylo stisknuto tlačítko napájení.
- Slabé proudění vzduchu: Verify that the fan speed is set to a higher level. Clean the fan blades and grilles to remove any obstructions.
- Neobvyklý hluk: Ensure all parts are correctly assembled and tightened. Check for any foreign objects caught in the fan blades.
- Problémy s připojením aplikace: Ensure your smartphone's Bluetooth or Wi-Fi is enabled and the fan is within range. Restart the app and the fan if necessary.
V případě přetrvávajících problémů se obraťte na zákaznickou podporu společnosti Philips.
Specifikace
| Funkce | Specifikace |
|---|---|
| Značka | PHILIPS |
| Číslo modelu | CX3550/01 |
| Barva | Černý |
| Rozměry produktu (D x Š x V) | 40 x 37.2 x 125 cm |
| Moc | 48 wattů |
| svtage | 220 V, 240 V |
| Materiál | Plast nebo kov |
| Počet rychlostí | 3 |
| Úroveň hluku | 19 Decibels (dB(A)) |
| Speciální funkce | SilentWings Technology, App Control |
| Hmotnost položky | 6.03 kg |
| Design elektrického ventilátoru | podlaha Fan |
| Zdroj napájení | Elektrický kabel |
| Styl | Podstavec Ventilátor |
| Typ pokoje | Obývací pokoj |
| Doporučená použití | Air Circulation, Cooling, Ventilation |
| Typ montáže | Montáž na podlahu |
Záruka a podpora
For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Philips website. You can also contact Philips customer service directly for assistance.
Online podpora: www.philips.com/support
