Zavedení
The Coast Slayer Laser is a versatile and powerful rechargeable LED flashlight designed for various applications, from professional use to outdoor activities. Its durable aluminum construction and innovative dual optic system provide both a bright spot beam and a precise red laser, offering exceptional utility and reliability.
This manual provides comprehensive instructions for the safe and effective use, maintenance, and troubleshooting of your Coast Slayer Laser flashlight.
Klíčové vlastnosti
- Dual Optic System: Independently controlled spot beam and red laser for versatile lighting.
- Červený laser: Ideal for pointing out objects and details in various settings.
- Čtyři světelné režimy: Cycle through low spot, high spot, Turbo (1000 lumens), and MoonGlow™ (47-hour runtime) to suit your needs.
- Magnetický držák: Integrated magnets at the front and back of the handle allow for hands-free attachment to metallic surfaces.
- Nabíjecí USB-C: Fast charging of the integrated ZITHION™ battery in approximately two hours.
- Odolná konstrukce: Flat-shaped, all-aluminum frame, rated IP57 dust resistant and waterproof.
- Kapesní klip: Removable metal clip for secure and effortless carrying.
Figure 1: The Coast Slayer Laser flashlight, showcasing its sleek design and active red laser beam.
Nastavení a první použití
Nabíjení baterky
Your Coast Slayer Laser flashlight comes with an integrated ZITHION™ rechargeable battery. Before first use, it is recommended to fully charge the device.
- Locate the USB-C charging port at the rear of the flashlight. It is protected by a rubber cover.
- Gently lift the rubber cover to expose the USB-C port.
- Connect the provided USB-C cable to the flashlight's port and the other end to a compatible USB power source (e.g., computer, wall adapter).
- The charge level indicator will illuminate during charging. It typically takes approximately two hours for a full charge. The indicator will glow green when fully charged.
- Once charging is complete, disconnect the cable and securely close the rubber cover to maintain water and dust resistance.
Figure 2: USB-C charging port and charging indicator on the Coast Slayer Laser.
Návod k obsluze
Power Button and Light Modes
The forward power button controls the flashlight's spot beam and its various modes.
- Zapnutí/vypnutí: Press the forward power button once to turn the flashlight on. Press again to cycle through modes or turn off.
- Cyklistické režimy: With the flashlight on, press the forward power button repeatedly to cycle through the following modes: High Spot, Low Spot, Turbo, and MoonGlow™.
- Turbo režim: Provides 1000 lumens for maximum brightness over 105 meters. This mode is designed for short bursts of intense light.

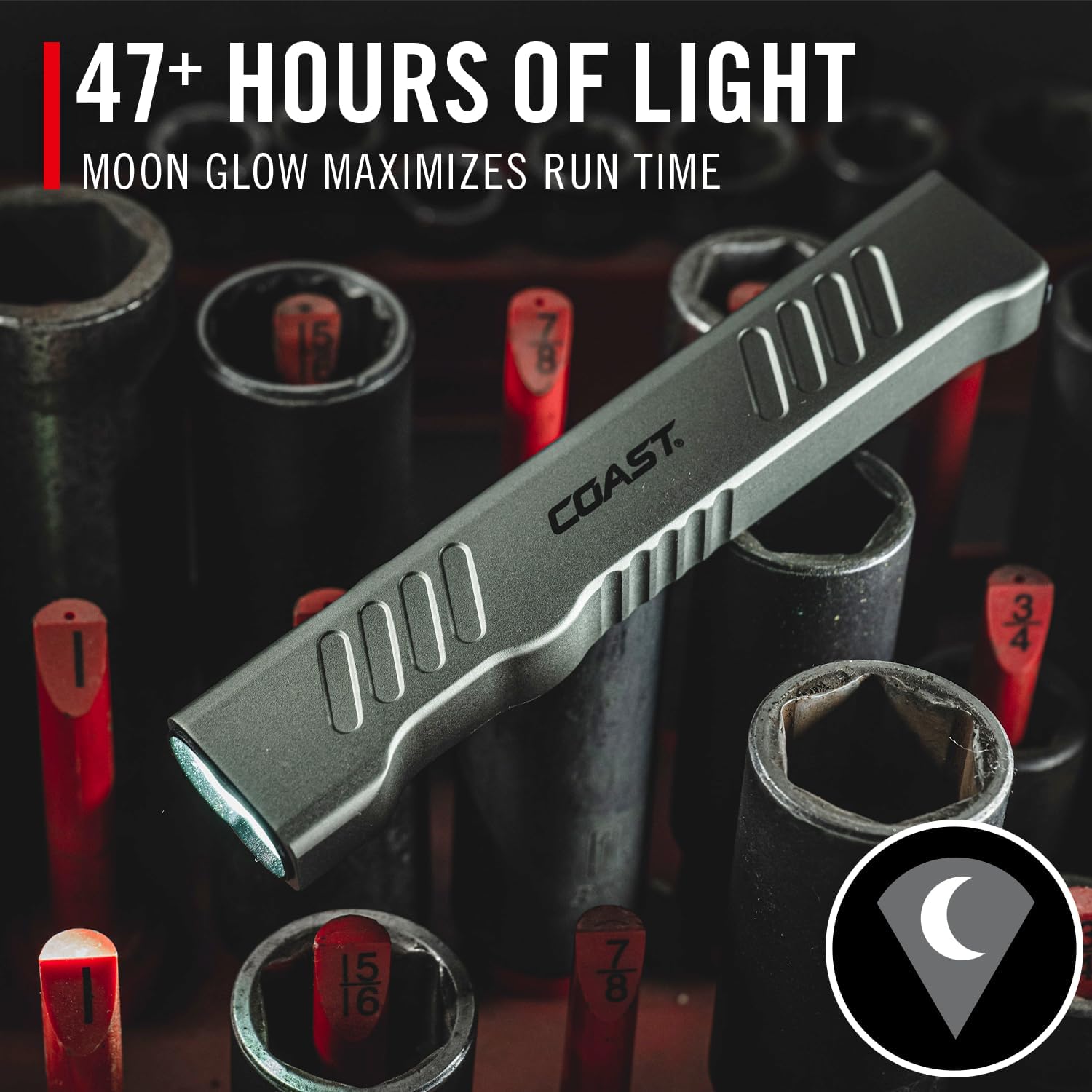

- MoonGlow™ Mode: An ultra-low energy mode (12 lumens) ideal for extended runtimes (up to 47 hours) in blackout conditions.
Laserová operace
The rear button independently controls the red laser.
- Activating Laser: Press and hold the rear button to activate the red laser. Release the button to turn the laser off.
- Pozor: Nedívejte se přímo do laserového paprsku nebo view it with optical instruments. The laser output is 5mW with a 650 nm wavelength.
Figure 3: Control buttons and laser warning on the Coast Slayer Laser.
Figure 4: Demonstrating the red laser function with a caution label for safe use.
Magnetická montáž
The flashlight features two strong magnets, one at the front and one at the back, allowing for convenient hands-free operation.
- Simply attach the flashlight to any suitable metallic surface to direct light where needed.
Figure 5: The dual-magnet base allows for hands-free lighting by attaching to metal surfaces.
Kapesní klip
The removable metal pocket clip provides secure and easy portability.
- Attach the flashlight to your pocket, belt, or gear for quick access.
Figure 6: The removable pocket clip for convenient carrying.
Oficiální video produktu
Video 1: Official informational video for the Coast Slayer Laser flashlight, demonstrating its features and capabilities.
Údržba a péče
Čištění
- Otřete tělo svítilny měkkým hadříkemamp hadříkem k odstranění nečistot a nečistot.
- Ensure the USB-C port cover is clean and securely closed to prevent water and dust ingress.
Skladování
- Uchovávejte svítilnu na chladném a suchém místě mimo přímé sluneční světlo a extrémní teploty.
- Pro dlouhodobé skladování se ujistěte, že je baterie částečně nabitá (kolem 50 %), aby se zachoval její stav.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Svítilna se nezapne. | Baterie je vybitá. | Nabijte svítilnu pomocí kabelu USB-C. |
| Laser is dim or not working. | Low battery or obstruction. | Ensure battery is charged. Check for any debris blocking the laser aperture. |
| Indikátor nabíjení nesvítí. | Vadný kabel nebo zdroj napájení. | Zkuste jiný kabel USB-C nebo napájecí adaptér. Ujistěte se, že je kabel zcela zasunutý. |
| Flashlight gets hot on Turbo mode. | Normal operation for high output. | This is normal. The flashlight is designed to manage heat. Avoid prolonged use on Turbo mode. |
Specifikace produktu
| Atribut | Hodnota |
|---|---|
| Značka | Pobřeží |
| Model | Slayer Laser |
| Typ světelného zdroje | LED |
| Jas bílé (max.) | 1000 lumenů (turbo) |
| Vzdálenost dráhy světla | 105 metrů |
| Vlnová délka laseru | 650 nm |
| Laserový výstup | 5 mW |
| Zdroj napájení | Napájení baterií (Lithium Ion) |
| Runtime (MoonGlow™) | 47 hodin |
| Doba nabíjení | Under 2 hours (USB-C) |
| Materiál | Hliník |
| Úroveň odolnosti proti vodě | IP57 (Dust Resistant & Waterproof) |
| Rozměry produktu | 0.79"H x 0.79"Š x 5.51"V |
| Hmotnost položky | 7.7 unce |
Figure 7: Detailed performance specifications for the Coast Slayer Laser flashlight.
Záruka a podpora
COAST Lifetime Warranty
The Coast Slayer Laser flashlight is backed by the COAST lifetime warranty, reflecting COAST's total commitment to quality. This warranty covers defects in materials and workmanship for the lifetime of the product.
For detailed warranty information, claims, or product support, please visit the official Coast webnebo kontaktujte jejich oddělení zákaznických služeb.
Více informací a podporu naleznete na Coast Store na Amazonu.
