Zavedení
This user manual provides detailed instructions for the Lepro Headlamp Bundle, which includes two distinct models: the 320014-2 LED Rechargeable Headlamp a PR320019 Super Bright Headlamp s pohybovým senzorem. Please read this manual carefully before using the products to ensure proper operation, maximize performance, and maintain product longevity. Keep this manual for future reference.
Konec produktuview
The Lepro Headlamp Bundle offers versatile lighting solutions for various activities, from camping and hiking to everyday tasks. Each headlamp is designed with specific features to meet different illumination needs.
Model 320014-2 LED Rechargeable Headlamp
Tato hlavaamp features a traditional design with a powerful spotlight and floodlight, offering multiple lighting modes including white and red light. It is highly bright and suitable for long-range illumination.
Image: The Lepro Headlamp Bundle, showcasing both the 320014-2 traditional headlamp and the PR320019 wide-beam headlamp, along with their respective charging cables.
Model PR320019 Super Bright Headlamp s pohybovým senzorem
Tato hlavaamp features a wide 230° COB light bar for broad area illumination and an adjustable spotlight. Its motion sensor functionality allows for hands-free operation, enhancing convenience during use.

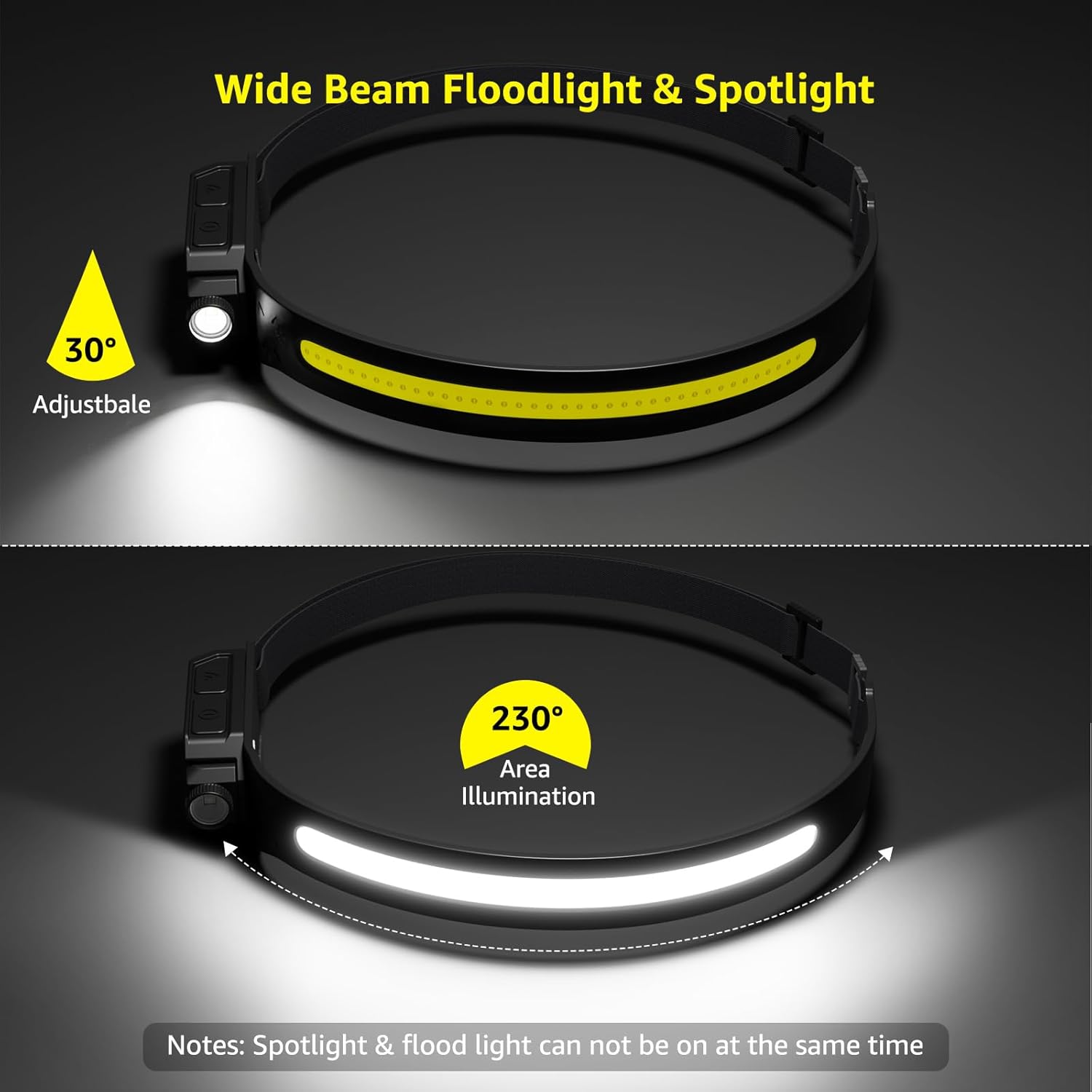

Image: The Lepro PR320019 headlamp, illustrating its 230-degree wide beam floodlight and a 30-degree adjustable spotlight. Note: Spotlight and floodlight cannot be on simultaneously.
Nastavení
Nabíjení Headlamps
Obě hlavyamps are USB rechargeable. Before first use, fully charge the headlamps to ensure optimal performance and battery life.
- Locate the Micro USB charging port on the headlamp.
- Connect the provided USB charging cable to the headlamppřístav.
- Plug the other end of the USB cable into a standard USB power adapter (not included), a computer USB port, or a power bank.
- An indicator light will show the charging status (e.g., red for charging, green/blue for fully charged).
- Charging time for Model 320014-2 is approximately 3-4 hours for up to 15 hours of runtime.
- Charging time for Model PR320019 is approximately 4 hours for 4-10 hours of usage.
Image: The Lepro 320014-2 headlamp connected to a laptop via its Micro USB charging cable, illustrating the charging process and indicating approximate runtimes at different brightness levels.
Image: The Lepro PR320019 headlamp being charged via its USB-C port from a wall adapter, highlighting its 1200mAh rechargeable battery and indicating a 4-hour full charge time for 4-10 hours of usage.
Nošení hlavyamp
Adjust the elastic headband to fit comfortably and securely around your head. The lamp unit can typically be tilted to direct the light beam as needed.
Návod k obsluze
Model 320014-2 Operation
Tato hlavaamp features 6 lighting modes, including white spot light, white flood light, and red light.
Image: A visual guide to the 6 lighting modes of the Lepro 320014-2 headlamp: High Spot Light, Low Spot Light, High Flood Light, Low Flood Light, Red Light (steady), and Red Flash Light.
- Zapnutí/vypnutí: Press the power button once to turn on the headlamp. Press and hold to turn off.
- Cyklus režimů: S hlavouamp on, short press the power button to cycle through the 6 lighting modes:
- Spot Light (High)
- Spot Light (Low)
- Flood Light (High)
- Flood Light (Low)
- Red Light (Steady)
- Red Light (Flash)
Image: Depiction of the Lepro 320014-2 headlamp's spotlight (25° beam angle, up to 150 meters/500 feet) and floodlight (85° beam angle) capabilities, showing their respective illumination patterns.
Model PR320019 Operation
Tato hlavaamp features a 230° wide beam COB light and an adjustable spotlight, along with a motion sensor function.
Image: A visual guide to the 5 lighting modes of the Lepro PR320019 headlamp: High Flood Light (350lm), Low Flood Light (110lm), Motion Sensor (for COB light), High Spot Light (150lm), and Low Spot Light (60lm).
- Zapnutí/vypnutí: Press the power button once to turn on the headlamp. Press and hold to turn off.
- Cyklus režimů: Short press the power button to cycle through the lighting modes:
- COB Flood Light (High)
- COB Flood Light (Low)
- Spot Light (High)
- Spot Light (Low)
- Aktivace pohybového senzoru: Press the dedicated motion sensor button to activate this feature. When active, you can wave your hand in front of the sensor to turn the COB light on or off without pressing the power button.
Údržba
- Nabíjení: To prolong battery life, charge the headlamp regularly, especially if it has not been used for an extended period. Avoid completely draining the battery before recharging.
- Čištění: Otřete hlavuamp s měkkým, damp tkanina. Nepoužívejte abrazivní čisticí prostředky nebo rozpouštědla.
- Skladování: Uložte hlavuamp na chladném a suchém místě mimo dosah přímého slunečního záření a extrémních teplot.
- Voděodolnost:
- Model 320014-2: Features IPX4 water resistance, meaning it is protected against splashing water from any direction. It is not designed for submersion.
- Model PR320019: Features IP44 waterproof and dustproof rating, offering protection against solid objects larger than 1mm and splashing water from any direction.
Image: The Lepro 320014-2 headlamp with water droplets, illustrating its IPX4 water resistance, which prevents splashing water from all directions.
Image: A person running in the rain while wearing the Lepro PR320019 headlamp, demonstrating its IP44 waterproof and dustproof capabilities.
Odstraňování problémů
- Vedoucíamp nezapíná se:
- Ujistěte se, že je baterie nabitá. Připojte ji ke zdroji napájení a zkontrolujte indikátor nabíjení.
- Press and hold the power button for a few seconds to ensure it's not just a quick press.
- Světlo je tlumené nebo bliká:
- Úroveň nabití baterie může být nízká. Dobijte hlavici.amp plně.
- Ensure the lens is clean and free of debris.
- Vedoucíamp not charging:
- Check the USB cable for damage and ensure it is securely connected to both the headlamp a zdroj energie.
- Zkuste jiný port USB nebo napájecí adaptér.
- Motion sensor not responding (PR320019):
- Ensure the motion sensor function is activated by pressing its dedicated button.
- Ensure there are no obstructions covering the sensor.
- Wave your hand clearly and within the sensor's detection range.
Specifikace
| Funkce | Model 320014-2 | Model PR320019 |
|---|---|---|
| Typ světelného zdroje | LED | LED (COB & Spotlight) |
| Jas | Up to 2000 lux / 2000 Lumens | 350 Lumens (COB High), 150 Lumens (Spot High) |
| Vzdálenost paprsku | Až 500 stop / 150 m | Not specified for spotlight, 230° wide beam for COB |
| Režimy osvětlení | 6 (Spot High/Low, Flood High/Low, Red Steady/Flash) | 5 (COB High/Low, Spot High/Low, Motion Sensor) |
| Kapacita baterie | 1200 mAh lithium-iontová | 1200 mAh lithium-iontová |
| Doba běhu | Až 15 hodin | 4-10 hodin |
| Dobíjecí | Yes, Micro USB | Yes, USB-C |
| Voděodolnost | IPX4 Voděodolný | IP44 vodotěsný a prachotěsný |
| Speciální funkce | Nastavitelné světlo | Motion Sensor, Adjustable Spotlight, 230° Wide Beam |
| Zahrnuté komponenty | USB kabel | USB kabel |
Záruka a podpora
For warranty information, please refer to the documentation included with your purchase or visit the official Lepro website. Lepro products typically come with a manufacturer's warranty covering defects in materials and workmanship.
If you encounter any issues or have questions not covered in this manual, please contact Lepro customer support through their official website or the retailer where you purchased the product. Provide your product model numbers (320014-2, PR320019) and a detailed description of the issue for faster assistance.
You can visit the Lepro Store on Amazon for more information: Obchod Lepro na Amazonu
