Uživatelská příručka k svítilně Superfire Workshop G12

1. Konec produktuview

The Superfire G12 Workshop Flashlight is a versatile and durable lighting tool designed for various tasks. It integrates two powerful light sources, a high-capacity rechargeable battery, and practical features like a digital display and power bank functionality. Its robust construction and adaptable mounting options make it an essential tool for workshops, outdoor activities, and emergency situations.

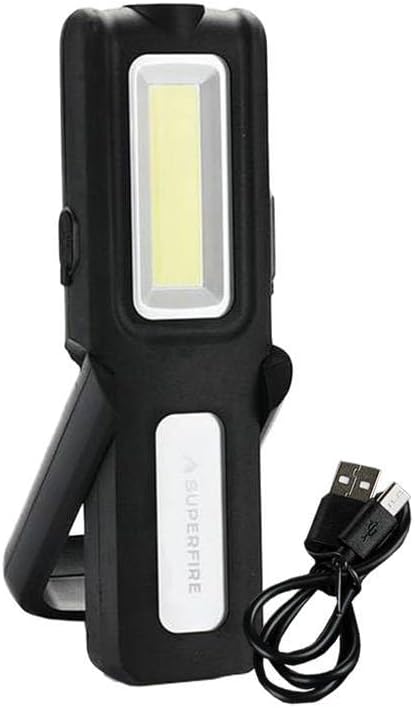

Image 1.1: The Superfire G12 Workshop Flashlight shown with its included USB charging cable. The flashlight features a main rectangular COB LED light panel and a smaller top LED spotlight. It has a black body with a white panel displaying the 'SUPERFIRE' logo and a foldable stand/handle.

2. Klíčové vlastnosti

• Duální světelné zdroje: Equipped with a main COB LED panel for wide area illumination and a top LED spotlight for focused, long-range lighting.
• Nastavitelný jas: Easily control light intensity using dedicated '+' and '-' buttons.
• Vysokokapacitní baterie: Features a 1200mAh battery for extended operation.
• Funkce powerbanky: Can be used to charge other devices via its USB output.
• Digitální displej baterie: A clear digital screen indicates the remaining battery percentage.
• Odolná konstrukce: Made from robust TPR plastic with structural reinforcements for wear resistance.
• Všestranná montáž: Includes a 180° rotating handle, a 360° hanging hook, and strong magnetic elements for hands-free use on metal surfaces.

3. Obsah balení

Zkontrolujte prosím balení, zda neobsahuje následující položky:

• 1 x Superfire G12 Workshop Flashlight
• 1 x USB nabíjecí kabel

4. Nastavení

4.1 Počáteční nabíjení

Before using your Superfire G12 flashlight for the first time, it is recommended to fully charge the battery. Connect the smaller end of the provided USB charging cable to the flashlight's micro USB port and the larger end to a standard USB power adapter (not included) or a computer's USB port. The digital display will show the charging status and battery percentage. Nabíjení je dokončeno, když displej ukazuje 100 %.

5. Návod k obsluze

5.1 Zapnutí/vypnutí a výběr režimu

1. To turn on the flashlight, press the power button located on the side of the device.
2. Subsequent presses of the power button will cycle through the different lighting modes: Main COB LED → Top LED Spotlight → Off.

5.2 Nastavení jasu

While the flashlight is on, use the '+' and '-' buttons to adjust the brightness level of the active light source. Pressing '+' will increase brightness, and pressing '-' will decrease it. The digital display may show the current brightness level or battery percentage depending on the model's specific implementation.

5.3 Using the Mounting Features

• Otočná rukojeť: Adjust the integrated handle to your desired angle for comfortable handheld use or to position the light. The handle rotates 180 degrees.
• Háček na zavěšení: Extend the 360-degree rotating hook from the top of the flashlight to hang it from ropes, branches, or other fixtures.
• Magnetická základna: The strong magnets on the base allow you to securely attach the flashlight to any ferrous metal surface for hands-free operation.

6. Funkce nabíjení a powerbanky

6.1 Recharging the Flashlight

When the battery level is low, as indicated by the digital display, recharge the flashlight using the provided USB cable. Connect the micro USB end to the flashlight and the USB-A end to a compatible power source (e.g., computer USB port, wall adapter, car charger). The digital display will show the charging progress.

6.2 Použití jako powerbanky

The Superfire G12 can serve as an emergency power bank for small electronic devices. Connect your device's charging cable to the USB output port on the G12 flashlight. The flashlight's battery will then begin to charge your connected device. Monitor the G12's digital display to keep track of its remaining battery percentage.

7. Údržba

• Čištění: Wipe the flashlight's exterior with a soft, slightly damp hadříkem. Nepoužívejte agresivní chemikálie, abrazivní čisticí prostředky ani neponořujte zařízení do vody.
• Skladování: Store the flashlight in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, charge the battery every 3-6 months to maintain its lifespan.
• Péče o baterie: Avoid fully depleting the battery frequently. Recharge it when the battery indicator shows low levels.

8. Řešení problémů

9. Specifikace

10. Záruka a podpora

For detailed warranty information, product registration, or technical support, please refer to the warranty card included with your purchase or visit the official Superfire webwebu. Můžete se také obrátit na prodejce, kde jste jej zakoupili.

Uschovejte si prosím doklad o koupi pro případné reklamace.
