1. Úvod
This manual provides essential information for the safe assembly, operation, and maintenance of your Outsunny 3-in-1 Heavy-Duty A-Frame Outdoor Playset. Please read all instructions carefully before use to ensure the safety of all users and the longevity of the product.
The playset features a versatile design with multiple play options, including a nest swing, two swing seats, and a slide. Its heavy-duty steel tube construction and A-frame design ensure stability and durability for outdoor use.
Image 1: The Outsunny 3-in-1 Heavy-Duty A-Frame Outdoor Playset in use.
2. Co je v krabici
Před zahájením montáže ověřte, zda jsou všechny komponenty přítomny:
- Hnízdo houpačka
- Swing Seats (2 units)
- Skluzavka
- Komponenty ocelového rámu
- 4 zemní kolíky
- Montážní materiál (šrouby, matice, podložky)
- Assembly Tools (Allen wrenches)
3. Specifikace
| Funkce | Detail |
|---|---|
| Celkové rozměry | 132.7" D x 72.4" Š x 73.6" V |
| Nosnost (na osobu) | 88 liber |
| Celková nosnost | 352 liber |
| Doporučený věk | 0 - 8 let |
| Materiál rámu | Legovaná ocel |
| Typ dokončení | Powder-coated, Lacquered |
| Montáž Vyžadována | Ano |
| Certifikace | ASTM F963, CPSIA |
Image 2: Detailed dimensions of the playset components.
Image 3: Illustration of the playset's solid A-frame structure and individual weight capacity.
4. Nastavení a montáž
Assembly of the Outsunny 3-in-1 Heavy-Duty A-Frame Outdoor Playset is required. It is recommended to have at least two adults for assembly. All necessary tools are included in the package. The process typically takes a couple of hours.
Ensure the playset is installed on a level surface. The included 4 ground stakes must be securely anchored into the ground to provide stability and safety during use, especially when multiple children are playing or swinging high.
The playset features heavy-duty metal pipes with a smooth, powder-coated finish for durability and wear resistance. Connections are designed to be strong and secure.

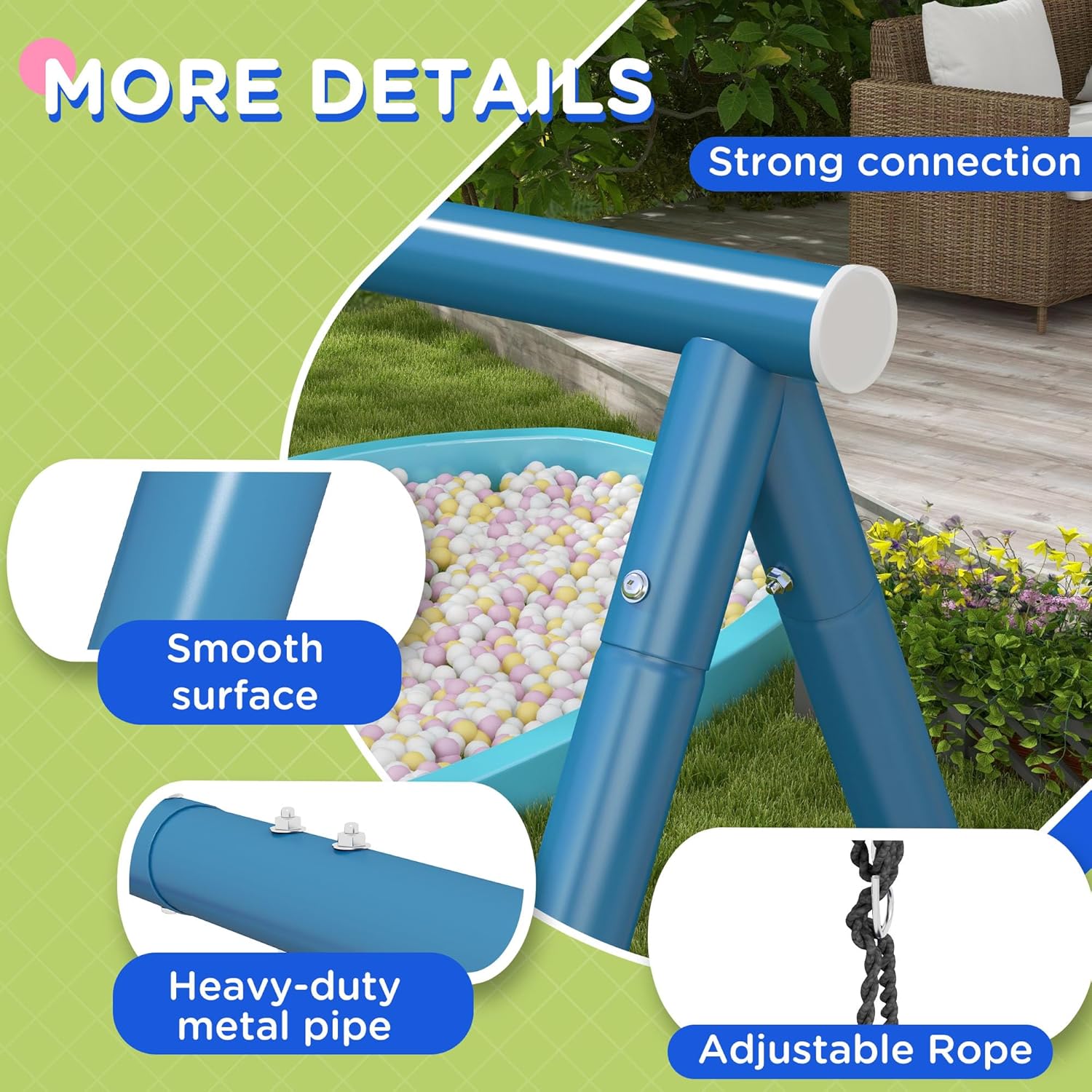

Image 4: Details of the playset's construction, including strong connections and adjustable ropes.
Montáž videa
Video 1: This video demonstrates the various features of the swing set, including children playing on the swings and climbing net, highlighting the adjustable ropes and durable materials. It provides a visual overview sestaveného výrobku.
5. Operating the Playset Features
The Outsunny playset offers multiple activities for children:
- Houpačka hnízdo: A large, comfortable swing designed for multiple children or for a single child to lie down. The ropes are adjustable to suit different heights.
- Houpací sedadla: Two traditional swing seats are included. These also feature adjustable ropes for customized height settings.
- Skluzavka: A sturdy slide provides a fun descent. Ensure children slide feet first.
The design ensures sufficient space between each activity to prevent children from bumping into each other during play. The nest swing includes foam padding around the edges for added safety.
Image 5: The 3-in-1 play options: Nest Swing, Swing Seats, and Slide.
Image 6: Children enjoying the playset's various features.

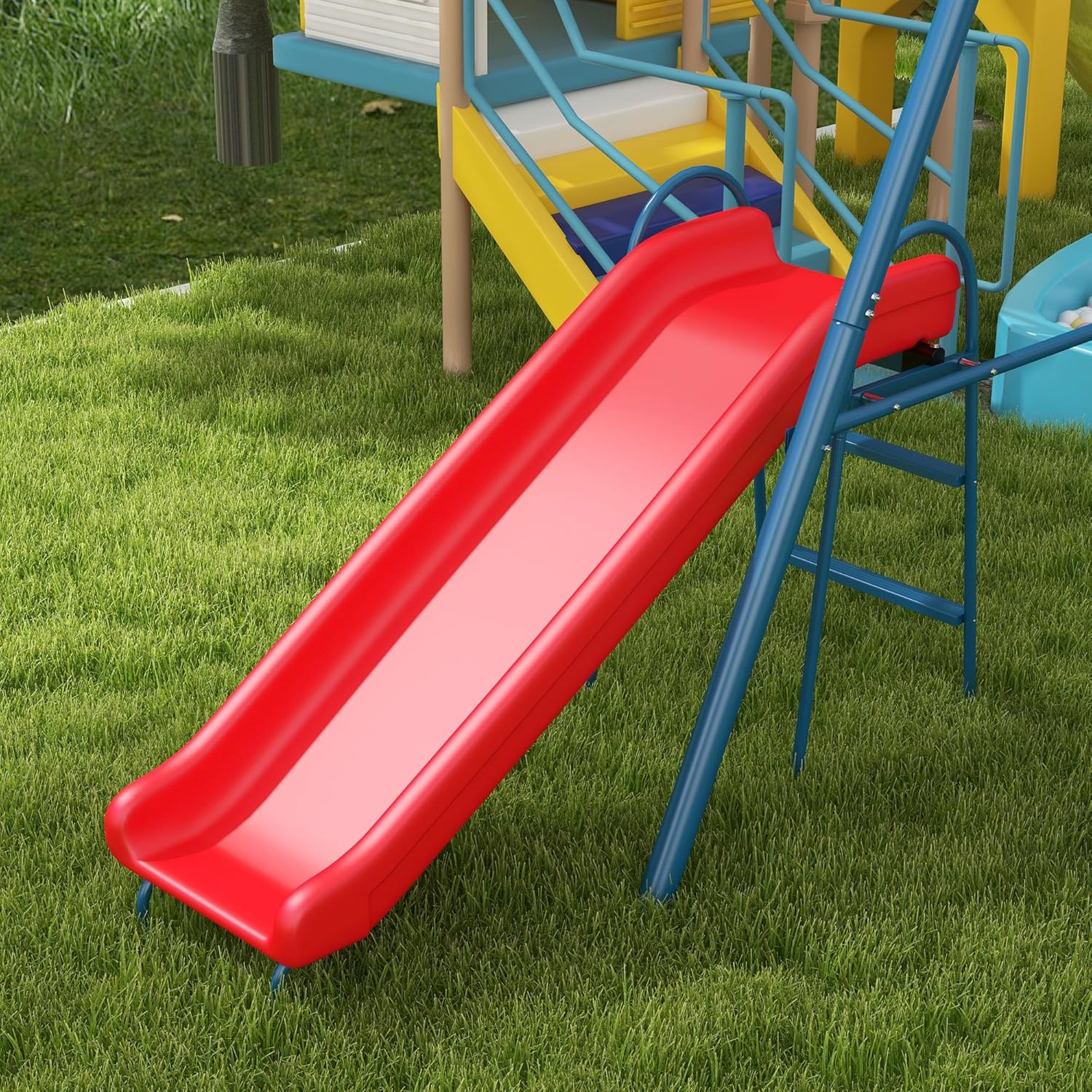

Obrázek 7: Detailní view of the playset's slide.
Obrázek 8: Detailní view of a swing seat.
6. Údržba
Regular maintenance is crucial to ensure the safety and longevity of your playset:
- Pravidelně kontrolujte: Check all nuts, bolts, and connections for tightness. Tighten as needed.
- Čistý: Otřete povrchy reklamouamp hadříkem a jemným mýdlem. Vyhněte se agresivním chemikáliím.
- Check Ropes and Chains: Inspect ropes and chains for wear, fraying, or damage. Replace if necessary.
- Zemní kotvy: Ensure ground stakes remain firmly in place. Re-secure if they become loose.
- Prevence rzi: The steel frame has a powder-coated finish for wear resistance. However, regularly check for any signs of rust and address promptly to prevent spread.
7. Řešení problémů
Pokud narazíte na jakékoli problémy s vaší herní sadou, podívejte se na následující běžná řešení:
- Playset feels wobbly: Ensure all bolts are tightened and ground stakes are fully inserted and secure. The playset must be on a level surface.
- Chybějící části: Refer to the 'What's in the Box' section and contact customer support if any components are missing.
- Obtížnost s montáží: Review the assembly instructions carefully. Ensure all parts are correctly oriented before tightening. Having an additional person can greatly assist.
8. Záruka a podpora
For warranty information or customer support, please refer to the documentation included with your purchase or visit the official Outsunny webUschovejte si doklad o koupi pro případné reklamace.
