Front Runner Side Mount Ladder (LALD010) Instruction Manual

1. Úvod

This instruction manual provides essential information for the safe and effective installation, operation, and maintenance of your Front Runner Side Mount Ladder, model LALD010. This three-step ladder is specifically designed to enhance accessibility to the roof rack of your Land Rover New Defender (2020-Current), facilitating the loading and unloading of gear.

Please read this manual thoroughly before attempting installation or use. Retain this manual for future reference.

2. Bezpečnostní informace

VAROVÁNÍ: Nedodržení těchto bezpečnostních pokynů může vést k vážnému zranění nebo poškození majetku.

• Always ensure the ladder is securely attached to the vehicle and roof rack before use.
• Nepřekračujte maximální nosnost 110 kg (242.5 liber).
• Use caution when climbing or descending, especially in wet or slippery conditions. The ladder rungs are equipped with rubber grips, but vigilance is still required.
• Ensure hands are clean and dry for a secure grip.
• Do not use the ladder if any components appear damaged or loose.
• Keep children away from the ladder unless supervised by an adult.
• Regularly inspect all mounting hardware for tightness and wear.

3. Obsah balení

Verify that all components are present and undamaged before beginning installation. The package should include:

• Front Runner Side Mount Ladder assembly (LALD010)
• Veškerý potřebný montážní hardware
• Detailed fitment instructions (refer to manufacturer's specific guide for step-by-step visuals)

If any parts are missing or damaged, contact Front Runner customer support immediately.

4. Nastavení a instalace

The Front Runner Side Mount Ladder is designed for straightforward installation without the need for drilling, preserving your vehicle's integrity. It securely attaches to the side of your Slimline II Roof Rack using existing attachment points on the Land Rover New Defender.

4.1 Kontrolní seznam před instalací

• Ujistěte se, že je vozidlo zaparkované na rovném povrchu a je zatažená parkovací brzda.
• Confirm that your Land Rover New Defender is equipped with a compatible Slimline II Roof Rack.
• Gather all tools required as specified in the manufacturer's detailed fitment instructions (e.g., wrenches, hex keys).

4.2 Kroky instalace (obecné informace)view)

1. Umístění žebříku: Carefully align the ladder with the designated mounting points on the side of your Slimline II Roof Rack.
2. Připevnění horních konzol: Secure the upper section of the ladder to the roof rack using the provided hardware. Ensure a snug fit but do not fully tighten yet.
3. Připevnění spodních konzol: Connect the lower section of the ladder to the vehicle's existing attachment points. Again, ensure a snug fit.
4. Konečné utažení: Once the ladder is correctly positioned and all hardware is in place, progressively tighten all bolts and nuts according to the torque specifications provided in the detailed fitment instructions.
5. Ověření zabezpečení: After tightening, gently test the ladder for any movement or looseness. All connections must be firm and secure.

For detailed, step-by-step visual instructions, please refer to the specific fitment guide provided by Front Runner with your product.

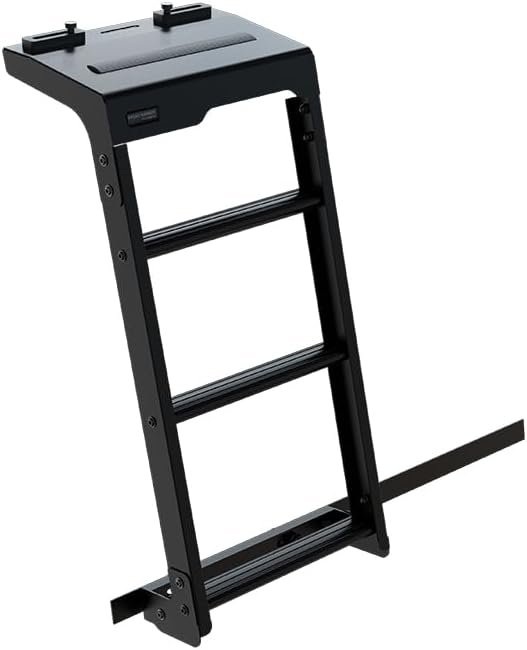

Obrázek 1: Úhlové view of the Front Runner Side Mount Ladder, highlighting its three-rung design and the upper platform for roof rack access.

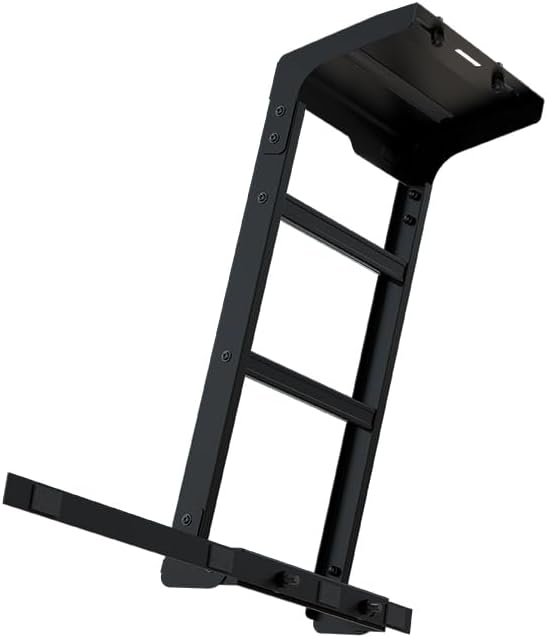

Obrázek 2: Strana view of the Front Runner Side Mount Ladder, illustrating its robust construction and how it would attach to a vehicle's side.

5. Návod k obsluze

The Front Runner Side Mount Ladder provides a stable and secure means to access your vehicle's roof rack. Follow these guidelines for safe operation:

• Approach Safely: Always approach the ladder facing it.
• Udržujte si tři kontaktní body: When climbing or descending, always keep three points of contact with the ladder (two hands and one foot, or two feet and one hand).
• Use Rubber Grips: The rungs are equipped with rubber grips to enhance traction. Utilize these grips, especially in wet conditions.
• Center Your Weight: Distribute your weight evenly and keep your body centered between the side rails of the ladder.
• Vyhněte se překročení: Do not overreach while on the ladder. Descend and reposition if necessary.
• Zkontrolujte zatížení: Before climbing, ensure any items on the roof rack are securely fastened and will not shift or fall.

6. Údržba

Regular maintenance will ensure the longevity and safe operation of your Front Runner Side Mount Ladder.

• Rutinní kontrola: Periodically inspect the ladder for any signs of wear, damage, or corrosion. Pay close attention to welds, rungs, and mounting points.
• Zkontrolujte spojovací prvky: Regularly check all bolts, nuts, and other fasteners to ensure they remain tight. Re-tighten as necessary, referring to the original torque specifications.
• Čištění: Clean the ladder with mild soap and water. Avoid abrasive cleaners or solvents that could damage the powder-coated finish or rubber grips. Rinse thoroughly and dry.
• Prevence proti korozi: While constructed from durable materials like black powder-coated steel and aluminum, regular cleaning and inspection can help prevent corrosion, especially after exposure to harsh environments (e.g., saltwater, road salt).
• Rubber Grips: Ensure the rubber grips on the rungs are intact and not excessively worn. Replace if necessary to maintain slip resistance.

7. Řešení problémů

This section addresses common issues you might encounter with your side mount ladder.

• Ladder feels loose after installation:

  Řešení: Re-check all mounting hardware. Ensure all bolts and nuts are tightened to the manufacturer's specified torque. If the issue persists, re-read the installation instructions carefully or contact customer support.

• Difficulty climbing due to slippery rungs:

  Řešení: Ensure the rubber grips are clean and free of mud, grease, or ice. If the grips are worn, consider replacing them. Always exercise caution in wet conditions.

• Unusual noises (rattling, squeaking) while driving:

  Řešení: Inspect all attachment points and the ladder structure for any loose components or contact points with the vehicle body. Tighten any loose fasteners. Ensure no foreign objects are lodged in or around the ladder.

If you encounter problems not listed here or cannot resolve an issue, please contact Front Runner customer support.

8. Specifikace

9. Informace o záruce

For detailed warranty information regarding your Front Runner Side Mount Ladder, please refer to the official Front Runner website or the warranty card included with your product. Warranty terms and conditions may vary by region and product type.

10. Zákaznická podpora

If you have any questions, require technical assistance, or need to report a problem with your Front Runner Side Mount Ladder, please contact Front Runner customer support through their official webwebu nebo kontaktních informací uvedených na obalu produktu.

Webmísto: www.frontrunneroutfitters.com
