1. Úvod
Thank you for choosing the Scheppach BMS196-88 Petrol Scythe Mower. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new machine. Please read this manual thoroughly before initial use and keep it for future reference.
The Scheppach BMS196-88 is designed for mowing large areas, especially in challenging terrain, high grass, and on slopes. Its robust construction and powerful engine make it suitable for orchards, pastures, and natural gardens.

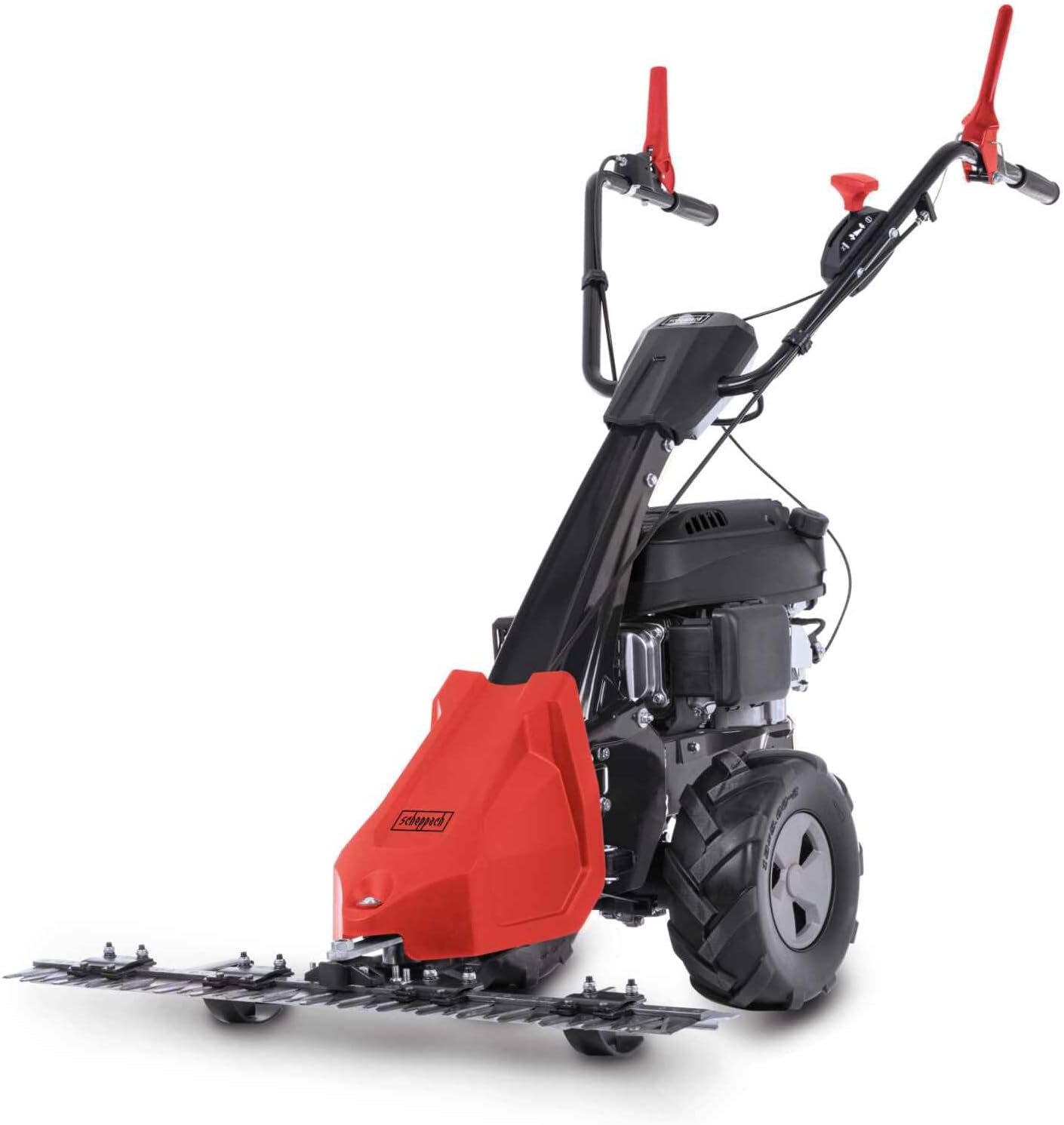

Figure 1: Scheppach BMS196-88 Petrol Scythe Mower, showing its overall design with the engine, large wheels, and front-mounted cutting bar.
2. Bezpečnostní pokyny
Always observe general safety regulations when operating the scythe mower. Failure to do so can result in serious injury or property damage.
- Před použitím stroje si přečtěte a pochopte všechny pokyny.
- Wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, sturdy footwear, and long trousers.
- Never operate the machine under the influence of alcohol, drugs, or medication.
- Udržujte kolemjdoucí, zejména děti a domácí zvířata, v bezpečné vzdálenosti od pracovního prostoru.
- Inspect the work area for objects that could be thrown by the blades (stones, branches, etc.) and remove them.
- Palivo doplňujte v dobře větraném prostoru s vypnutým a vychladlým motorem. Během doplňování paliva nekuřte.
- Ensure all guards and safety devices are in place and functioning correctly before starting.
- Exercise extreme caution when operating on slopes. Mow across the face of slopes, not up and down.
3. Nastavení a montáž
The Scheppach BMS196-88 requires some assembly before first use. Follow these steps carefully.
3.1 Vybalení
Opatrně vyjměte všechny součásti z obalu. Zkontrolujte, zda nedošlo k poškození během přepravy, a ujistěte se, že jsou všechny součásti přítomny dle dodacího listu.
3.2 Sestavení řídítek
Attach the handlebar to the main unit. Ensure all bolts are securely tightened. The handlebar is adjustable in 3 heights for ergonomic working.
3.3 Montáž kola
Install the large wheels with off-road profile. This step may require patience due to tight clearances. Ensure wheels are securely fastened for optimal traction.
3.4 Initial Fluid Checks
- Motorový olej: Check the engine oil level and fill with recommended oil if necessary.
- Palivo: Fill the fuel tank with unleaded petrol. Refer to the engine manual for specific fuel requirements.
4. Návod k obsluze
4.1 Startování motoru
The mower is equipped with a pull starter. Follow the engine manufacturer's instructions for starting, typically involving setting the choke, engaging the throttle, and pulling the starter cord firmly.
Figure 2: Illustration of the powerful 4-stroke petrol engine and the pull starter mechanism.
4.2 Nastavení výšky sečení
The cutting height can be adjusted from 30 mm to 60 mm. Adjust the height according to the grass type and desired finish. For very high grass, it is recommended to make multiple passes, gradually lowering the cutting height.
Figure 3: Visual representation of cutting height (30-60 mm), cutting width (880 mm), area performance (up to 3000 m²), and forward speed (2.52 km/h).
4.3 Techniky sečení
The scythe mower is ideal for difficult terrain and high grass. Maintain a steady pace of 2.52 km/h for optimal cutting. The 88 cm cutting width allows for rapid progress.
Figure 4: Detail of the cutting bar, highlighting the 50 mm blade spacing for effective cutting of dense vegetation.
Obrázek 5: Přamples of suitable environments for the scythe mower, including orchards, pastures, natural gardens, and sloped areas.
5. Údržba
Regular maintenance ensures the longevity and optimal performance of your scythe mower.
5.1 Čištění
After each use, clean the cutting bar and the underside of the machine to remove grass clippings and debris. This prevents corrosion and maintains cutting efficiency. Use a brush or compressed air; avoid using high-pressure water directly on the engine or electrical components.
5.2 Péče o čepel
Inspect the cutting blades regularly for sharpness and damage. Dull or damaged blades can lead to poor cutting performance and increased strain on the engine. Sharpen or replace blades as needed. Always wear heavy-duty gloves when handling blades.
5.3 Údržba motoru
Refer to the engine manual for detailed maintenance schedules. This typically includes:
- Checking and changing engine oil.
- Cleaning or replacing the air filter.
- Inspecting and cleaning the spark plug.
- Checking the fuel filter.
Obrázek 6: Detail view of the engine, highlighting its design and compliance with Euro 5 emission standards.
5.4 Skladování
When storing the mower for extended periods, especially during off-season, ensure the fuel tank is empty or treated with a fuel stabilizer. Clean the machine thoroughly and store it in a dry, protected area.
6. Řešení problémů
This section addresses common issues you might encounter with your scythe mower.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Motor nestartuje | No fuel; old fuel; clogged fuel filter; faulty spark plug; choke not set correctly. | Check fuel level; drain old fuel and refill; clean/replace fuel filter; clean/replace spark plug; adjust choke. |
| Špatný řezný výkon | Dull or damaged blades; excessive grass height; incorrect cutting speed. | Sharpen/replace blades; raise cutting height for initial pass; reduce forward speed. |
| Nadměrné vibrace | Bent or unbalanced blades; loose components; worn bearings. | Inspect blades for damage; tighten all bolts; consult a service technician for worn parts. |
| Handlebar/frame issues | Loose connections; stress fractures (e.g., at welds). | Regularly check and tighten all fasteners. If structural damage occurs, discontinue use and contact customer support for repair or replacement. |
7. Specifikace
| Funkce | Specifikace |
|---|---|
| Číslo modelu | 5908902903 |
| Typ motoru | 4-stroke Petrol Engine |
| Výkon motoru | 5.7 PS / 4.2 kW |
| Zdvihový objem motoru | 196 cm³ |
| Šířka řezu | 88 cm |
| Nastavení výšky sečení | 30 - 60 mm |
| Doporučená oblast | Až 3,000 m² |
| Rychlost vpřed | 2.52 km/h |
| Hmotnost | 58 kg |
| Rozměry (D x Š x V) | 126.5 x 92 x 130 cm |
| Typ pohonu | Benzínový pohon |
| Materiál | Plastic (housing components) |
| Barva | Červený |
8. Záruka a podpora
Scheppach products are manufactured with high quality standards. In the unlikely event of a defect, please contact your retailer or the official Scheppach customer service. Keep your proof of purchase for warranty claims.
For technical support, spare parts, or warranty inquiries, please visit the official Scheppach website or contact their customer service department. Provide your model number (BMS196-88) and serial number (if applicable) when contacting support.
