1. Úvod
This instruction manual provides essential information for the proper installation, maintenance, and safe use of the PowerSmart 2-Stage Snow Blower Auger Belt, model 302040079. This belt is designed specifically for PowerSmart 2-Stage Snow Blowers manufactured in 2005 and after. Please read this manual thoroughly before attempting any installation or maintenance procedures.
Applicable Snow Blower Models: PSSAM24, PSSMN24, PSS2260, DB7108, DB7109, MB7108, MB7109, HB7108, HB7109.
2. Bezpečnostní informace
Při práci se stroji vždy upřednostňujte bezpečnost. Nedodržování bezpečnostních pokynů může vést k vážnému zranění nebo poškození zařízení.
- Osobní ochranné prostředky: Always wear appropriate protective clothing, including gloves and eye protection, when handling or installing the belt.
- Rotující části: Be aware of rotating parts within the snow blower. Keep hands, feet, and loose clothing away from moving components to prevent entanglement.
- Vypnutý motor: Ensure the snow blower engine is completely off and cooled down, and the spark plug wire is disconnected before performing any maintenance or installation.
- Větrání: Never operate the snow blower in an enclosed space to prevent carbon monoxide poisoning.
- Originální díly: Use only genuine PowerSmart replacement parts to ensure proper fit and performance.
3. Installation (Auger Belt Replacement)
This section outlines the general steps for replacing the auger belt. Refer to your specific snow blower model's owner's manual for detailed instructions and diagrams.
- Příprava sněhové frézy:
- Ujistěte se, že je motor vypnutý a vychladlý.
- Odpojte kabel zapalovací svíčky, abyste zabránili náhodnému spuštění.
- Position the snow blower on a flat, stable surface.
- Přístup k pouzdru řemenu: Locate and remove the protective cover or housing that encloses the auger belt and pulleys. This typically involves removing several bolts or screws.
- Uvolněte napětí: Identify the tensioning mechanism for the auger belt. Loosen or disengage it to relieve tension on the old belt.
- Demontáž starého řemene: Carefully remove the old auger belt from the pulleys. Note its routing for correct installation of the new belt.
- Instalace nového řemene:

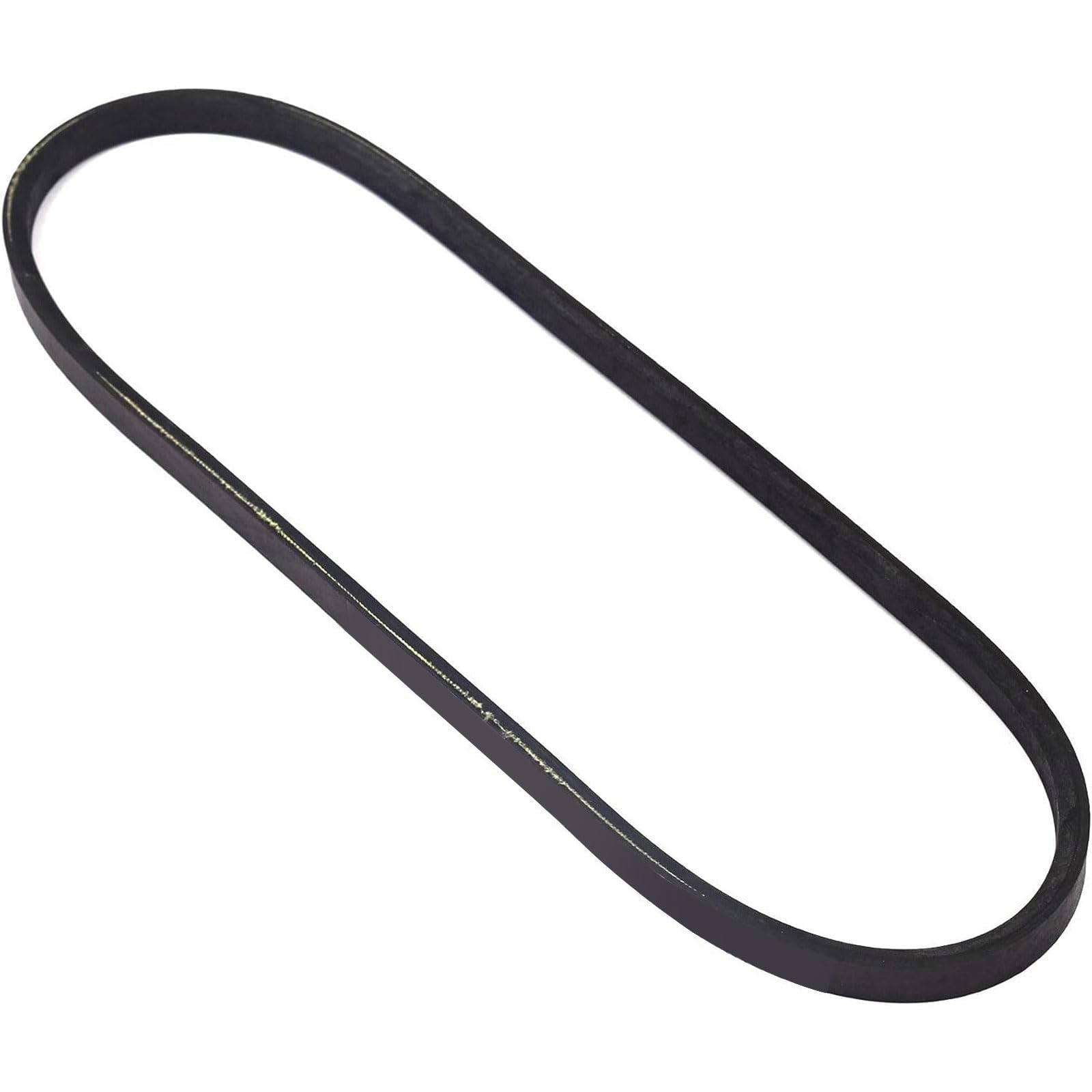

Image 1: PowerSmart 2-Stage Snow Blower Auger Belt 302040079. This image shows the replacement auger belt, which is a V-belt designed for PowerSmart 2-stage sněhové frézy.
- Place the new PowerSmart Auger Belt (model 302040079) onto the pulleys, following the exact routing of the old belt.
- Ensure the belt is seated correctly in all pulley grooves.
- Aplikujte napětí: Re-engage or tighten the tensioning mechanism to apply proper tension to the new belt. The belt should be taut but not overly tight.
- Znovu sestavit: Reattach the protective cover or housing.
- Test: Reconnect the spark plug wire. Start the snow blower and engage the auger to ensure the new belt operates smoothly and correctly. Listen for any unusual noises.
4. Operation (After Belt Replacement)
After replacing the auger belt, ensure the snow blower operates correctly before use.
- Počáteční kontrola: Before starting, visually inspect the belt for proper alignment and tension.
- Zkušební provoz: Start the snow blower in a clear area. Engage the auger control lever. The auger should spin smoothly without slipping or excessive noise.
- Monitorování výkonu: During initial use, pay attention to the auger's performance. If you notice any issues such as slipping, unusual vibrations, or reduced auger speed, stop the snow blower immediately and re-inspect the belt installation.
5. Údržba
Regular inspection and maintenance of your auger belt will extend its lifespan and ensure optimal snow blower performance.
- Vizuální kontrola: Periodically inspect the auger belt for signs of wear, cracks, fraying, glazing, or stretching. Replace the belt if any damage is observed.
- Kontrola napětí: Ensure the belt maintains proper tension. A loose belt can slip, reducing performance, while an overly tight belt can cause premature wear on the belt and pulleys.
- Čistota: Keep the belt and pulley area free from snow, ice, dirt, and debris. Accumulations can cause the belt to slip or wear unevenly.
- Skladování: When storing the snow blower for extended periods, especially during off-season, ensure the belt is clean and dry.
6. Řešení problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Auger not spinning or spinning slowly | Loose or worn auger belt | Check belt tension and condition. Adjust tension or replace belt if worn. |
| Prokluzování pásu | Incorrect belt tension, glazed belt, or debris on pulleys | Adjust tension. Clean pulleys and belt. Replace belt if glazed or damaged. |
| Unusual noise from belt area | Misaligned belt, worn pulley bearings, or foreign object | Inspect belt alignment. Check pulleys for wear. Remove any debris. |
If troubleshooting steps do not resolve the issue, consult a qualified service technician or contact PowerSmart customer support.
7. Specifikace
- Název produktu: PowerSmart 2-Stage Snow Blower Auger Belt
- Číslo modelu: 302040079
- skladové číslo: 302040079
- Typ pásu: Klínový řemen
- Velikost pásu: 720mm, 4LXA (as per User Manual reference)
- Kompatibilita: PowerSmart 2-Stage Snow Blowers (2005 and after), models PSSAM24, PSSMN24, PSS2260, DB7108, DB7109, MB7108, MB7109, HB7108, HB7109.
- Výrobce: Amerisun Inc. (pro PowerSmart)
- Hmotnost položky: 1 libra (přibližně)
- Rozměry balení: 8 x 8 x 5 palce (přibližně)
8. Záruka a podpora
For warranty information or technical support regarding your PowerSmart Auger Belt or snow blower, please refer to the original snow blower's owner's manual or contact PowerSmart customer service directly.
Výrobce: Amerisun Inc.
PowerSmart Official Webmísto: Visit the PowerSmart Store on Amazon
Always use genuine PowerSmart replacement parts to maintain warranty validity and ensure optimal performance.
