Vox AmPlug 3 Sluchátková kytara AmpNávod k obsluze záchranáře - AC30

Zavedení

The Vox amPlug 3 AC30 is a compact headphone guitar amplifier designed for convenient practice anywhere, anytime. It replicates the iconic VOX AC30 sound, offering both warm clean tones and bright top-boost drive. This device features built-in stereo effects and rhythm patterns, providing a comprehensive sonic experience for guitarists.

Image: The Vox AmPlug 3 AC30 amplifier, bundled with headphones, guitar picks, and a polishing cloth, showcasing the complete package.

Obsah balení

Ujistěte se, že v balení jsou přítomny všechny položky:

• Vox AmPlug 3 AC30 Headphone Guitar Ampdoživotní
• Kabelová sluchátka
• Tipy na kytaru
• Leštící hadřík
• AAA Batteries x 2 (for operation check)

Konec produktuview

The Vox AmPlug 3 AC30 is a compact and portable device designed to plug directly into your guitar's output jack. It features a multi-position swivel jack for compatibility with various guitar body styles.

Obrázek: Úhlový view of the Vox AmPlug 3 AC30, highlighting its compact design.

Ovládací prvky a funkce

The AmPlug 3 AC30 features intuitive controls for adjusting your sound:

• Knoflík GAIN: Adjusts the input gain, controlling the amount of distortion or overdrive.
• Knoflík TONE: Shapes the overall tonal character, from darker to brighter sounds.
• Knoflík VOLUME: Ovládá celkovou hlasitost výstupu do sluchátek.
• FX/RHYTHM Knob: Selects and adjusts the built-in effects (Reverb, Chorus, Tremolo, Delay) and rhythm patterns.
• Tlačítko TAP: Used to set the tempo for effects and rhythm patterns.
• Přepínání kanálů: Toggles between Channel 1 (cleaner, normal AC30 sound) and Channel 2 (bright Top-Boost sound with more drive).
• AUX Jack (3.5mm TRRS): Allows connection of external audio devices (e.g., smartphone, tablet) for jamming along, or for recording your playing.
• Phones Jack (3.5mm): Pro připojení sluchátek.

Obrázek: Boční view z AmPlug 3 AC30, detailing the control knobs for Gain, Tone, Volume, and FX/Rhythm, along with the AUX input.

Nastavení

1. Instalace baterie

The AmPlug 3 AC30 requires two AAA batteries. To install:

1. Vyhledejte přihrádku na baterie na spodní straně jednotky.
2. Posunutím otevřete kryt baterie.
3. Vložte dvě baterie AAA a dbejte na správnou polaritu (+/-).
4. Pevně ​​zavřete kryt baterie.

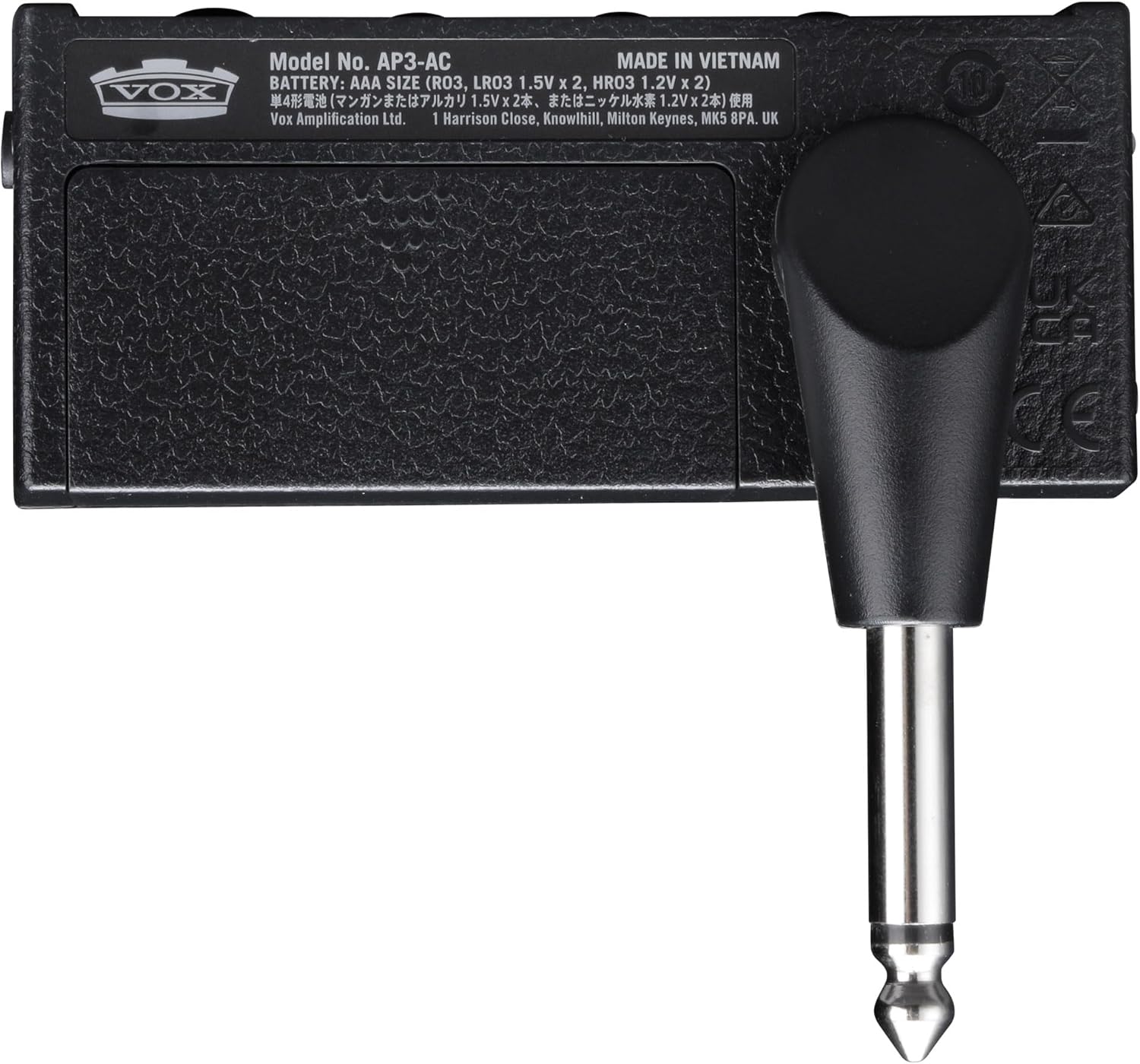

Image: Underside of the AmPlug 3 AC30, showing the battery compartment and model information.

2. Connecting Your Guitar and Headphones

1. Zapojte AmPlug 3 AC30 directly into your guitar's output jack. Adjust the swivel jack to fit comfortably.
2. Connect your headphones to the 3.5mm Phones jack on the AmPlug 3 AC30.

3. Connecting External Audio (Optional)

To play along with music or backing tracks:

• Connect your smartphone, tablet, or other audio device to the AUX jack (CTIA-compliant 3.5mm TRRS mini phone jack) on the AmPlug 3 AC30 using an appropriate audio cable.
• You can also record your playing by connecting the AUX jack to a smartphone or laptop with an optional TRRS cable.

Návod k obsluze

Zapnutí/vypnutí

Press and hold the power button (located near the jack) to turn the unit on or off. An LED indicator will illuminate when the unit is powered on.

Adjusting Your Tone

• Výběr kanálu: Use the channel switch button to toggle between Channel 1 (Normal) for clean tones and Channel 2 (Top-Boost) for driven tones. The LED indicator will change color to show the selected channel (e.g., green for Channel 1, red for Channel 2).
• Získat: Rotate the GAIN knob to increase or decrease the amount of distortion.
• Tón: Adjust the TONE knob to brighten or darken your sound.
• Objem: Control the overall headphone volume with the VOLUME knob.

Using Effects and Rhythms

The AmPlug 3 AC30 includes built-in stereo effects and rhythm patterns:

• Výběr efektu: Turn the FX/RHYTHM knob to select different effects (Tremolo, Chorus, Delay, Reverb) or rhythm patterns (Rock1, Blues, Surf, Pop1, Pop2, Funk1, Metal1, Jazz, Metronome).
• Effect Intensity/Tempo: The intensity of the selected effect or the tempo of the rhythm pattern can be adjusted. For effects, rotate the FX/RHYTHM knob. For rhythms, the tempo can be adjusted from 40 to 240 BPM.
• Klepněte na Tempo: Press the TAP button multiple times in rhythm to set the desired tempo for delay effects or rhythm patterns.

Údržba

• Čištění: Use the included polishing cloth or a soft, dry cloth to clean the unit. Do not use abrasive cleaners or solvents.
• Péče o baterie: Pokud nebudete přístroj delší dobu používat, vyjměte baterie, abyste zabránili jejich vytečení.
• Skladování: Uložte AmPlug 3 AC30 in a cool, dry place away from direct sunlight and extreme temperatures.
• Zacházení: Zabraňte pádu jednotky nebo jejímu vystavení silným nárazům.

Odstraňování problémů

Specifikace

• Model: AUS-AP3AC-COMBO-STD
• Spojení: Phones jack (3.5mm), AUX jack (CTIA-compliant 3.5mm TRRS mini phone jack)
• Napájení: AAA baterie x 2
• Životnost baterie (přibližně):
  • 10 hours (alkaline, FX or RHYTHM on)
  • 16 hours (alkaline, FX and RHYTHM off)
  • 3 hours (manganese battery, FX or RHYTHM on)
  • 5 hours (manganese battery, FX and RHYTHM off)
• Rozměry (D x Š x V): 3.43 cm x 1.3 cm x 1.54 cm
• Hmotnost: 1.6 unce
• Efekty: Tremolo, Chorus, Delay, Reverb
• Rytmické vzory: Rock1, Blues, Surf, Pop1, Pop2, Funk1, Metal1, Jazz, Metronome
• Rozsah tempa: 40 až 240 BPM

Záruka a podpora

Informace o záruce a technickou podporu získáte od oficiálního prodejce výrobce. webnebo se obraťte na jejich zákaznický servis. Uschovejte si doklad o koupi pro případ reklamace.
