1. Úvod
This manual provides detailed instructions for the safe and effective use of your Codnida Baby Monitor, Model YM-MWM553+MWZ553C-EU. Please read this manual thoroughly before operating the device and retain it for future reference. This baby monitor is designed to provide secure and reliable surveillance of your child, offering features such as a 5.5-inch 2K HD display, PTZ camera control, two-way audio, and environmental monitoring.
Image 1.1: Codnida Baby Monitor system, showing the monitor, camera, and smartphone interface.
2. Obsah balení
Ověřte, zda jsou v balení přítomny všechny položky:
- Baby Monitor (Parent Unit)
- Baby Camera (Baby Unit)
- Power Adapters (2x, for monitor and camera)
- USB Charging Cables (2x)
- Sada pro montáž na zeď (šrouby a hmoždinky)
- Uživatelská příručka (tento dokument)
Image 2.1: All components included in the Codnida Baby Monitor package.
3. Konec produktuview
3.1 Rodičovská jednotka (monitor)
The parent unit features a 5.5-inch LCD screen for live video feed, control buttons for camera functions, and a built-in microphone and speaker for two-way audio communication.
- LCD obrazovka: 5.5-inch 2K HD display.
- Ovládací tlačítka: Navigation, OK, Menu, Talk, Zoom.
- Anténa: For wireless signal transmission.
- Mikrofon: Pro obousměrný zvuk.
- Reproduktor: For listening to your baby and lullabies.
- Napájecí port: USB-C for charging.
- Baterie: Integrovaná dobíjecí baterie s kapacitou 4000 mAh.
3.2 Dětská jednotka (kamera)
The baby unit is equipped with a 3MP 2K HD camera, infrared LEDs for night vision, and a temperature/humidity sensor.
- Objektiv fotoaparátu: 3MP 2K HD resolution.
- Infračervené LED diody: For clear night vision up to 8 meters.
- Mikrofon: To detect baby's sounds.
- Reproduktor: To play lullabies and enable two-way audio.
- Snímač teploty/vlhkosti: Monitors room environment.
- Napájecí port: USB-C for continuous power.
- Montážní otvor: Pro montáž na stěnu.
4. Nastavení
4.1 Nabíjení rodičovské jednotky
Before first use, fully charge the parent unit for approximately 8 hours. Connect the provided USB charging cable to the parent unit's power port and the power adapter to an electrical outlet. The battery indicator on the screen will show charging status.
Image 4.1: Charging the parent unit and expected battery life.
4.2 Napájení dětské jednotky
The baby unit requires continuous power. Connect the provided USB charging cable to the baby unit's power port and the power adapter to an electrical outlet. Ensure the cable is placed safely away from the baby's reach.
4.3 Umístění kamery
Umístěte dětskou jednotku (kameru) na místo, které poskytuje jasný view of your baby. Ensure it is at least 1 meter (3 feet) away from the baby's crib to prevent any entanglement hazards with the power cord. The camera can be placed on a flat surface or mounted to a wall using the provided kit.
- Pro optimální viewing, position the camera to capture the entire crib area.
- Neumísťujte kameru do blízkosti zdrojů tepla nebo přímého slunečního záření.
- Ensure the camera is within the monitor's transmission range (up to 700 meters in open areas).
4.4 Počáteční připojení
The Codnida Baby Monitor uses FHSS technology for a secure, direct connection without requiring Wi-Fi or an app for basic operation. Simply power on both the parent unit and the baby unit. They should automatically connect. If they do not connect, refer to the troubleshooting section for pairing instructions.
Image 4.2: Secure FHSS connection between monitor and camera.
5. Návod k obsluze
5.1 Zapnutí/vypnutí
- nadřazená jednotka: Press and hold the power button until the screen turns on/off.
- Dětská jednotka: The baby unit powers on automatically when connected to power.
5.2 Živě View and VOX Mode
The monitor defaults to live view, continuously displaying video from the camera. To conserve battery, you can activate VOX (Voice Operated eXchange) mode.
- Režim VOX: In VOX mode, the monitor screen remains black. It will automatically light up and display video when sound or motion is detected in the baby's room.
- To activate/deactivate VOX mode, navigate through the menu settings on the parent unit.
Image 5.1: VOX mode for power saving and automatic activation.
5.3 Camera Control (PTZ & Zoom)
The camera offers Pan, Tilt, and Digital Zoom (PTZ) functions, allowing you to adjust the viewúhel na dálku.
- Pan/Tilt: Use the directional buttons on the parent unit to move the camera lens horizontally (350 degrees) and vertically (90 degrees).
- Digitální zoom: Press the zoom button to activate 2x or 4x digital zoom for a closer view vašeho dítěte.

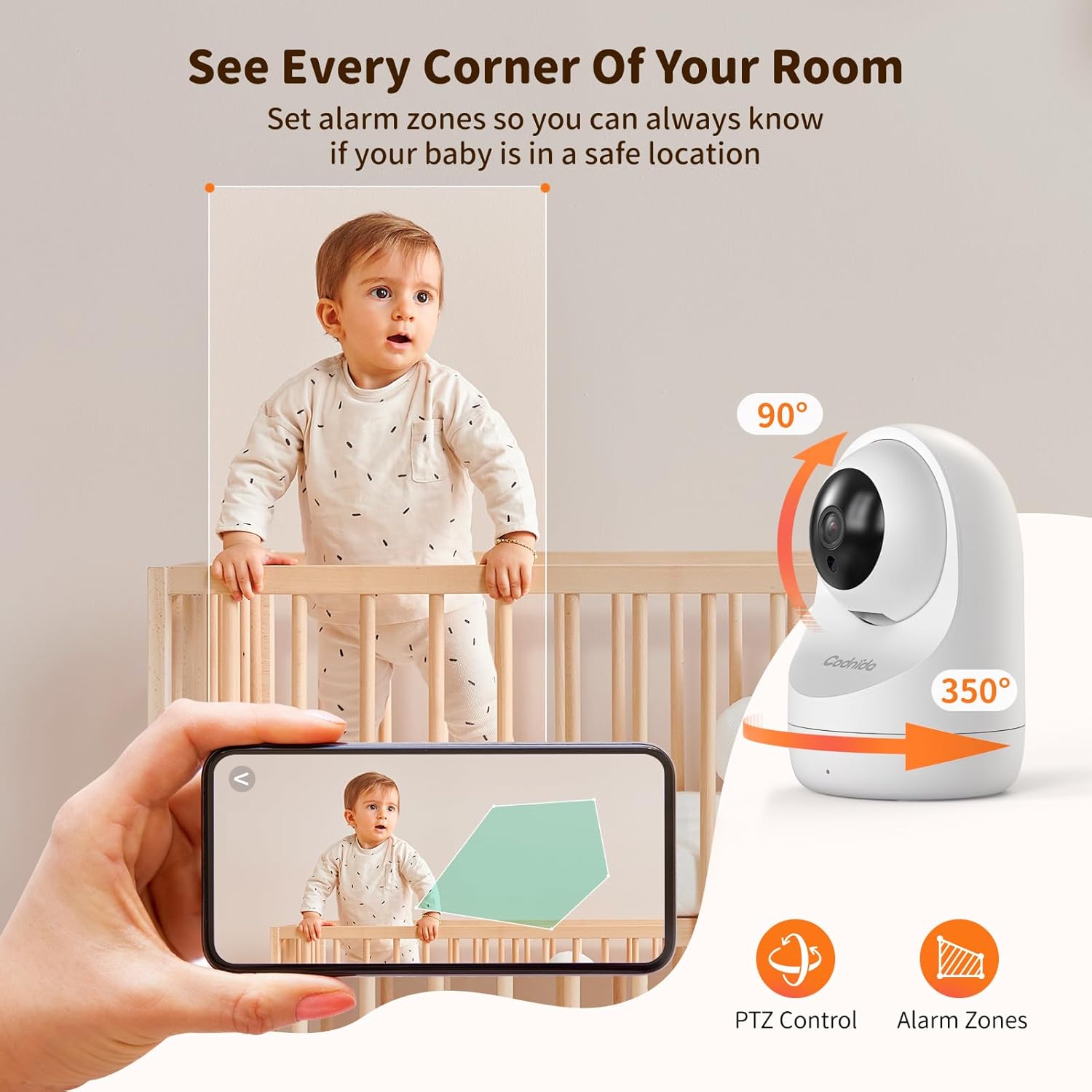

Image 5.2: PTZ control and alarm zone setup.
Image 5.3: 2K HD image quality and 4x digital zoom.
5.4 Two-Way Audio and Lullabies
Communicate with your baby or play soothing lullabies directly from the parent unit.
- Obousměrný zvuk: Press and hold the 'Talk' button on the parent unit to speak to your baby through the camera's speaker. Release the button to listen.
- Ukolébavky: Access the menu to select and play built-in lullabies. You can adjust the volume and set a timer for playback.
Image 5.4: Two-way audio communication.
Image 5.5: Night vision and lullaby function.
5.5 Monitoring Features
- Monitorování teploty a vlhkosti: The baby unit continuously monitors the room's temperature and humidity. These readings are displayed on the parent unit. You can set alert thresholds in the menu.
- Připomenutí krmení: Set up feeding reminders through the parent unit's menu to help maintain a consistent feeding schedule.
- Poplašné zóny: Definujte specifické oblasti v záběru kamery view as alarm zones. The monitor will alert you if motion is detected within these zones.
Image 5.6: Temperature and humidity detection.
Image 5.7: Feeding reminder function.
5.6 Recording to SD Card
The Codnida Baby Monitor supports Micro SD cards (FAT32 format, up to 256GB) for video recording. Insert the Micro SD card into the designated slot on the parent unit. You can initiate recording manually or set it to record automatically upon motion/sound detection via the menu settings.
6. Údržba
6.1 Čištění
To clean the monitor and camera units, use a soft, dry cloth. Do not use abrasive cleaners or solvents. For the camera lens, use a lens cleaning cloth to avoid scratches.
6.2 Péče o baterii
- Avoid fully discharging the parent unit's battery frequently.
- Charge the parent unit regularly to maintain battery health.
- Store the device in a cool, dry place if not in use for extended periods.
7. Řešení problémů
If you encounter issues with your Codnida Baby Monitor, please refer to the following common solutions:
| Problém | Možná příčina | Řešení |
|---|---|---|
| No image/sound on monitor | Jednotky nejsou zapnuté, jsou mimo dosah nebo nejsou spárované. | Ensure both units are powered. Move units closer. Re-pair units via menu settings (refer to manual for specific steps). |
| Špatná kvalita obrazu | Low light, dirty lens, interference. | Ensure adequate lighting. Clean camera lens. Move units away from other electronic devices. |
| Monitor loses connection frequently | Out of range, signal interference, obstacles. | Move units closer. Reduce obstacles (walls, furniture). Avoid placing near thick walls or metal structures. |
| Baterie se rychle vybíjí | Continuous live view, high brightness, aging battery. | Aktivujte režim VOX. Snižte jas obrazovky. Před použitím se ujistěte, že je baterie plně nabitá. |
| Temperature/Humidity readings incorrect | Sensor obstruction, extreme environmental conditions. | Ensure sensor is not covered. Allow time for sensor to adjust to room conditions. |
8. Specifikace
| Funkce | Detail |
|---|---|
| Číslo modelu | YM-MWM553+MWZ553C-EU |
| Velikost displeje | 5.5 palců |
| Rozlišení videa | 2K HD (1296p) |
| Rozlišení fotoaparátu | 3 megapixelů |
| Bezdrátová technologie | FHSS (Spectrum Frequency Hopping Spread Spectrum) |
| Dosah převodovky | Až 700 metrů (otevřená plocha) |
| Rozsah nočního vidění | Až 8 metrů |
| Úhel Pan / Tilt | Pan 350°, náklon 90° |
| Digitální zoom | 4x |
| Baterie rodičovské jednotky | 4000mAh Lithium-ion (1 AAA included for internal components) |
| Podpora úložiště | Micro SD card up to 256GB (FAT32 format) |
| Speciální funkce | Two-Way Audio, Motion Detector, VOX Mode, Temperature/Humidity Sensor, Lullabies, Feeding Reminder |
| Materiál | Plast |
| Rozměry (D x Š x V) | 10 x 5 x 5 cm |
| Hmotnost | 860 gramů |
9. Záruka a podpora
Codnida offers a 1-letá záruka for this product and a 30denní zásada vrácení. For any questions regarding your baby monitor or other Codnida products, please contact customer support through your Amazon account:
- Navigate to "Your account"
- Select "Your orders"
- Locate your Codnida Baby Monitor order
- Click on "Ask a question"
Our support team will assist you with any inquiries or issues you may have.
