Návod k obsluze relé American Dish Service SK309

1. Úvod

The American Dish Service SK309 Relay is an essential electrical component designed for reliable and instant switching in various applications. This relay operates at 120V, 50/60Hz, and is rated for 10A, making it suitable for controlling circuits in industrial and commercial equipment, particularly in dish service systems. Its primary function is to open or close electrical contacts, thereby controlling the flow of power to a device or system based on an input signal.

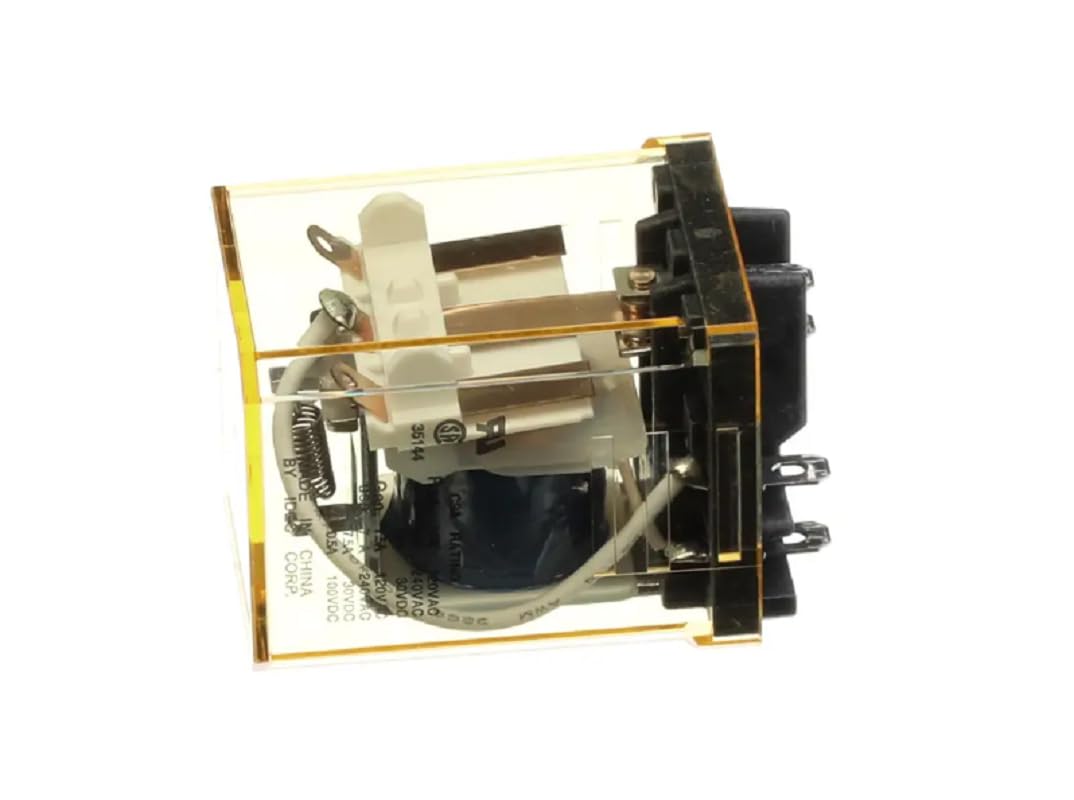

Figure 1: American Dish Service SK309 Relay. This image displays the transparent casing of the relay, revealing its internal coil and electrical contacts. The relay features a rectangular form factor with multiple metal terminals for connection.

2. Nastavení a instalace

Proper installation of the SK309 Relay is crucial for safe and effective operation. It is highly recommended that installation be performed by a qualified electrician or technician to ensure compliance with all local electrical codes and safety standards.

Bezpečnostní opatření:

• Always disconnect power to the circuit before installing or servicing the relay.
• Ověřte, že svtage and current ratings of the relay match the requirements of your application.
• Ensure proper grounding and insulation to prevent electrical shock.
• Avoid touching live terminals.

Kroky instalace:

1. Odpojení napájení: Turn off the main power supply to the equipment or circuit where the relay will be installed. Verify power is off using a voltage tester.
2. Montáž: Securely mount the SK309 Relay in a suitable enclosure or panel, ensuring it is protected from moisture, dust, and excessive vibration.
3. Zapojení: Connect the relay according to the wiring diagram provided with your equipment or system. Pay close attention to coil voltage (120V AC) and contact ratings (10A). Ensure all connections are tight and secure.
4. Ověření: Double-check all wiring connections for correctness and security before restoring power.
5. Obnovení napájení: Carefully restore power to the circuit and test the relay's operation.

3. Principy fungování

The SK309 Relay functions as an electromechanical switch. When the 120V AC coil is energized, it creates a magnetic field that pulls the armature, causing the electrical contacts to change state (either opening normally closed contacts or closing normally open contacts). When the coil is de-energized, the contacts return to their original state. This instant start relay is designed for rapid response, ensuring quick activation or deactivation of the controlled circuit.

As an automatic component, the relay does not require direct user interaction during operation. Its function is integrated into the overall control system of the equipment it is installed in.

4. Údržba

The American Dish Service SK309 Relay is designed for durability and minimal maintenance. However, periodic inspection can help ensure its longevity and reliable performance.

Pokyny pro inspekci:

• Vizuální kontrola: Pravidelně kontrolujte relé, zda nevykazuje známky fyzického poškození, změny barvy (což naznačuje přehřátí) nebo uvolněných spojů.
• Stav kontaktu: While the relay is typically sealed, if accessible, check for signs of pitting or carbon buildup on the contacts, which can indicate wear.
• Integrita kabeláže: Ensure all wires connected to the relay are secure and free from fraying or damage.
• Podmínky prostředí: Verify that the relay is operating within its specified environmental conditions (temperature, humidity) and is free from excessive dust or moisture accumulation.

No user-serviceable parts are inside the sealed relay unit. If the relay shows signs of malfunction or damage, it should be replaced.

5. Řešení problémů

If the equipment controlled by the SK309 Relay is not functioning as expected, consider the following troubleshooting steps. Always ensure power is disconnected before performing any checks involving physical contact with the relay or wiring.

Běžné problémy a řešení:

• Relé se neaktivuje:
  • Příčina: No power to the coil, incorrect coil voltage, faulty control signal, or open coil circuit.
  • Řešení: Verify 120V AC power supply to the coil terminals. Check the control circuit for proper signal output. Inspect coil wiring for breaks.
• Přerušovaný provoz:
  • Příčina: Loose wiring connections, fluctuating control signal, or worn contacts.
  • Řešení: Tighten all wiring connections. Ensure stable control signal. If contacts are suspected, replace the relay.
• Relay Overheating:
  • Příčina: Overcurrent through contacts, incorrect voltage to coil, or poor ventilation.
  • Řešení: Verify the load current does not exceed 10A. Ensure correct 120V AC coil voltage. Improve ventilation around the relay if installed in a confined space.
• Contacts Not Switching:
  • Příčina: Welded contacts (due to overcurrent or arcing), or mechanical failure.
  • Řešení: If contacts are visibly damaged or stuck, the relay must be replaced.

If troubleshooting does not resolve the issue, it is likely that the relay itself is faulty and requires replacement.

6. Specifikace

Note: Additional ratings observed on the component may include 240VAC, 30VDC, 100VDC, and 0.5A for specific contact configurations or coil types not detailed in the primary product description. Always refer to the specific wiring diagram for your application.

7. Informace o záruce

Specific warranty terms for the American Dish Service SK309 Relay are typically provided by the original seller or manufacturer at the time of purchase. Please retain your proof of purchase and contact the vendor or American Dish Service directly for detailed warranty information, including coverage period and conditions.

8. Zákaznická podpora

For technical assistance, installation queries, or any other support related to the American Dish Service SK309 Relay, please contact the seller from whom you purchased the product. Alternatively, you may reach out to American Dish Service directly through their official website or customer service channels for expert guidance.
