Outsunny Wall Greenhouse with 2 Roll-Up Doors

1. Úvod

This manual provides detailed instructions for the assembly, operation, and maintenance of your Outsunny Wall Greenhouse, Model 845-935V00GN. This greenhouse is designed to provide a protected environment for plants, utilizing vertical space against a wall. It features a durable PE cover, roll-up doors, and a ventilation window.

Image 1.1: The Outsunny Wall Greenhouse positioned against a wall, demonstrating its space-saving design and internal growing space for plants.

2. Bezpečnostní pokyny

• Před montáží a použitím si pečlivě přečtěte všechny pokyny.
• Před zahájením montáže se ujistěte, že jsou všechny součásti přítomny a nepoškozené.
• Assemble the greenhouse on a flat, level surface.
• Securely anchor the greenhouse to the ground using the provided stakes and wind ropes to prevent overturning in windy conditions. Bury the extended edges of the cover for added stability and insulation.
• Do not use the greenhouse in extreme weather conditions without additional reinforcement.
• Udržujte děti a domácí zvířata mimo oblast montáže.
• Periodically check all connections and anchors for tightness and wear.

Image 2.1: Illustration of securing the greenhouse using ground stakes and wind ropes, and burying the cover's extended edges for enhanced stability.

3. Obsah balení

Verify that all the following components are included in your package. If any parts are missing or damaged, contact customer support.

• Greenhouse Frame Components (Poles, Connectors)
• PE Cover (Polyethylene, Anti-UV)
• Pozemní sázky
• Větrná lana
• Návod k montáži (tato příručka)

4. Montážní návod

Follow these steps carefully to assemble your Outsunny Wall Greenhouse. It is recommended to have at least two people for assembly.

1. Rozbalte komponenty: Lay out all frame poles, connectors, the PE cover, ground stakes, and wind ropes. Identify each part according to the included diagram (if provided separately).
2. Sestavte základní rám: Connect the base poles using the appropriate connectors. Ensure all connections are secure.
3. Construct Side and Top Frames: Attach the vertical and horizontal poles to form the side and top sections of the greenhouse frame. Pay close attention to the orientation of poles and connectors. Note: Some users have reported that poles labeled '1' and '3' in some diagrams might be inverted. If you encounter difficulty during assembly, try swapping these specific poles.
4. Připevněte PE kryt: Carefully drape the PE cover over the assembled frame. Ensure the zippered doors and window align correctly.
5. Zajistěte kryt: Fasten the cover to the frame using any integrated ties or straps. Ensure the cover is taut to prevent flapping in the wind.
6. Position the Greenhouse: Place the greenhouse against a sturdy wall or structure.
7. Ukotvení skleníku: Use the provided ground stakes and wind ropes to firmly anchor the greenhouse to the ground. Bury the extended bottom edges of the PE cover into the soil to enhance stability and create a better seal against the elements.

Image 4.1: Detail of a frame connector, showing how poles interlock to form the greenhouse structure.

Image 4.2: Detail of a tie-down securing the greenhouse cover to the frame.

5. Návod k obsluze

Správná manipulace zajišťuje optimální podmínky pro růst vašich rostlin.

• Přístup: The greenhouse features two roll-up zippered doors for easy access. Unzip and roll up the doors, securing them with the integrated ties to keep them open.
• Větrání: Utilize the mesh window and roll-up doors to control airflow and temperature inside the greenhouse. Open them during warm periods to prevent overheating and reduce humidity. Close them during cooler periods or at night to retain heat.
• Přenos světla: The PE cover allows approximately 85% of sunlight to pass through, providing essential light for plant growth while offering UV protection.

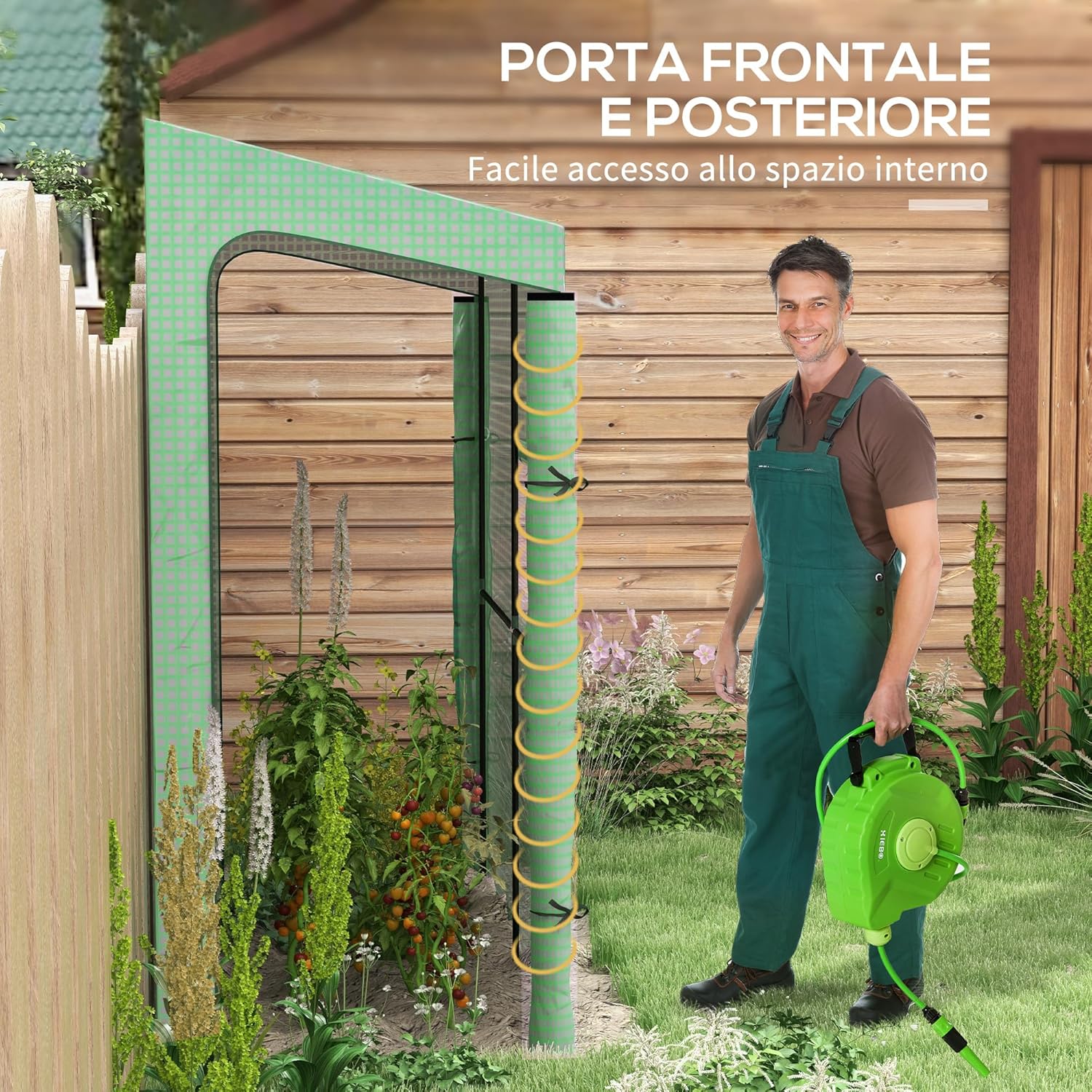

Image 5.1: The roll-up door provides convenient access to the greenhouse interior.

Image 5.2: The mesh window allows for ventilation while preventing insects from entering.

6. Údržba

• Čištění: Clean the PE cover periodically with mild soap and water to ensure maximum light transmission. Avoid abrasive cleaners.
• Inspekce: Regularly inspect the frame for any signs of rust or damage. Check the cover for tears or holes and repair them promptly to maintain optimal conditions.
• Kontrola stability: Periodically verify that the ground stakes and wind ropes are securely in place, especially after strong winds or heavy rain.
• Sezónní péče: In areas with heavy snowfall, remove snow accumulation from the roof to prevent structural damage. Consider disassembling or reinforcing the greenhouse during severe winter conditions if not actively in use.

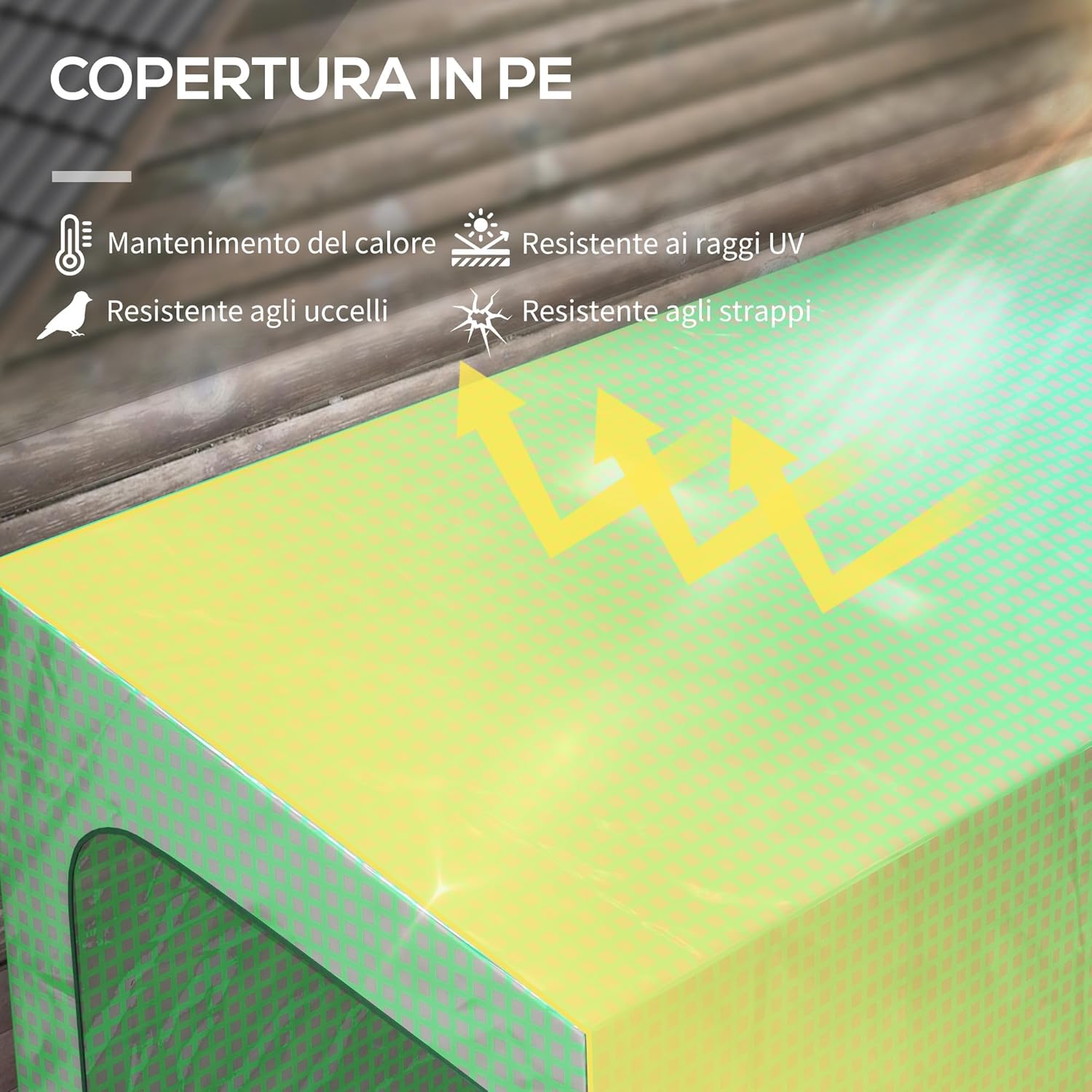

Image 6.1: The PE cover is designed for heat retention, UV resistance, and durability against tears and birds.

7. Řešení problémů

8. Specifikace

• Model: 845-935V00GN
• Značka: slunný
• Celkové rozměry (D x Š x V): 200 cm x 80 cm x 200/180 cm (78.7" x 31.5" x 78.7"/70.9")
• Rozměry dveří (Š x V): 68 cm x 180 cm (26.8" x 70.9")
• Window Dimensions (W x H): 40 cm x 30 cm (15.7" x 11.8")
• Materiál: Polyethylene (PE) cover, Metal frame
• Hmotnost: Přibližně 5.05 kg (11.13 lb)
• Barva: Zelený

Image 8.1: Detailed dimensions of the Outsunny Wall Greenhouse.

9. Záruka a podpora

For warranty information, product support, or to report missing/damaged parts, please contact the seller or manufacturer directly. Refer to your purchase documentation for specific contact details.

Manufacturer: Aosom Italy

Seller: AOSOM
