1. Úvod
Thank you for choosing the SOTOMO DA80 Smart Toilet. This manual provides essential information for the safe installation, operation, and maintenance of your new smart toilet. Please read these instructions thoroughly before installation and use, and retain them for future reference.
2. Bezpečnostní informace
Always follow basic safety precautions to reduce the risk of fire, electric shock, and injury. Ensure all electrical connections comply with local codes. Do not immerse the product in water. Disconnect power before servicing. This product is designed for indoor use only.
3. Obsah balení
Před zahájením instalace ověřte, zda jsou přítomny všechny komponenty.
- Smart Toilet (1 set)
- Remote controller set (1 set)
- Dvě AAA baterie
- Instalační kniha a uživatelská příručka
- T-ventil (1 ks)
- Water supply (1 pc)
- Battery box assembly (1 set)
- Mounting accessory kit (2 pcs)
- Těsnicí příruba
- Wax Ring (1 pcs)
- Montážní šablona
Figure 3.1: Included components for the SOTOMO DA80 Smart Toilet.
4. Nastavení a instalace
The SOTOMO DA80 smart toilet is designed for a standard 12-inch rough-in and comes mostly pre-assembled. Follow these steps for a smooth installation. It is recommended to watch the installation video for visual guidance.
4.1 Příprava
- Cut off any excess sewage pipes to ensure a flush surface.
- Grind the edges of the sewage outlet for a smooth finish.
- Clean the ground thoroughly around the installation area.
- Check the water and power supply positions to ensure they are accessible and correctly located.
4.2 Flange Plate Installation
- Place the flange plate into the sewage outlet.
- Mark the screw positions of the flange plate on the floor.
- Drill screw holes at the marked points.
- Assemble the mounting block together with the flange plate, then place it on the sewage pipe.
- Tighten the 4 screws to secure the flange plate.
4.3 Toilet Placement and Connections
- Stick the wax ring (sludge) on the sewage outlet at the ceramic bottom of the toilet.
- Carefully install the toilet onto the floor, aligning it with the flange plate.
- Insert screws and decorative hats to secure the toilet to the floor.
- Connect the T-valve to the angle valve and tighten the pipes securely.
- Secure the ceramic base to the floor using sealant around the perimeter. Wait 24 hours before using the toilet to ensure proper curing.
- Connect the power supply to a suitable electrical outlet.
Video 4.1: SOTOMO Smart Toilet Installation Guide. This video demonstrates the step-by-step process for installing the smart toilet, from preparing the sewage pipes to connecting the water and power supplies.
Video 4.2: SOTOMO Smart Toilet Installation Video. A detailed video guide showing the physical installation of the smart toilet.
5. Návod k obsluze
The SOTOMO DA80 Smart Toilet offers a range of automatic and customizable features for enhanced comfort and hygiene.
5.1 Automatické funkce
- Automatické otevírání/zavírání víka: The lid automatically opens as you approach and closes when you leave.
- Automatické splachování: The toilet flushes automatically after you leave.
- Pre-wet Function: Activates when seated to help maintain a cleaner bowl.
- Noční světlo: A soft white LED night light provides guidance in the dark.
- Automatická dezodorace: Activates immediately upon use to provide a better air experience.
Obrázek 5.1: Přesview of SOTOMO DA80 Smart Toilet functions.

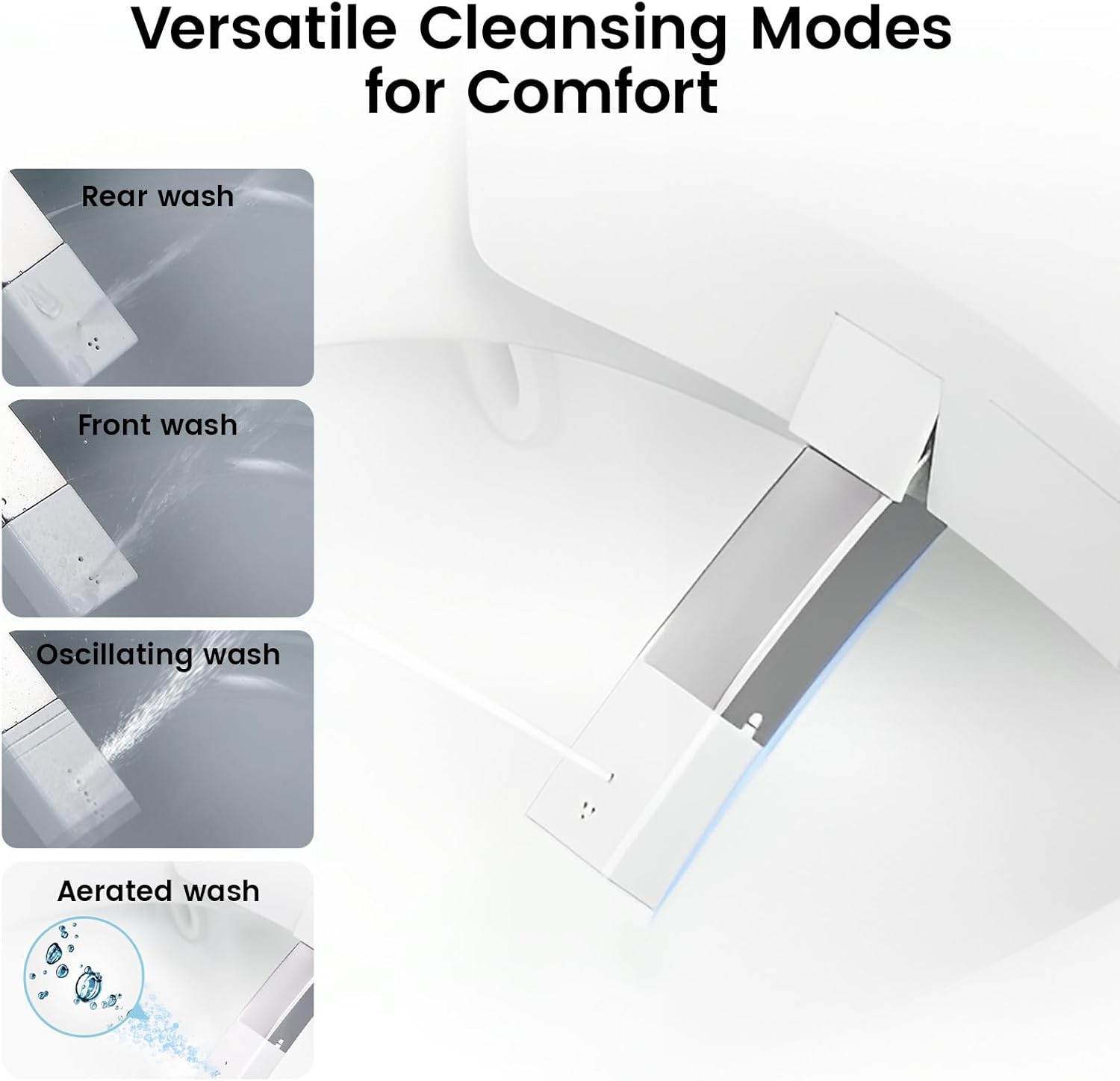

5.2 Bidet Wash Modes
Customize your cleansing experience with various wash options:
- Zadní mytí
- Přední mytí
- Oscilační praní
- Provzdušňované mytí
- Hot/Cold Massage Mode
Adjust water temperature, pressure, and nozzle position using the remote control.
Figure 5.2: Versatile cleansing modes for personalized comfort.
5.3 Heated Seat and Warm Air Dryer
Enjoy customizable warmth with a heated seat and a warm air dryer. The heated seat offers 3-level temperature selection.
Figure 5.3: Adjustable heated seat for tailored comfort.
5.4 Možnosti proplachování
- Automatické splachování: Flushes when you leave the toilet.
- Foot Kick Flush: A foot kick button allows you to flush without using your hands.
- Splachování dálkovým ovládáním: Use the remote to initiate a flush.
- Knob Control Flush: Rotate the knob for flushing.
- Nouzové splachování: V případě výpadku napájenítage, press the center knob to flush manually.
Figure 5.4: Emergency flush mechanism.
Video 5.1: DA80 Siphonic Smart Toilet Flush Test with Pump & Tank. This video demonstrates the powerful and consistent flushing performance of the DA80 smart toilet, even with various items.
Video 5.2: DA80 Smart Toilet Overview: Flush, Dryer & Warm Seat. An overview of the DA80's key features including flushing, warm air drying, and heated seat.
Video 5.3: One of the usage paths for the SOTOMO smart toilet. This video illustrates a typical user interaction with the smart toilet's automatic features.
6. Údržba
Regular maintenance ensures the longevity and hygiene of your SOTOMO DA80 Smart Toilet.
6.1 Nozzle Cleaning and Sterilization
- Samočištění trysky: The nozzle performs a self-clean before and after each use.
- Sterilizace UV světlem: The nozzle is sterilized with UV light after each use.
- Odnímatelná tryska: The nozzle can be easily detached for manual cleaning.
Figure 6.1: Nozzle self-cleaning and UV sterilization.
Video 6.1: Hygienic SOTOMO Smart Toilet Nozzle System. This video highlights the self-cleaning and UV sterilization features of the nozzle for optimal hygiene.
7. Řešení problémů
If you encounter any issues with your SOTOMO DA80 Smart Toilet, please refer to the following general advice. For specific problems not listed here, or if issues persist, contact SOTOMO customer support.
- Bez napájení: Zkontrolujte, zda je napájecí kabel bezpečně zapojený a zda se nevypnul jistič.
- Bez vody: Ensure the water supply valve is fully open and there are no kinks in the water supply hose.
- Slabý splach: Verify that the water pressure is adequate (minimum 11.6 PSI). The built-in pump should assist in low-pressure situations.
- Víko se neotevírá/nezavírá automaticky: Ensure the microwave sensor is not obstructed and is clean.
- Bidet nefunguje: Check water pressure and ensure the nozzle is not clogged. Perform a nozzle clean cycle.
8. Specifikace
| Funkce | Detail |
|---|---|
| Barva | Bílý |
| Rozměry produktu | 26.97"H x 15.75"Š x 18.5"V |
| Materiál | Plastic smart bidet, White ceramic one piece smart toilet |
| Hmotnost položky | 101 libry |
| Typ instalace | Montáž na podlahu |
| Tvar | Obdélník |
| Hrubý vstup | 12-inch standard |
| Vyplachovací objem | 1.06 GPF |
| Požadavek na tlak vody | ≥ 11.6 PSI |
| Baterie | Potřebné 8 baterie CR123A (součástí balení) |
Figure 8.1: SOTOMO DA80 Smart Toilet dimensions and rough-in.
9. Záruka a podpora
The SOTOMO DA80 Smart Toilet comes with a 12-month worry-free warranty. We also offer lifetime friendly customer support with a 24-hour response time. For any installation or accessory issues, please contact our customer service team for quick resolution.
Contact Information: Refer to the contact details provided in your product packaging or visit the official SOTOMO webmísto.
