Uživatelská příručka k skládacímu elektrickému běžeckému pásu 3 v 1 TOPUTURE Ctm216

1. Úvod

This manual provides essential information for the safe and effective operation and maintenance of your TOPUTURE Ctm216 Foldable 3-in-1 Electric Treadmill. Please read this manual thoroughly before initial use and retain it for future reference.

The TOPUTURE Ctm216 is designed for home use, offering versatile exercise modes as both a walking mat (1-6 km/h) and a treadmill (1-12 km/h). It features a 2.5 HP motor, LED display, app control compatibility, and a space-saving foldable design with an adjustable slope.

2. Důležité bezpečnostní informace

To reduce the risk of serious injury, read all important precautions and instructions in this manual before using the treadmill. TOPUTURE assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

• Běžecký pás vždy umístěte na rovný povrch.
• Během provozu udržujte děti a domácí zvířata mimo běžecký pás.
• Zajistěte dostatečný volný prostor kolem běžeckého pásu (alespoň 2 metry za ním a 0.6 metru po každé straně).
• Noste vhodné sportovní oblečení a sportovní obuv.
• Nepoužívejte běžecký pás, pokud je poškozený nebo nefunkční.
• Před zahájením jakéhokoli cvičebního programu se poraďte s lékařem.
• Během provozu vždy používejte bezpečnostní klip na klíč.
• Odpojte běžecký pás ze zásuvky, pokud jej nepoužíváte, nebo před čištěním/údržbou.
• Maximální hmotnost uživatele: 130 kg.

3. Obsah balení

Ověřte, zda jsou všechny součásti přítomny a nepoškozené:

• TOPUTURE Ctm216 Treadmill Unit
• Dálkové ovládání
• Bezpečnostní klíč
• Uživatelská příručka (tento dokument)
• Napájecí kabel

Note: Lubricant for the running belt is recommended for separate purchase.

4. Konec produktuview

Familiarize yourself with the main components of your treadmill.

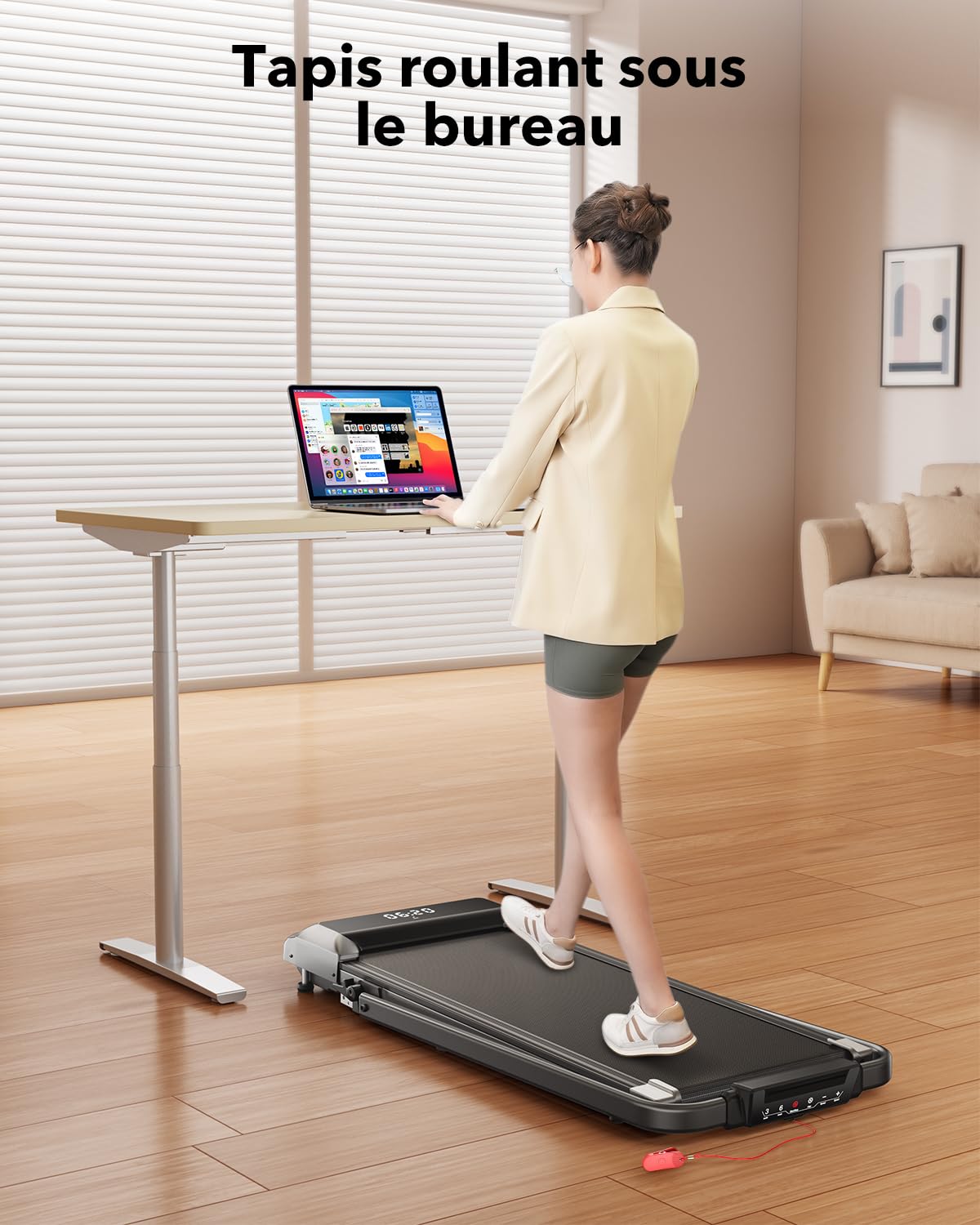

Image: The TOPUTURE Ctm216 Treadmill in its upright configuration, with a user walking. This image illustrates the overall design and how it appears during use.

• Běžecký pás: The surface for walking or running.
• Handrail/Riser: Provides support and houses the display.
• LED displej: Shows speed, distance, time, and calories.
• Dálkové ovládání: Used to adjust speed and modes.
• Bezpečnostní klíč: Magnetic key that stops the treadmill when removed.
• Dopravní kola: For easy relocation of the folded treadmill.
• Slope Adjustment Mechanism: Allows for incline changes.

5. Pokyny k nastavení

The TOPUTURE Ctm216 treadmill comes largely pre-assembled. Follow these steps for initial setup:

1. Rozbalení: Opatrně vyjměte běžecký pás z obalu.
2. Umístění: Place the treadmill on a flat, stable surface, ensuring sufficient clear space around it.
3. Unfolding the Riser (if applicable): If the riser is folded down, gently lift it into the upright position until it locks securely. Twist the buckle to secure it.
4. Připojení napájení: Zapojte napájecí kabel do uzemněné elektrické zásuvky.
5. Bezpečnostní klíč: Attach the safety key to the designated slot on the console. Ensure the clip is attached to your clothing during operation.

Image: The treadmill shown in both its flat walking mat configuration and with the riser extended for treadmill use. This demonstrates the 2-in-1 functionality.

Image: The treadmill folded vertically, being easily moved using its transport wheels. This highlights the space-saving design and portability.

6. Návod k obsluze

6.1 Zapnutí/vypnutí

• To power on, ensure the safety key is in place and press the power button on the remote control or console.
• To power off, press the power button again or remove the safety key.

6.2 provozních režimů

The treadmill offers two primary modes:

• Walking Mat Mode: When the riser is folded down, the speed range is 1-6 km/h.
• Treadmill Mode: When the riser is upright, the speed range is 1-12 km/h.

Image: The treadmill shown in both its flat walking mat configuration and with the riser extended for treadmill use. This illustrates the two operational modes.

6.3 Nastavení rychlosti

• Use the '+' and '-' buttons on the remote control or touch screen to increase or decrease speed.
• LED displej zobrazí aktuální rychlost.

6.4 Přednastavené programy

The treadmill includes 12 preset programs. Refer to the display or remote control for program selection. Each program offers varied speed profiles for different workout intensities.

6.5 Funkce pauzy

Press the pause button during your workout to temporarily stop the belt without losing your workout data. Press again to resume.

6.6 Smart APP Control (FITSHOW/Kinomap)

Connect your treadmill to compatible fitness applications like "FITSHOW" or "Kinomap" via Bluetooth for enhanced control and tracking.

• Download the chosen app from your device's app store.
• Povolte na svém mobilním zařízení Bluetooth.
• Open the app and follow the instructions to connect to the treadmill (look for model "Fitshow FS-3715B2" if prompted).
• Once connected, you can control speed, monitor metrics, and access various training courses through the app.

Image: A user exercising on the treadmill while viewing a fitness application on a tablet, demonstrating the smart app control feature.

7. Slope Adjustment

The TOPUTURE Ctm216 treadmill features a manual slope adjustment to increase workout intensity.

• The default slope is approximately 2.7°.
• To adjust, gently kick the mechanism at the rear of the treadmill to engage the higher incline setting, which provides a slope of approximately 3.6°.
• To return to the flat position, disengage the mechanism.
• Always ensure the treadmill is stable and the slope is securely set before beginning your workout.

Image: A visual representation of the treadmill with its incline feature, indicating a 7% maximum incline. This illustrates how the slope increases workout intensity.

8. Skládání a skladování

The treadmill is designed for convenient storage.

1. Vypnout: Ujistěte se, že je běžecký pás vypnutý a odpojený od sítě.
2. Fold Riser: If the riser is upright, release the buckle and gently lower it until it lies flat against the running deck.
3. Přemístit: Utilize the integrated transport wheels to move the folded treadmill. It can be stored under a bed, sofa, or against a wall.

Image: The treadmill in its folded, compact state, being easily transported using its built-in wheels. This demonstrates its space-saving design and mobility.

9. Údržba

Pravidelná údržba zajistí optimální výkon a dlouhou životnost vašeho běžeckého pásu.

• Čištění: Otřete povrch běžeckého pásuamp Po každém použití očistěte hadříkem. Nepoužívejte abrazivní čisticí prostředky.
• Mazání běžeckého pásu: The running belt requires periodic lubrication to reduce friction. Apply silicone lubricant (not included) as per the lubricant manufacturer's instructions, typically every few months depending on usage. Lift the edge of the belt and apply a small amount to the center of the deck.
• Napnutí a seřízení řemene: Check the running belt tension and alignment periodically. Adjust if necessary according to instructions in a separate service guide or by contacting customer support.
• Skladování: Store the treadmill in a dry, clean environment away from direct sunlight and extreme temperatures.

10. Řešení problémů

Pokud narazíte na problémy, podívejte se na následující běžné problémy a jejich řešení:

11. Specifikace produktu

Image: Close-up of the treadmill's LED display, illustrating the metrics shown: speed, time, distance, and calories. This highlights the informational feedback provided during workouts.

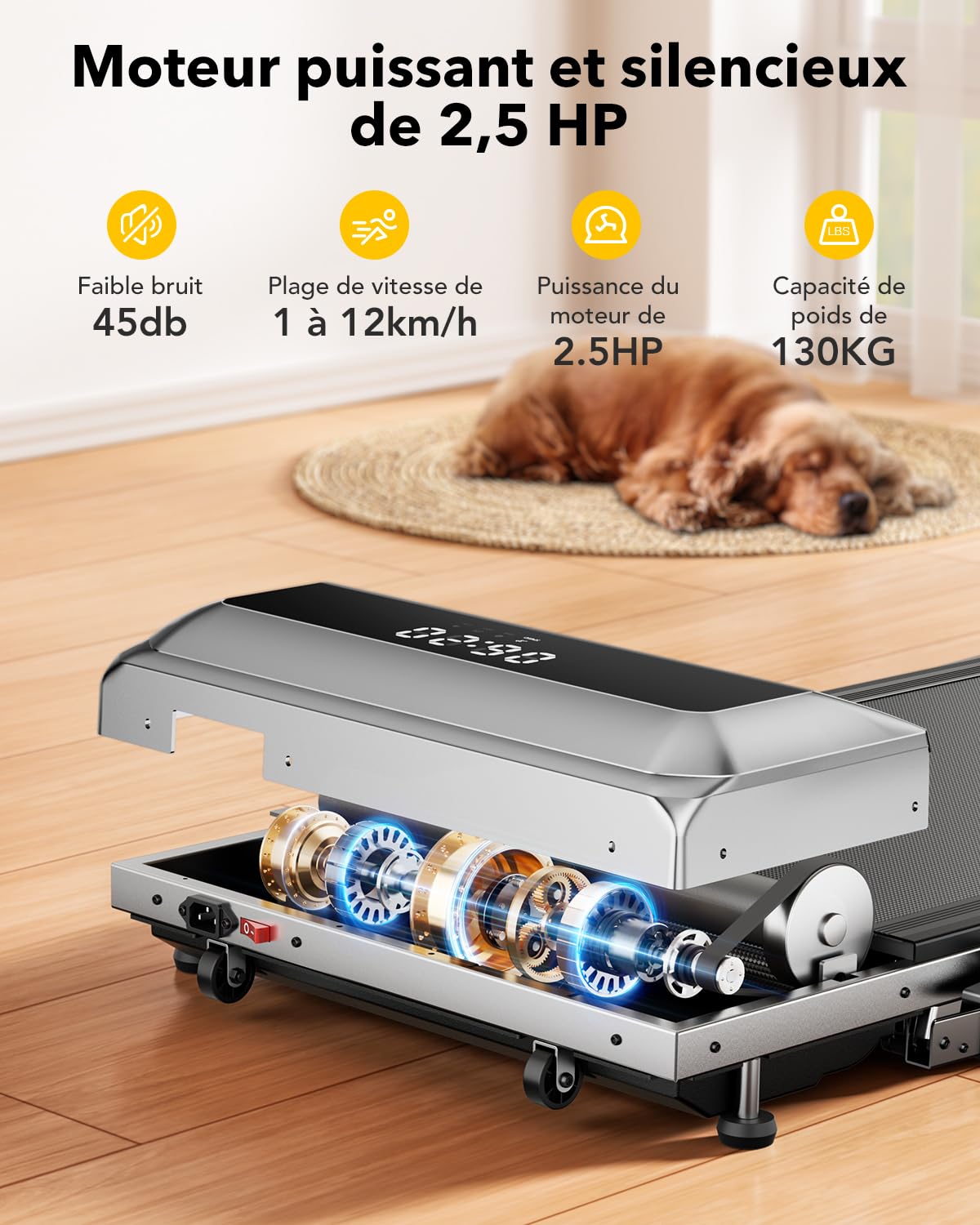

Obrázek: Interní view of the treadmill's 2.5 HP motor and shock-absorbing components. This illustrates the robust engineering for quiet operation and joint protection.

12. Záruka a zákaznická podpora

For warranty information, technical assistance, or to report any issues not covered in this manual, please contact TOPUTURE customer support. Refer to your purchase documentation for specific warranty terms and contact details.

Please have your model number (Ctm216) and purchase date available when contacting support.
