Uživatelská příručka k elektrické vestavné troubě Zanussi ZOB35602XK

1. Úvod

This manual provides comprehensive instructions for the Zanussi Electric Built-In Oven ZOB35602XK. It covers installation, operation, maintenance, and troubleshooting to ensure safe and efficient use of your appliance. Please read this manual thoroughly before using the oven and retain it for future reference.

2. Bezpečnostní informace

For your safety and to ensure correct operation, please read the following safety guidelines carefully before installation and use.

• Zajistěte, aby spotřebič nainstalovala kvalifikovaná osoba v souladu s místními předpisy.
• Do not allow children to operate or play with the oven. Keep them away from the appliance during operation and cooling.
• Always use oven mitts when removing hot dishes or accessories from the oven.
• Do not store flammable materials, aerosols, or other heat-sensitive items in the oven or in storage areas near it.
• Před jakýmkoli čištěním nebo údržbou odpojte spotřebič od elektrické sítě.
• Zajistěte dostatečné větrání kolem spotřebiče, jak je uvedeno v instalačních pokynech.

3. Konec produktuview

The Zanussi Electric Built-In Oven ZOB35602XK is a 60cm multifunction oven with a 72-liter capacity, designed for efficient and versatile cooking. It features a stainless steel finish with anti-fingerprint coating, a cooling fan, and halogen oven lighting.

Obrázek 1: Přední view of the Zanussi Electric Built-In Oven ZOB35602XK, showing the control panel, oven door, and handle.

Klíčové vlastnosti:

• Multifunction oven with ring heating element for even cooking.
• Cooling fan for efficient heat dissipation.
• Oven cavity with 3 baking levels for flexible cooking.
• Halogen oven lighting for clear visibility of food.
• High gloss enamel oven lining, designed for easy cleaning.
• Bottom heat oven feature for greater versatility in cooking.
• Timer function for precise cooking control.

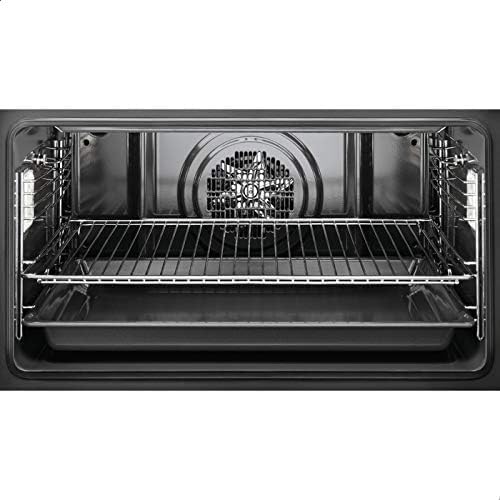

Obrázek 2: Interiér view of the oven, illustrating the multiple rack positions and the rear fan for convection cooking.

Obrázek 3: Detailed interior view, highlighting the convection fan and the smooth enamel surface.

4. Instalace

The Zanussi ZOB35602XK is a built-in appliance and must be installed into a suitable cabinet opening by a qualified technician. Ensure all electrical connections comply with local regulations.

Montážní rozměry:

• Built-in dimensions (HxWxD): 60 x 56 x 55 cm.
• Electric cable length: 1.6 m.
• Ensure sufficient ventilation space as indicated in the diagrams.

Obrázek 4: Technical diagram showing recommended dimensions and clearances for vertical built-in installation.

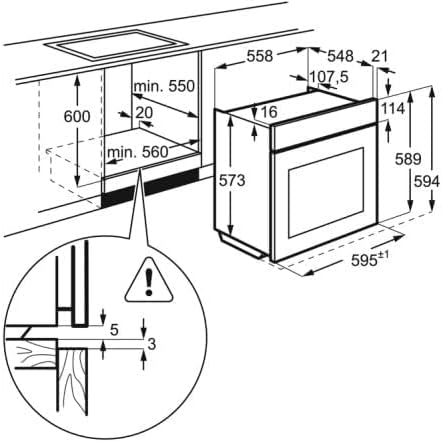

Obrázek 5: Technical diagram showing recommended dimensions and clearances for horizontal built-in installation.

5. Návod k obsluze

This section provides guidance on how to use the various functions of your Zanussi oven.

5.1. Základní obsluha

• Zapnutí/vypnutí: Use the main control knob to select a cooking function. The oven will begin to heat. To turn off, rotate the knob to the 'Off' position.
• Nastavení teploty: Use the temperature control knob to select the desired cooking temperature. The oven indicator light will illuminate while heating and turn off when the set temperature is reached.

5.2. Funkce vaření

• Multifunction with Ring Heating Element: This function utilizes a fan and a circular heating element for even heat distribution, allowing you to cook on multiple levels simultaneously without flavor transfer. Ideal for baking and roasting.
• Dual Grill: Activates the full grill element for intense top heat. Suitable for grilling larger quantities of food, browning, or toasting.
• Horkovzdušná (s ventilátorem): Combines the fan with the top and bottom heating elements for fast and even cooking. Reduces cooking times and is suitable for a wide range of dishes.
• Spodní ohřev: Activates only the bottom heating element. Useful for crisping the base of pizzas, pies, or for slow cooking dishes that require heat from below.

5.3. Funkce časovače

The integrated timer allows you to set a specific cooking duration. Once the set time elapses, the oven will alert you, and in some modes, may switch off automatically. Refer to the control panel for specific timer setting instructions.

6. Údržba a čištění

Pravidelné čištění a údržba prodlouží životnost vaší trouby a zajistí optimální výkon.

• Čištění interiéru: The oven features a high gloss enamel lining designed for easy cleaning. Allow the oven to cool completely before cleaning. Use a soft cloth with warm soapy water or a specialized oven cleaner (follow product instructions). Avoid abrasive cleaners or scourers that can damage the enamel.
• Čištění exteriéru: Clean the stainless steel exterior with a soft cloth and a mild detergent. For stubborn marks, use a stainless steel cleaner. Avoid harsh chemicals.
• Sklo dveří: Clean the oven door glass with a soft cloth and non-abrasive glass cleaner.
• Replacing Halogen Lamp: Ensure the oven is disconnected from the power supply. Consult a qualified technician for lamp replacement if unsure.

7. Řešení problémů

If you encounter issues with your oven, refer to the following common troubleshooting tips. For persistent problems, contact customer support.

• Trouba se nehřeje: Check if the oven is properly plugged in and the circuit breaker has not tripped. Ensure a cooking function and temperature are selected.
• Nerovnoměrné vaření: Ensure food is placed centrally and not overcrowding the oven. Verify that the correct cooking function and temperature are selected.
• Časovač nefunguje: Ensure the timer is set correctly according to the operating instructions.
• Nefunguje osvětlení trouby: Halogenový lamp may need replacement. Disconnect power before attempting to replace or contact service.

8. Specifikace

9. Záruka a podpora

The Zanussi Electric Built-In Oven ZOB35602XK comes with a 3-letá záruka from the date of purchase. This warranty covers manufacturing defects and ensures repair or replacement of faulty components under normal use conditions.

For warranty claims, technical support, or service inquiries, please contact your authorized Zanussi dealer or service center. Keep your proof of purchase for warranty validation.
