YASHE QF-150 2-in-1 Manual Pasta Maker Instruction Manual

Zavedení

Thank you for choosing the YASHE QF-150 2-in-1 Manual Pasta Maker. This machine is designed to simplify the process of making fresh, homemade pasta. Crafted from food-grade stainless steel and aluminum alloy, it offers durability and safety for your kitchen. With adjustable thickness settings and dual cutting widths, you can create a variety of pasta types, including spaghetti, fettuccine, and lasagna sheets.

This manual provides detailed instructions for the proper setup, operation, and maintenance of your pasta maker to ensure optimal performance and longevity.

Bezpečnostní pokyny

• Read all instructions before using the pasta maker.
• Během provozu držte ruce a volný oděv v dostatečné vzdálenosti od pohyblivých částí.
• Ensure the machine is securely clamped to a stable surface before use to prevent movement.
• Do not immerse the pasta maker in water. Clean with a dry cloth or brush as instructed.
• Keep out of reach of children. Adult supervision is required when children are operating the machine.
• Use only with appropriate food-grade ingredients.

Konec produktuview

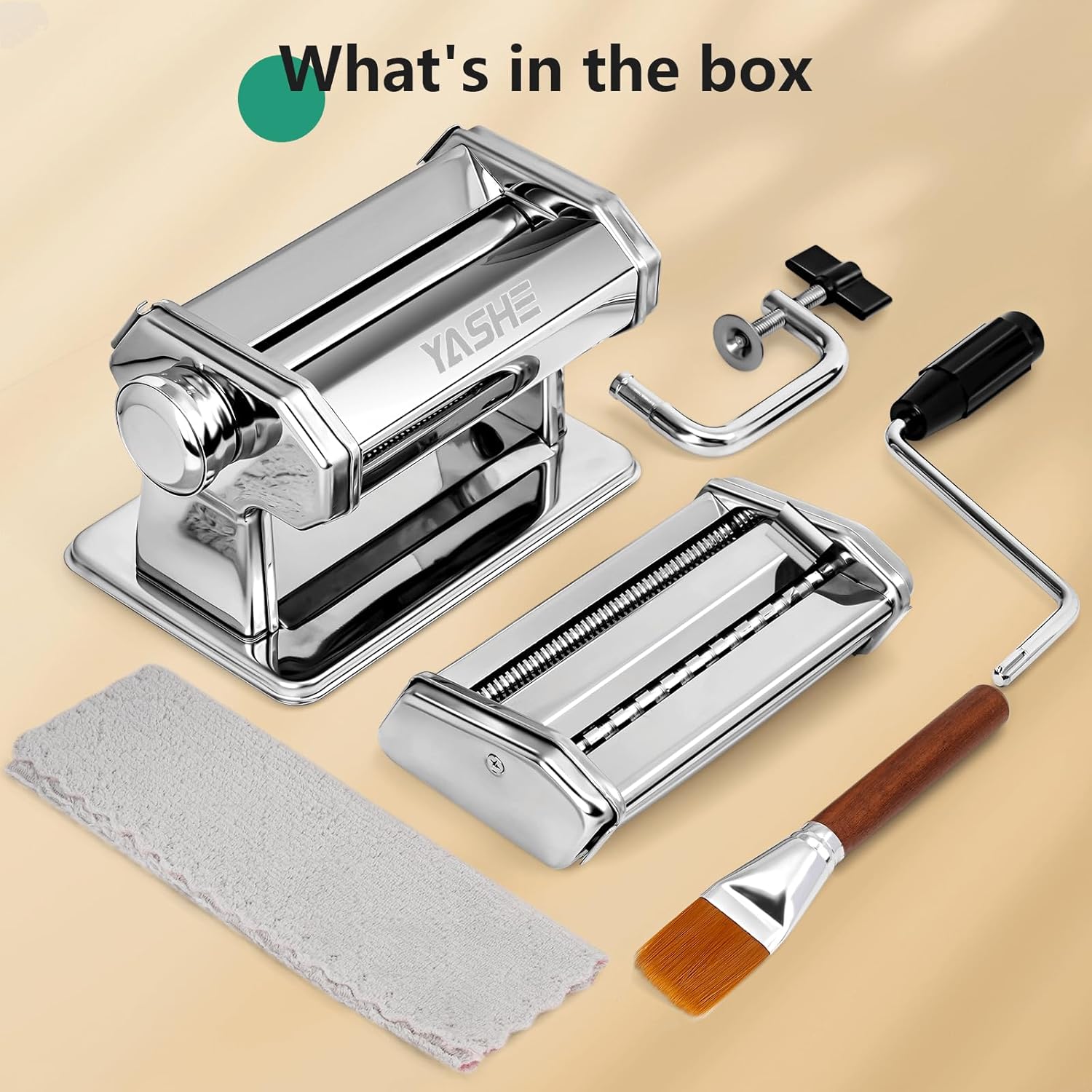

The YASHE QF-150 pasta maker includes the following components:

• Pasta Roller Unit (main body)
• Detachable Noodle Cutter (for spaghetti and fettuccine)
• Ruční klika
• Upevnění Clamp
• Čisticí kartáč
• Čisticí hadřík

Nastavení

1. Připojte Clamp: Position the pasta maker on a clean, stable countertop. Insert the fixing clamp into the designated hole on the base of the machine. Tighten the clamp securely to the edge of your table or counter (suitable for thicknesses of 1.4-2.7 inches) to prevent any movement during operation.
2. Insert the Hand Crank: The hand crank can be inserted into two different locations:
   • For rolling pasta sheets: Insert the hand crank into the larger hole on the side of the main pasta roller unit.
   • For cutting noodles: Insert the hand crank into the hole on the side of the detachable noodle cutter.
3. Připravte těsto: Ensure your pasta dough is well-kneaded and lightly floured before beginning.

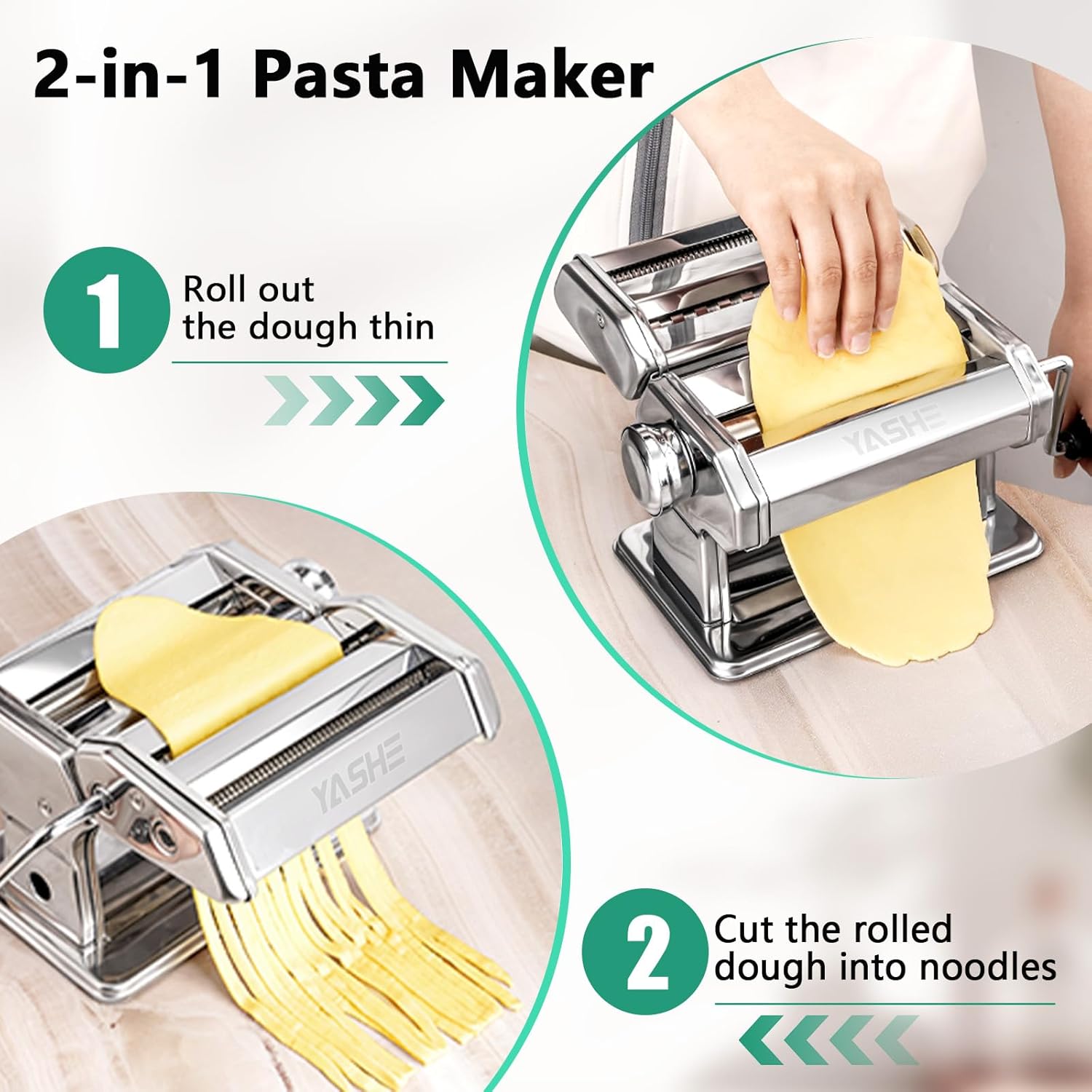

Návod k obsluze

1. Rolling Pasta Sheets:
   1. Insert the hand crank into the main roller unit.
   2. Adjust the thickness setting knob on the side. The machine offers 9 settings, ranging from 0.3mm (thinnest) to 3mm (thickest). Start with a thicker setting (e.g., 7 or 9) and gradually decrease it.
   3. Feed a small, flattened piece of dough through the rollers while turning the hand crank. Fold the dough in half, lightly flour, and repeat the process several times on the same thickness setting until the dough is smooth and elastic.
   4. Gradually reduce the thickness setting, passing the dough through each setting until you reach your desired pasta sheet thickness.
2. Cutting Noodles:
   1. Remove the hand crank from the main roller unit and insert it into the noodle cutter attachment.
   2. The noodle cutter has two widths: 2mm for thin pasta (spaghetti) and 6.5mm for wide pasta (fettuccine).
   3. Feed the rolled pasta sheet through the desired cutting width while turning the hand crank. Support the emerging noodles to prevent tearing.

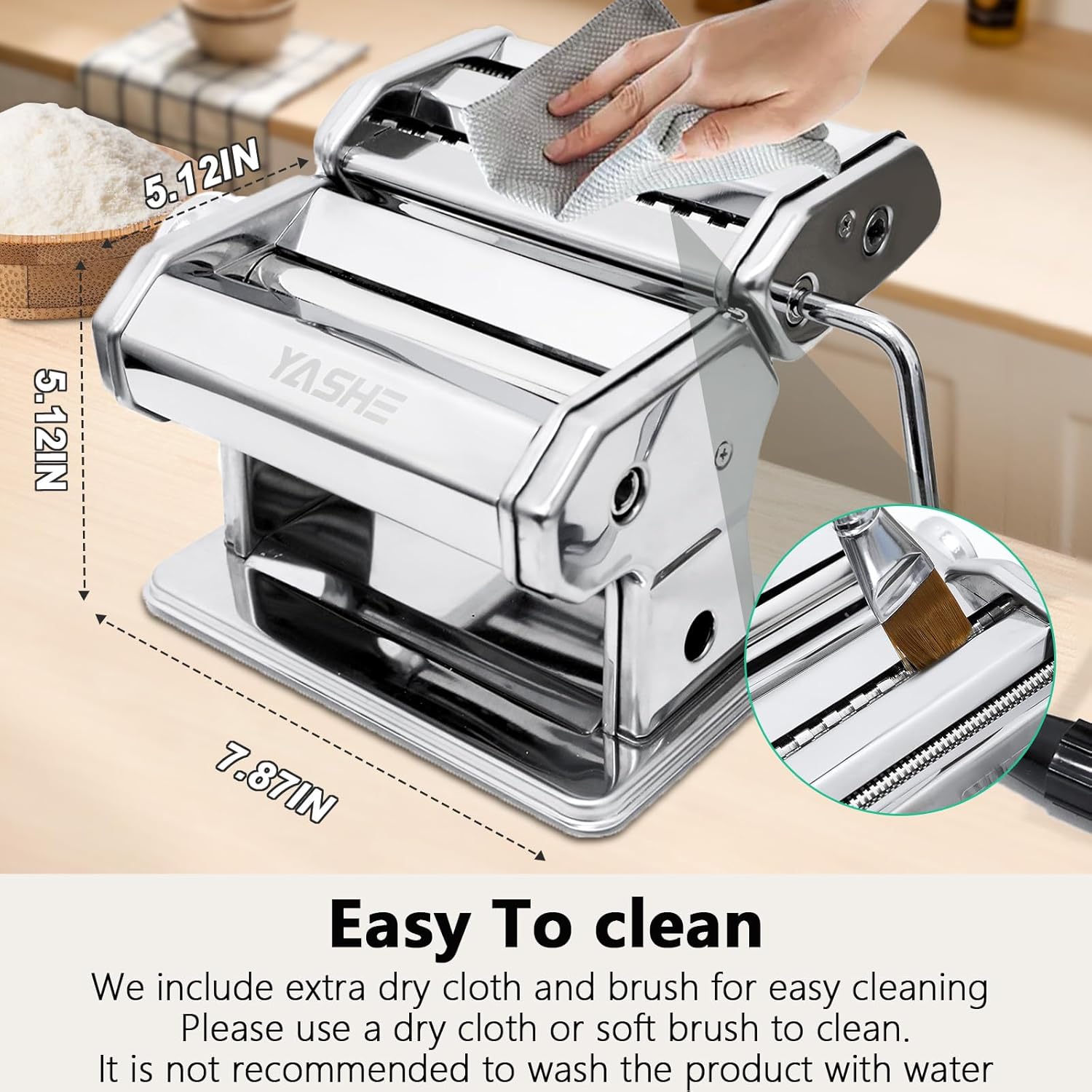

Údržba a čištění

Proper cleaning and maintenance will extend the life of your pasta maker.

• Neumývejte vodou: The YASHE QF-150 is není vhodné do myčky nádobí and should not be immersed in water. Water can damage the internal mechanisms and lead to rust.
• Okamžité čištění: Clean the machine immediately after each use, before dough residue hardens.
• Use Brush and Cloth: Use the provided cleaning brush to remove any dry dough particles from the rollers and cutters. Use the cleaning rag to wipe down the exterior of the machine.
• Sušení na vzduchu: Před uskladněním nechte všechny díly zcela vyschnout na vzduchu.
• Skladování: Store the pasta maker in a dry place. The detachable cutter can be separated for compact storage.

Odstraňování problémů

• Dough Sticking: If dough sticks to the rollers, ensure it is not too wet. Lightly dust the dough and rollers with flour.
• Uneven Sheets: If pasta sheets are uneven, fold the dough and pass it through the widest setting several times until it becomes uniform before gradually reducing the thickness.
• Machine Wobbles: Ensure the fixing clamp je bezpečně upevněn ke stabilnímu povrchu.
• Difficulty Turning Crank: If the crank is hard to turn, the dough might be too thick for the current setting. Adjust to a wider setting or ensure the dough is properly kneaded.

Specifikace

Záruka a podpora

For any questions, concerns, or warranty inquiries regarding your YASHE QF-150 Manual Pasta Maker, please contact YASHE customer support. Refer to the product packaging or the official YASHE webstránky pro kontaktní informace.
