1. Úvod
Thank you for choosing the AirMyFun Inflatable Bounce House with Water Slide. This product is designed to provide a safe and engaging play environment for children, combining the excitement of a bounce house with the fun of a water slide. Please read this manual thoroughly before setup and use to ensure proper operation, maintenance, and safety for all users.

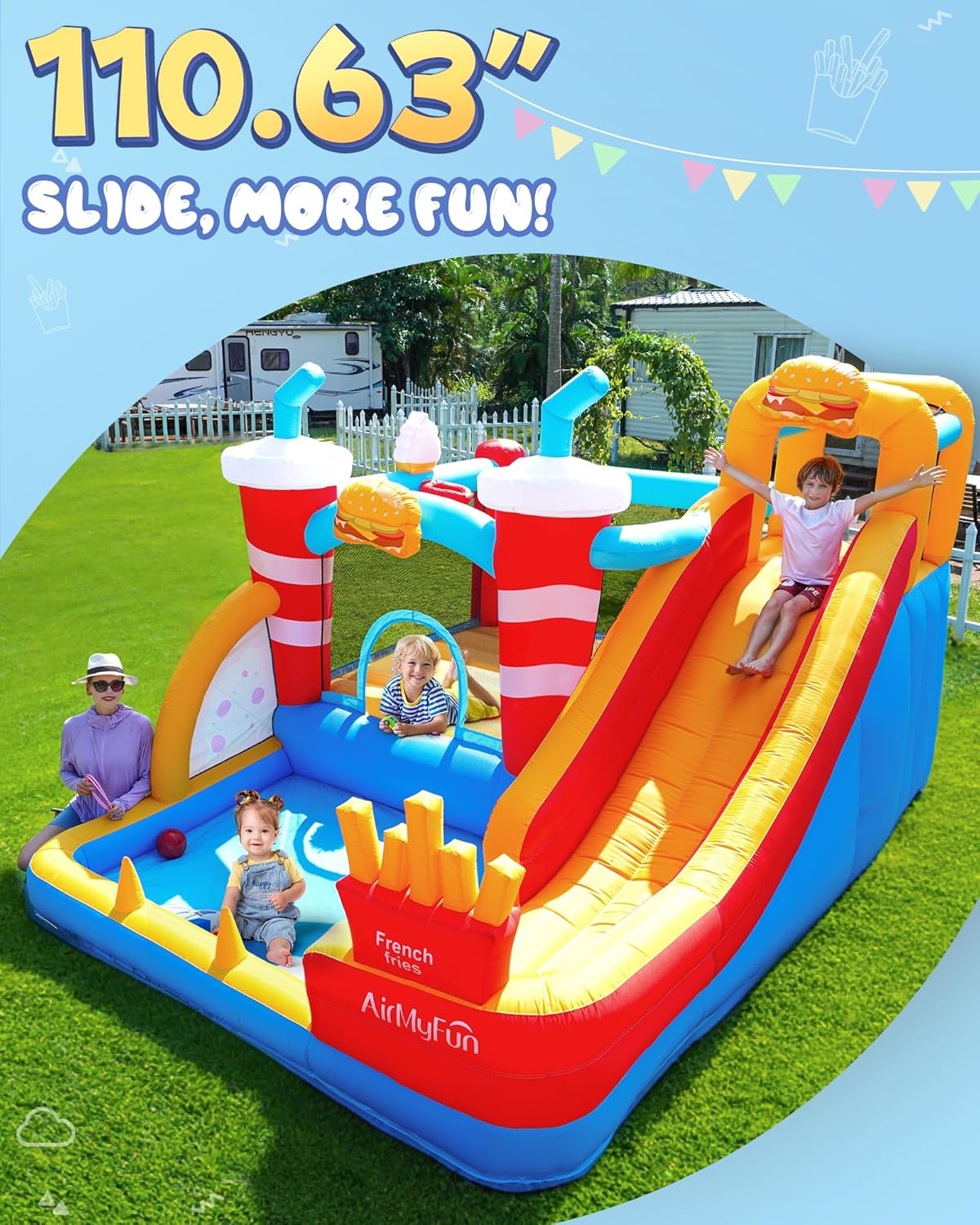

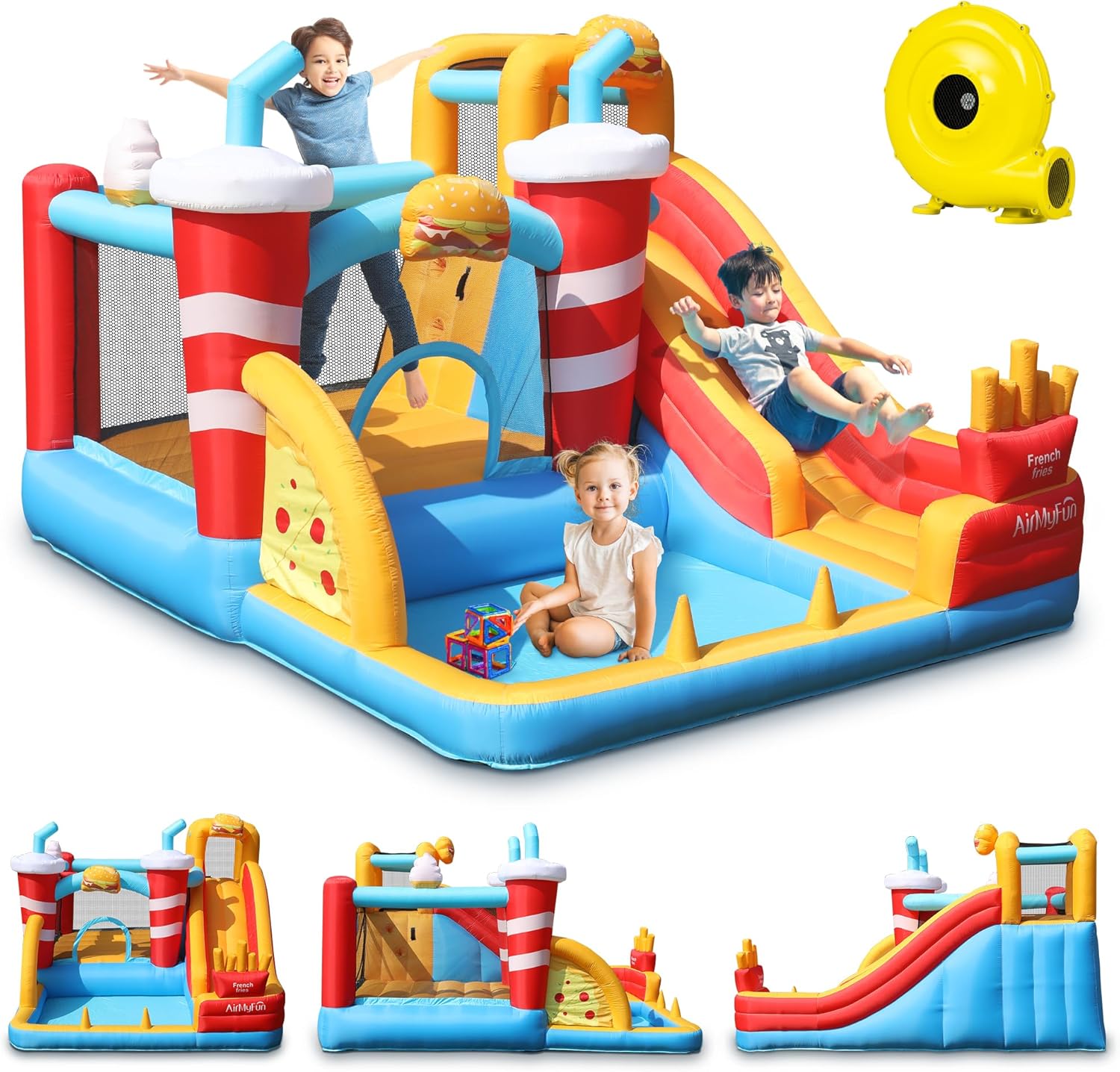

Image 1.1: The AirMyFun Inflatable Bounce House with Water Slide, featuring a vibrant Food Fiesta theme including soda cups, a hamburger, and french fries. A yellow air blower is also visible.
2. Důležité bezpečnostní informace
Safety is paramount when using this inflatable product. Failure to follow these instructions may result in serious injury.
- Vyžaduje se dohled dospělé osoby: Always ensure constant and competent adult supervision of children using the bounce house.
- Věkové a hmotnostní limity: This product is designed for children aged 3-12 years. The maximum weight recommendation is 100 pounds per child, with a capacity for 3-5 kids simultaneously. Do not exceed these limits.
- Vyklízecí plocha: Ensure a safe clearance area around the inflatable. Keep it away from fences, trees, power lines, and other obstructions.
- Požadavky na povrch: Set up on a soft, level surface such as grass. Do not set up on concrete, asphalt, or other hard surfaces without adequate padding.
- Kotvení: Always use the provided ground stakes to securely anchor the inflatable to prevent tipping or movement during use.
- Provoz ventilátoru: The air blower must remain on continuously while the inflatable is in use. Ensure the blower is placed on a stable surface and its air intake is clear.
- No Sharp Objects: Users must remove shoes, jewelry, glasses, and any sharp objects before entering the inflatable.
- No Food or Drink: Do not allow food, drinks, or chewing gum inside the inflatable.
- Žádná hrubá hra: Prohibit somersaults, wrestling, or other rough play that could lead to collisions or falls.
- Povětrnostní podmínky: Do not use in high winds, heavy rain, or lightning. Deflate and secure the unit immediately in adverse weather.
- Water Slide Use: When using as a water slide, ensure adequate water depth in the splash zone and supervise children closely to prevent drowning hazards.
Image 2.1: A diagram illustrating the key dimensions of the inflatable bounce house (147.64" L x 122.05" W x 110.63" H) and user specifications: Age Grade 3-8, Max User 4, Max Weight Capacity 400 lbs. Note: Product specifications state 3-12 years and 100 lbs per child, 3-5 kids. The image shows 3-8 years, Max User 4, Max Weight Capacity 400 lbs. I will use the product specifications from the JSON for consistency in the specifications section, but acknowledge the image discrepancy here.
3. Obsah balení
Zkontrolujte prosím balíček, zda jsou všechny položky přítomny a v dobrém stavu:
- Inflatable Bounce House with Water Slide (Food Fiesta Theme)
- Air Blower (UL Certified, Strong Wind 350W)
- Skladovací taška
- Ground Spikes (for anchoring)
- Opravné záplaty
- Basketball
- Circles (Hoops)
- Čerpadlo
- Gumová palička
Image 3.1: A visual representation of the included accessories: Storage Bag, Air Blower, Circles (hoops), Basketball, Repair Patches, Ground Spikes, Pump, and Rubber Mallet.
Obrázek 3.2: Detail view of the yellow air blower, highlighting its handheld handle, water cover button, and 7ft power cord. It is UL Certified and provides strong wind at 350W.
4. Pokyny k nastavení
Follow these steps for quick and easy inflation:
- Rozbalit a rozbalit: Take the bounce house out of its storage bag and spread it out completely on a clean, level surface. Ensure there are no sharp objects underneath.
- Připojení ventilátoru: Attach the air blower's inflation tube securely to the intake tube of the bounce house. Ensure the connection is tight to prevent air leakage.
- Zajištěno sázkami: Locate the anchor points (ring belts) on the inflatable. Use the provided ground stakes and rubber mallet to firmly secure the bounce house to the ground. This is crucial for stability and safety.
- Nahustit: Plug in the air blower and turn it on. The bounce house will begin to inflate. It should fully inflate within a few minutes. Ensure the blower remains on throughout use.
- Připojení vody (volitelné): If using the water slide feature, connect a garden hose to the designated water spray nozzles on the inflatable.
Image 4.1: A visual guide to quick and easy inflation: 1) Take out the bounce castle and flatten it, 2) Connect the pipe to the blower and turn it on, 3) Place the Ground Stakes through the ring belts and fix them, 4) Turn on the blower and start inflating.
5. Návod k obsluze
Once fully inflated and secured, the AirMyFun Inflatable Bounce House is ready for play. Remember to always maintain adult supervision.
- Odrážecí plocha: Children can safely jump and play in the main bouncing area. Ensure they do not jump too close to the edges or against the safety netting.
- Water Slide: For water slide use, ensure the splash zone has sufficient water. Children should slide down feet first.
- Lezecká stěna: Use the climbing wall to access the slide. Ensure children climb one at a time and maintain a secure grip.
- Basketball Hoop/Boxing Ring: Utilize the integrated features for additional fun.
Image 5.1: Children enjoying the long water slide feature of the inflatable bounce house in a sunny backyard setting.
Image 5.2: A collage showing various interactive elements of the bounce house, including children sliding, climbing, and playing in the bouncing area, promoting social development and fun.
6. Údržba a péče
Proper maintenance will extend the life of your AirMyFun Inflatable Bounce House.
- Čištění: After use, especially with water, clean the inflatable with a mild soap solution and water. Rinse thoroughly and allow it to dry completely before storage to prevent mold and mildew.
- Sušení: Ensure the inflatable is completely dry before deflating and packing away. Residual moisture can lead to damage.
- Skladování: Deflate the unit by turning off the blower and allowing all air to escape. Fold it neatly and store it in the provided storage bag in a cool, dry place, away from direct sunlight and extreme temperatures.
- Opravy: Minor punctures can be repaired using the included repair patches. For larger damage, professional repair may be necessary.
Image 6.1: An illustration detailing the construction of the inflatable, highlighting the durable 840D Oxford Cloth, adhesive layer, and PVC coating, designed for strength and resistance to cracking.
Storage Method Video:
Video 6.1: An official AirMyFun video demonstrating the proper method for deflating, folding, and storing the inflatable bounce house. This video shows how to efficiently pack the unit into its storage bag.
7. Řešení problémů
If you encounter issues with your inflatable bounce house, refer to the following common problems and solutions:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Inflatable not fully inflating or losing air. | Blower not continuously on, air leak from seams/punctures, blower tube not securely attached, zipper/velcro opening. | Ensure blower is on and running continuously. Check all connections, including the blower tube. Inspect for punctures and use repair patches. Ensure all zippers and velcro openings are closed. |
| Blower not turning on. | No power, faulty power cord, blower switch off. | Check power outlet and circuit breaker. Ensure power cord is not damaged. Verify blower switch is in the "ON" position. |
| Inflatable unstable or moving during use. | Not properly anchored, uneven surface, high winds. | Ensure all ground stakes are firmly in place. Move to a level surface. Do not use in windy conditions. |
| Mold or mildew developing. | Incomplete drying before storage. | Thoroughly clean and dry the inflatable before storing. Store in a cool, dry place. |
8. Specifikace
- Rozměry produktu: 150 cm D x 122 cm Š x 88 cm V
- Věkové rozmezí (popis): 3-12 roky
- Maximální hmotnost Doporučení: 100 Pounds (per child)
- Počet hráčů: 3-5 kids
- Hmotnost položky: 50.9 libry
- Materiál: Heavy duty 840D Oxford cloth
- Číslo modelu: 82080
- ASIN: B0CPDG9Y95
- Výrobce: NEW TIME PLASTIC MFG CO., LTD.
9. Záruka a podpora
This AirMyFun product is backed by a 30-day easy returns policy. For any questions, concerns, or support needs, please contact AirMyFun Direct customer service through the Amazon platform or refer to the official AirMyFun store for further assistance.
Oficiální uživatelská příručka (PDF): Stáhnout PDF
