ARREGUI Elek 22500W-S1 Návod k obsluze skrytého vestavěného trezoru

1. Úvod

This manual provides detailed instructions for the installation, operation, and maintenance of your ARREGUI Elek 22500W-S1 Hidden Wall Safe. This safe is designed for discreet storage of small valuables, featuring a unique camouflage design that integrates into your wall behind a standard junction box lid. Please read these instructions carefully before installation and use to ensure proper function and security.

Obrázek 1: The ARREGUI Elek 22500W-S1 Hidden Wall Safe with its protective junction box lid open, revealing the key-operated safe door.

2. Bezpečnostní informace

• Klíče od trezoru vždy uchovávejte na bezpečném místě, odděleně od samotného trezoru.
• Ensure the safe is installed in a structurally sound wall capable of supporting its weight and resisting tampering.
• Do not store flammable materials, explosives, or illegal items inside the safe.
• This safe is designed for security against theft, not against fire or water damage. It is best to assume it is není voděodolný for critical documents.
• Keep children away from the safe and its keys.

3. Obsah balení

Ověřte, zda balení obsahuje všechny následující položky:

• ARREGUI Elek 22500W-S1 Hidden Wall Safe unit
• Junction box lid (for camouflage)
• Návod k použití (tento dokument)
• 2 x Perforated keys

4. Specifikace

Obrázek 2: Detailed dimensional diagram of the ARREGUI Elek 22500W-S1 safe, illustrating external and internal measurements.

5. Installation (Wall Mounting)

The ARREGUI Elek 22500W-S1 safe is designed for flush mounting into a wall. This process requires construction work.

1. Vyberte umístění: Choose a suitable wall location. Ensure the wall is thick enough and structurally sound to accommodate the safe's external dimensions (20 cm H x 20 cm W x 20.5 cm D). Use a drill to verify wall depth before proceeding.
2. Příprava otvoru ve zdi: Create an opening in the wall that matches the external dimensions of the safe. The opening should be precise to allow for a flush fit.


   Obrázek 3: The ARREGUI Elek 22500W-S1 safe from the rear, showing the junction box lid attached. This view helps visualize the depth required for installation.

3. Insert Safe: Carefully push the safe into the prepared wall opening. Ensure the front frame of the safe is flush with the wall surface.


   Obrázek 4: The safe partially recessed into a wall opening, demonstrating the flush mounting concept. The junction box lid is visible on the front.
4. Secure with Concrete/Mortar: Once the safe is correctly positioned and flush, fill the surrounding gaps with concrete or mortar to permanently secure it within the wall. Allow sufficient time for the concrete/mortar to dry completely.
5. Finish Wall: After the concrete/mortar is dry, plaster and finish the wall around the safe. The goal is for only the junction box lid to be visible, ensuring the safe remains fully camouflaged.

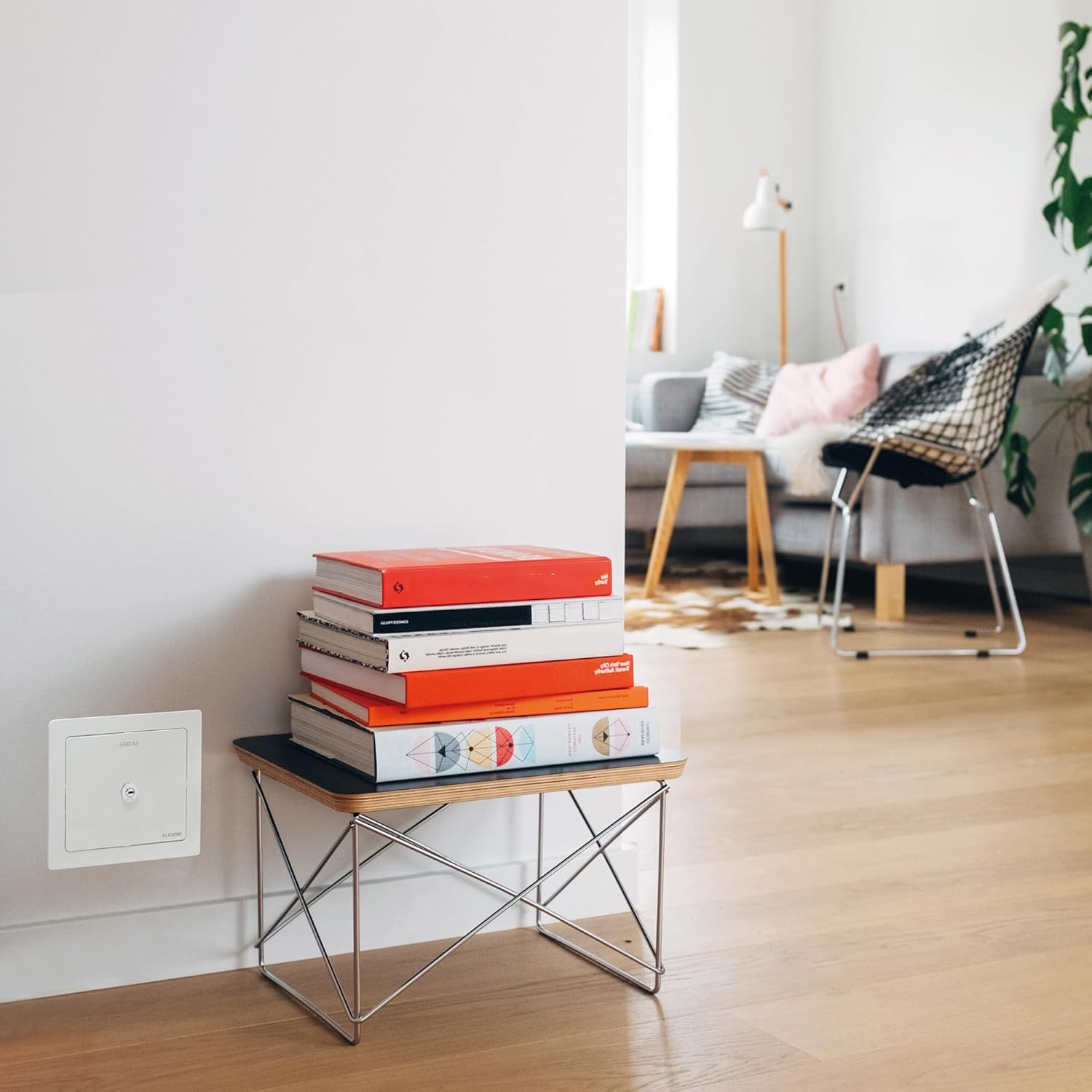

   Obrázek 5: The ARREGUI Elek safe fully installed and camouflaged within a wall, with only the junction box lid visible, blending seamlessly into the environment.

6. Návod k obsluze

6.1 Otevření trezoru

1. Remove Junction Box Lid: The junction box lid is attached to the safe door by four magnets. Gently pull the lid to detach it from the safe.
2. Vložit klíč: Insert one of the provided perforated keys into the keyhole on the safe door.
3. Turn Key and Open Door: Turn the key clockwise (or counter-clockwise, depending on the lock mechanism) to unlock the safe. Pull the door open.

6.2 Zavření a uzamčení trezoru

1. Zavřít dveře: Push the safe door firmly shut.
2. Lock Safe: Turn the key counter-clockwise (or clockwise) to lock the safe. Remove the key and store it in a secure location.
3. Reattach Junction Box Lid: Align the junction box lid with the safe door and allow the magnets to secure it in place. Ensure it sits flush with the wall for optimal camouflage.

Obrázek 6: Interiér view of the ARREGUI Elek safe, demonstrating its capacity for small valuables such as a wallet and a phone.

7. Údržba

• Čištění: Wipe the exterior and interior of the safe with a soft, dry cloth. Avoid abrasive cleaners or solvents that could damage the finish.
• Zamykací mechanismus: Periodically check the lock mechanism for smooth operation. If the key becomes stiff, a small amount of graphite lubricant (not oil-based) can be applied to the key and inserted into the lock.
• Úložiště klíčů: Always keep spare keys in a secure location away from the safe and accessible only to trusted individuals.
• Kontrola magnetu: Ensure the four magnets on the junction box lid remain securely attached and provide sufficient hold. If they weaken, they may need re-gluing.

8. Řešení problémů

9. Záruka a podpora

For warranty information or technical support, please refer to the documentation provided with your purchase or visit the official ARREGUI webwebu. Uschovejte si účtenku jako doklad o koupi.

ARREGUI Official Webmísto: www.arregui.es
