1. Úvod
The FLIPSKY 75200 Pro V2.0 is an advanced electronic speed controller (ESC) designed for high-performance electric vehicles such as skateboards, scooters, and ebikes. It features an aluminum PCB for enhanced heat dissipation and an integrated power button for convenient operation. This manual provides essential information for setup, operation, and maintenance of your FLIPSKY 75200 Pro V2.0 ESC.
Figure 1: FLIPSKY 75200 Pro V2.0 Electronic Speed Controller.
2. Vlastnosti produktu
- Firmware: Version 6.02, with support for future firmware updates.
- svtage Rozsah: 14-84V (4-20S battery configurations).
- Aktuální kapacita: 100A continuous, with burst capabilities (values depend on mounting, ambient temperature, and air circulation).
- BEC: 5V@1.5A output.
- Motor Control Modes: Supports BLDC square wave mode and FOC sine wave mode.
- ERPM: Až 150,000.
- Komunikační rozhraní: USB, CAN, UART.
- Podporované senzory: ABI, HALL, AS5047, AS5048A.
- Input Set Support: PPM, ADC, NRF, UART.
- Velikost drátu: 10AWG for main power wires.
- Programovatelné: Yes, via VESC_TOOL.
- Regenerační kapacita: Ano.
- Fázový filtr: Included for stable operation.
- Tlačítko vypínače: Integrated red power switch button.
- Integrated Bluetooth Module: Allows convenient connection to Bluetooth parameters and real-time data reading without external modules.
- Pokročilá ochrana: Obsahuje nízký objemtage, vysoký objemtage, over current, temperature, MOSFET, and motor over-temperature protection.
- Režimy ovládání: Supports Current / Duty cycle / Speed / PID control modes.
- IMU Module Support: Compatible with IMU modules like MPU9250, MPU6050, LSM6DS3, BMI160 via IIC interface for balancing car functions.
- CPU: 32F405 with 168MHz frequency.
- Odvod tepla: Aluminum PCB and aluminum case design provide good heat dissipation for extended lifespan.
3. Specifikace
| Specifikace | Hodnota |
|---|---|
| Firmware | 6.02 (firmware update supported) |
| svtage Dosah | 14-84V (4-20S) |
| Trvalý proud | 100A |
| Výstup BEC | 5V @ 1.5A |
| ERPM | 150,000 |
| Control Interface Ports | USB, CAN, UART |
| Podporované senzory | ABI, HALL, AS5047, AS5048A |
| Input Set Support | PPM, ADC, NRF, UART |
| Velikost drátu | 10AWG |
| Rozměry (D x Š x V) | 130 mm x 67.7 mm x 39.4 mm |
| Materiál | Hliník |
| Barva | Černý |
Obrázek 2: Rozměry produktu.
Figure 3: Internal PCB dimensions.
4. Nastavení
Proper connection of the FLIPSKY 75200 Pro V2.0 is crucial for safe and optimal performance. Refer to the diagram below for connection points.
Obrázek 4: Schéma zapojení.
4.1. Připojení napájení
- Baterie: Connect your battery pack to the main red (+) and black (-) terminals. Ensure correct polarity. The ESC supports 4-20S battery configurations.
- Motor: Connect the three phase wires (blue, green, yellow) from your motor to the corresponding terminals on the ESC.
- Vypínač: Connect the integrated power switch to the designated port.
4.2. Sensor and Communication Connections
- Hallův senzor: If your motor has Hall sensors, connect the Hall sensor cable to the HALL port on the ESC. Ensure the pinout matches.
- PPM (modulace polohy impulsů): For throttle input from a remote receiver, connect the PPM signal wire to the PPM port.
- CAN (řídicí síť): Use the CAN bus for communication between multiple ESCs (e.g., in a dual motor setup) or other CAN-enabled devices.
- USB: Connect the ESC to a computer via the USB port for configuration and firmware updates using the VESC_TOOL software.
- UART (Universal Asynchronous Receiver-Transmitter): For serial communication with external modules like Bluetooth modules (though this ESC has integrated Bluetooth) or other accessories.
- COMM: This port provides additional communication lines for various sensors or peripherals.
4.3. Initial Configuration (VESC_TOOL)
After physical connections, the ESC requires configuration using the VESC_TOOL software. This software allows you to set motor parameters, battery limits, control modes, and perform motor detection. It is highly recommended to follow the official VESC_TOOL documentation for detailed configuration steps to prevent damage to the ESC or motor.
- Download the latest VESC_TOOL from the official VESC project webmísto.
- Connect the ESC to your computer via USB.
- Launch VESC_TOOL and perform motor detection.
- Configure battery voltage limits, current limits, and other safety parameters according to your setup.
- Utilize the integrated Bluetooth module to connect to the VESC_TOOL mobile application for real-time data monitoring and parameter adjustments.
Video 1: Demonstration of the 75200 Pro V2.0 ESC features and operation.
5. Návod k obsluze
Once properly configured, the FLIPSKY 75200 Pro V2.0 ESC is ready for operation. The ESC supports various control modes to suit different applications and user preferences.
5.1. Zapnutí/vypnutí
- Press the integrated red power button to turn the ESC on or off.
- Před zapnutím se ujistěte, že jsou všechna připojení zajištěna.
5.2. Režimy ovládání
The ESC can be configured for the following control modes via VESC_TOOL:
- Kontrola proudu: Motor current is directly controlled by the input signal.
- Duty Cycle Control: Objem motorutage is controlled as a percentage of the battery voltage.
- Speed Control (RPM): The ESC attempts to maintain a target motor RPM.
- PID regulace: Advanced control loop for precise speed or position control, often used with IMU modules for balancing applications.
5.3. Regenerative Braking
The ESC supports regenerative braking, which converts kinetic energy back into electrical energy to recharge the battery during braking. Ensure that regenerative current limits are set appropriately in VESC_TOOL to avoid overcharging your battery.
Video 2: Short demonstration of the FLIPSKY 75100/75200 series ESC.
6. Údržba
Regular maintenance helps ensure the longevity and reliable performance of your FLIPSKY 75200 Pro V2.0 ESC.
- Udržujte v čistotě: Periodically clean the exterior of the ESC to prevent dust and debris buildup, especially on the heatsink fins. Use a soft, dry cloth.
- Zkontrolujte připojení: Regularly inspect all wire connections (battery, motor, sensors, communication) for looseness, corrosion, or damage. Secure any loose connections.
- Monitorování teploty: While the ESC has built-in temperature protection, it is good practice to monitor its temperature during heavy use, especially in enclosed spaces. Ensure adequate airflow around the unit.
- Aktualizace firmwaru: Check for official firmware updates periodically using VESC_TOOL. Updates can provide performance improvements, bug fixes, and new features.
- Skladování: When not in use for extended periods, store the ESC in a dry, cool environment away from direct sunlight and extreme temperatures.

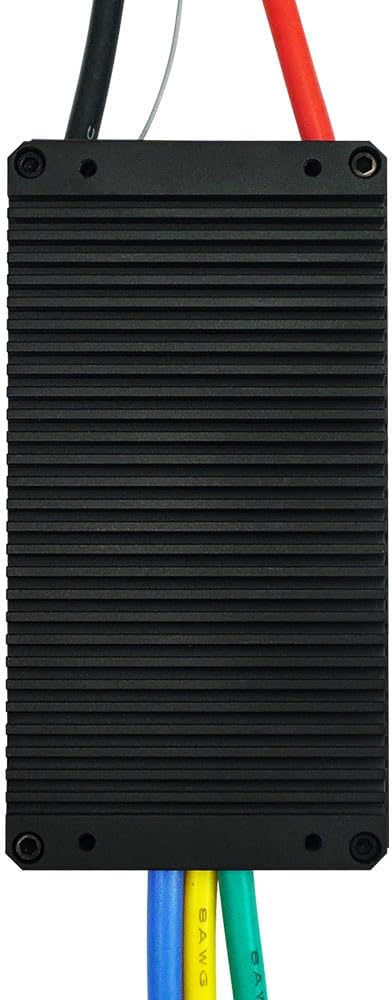

Obrázek 5: Spodní část view highlighting the heatsink for good heat dissipation.
7. Řešení problémů
If you encounter issues with your FLIPSKY 75200 Pro V2.0 ESC, consider the following troubleshooting steps:
| Problém | Možná příčina | Řešení |
|---|---|---|
| ESC se nezapne. | Loose battery connection, faulty power button, dead battery. | Zkontrolujte objem baterietage and connections. Ensure the power button is correctly connected and functioning. |
| Motor se netočí nebo se chová nepravidelně. | Incorrect motor phase wire connection, incorrect Hall sensor connection, improper VESC_TOOL configuration. | Verify motor and Hall sensor wiring. Re-run motor detection in VESC_TOOL. Check motor and battery current limits. |
| ESC overheating. | Insufficient airflow, excessive current draw, incorrect motor parameters. | Ensure proper ventilation. Reduce load or adjust current limits in VESC_TOOL. Check motor resistance and inductance values. |
| Problémy s připojením Bluetooth. | Interference, incorrect pairing procedure, outdated VESC_TOOL app. | Ensure no strong interference sources. Follow the pairing instructions for the VESC_TOOL app. Update the app to the latest version. |
For more detailed diagnostics and advanced troubleshooting, refer to the comprehensive documentation available for VESC-based ESCs and the FLIPSKY support resources.
Video 3: Konecview of the VESC 75200 Pro.
8. Záruka a podpora
8.1. Informace o záruce
The FLIPSKY 75200 Pro V2.0 ESC comes with a Záruka 2 měsíců from the date of purchase. This warranty covers manufacturing defects under normal use conditions. Please retain your proof of purchase for warranty claims.
8.2. Zákaznická podpora
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact FLIPSKY customer support through their official website or the retailer from whom you purchased the product. Provide your product model, serial number (if applicable), and a detailed description of the issue to expedite support.
