Návod k obsluze pro tectake® Clamp Markýza

Zavedení

This manual provides detailed instructions for the assembly, operation, and maintenance of your tectake® Clamp Awning. Designed for balconies and terraces, this height-adjustable awning offers effective sun protection and privacy without the need for drilling. Its UV-resistant and water-repellent fabric ensures durability and comfort.

Image: The tectake clamp awning, illustrating its adjustable design and sun protection capabilities.

Bezpečnostní informace

Varování: Please read these instructions carefully before assembling and using the awning. Failure to follow these instructions may result in injury or damage to the product.

• Ensure the awning is securely fastened to the wall or ceiling to prevent slipping or falling.
• Use the awning only in suitable weather conditions. Retract the awning during strong winds, heavy rain, or snow to prevent damage.
• Ensure no objects or persons are under the awning when it is being extended or retracted.
• Během provozu držte děti a domácí zvířata v dostatečné vzdálenosti od markýzy.
• Do not hang heavy objects from the awning frame.

Obsah balení

Před zahájením montáže zkontrolujte, zda jsou všechny komponenty přítomny:

• 1 x tectake® Clamp Markýza
• Assembly Material (screws, caps, etc.)
• Návod k montáži (tato příručka)

Image: Product information and scope of delivery, including key dimensions and materials.

Nastavení

The tectake® Clamp Awning is designed for quick and easy assembly without the need for drilling. It features a practical clamping mechanism and telescopic poles for flexible height adjustment.

1. Rozbalte komponenty: Carefully remove all parts from the packaging and lay them out on a clean, flat surface. Verify all parts are present according to the package contents list.
2. Sestavte rám: Connect the robust, powder-coated steel frame components as per the diagrams in the assembly instructions. Ensure all connections are secure.
3. Připevnění látky markýzy: Slide the awning fabric onto the designated aluminum waves. Ensure the fabric is correctly oriented.
4. Install Telescopic Poles: Insert the telescopic poles into the main frame. Adjust the height of the poles to fit your balcony or patio space (adjustable from 211 cm to 304 cm). The non-slip, floor and ceiling protective plastic caps should be at the ends of the poles.
5. Pozice a Clamp: Place the assembled awning in the desired location. Extend the telescopic poles until they firmly clamp between the floor and ceiling/balcony overhang. Ensure the awning is stable and level.
6. Mount Hand Crank: The practical hand crank can be mounted on either side of the awning for optimal accessibility. Attach it securely to the designated mechanism.

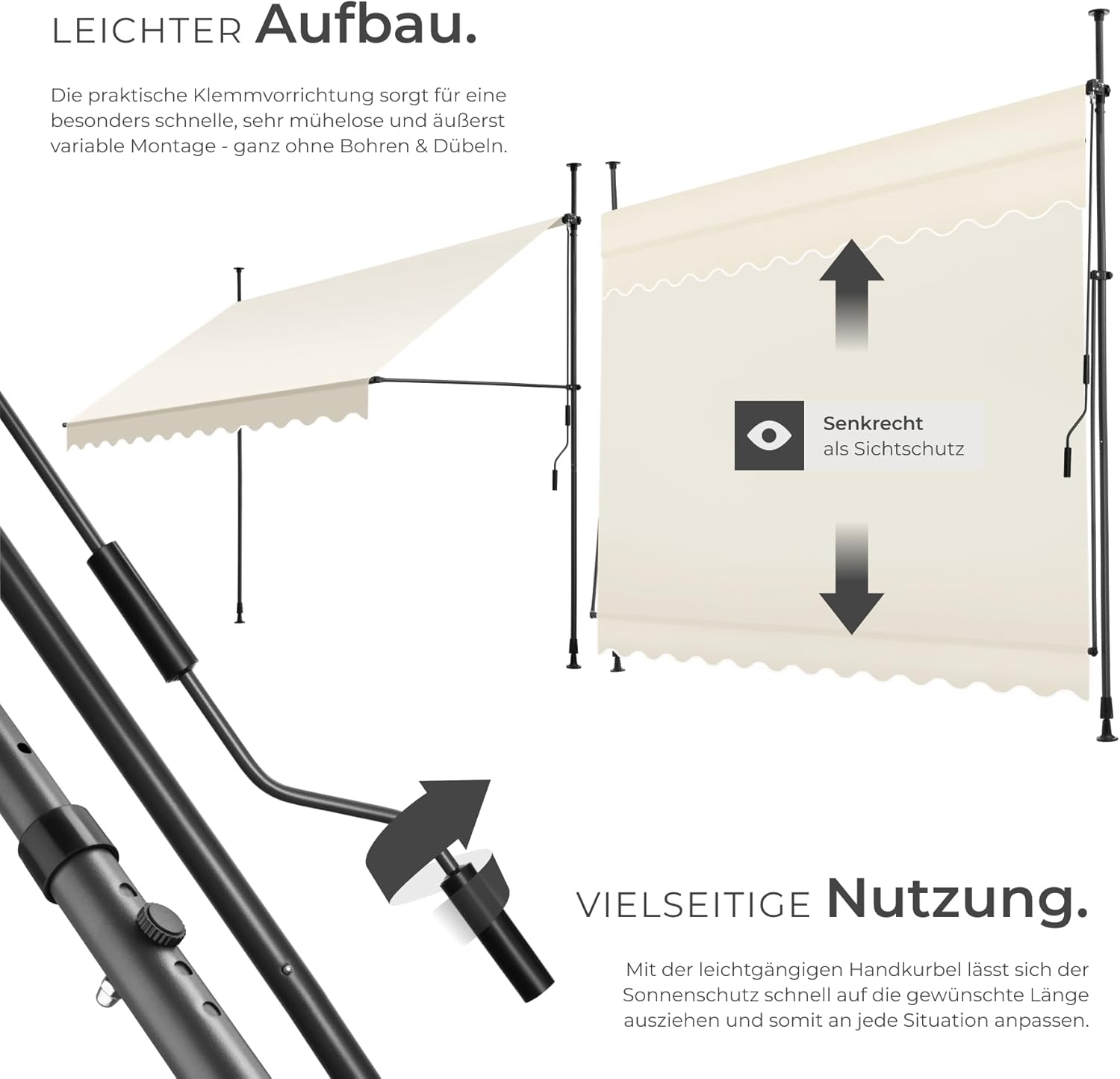

Image: Visual guide for easy setup and demonstrating the awning's versatility as a sunshade and privacy screen.

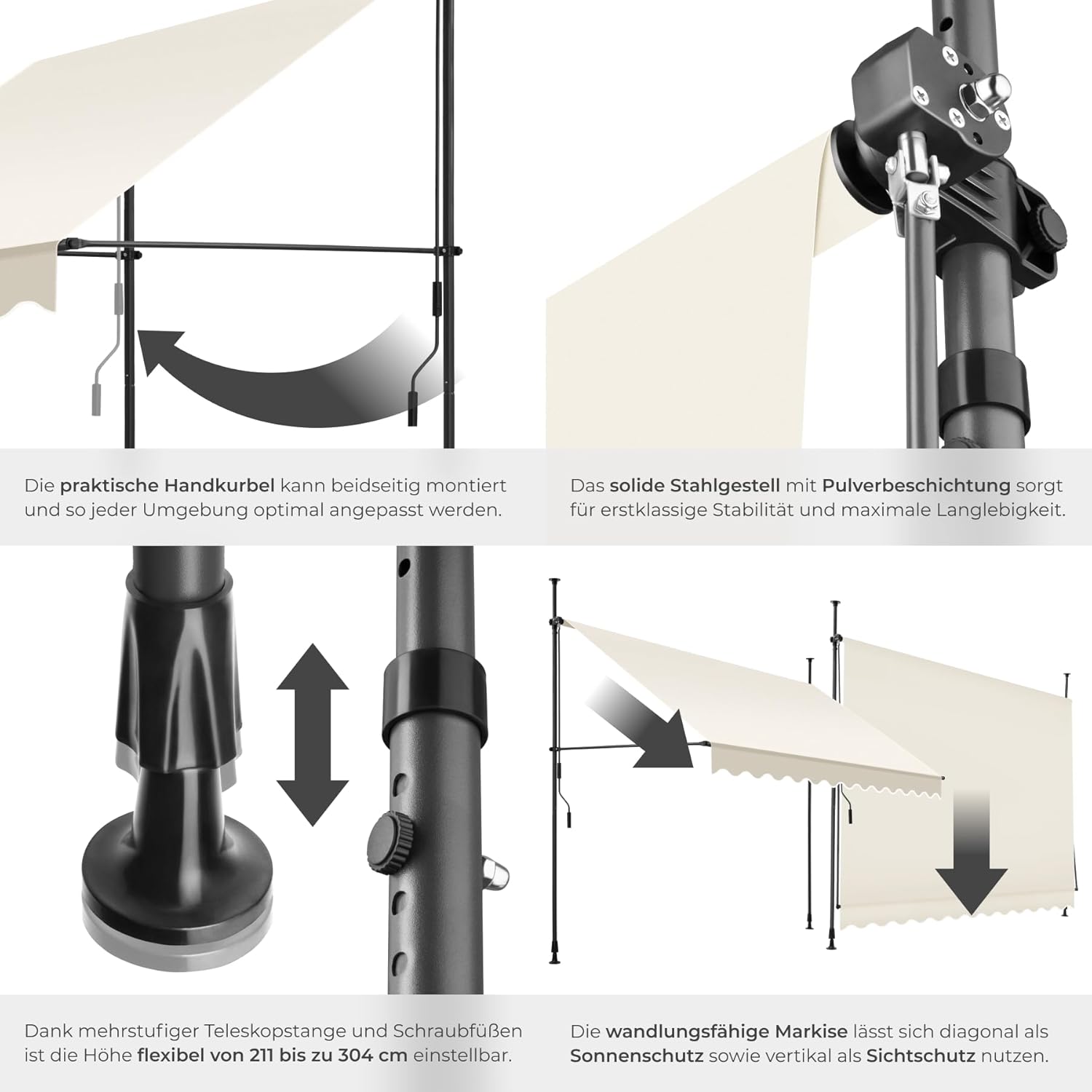

Obrázek: Podrobný views of the crank installation, height adjustment, and flexible positioning options.

Provozní

Your tectake® Clamp Awning features a smooth-running crank mechanism for effortless extension and retraction.

• Roztažení markýzy: Turn the hand crank clockwise to extend the awning fabric to the desired length. The awning can be extended diagonally for sun protection or vertically for privacy.
• Zasunutí markýzy: Turn the hand crank counter-clockwise to retract the awning fabric. Ensure the fabric retracts smoothly and completely.
• Nastavení výšky: The telescopic poles allow for height adjustment between 211 cm and 304 cm. Loosen the locking mechanism on the poles, adjust to the desired height, and then securely tighten the mechanism.
• Úhel nastavení: The awning's extension arms allow for flexible angle adjustment, from diagonal to completely vertical, to suit your sun protection or privacy needs.

Image: The awning in use on a balcony, highlighting its UV protection feature.

Image: The awning providing shade and comfort in a patio setting.

Údržba

Proper maintenance will extend the lifespan of your awning and ensure its continued performance.

• Čištění látky: The polyester fabric is water-repellent and easy to clean. Use a mild soap solution and a soft brush or cloth to clean the fabric. Rinse thoroughly with clean water and allow to air dry completely before retracting. Do not use harsh chemicals or abrasive cleaners.
• Čištění rámu: Wipe down the powder-coated steel and aluminum frame with a damp hadříkem k odstranění prachu a nečistot.
• Mazání: Periodically check the crank mechanism and moving parts. Apply a silicone-based lubricant if necessary to ensure smooth operation.
• Inspekce: Regularly inspect all screws, bolts, and connections to ensure they are tight and secure. Check the fabric for any tears or damage.
• Zimní skladování: If storing the awning for an extended period, especially during winter, ensure it is clean and completely dry. Store in a dry, protected area to prevent damage from extreme weather conditions.

Image: Visual representation of the awning's wind and weather-resistant features.

Odstraňování problémů

If you encounter issues with your tectake® Clamp Awning, please refer to the following common solutions:

Specifikace

Záruka a podpora

For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official tectake website. Contact details for support are typically found on the manufacturer's product page or within your purchase confirmation.
