TecTake Garden Patio Retractable Awning

1. Úvod a produktview

The TecTake Garden Patio Retractable Awning is designed to provide effective protection from sun and rain, enhancing the usability of your outdoor spaces such as patios and gardens. This manual awning features a smooth-running hand crank for easy operation and is constructed from durable materials including powder-coated steel, aluminium, and polyester fabric, ensuring longevity and resistance to outdoor elements.

Klíčová výhodatage of this awning is its innovative clamp system, which allows for installation without the need for drilling into exterior walls. This provides flexibility and ease of setup, making it an ideal solution for various outdoor settings. The retractable design offers the convenience of adjusting shade as needed, allowing you to enjoy both sun and shade effortlessly.

Image 1.1: The TecTake Retractable Awning, showcasing its full extension and light grey canopy.

2. Bezpečnostní informace

Please read and understand all safety instructions before assembly and operation of the awning. Failure to follow these instructions may result in injury or damage to the product.

• Před použitím se ujistěte, že jsou všechny součásti bezpečně upevněny.
• Do not use the awning in strong winds, heavy rain, or snow. Retract the awning fully during adverse weather conditions to prevent damage.
• Keep children and pets away from the awning during assembly and operation.
• Nezavěšujte žádné předměty na rám markýzy ani na látku.
• Regularly inspect the awning for any signs of wear, damage, or loose parts.
• Ensure the installation surface is stable and capable of supporting the awning's weight and forces exerted during operation.

3. Obsah balení

Před zahájením montáže ověřte, zda jsou všechny níže uvedené díly přítomny a nepoškozené. Pokud některé díly chybí nebo jsou poškozené, nepokračujte v montáži a kontaktujte zákaznickou podporu.

• 1x Retractable Awning unit
• 1x Assembly Materials kit (screws, bolts, etc.)
• 1x Assembly Instructions manual

4. Nastavení a montáž

The TecTake Retractable Awning features an easy-to-install clamp system that requires no drilling. It is recommended that two people perform the assembly for safety and ease.

4.1 Příprava

• Vybalte všechny součásti a rozložte je na čistý, rovný povrch.
• Identify all parts according to the assembly instructions diagram.
• Ensure you have the necessary tools (e.g., wrench, level) for assembly.

4.2 Montážní kroky

1. Sestavte hlavní rám: Connect the horizontal bars and the two vertical support poles. Ensure all connections are secure.
2. Attach the Awning Fabric: Carefully slide the awning fabric onto the designated slots on the frame.
3. Install the Hand Crank Mechanism: The practical hand crank can be mounted on either side of the awning for convenience. Secure it firmly.
4. Position the Awning: Place the assembled awning in the desired location. The clamp system allows for installation without drilling.
5. Adjust Height and Secure: Utilize the multi-step telescopic rod to adjust the height of the awning between approximately 211 cm and 304 cm. Turn the black bits at the bottom of the feet to secure the rods in place, ensuring the non-slip plastic feet provide 100% stability.
6. Adjust Awning Angle: The height-adjustable arms allow you to achieve the ideal tilt angle for optimal shade or breeze.

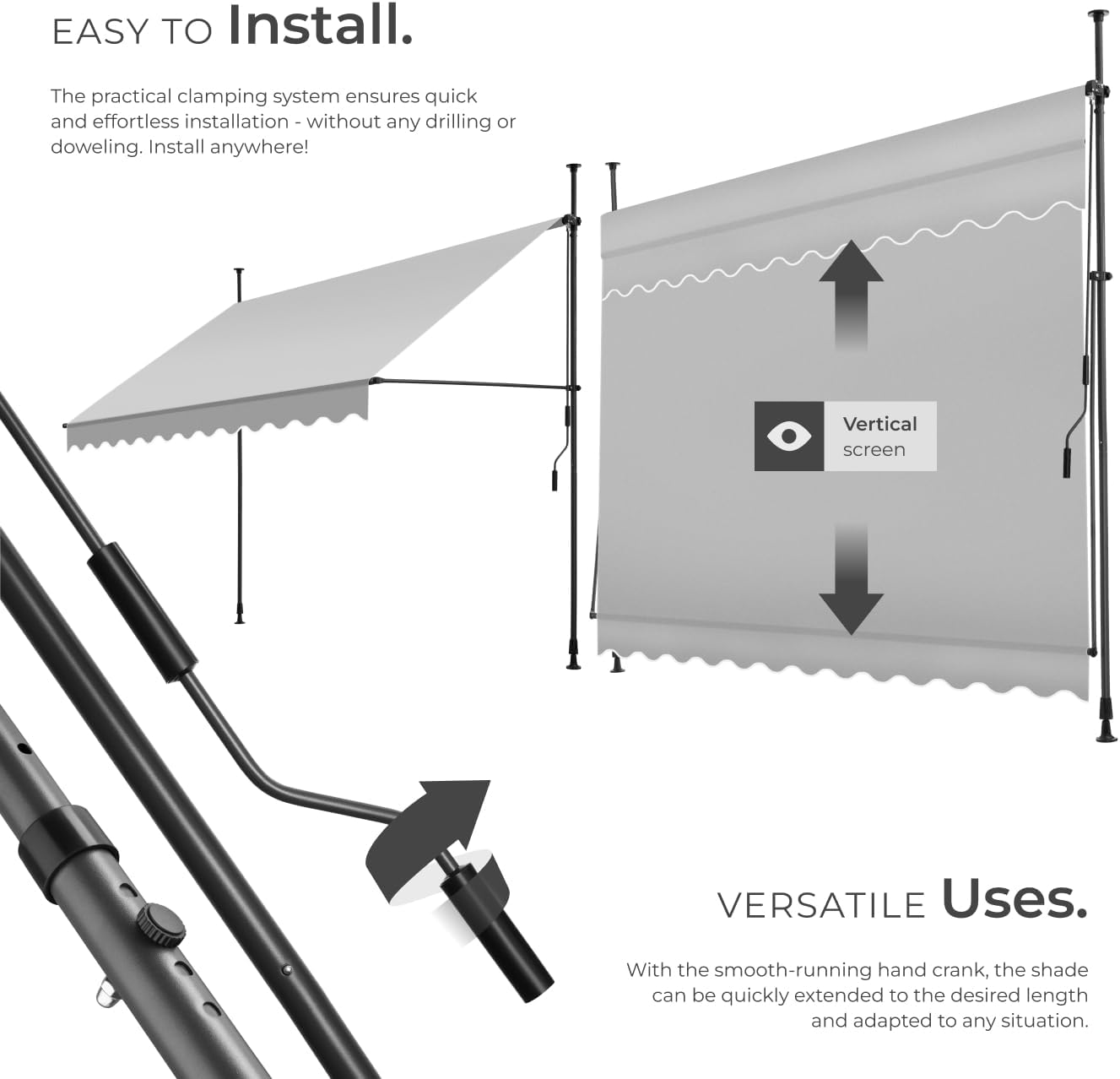

Image 4.1: Illustration of the easy installation process using the clamping system and the versatility for vertical screen use.

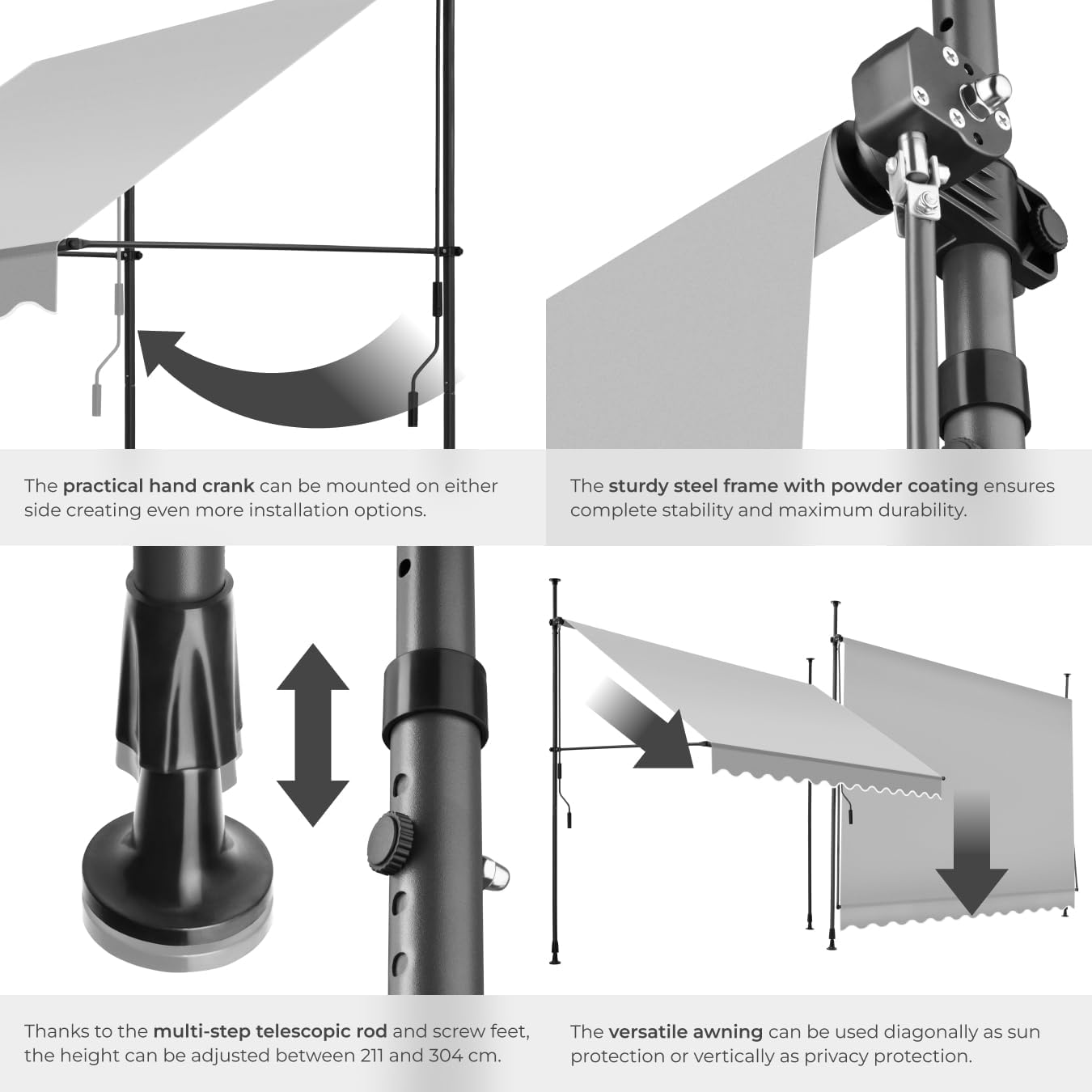

Obrázek 4.2: Detailní views of the hand crank, robust steel frame, height adjustment, and flexible awning positioning.

5. Návod k obsluze

Operating your TecTake Retractable Awning is straightforward thanks to its manual hand crank system.

5.1 Extending the Awning

• Locate the hand crank handle.
• Insert the crank handle into the designated opening on the awning mechanism.
• Turn the crank handle clockwise to extend the awning fabric. Continue turning until the awning reaches the desired extension or full extension.
• Ensure the awning is fully supported and stable once extended.

5.2 Zasunutí markýzy

• Insert the crank handle into the designated opening.
• Turn the crank handle counter-clockwise to retract the awning fabric. Continue turning until the awning is fully retracted.
• It is recommended to retract the awning when not in use, especially during strong winds or heavy precipitation, to prolong its lifespan.

5.3 Adjusting Awning Angle/Height

• The awning's height and angle can be adjusted using the telescopic rods and adjustable arms.
• Loosen the locking mechanisms on the telescopic rods to adjust the overall height of the awning. Re-tighten securely once the desired height is achieved.
• Adjust the angle of the awning arms to control the tilt and amount of shade provided. This allows for versatile use, including diagonal sun protection or vertical privacy screening.

Image 5.1: The awning in use, providing shade and demonstrating its UV protection capabilities.

6. Údržba

Proper maintenance will ensure the longevity and optimal performance of your TecTake Retractable Awning.

6.1 Cleaning the Fabric

• Clean the polyester fabric regularly with mild soap and lukewarm water.
• Use a soft brush or sponge to gently scrub away dirt and debris.
• Rinse thoroughly with clean water and allow the fabric to air dry completely before retracting the awning.
• Do not use harsh chemicals, bleach, or abrasive cleaners, as these can damage the fabric and its water-resistant coating.

6.2 Frame Maintenance

• Wipe down the powder-coated steel and aluminium frame with a damp hadříkem k odstranění prachu a nečistot.
• Inspect all bolts, screws, and connections periodically to ensure they remain tight. Re-tighten if necessary.
• Lubricate moving parts of the hand crank mechanism annually with a silicone-based lubricant to ensure smooth operation.

6.3 Skladování

• When not in use for extended periods, especially during winter months or severe weather forecasts, fully retract the awning.
• Ensure the fabric is completely dry before retracting to prevent mildew growth.

Image 6.1: Features highlighting the awning's wind and weather resistance, including water-repellent fabric and a durable steel frame.

7. Řešení problémů

This section addresses common issues you might encounter with your awning.

8. Specifikace

Detailed technical specifications for the TecTake Retractable Awning (300 cm light grey model).

Image 8.1: Visual representation of product dimensions and technical specifications.

9. Záruka a podpora

TecTake products are manufactured to high-quality standards. For information regarding warranty coverage, product support, or to purchase replacement parts, please refer to the original purchase documentation or visit the official TecTake webmísto.

For direct assistance, you may contact TecTake customer service through the contact information provided on their official website or through the retailer from whom the product was purchased.

Online zdroje:

• Official TecTake Webmísto: www.tectake.co.uk (Poznámka: Toto je zástupný symbol URL, řiďte se prosím skutečnými údaji výrobce webstránky pro přesné informace.)
• Product Support Page: Check the manufacturer's website for specific product support pages or FAQs.
