Zavedení

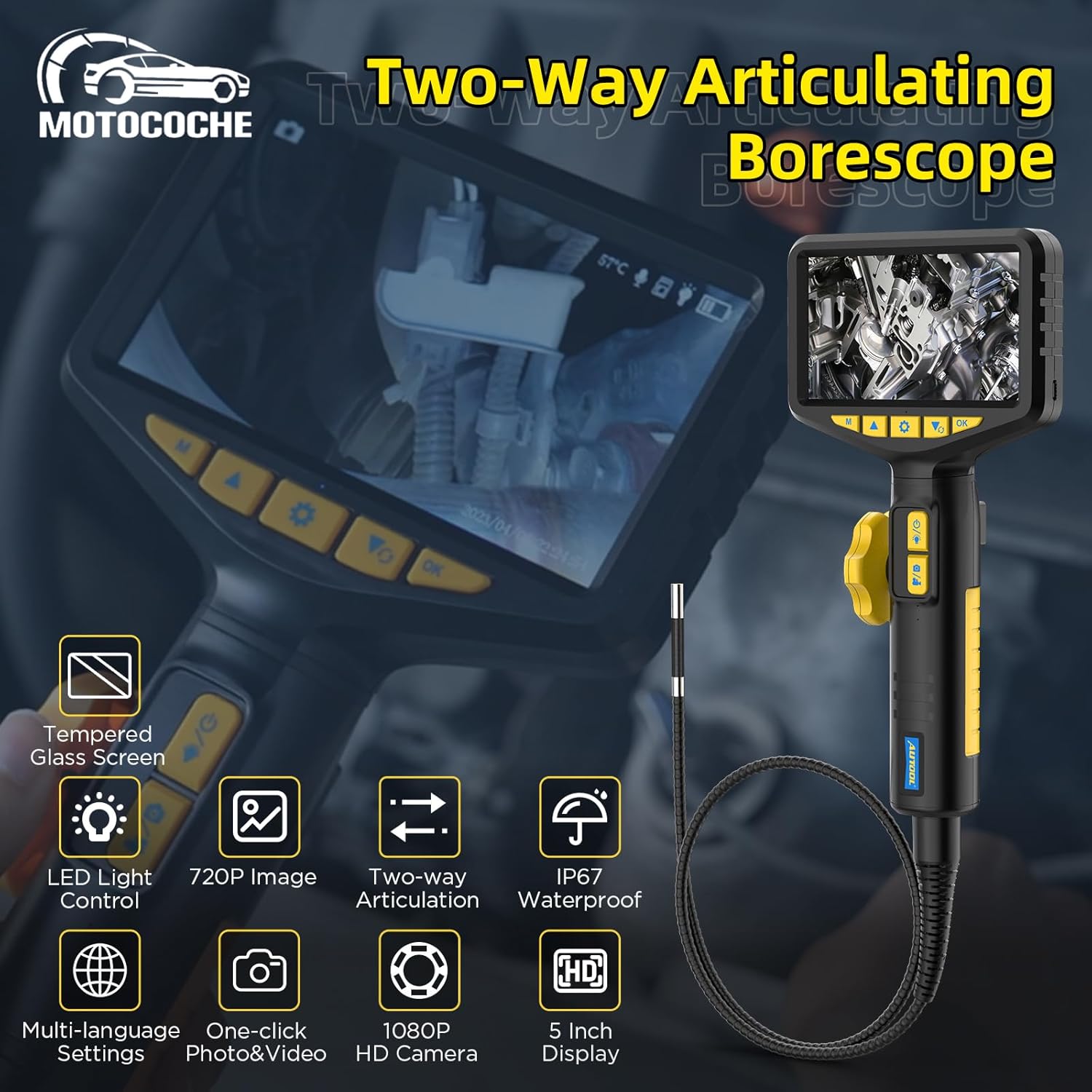

The MOTOCOCHE Articulating Borescope Inspection Camera is a versatile visual inspection device designed for examining hard-to-reach areas. Featuring a 210° two-way steering lens, HD1080P video recording, 720P photo capture, and IP67 waterproof rating, it is ideal for various applications including automotive inspection, industrial maintenance, and HVAC systems. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance of your device.
Nastavení
Nabíjení zařízení
The borescope is equipped with a 3000mAh replaceable lithium polymer battery, supporting up to 3 hours of continuous use. To charge, connect the device using a Type-C/USB cable to a 5V adapter or mobile power source. Ensure the charging voltage and current are 5V/1A. Avoid using adapters with higher voltage, aby nedošlo k poškození.
Instalace paměťové karty
The device includes an 8GB large-capacity memory card for storing JPG photos and AVI videos. Ensure the memory card is properly installed before use. If an 'SD Error' occurs, reinstall the SD card.
Nastavení jazyka
The borescope supports eight language settings: English, French, Spanish, German, Italian, Russian, Chinese, and Japanese. You can adjust the language through the device's menu.
Image: The borescope's 5-inch LCD display showing the language selection menu, with flags representing the eight supported languages.
Návod k obsluze
Zapnutí/vypnutí
Press and hold the power button to turn the device on or off. The machine defaults to the brightest light setting upon startup.
Nastavení jasu LED
The camera lens features 6 high-brightness LED lights. Press the light control button to cycle through 3 levels of adjustable brightness, suitable for various dark environments.
Image: A visual representation of the borescope's probe head with its 6 LED lights, demonstrating the three adjustable brightness levels for different inspection conditions.
Using the 210° Two-Way Steering Lens
Utilize the large yellow handle on the grip to turn and position the probe's camera head. This allows for flexible navigation through curved, tight, or narrow passages, providing optimal viewing angles up to 210° bi-directionally.
Image: A detailed graphic illustrating the 210-degree two-way articulation capability of the borescope's camera head, controlled by a knob on the main unit.
Fotografování a natáčení videa
The articulating endoscope camera supports taking 720P photos and 1080P videos. Use the dedicated button to switch between photo and video recording modes. Press the trigger button to capture a photo or start/stop video recording.
Image: The borescope's screen displaying icons for 720P image and 1080P video recording, highlighting the one-button switch functionality.
ReviewZachycení médií
Access the gallery mode to review stored JPG photos and AVI videos. The built-in 8GB memory card stores all captured media.
Integrace médií
Obrázky produktů
Image: The MOTOCOCHE Articulating Borescope unit, highlighting its 3000mAh Lithium Polymer battery for extended use.
Image: The borescope unit with a visual callout for the included 8GB large-capacity memory card, supporting photo and video storage.
Image: The borescope's 5-inch HD IPS LCD display, made of oil-resistant tempered glass, and the IP67 waterproof camera probe for harsh conditions.
Oficiální videa produktů
Video: A short demonstration of the MOTOCOCHE Two-Way Articulating Borescope with Light, showcasing its flexible probe and integrated lighting for inspection.
Video: Podrobný přehledview of the Articulating Borescope Inspection Camera, highlighting its features including the 8GB memory card and articulating capabilities.
Údržba
Čištění objektivu fotoaparátu
Regularly clean the camera lens with a soft, lint-free cloth to ensure clear image quality. If the image is blurry, a dirty lens might be the cause.
Péče o baterie
To prolong battery life, always use a 5V/1A adapter for charging. Avoid fast charging or using adapters with higher voltage, as this may damage the product.
Odstraňování problémů
Image: A table outlining common fault phenomena, their cause analysis, and recommended troubleshooting steps for the borescope.
| Fenomén poruchy | Analýza příčin | Odstraňování problémů |
|---|---|---|
| Selhání napájení | Ztráta baterie | Nabijte boroskop |
| Automatické vypnutí | Je nastaveno slabé nabití baterie nebo automatické vypnutí. | Nabijte boroskop a vypněte nastavení automatického vypnutí |
| Chyba SD | SD není správně nainstalováno | Znovu nainstalujte SD |
| Selhání nabíjení | Nabíjecí port je znečištěný nebo je poškozený nabíjecí kabel | Vyměňte nabíjecí kabel |
| Rozostření obrazu | Objektiv je znečištěný | Čočku otřete čisticím hadříkem |
| Selhání záznamu na SD | Insufficient SD Capacity | Vyměňte SD nebo proveďte vyčištění files |
Specifikace
Image: A graphic displaying the detailed product specifications of the borescope, including dimensions, camera features, and power details.
- Rozměry balení: 16.5 x 8.6 x 3.5 palce
- Hmotnost položky: 2.76 libry
- Průměr kamery: 6.35 mm
- Pixel: 2000 tis
- Hloubka ostrosti: 70°
- Úhel View: 20-100 mm
- Manuální stmívání: Třístupňové stmívání
- Vstupní výkon: DC 5V
- Pracovní doba: 3 hod
- Kapacita baterie: 3000 XNUMX mAh
- Zdroj světla kamery: 6 druhů LED světel
- Poloměr ohybu: 35 mm
- Provozní prostředí: -10~80°C
- Vlhkost: 15–90 %
- Ochrana proti vysoké teplotě: Inteligentní ochrana
- Vodotěsná úroveň: IP67
- Materiál kabelu: Flexible metal cable
- Délka kabelu: 1 m/3.3 stopy
- Směr řízení: Obousměrný
- Articulating Angle: 0°-210°
- Rozlišení záznamu videa: 1080p
- Barva: černý
Co je v krabici
- Articulating Endoscope
Záruka a podpora
For warranty information, technical support, or service inquiries, please refer to the product packaging or contact MOTOCOCHE customer service directly. Keep your purchase receipt for any warranty claims.
