Návod k obsluze nabíječky Linocell 45W Super Fast Charger USB C

Zavedení

Thank you for choosing the Linocell 45W Super Fast Charger USB C. This product is designed to provide efficient and safe charging for a wide array of USB-C compatible devices, including smartphones, tablets, and laptops. With advanced technology and robust safety features, it ensures optimal power delivery while protecting your devices.

Co je v krabici

• 2 x 45W Super Fast Charger USB C Block Type C Wall Charger Adapter
• 2 x 6FT Type C to Type C Charging Cable

Image: Contents of the Linocell 45W Super Fast Charger package, showing two charger blocks and two USB-C cables.

Vlastnosti

• Embedded Dual E-Marker Chipset: The included 6FT Type C cables feature dual E-Marker chipsets, enabling 5A fast charging and ensuring superior stability, safe charging, and high efficiency.


Image: Illustration of the dual E-Marker intelligent chip design within the USB-C cable for enhanced stability and safe charging.

• 45W super rychlé nabíjení: Designed to deliver 45W output, providing super fast charging for compatible devices like Samsung Galaxy S25 Ultra/S24/S23 series, and other USB-C devices.


Image: The 45W USB-C Super Fast Charging Type-C Wall Charger Adapter connected to a smartphone, highlighting its 45W output.

• Technologie GaN: Utilizes Gallium Nitride (GaN) technology for higher energy efficiency, upgraded heat dissipation, and a reduced physical size of the charger.


Image: Visual representation of the internal GaN technology, emphasizing its benefits for charger performance.

• Čip inteligentního řízení napájení: Built-in Smart-IC Chip automatically detects the connected device and identifies the appropriate current for uninterrupted fast charging.
• Dynamické teplotní senzory: Features a Dynamic Temperature Sensor that actively monitors temperature and a Power Tuner Chip that adjusts power output to safeguard connected devices.

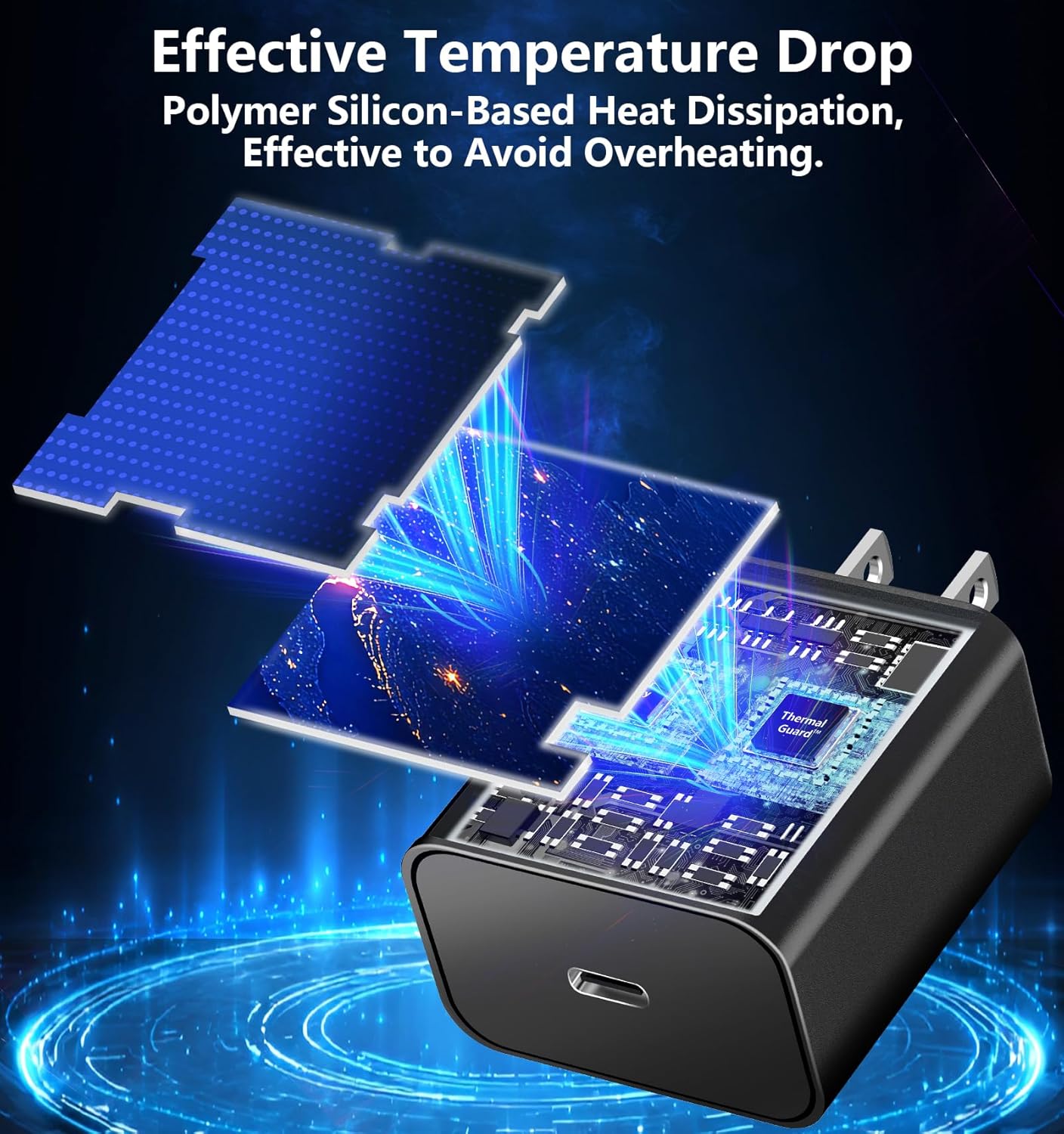

Obrázek: Interní view of the charger highlighting polymer silicon-based heat dissipation for effective temperature control.

• Military Grade Material: Constructed with all-carbon fiber and strong military fiber for enhanced durability and longevity.
• Široká kompatibilita: Compatible with a broad range of devices including Samsung Galaxy S25 Ultra/S25/S25+/S24 Ultra/S24/S24+/S23 Ultra/S23/S23+/S22 Ultra/S22+/S21 Ultra/S21/S20/Note 20/10, Galaxy Z Fold/Flip series, Galaxy Tab S/Tab A, Google Pixel series, Moto, iPhone 16/15 Series, iPad, MacBooks, Microsoft Surface, Lenovo ThinkPad, Dell XPS, Apple Watch, and AirPods.

Nastavení

1. Rozbalit: Opatrně vyjměte nabíjecí bloky a kabely z obalu.
2. Připojovací kabel: Insert one end of the provided 6FT Type C cable into the USB-C port on the charger block.
3. Zapojení do zásuvky: Insert the charger block into a standard wall outlet. Ensure the outlet is easily accessible.
4. Připojit zařízení: Zapojte druhý konec kabelu USB-C do nabíjecího portu kompatibilního zařízení.

Návod k obsluze

Once connected, the charger will automatically begin charging your device. The intelligent power management chip will detect your device's charging requirements and deliver the optimal power output up to 45W. For devices that support Super Fast Charging, you will observe significantly reduced charging times.

• Optimální nabíjení: For best results and to utilize the 45W super fast charging capability, ensure your device and cable also support this power delivery standard.
• Více zařízení: While the package includes two chargers, each charger is designed for a single device at a time.

Image: Demonstrates the charger in use, charging a Samsung Galaxy S25 to 86% in 30 minutes, and also charging a tablet and smartwatch.

Bezpečnostní informace

The Linocell 45W Super Fast Charger is equipped with multiple safety features to protect both the charger and your devices:

• Nadproudová ochrana: Zabraňuje poškození způsobenému nadměrným průtokem proudu.
• Ochrana proti zkratu: Ochranné prvky proti zkratům.
• Over-Voltage ochrana: Protects against voltage přepětí.
• Under-Voltage ochrana: Zajišťuje stabilní provoz tím, že zabraňuje nízkému objemutage podmínky.
• Ochrana proti přehřátí: Dynamic Temperature Sensors and Polymer Silicon-Based Heat Dissipation prevent overheating.
• Over-Power Protection: Manages power output to prevent overload.

The product is certified by UL, ETL, FCC, CE, and ROHS, ensuring compliance with safety standards.

Image: Illustrates the multiple shield protection system for battery safety, detailing various protective measures.

Odstraňování problémů

• Zařízení se nenabíjí:
  • Ujistěte se, že je nabíječka bezpečně zapojena do funkční zásuvky.
  • Verify the USB-C cable is firmly connected to both the charger and your device.
  • Zkuste použít jinou zásuvku.
  • Test with a different USB-C cable to rule out cable issues.
  • Ensure your device's charging port is clean and free of debris.
• Pomalé nabíjení:
  • Ověřte, zda vaše zařízení podporuje rychlé nabíjení 45 W. Starší zařízení se mohou nabíjet pomaleji.
  • Ensure no background applications on your device are consuming excessive power.
  • Check if the cable is damaged; a faulty cable can reduce charging speed.
  • Environmental factors (e.g., extreme temperatures) can affect charging efficiency.
• Nabíječka se zahřívá:
  • Je normální, že se nabíječka během provozu zahřívá, zejména během rychlého nabíjení.
  • If the charger becomes excessively hot or emits smoke/odor, immediately unplug it and discontinue use.

Specifikace

Záruka a podpora

For specific warranty details and terms, please refer to the documentation included with your purchase or visit the official Linocell website. If you encounter any issues or require technical assistance, please contact Linocell customer support through their official channels.

Výrobce: Shenzhen good-she technology Co., Ltd.
