1. Úvod
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Insignia M.2 NVMe to USB-C 3.2 Gen 2 SSD Enclosure. This device allows you to convert an M.2 NVMe solid-state drive into a portable external storage solution, offering high-speed data transfer capabilities for various compatible devices.
2. Obsah balení
Ověřte, zda jsou v balení obsaženy všechny níže uvedené položky:
- Insignia M.2 NVMe SSD Enclosure
- Kabel USB-C na USB-C
- Adaptér USB-C na USB-A
- Tepelná podložka

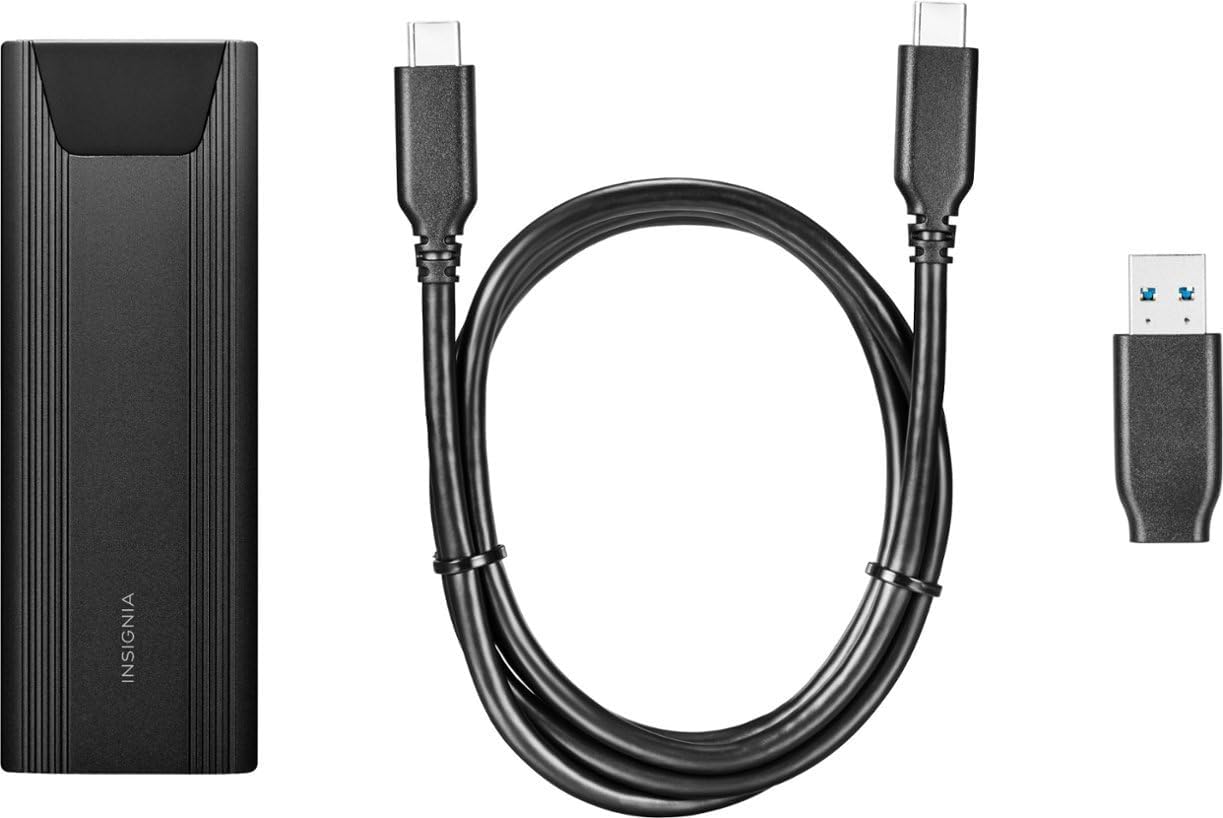

Image: The Insignia M.2 NVMe SSD Enclosure, along with its included USB-C to USB-C cable and USB-C to USB-A adapter.
3. Nastavení a instalace
The Insignia M.2 NVMe SSD Enclosure features a tool-free design for quick and easy installation of your M.2 NVMe solid-state drive.
3.1 Otevření krytu
- Locate the release button on the back end of the enclosure.
- Press the button firmly to release the internal tray.
- Gently slide the internal tray out from the aluminum casing.

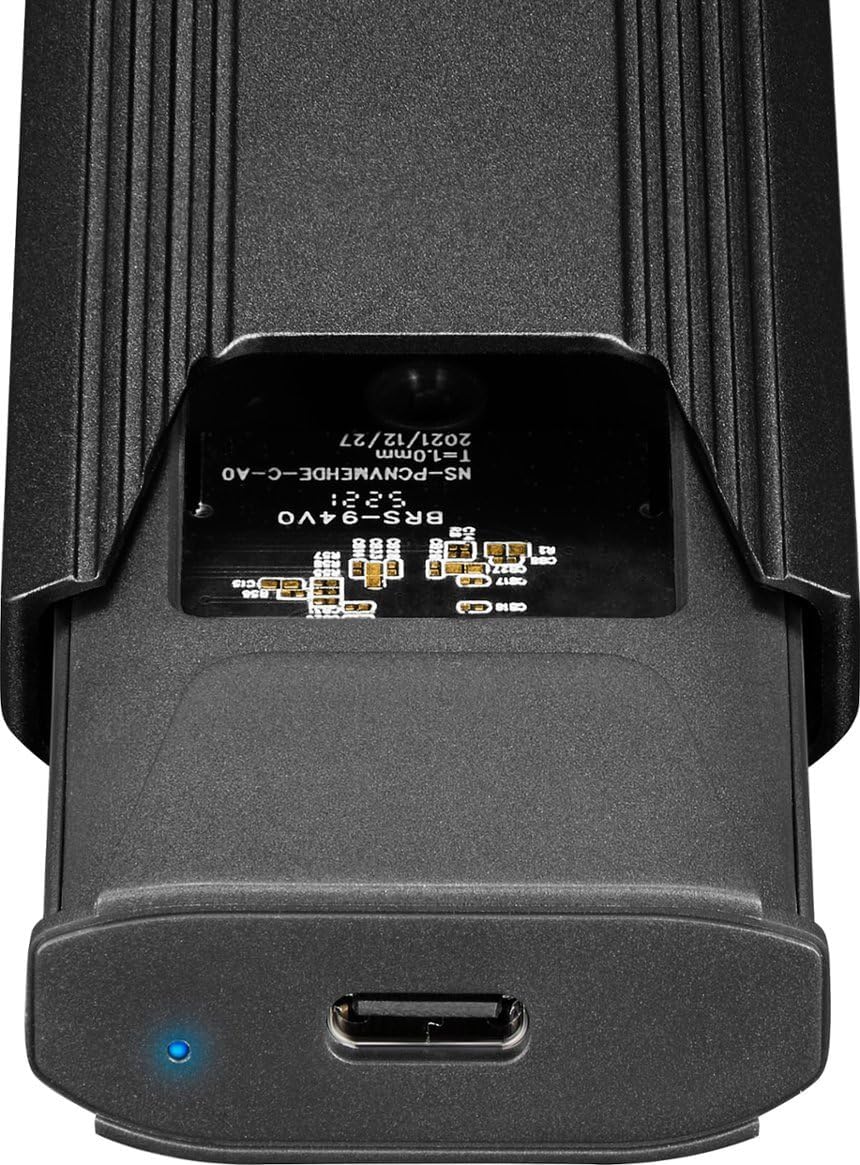

Image: The internal components of the enclosure, showing the M.2 slot and the USB-C port.
3.2 Installing the M.2 NVMe SSD
- Carefully align your M.2 NVMe SSD with the slot on the internal tray. The SSD should fit snugly.
- Jemně zatlačte SSD do slotu, dokud zcela nezapadne.
- Secure the opposite end of the SSD using the provided rubber stopper or clip mechanism on the tray. Ensure the SSD is flat and stable.
- Apply the thermal pad onto the top surface of the installed SSD. This helps dissipate heat during operation.
3.3 Closing the Enclosure
- Slide the internal tray, with the installed SSD, back into the aluminum casing, dokud bezpečně nezacvakne na své místo.
4. Návod k obsluze
The Insignia M.2 NVMe SSD Enclosure is designed for plug-and-play functionality with most operating systems.
4.1 Připojení k vašemu zařízení
Use the included USB-C to USB-C cable to connect the enclosure directly to a USB-C port on your computer or laptop. If your device only has standard USB-A ports, attach the USB-C to USB-A adapter to the USB-C cable before connecting it to your device.

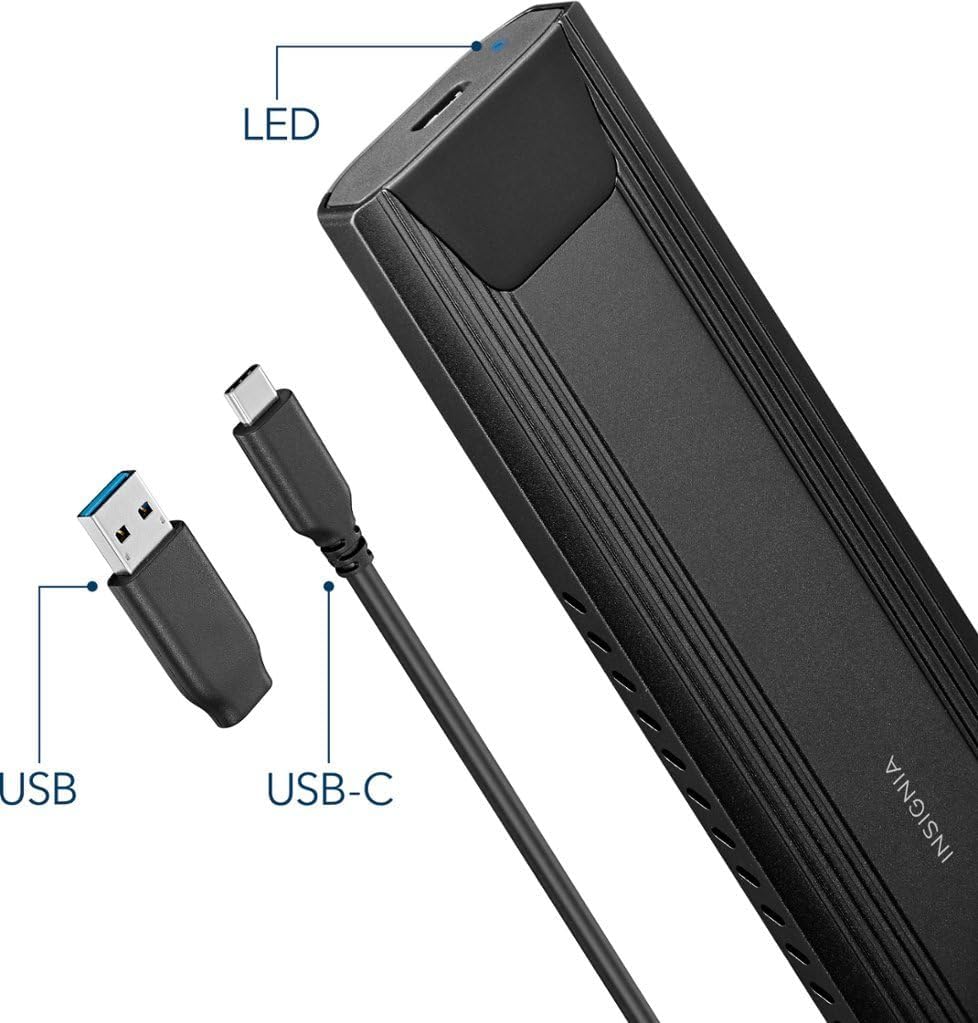

Image: The enclosure with its USB-C port, an LED indicator, and the USB-C to USB-A adapter.
4.2 Indikátor LED
A small LED indicator on the enclosure illuminates when the device is powered on and actively in use, providing visual confirmation of its operational status.
4.3 Drive Recognition and Formatting
Upon connection, most operating systems (Windows, macOS, ChromeOS, Android) will automatically recognize the enclosure and the installed SSD. If you are using a brand new SSD, it may need to be formatted before it can be used. Refer to your operating system's documentation for instructions on how to format a new drive.
The enclosure supports USB 3.2 Gen 2, allowing for data transfer speeds up to 10 Gbps. It also features UASP (USB Attached SCSI Protocol) support, which can further enhance data transfer performance and reduce CPU utilization.
5. Údržba a péče
To ensure the longevity and optimal performance of your Insignia SSD Enclosure, follow these maintenance guidelines:
- Čištění: Use a soft, dry cloth to clean the exterior of the enclosure. Avoid using liquid cleaners or solvents.
- Řízení tepla: Hliníkové casing and ventilation holes are designed to help dissipate heat. Ensure the enclosure is not covered or placed in an area with poor airflow during extended use, especially during large data transfers, to prevent potential thermal throttling of the SSD.
- Skladování: Kryt skladujte na chladném a suchém místě mimo dosah přímého slunečního záření a extrémních teplot.
- Zacházení: While the aluminum construction provides durability, avoid dropping or subjecting the enclosure to strong impacts, as this could damage the internal SSD or the enclosure itself.
6. Řešení problémů
If you encounter issues with your Insignia M.2 NVMe SSD Enclosure, refer to the following common troubleshooting steps:
- Disk nebyl detekován:
- Ensure the M.2 NVMe SSD is correctly seated in the enclosure's slot.
- Verify that the USB cable is securely connected to both the enclosure and your computer.
- Zkuste připojit box k jinému USB portu na počítači.
- If using the USB-A adapter, ensure it is properly attached and the USB-A port on your computer is functional.
- For new SSDs, check your operating system's Disk Management (Windows) or Disk Utility (macOS) to see if the drive is detected but unformatted.
- Pomalé přenosové rychlosti:
- Ensure you are connected to a USB 3.2 Gen 2 (10Gbps) compatible port on your computer. Older USB 2.0 or 3.0 ports will result in slower speeds.
- Confirm that your M.2 NVMe SSD itself is capable of high speeds.
- Monitor the enclosure's temperature during long transfers. Excessive heat can cause the SSD to throttle its performance. Ensure adequate ventilation.
- Enclosure Not Powering On:
- Check the USB connection to ensure it is firm and providing power.
- Zkuste jiný port USB nebo kabel.
7. Specifikace
| Značka | INSIGNIE |
| Číslo modelu | NS-PCNVMEHDE-C |
| Kompatibilní zařízení | Laptop (also compatible with PCs, Mac, Android, Linux, ChromeOS) |
| Maximální počet podporovaných zařízení | 1 |
| Rychlost přenosu dat | 10000 Megabits Per Second (10 Gbps) |
| Technologie připojení | USB |
| Hardwarové rozhraní | USB 3.2 Gen 2, USB Type C |
| Materiál | Hliník |
| Barva | Černý |
| Hmotnost položky | 5.6 unce |
| Rozměry balení | 6.3 x 3.5 x 1.89 palce |
| UPC | 600603285776 |
8. Záruka a podpora
For product support, warranty information, or technical assistance, please contact Insignia Customer Support:
- Telefon: 1-877-467-4289
- Webmísto: www.insigniaproducts.com
Please refer to the product packaging or the official Insignia webNejnovější a nejpodrobnější informace o záruce platné pro váš region naleznete na webových stránkách.
