Uživatelská příručka k mikroměniči Hoymiles HMS-1800-4T

1. Úvod

This manual provides comprehensive instructions for the Hoymiles HMS-1800-4T Micro-inverter, a device designed for converting solar energy from up to four photovoltaic modules into AC power. It covers product features, safety guidelines, installation procedures, operational details, maintenance, and troubleshooting to ensure efficient and safe use. Please read this manual thoroughly before installation and operation.

The Hoymiles HMS-1800-4T is a state-of-the-art micro-inverter suitable for mini photovoltaic systems and scalable PV installations. Its lightweight and compact design (4.7 kg with 0.5m AC connection cable) supports solar power generation with up to four solar panels, each up to 600W peak power. It features a very low startup voltage (22V) and a wide DC input range (16-60VDC), ensuring long operating hours and broad PV module compatibility. Each input is monitored by its own Maximum Power Point Tracker (MPPT) to optimize system yield.

2. Bezpečnostní pokyny

Adherence to safety precautions is crucial during installation, operation, and maintenance of the Hoymiles HMS-1800-4T Micro-inverter. Failure to follow these instructions may result in serious injury or equipment damage.

• Kvalifikovaný personál: Installation and maintenance must be performed by qualified personnel with electrical training.
• Elektrické nebezpečí: The micro-inverter generates high voltage. Do not touch live parts. Disconnect all power sources before servicing.
• Základy: Ensure proper grounding of the micro-inverter and all connected components.
• Podmínky prostředí: Install the device in a well-ventilated area, away from flammable materials, and within specified operating temperatures.
• Voda a vlhkost: The device has an IP67 rating, but avoid submerging it or exposing it to excessive moisture.
• Připojení kabelů: Use appropriate cables and connectors. Ensure all connections are secure and properly insulated.
• Nouzové vypnutí: Familiarize yourself with the system's emergency shutdown procedures.

3. Konec produktuview

3.1 Klíčové vlastnosti

• Snadná instalace: Plug & Play design for simplified setup.
• Vysoká účinnost: Optimized power conversion with individual MPPT for each input.
• Robustní design: IP67 protection rating for outdoor use.
• Chlazení přirozenou konvekcí: Fanless design ensures quiet operation.
• Wide Input Voltage Rozsah: DC input range of 16-60VDC, with a low startup voltage 22V.
• Integrovaná Wi-Fi: For monitoring and control.
• Dodržování: Meets standards such as EN 50549-1:2019, VDE-AR-N 4105:2018, IEC/EN 62109-1/-2, and others.

3.2 Komponenty

The Hoymiles HMS-1800-4T Micro-inverter unit includes:

• HMS-1800-4T Micro-inverter unit
• Integrated AC connection cable (0.5m)
• DC input connectors for up to four solar modules

Note: Additional cables for 230V AC connection to the grid are not included and must be purchased separately.

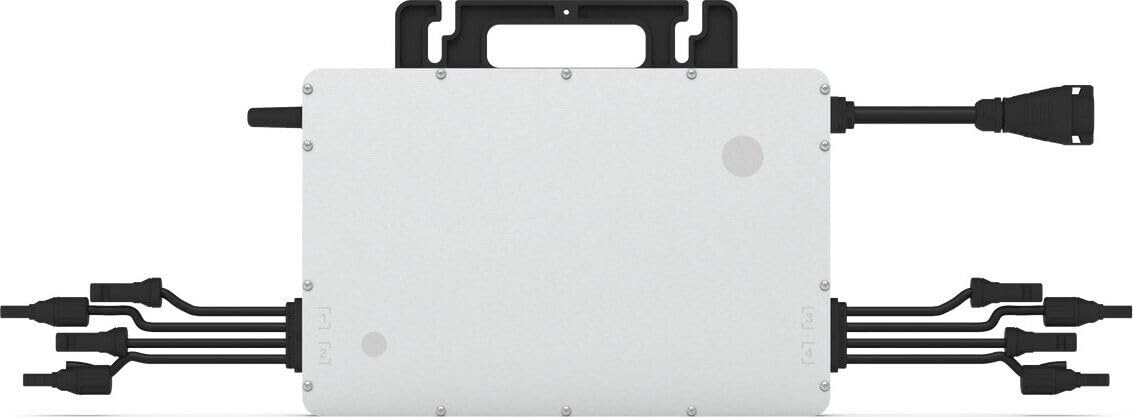

Obrázek 1: Přední view of the Hoymiles HMS-1800-4T Micro-inverter, showing the main unit with cooling fins, AC output cable on the left, and four DC input connectors on the bottom right.

4. Nastavení a instalace

Before beginning installation, ensure all safety instructions are understood and followed. This section outlines the general steps for installing the micro-inverter.

4.1 Kontrolní seznam před instalací

• Verify that the solar panels are compatible with the micro-inverter's input specifications (voltage a aktuální).
• Ensure the mounting location is suitable, providing adequate ventilation and protection from direct sunlight or extreme weather if not rated for it (though IP67 rated, optimal conditions prolong life).
• Gather all necessary tools and additional components (e.g., AC connection cable, mounting hardware).

4.2 Mounting the Micro-inverter

1. Attach the micro-inverter to the solar panel frame or a suitable mounting structure using appropriate hardware. Ensure it is securely fastened.
2. Position the micro-inverter to allow for proper cable management and air circulation around the cooling fins.

4.3 Elektrické připojení

1. DC připojení: Connect the DC cables from each solar panel to the corresponding DC input connectors on the micro-inverter. Ensure correct polarity (+ to + and - to -).
2. Připojení AC: Connect the integrated AC output cable of the micro-inverter to your AC grid connection point using a suitable AC cable (not supplied). Ensure the AC connection is properly grounded and protected by a circuit breaker.
3. Více jednotek: If installing multiple micro-inverters, connect their AC output cables in series to form an AC trunk cable, then connect to the grid. Refer to local electrical codes for maximum string length.

Obrázek 2: Hoymiles HMS-1800-4T Micro-inverter showing the various cable connections for DC input from solar panels and AC output to the grid.

5. Návod k obsluze

Once installed, the Hoymiles HMS-1800-4T Micro-inverter operates largely automatically. This section details initial startup and monitoring.

5.1 Počáteční spuštění

1. After all electrical connections are secure, turn on the AC circuit breaker supplying power to the micro-inverter.
2. Next, ensure the solar panels are exposed to sufficient sunlight. The micro-inverter will automatically begin converting DC power from the panels to AC power for the grid once the input voltage reaches the startup threshold (22V).
3. Observe the indicator lights on the micro-inverter (if present) or use the monitoring system to confirm proper operation.

5.2 Monitoring with WiFi

The HMS-1800-4T includes integrated WiFi for remote monitoring. To utilize this feature:

• Download the Hoymiles monitoring application (e.g., S-Miles Cloud app) on your smartphone or access the web portál.
• Follow the app's instructions to connect the micro-inverter to your local WiFi network.
• Once connected, you can monitor real-time power generation, historical data, and system status.

6. Údržba

The Hoymiles HMS-1800-4T Micro-inverter is designed for minimal maintenance. However, periodic checks can ensure optimal performance and longevity.

• Vizuální kontrola: Periodically inspect the micro-inverter and all cables for any signs of damage, corrosion, or loose connections.
• Čištění: Ensure the cooling fins are free from dust, dirt, or debris to maintain efficient heat dissipation. Use a soft brush or cloth for cleaning. Do not use high-pressure water jets directly on the unit.
• Aktualizace softwaru: Check the Hoymiles monitoring platform for any available firmware updates for the micro-inverter. Follow instructions carefully for updates.
• Čištění solárních panelů: Keep solar panels clean to maximize energy production.

Always disconnect power to the micro-inverter before performing any physical maintenance.

7. Řešení problémů

This section provides guidance on common issues you might encounter with your Hoymiles HMS-1800-4T Micro-inverter.

7.1 Žádný výstupní výkon

• Check AC Breaker: Ensure the AC circuit breaker connected to the micro-inverter is in the "ON" position.
• Zkontrolujte připojení stejnosměrného proudu: Verify that all DC cables from the solar panels are securely connected and have correct polarity.
• Sufficient Sunlight: Confirm that solar panels are receiving adequate sunlight and are not shaded. The micro-inverter requires a minimum DC input voltage (22V) to start.
• Připojení k síti: Ensure the AC grid connection is stable and within acceptable voltage a frekvenční rozsahy.

7.2 Problémy s připojením k Wi-Fi

• Blízkost routeru: Ensure the micro-inverter is within range of your WiFi router.
• Síťové přihlašovací údaje: Double-check that the correct WiFi network name (SSID) and password have been entered into the monitoring app.
• Nastavení routeru: Some routers may require specific settings (e.g., 2.4GHz band enabled). Consult your router's manual.
• Restartovat: Try restarting your WiFi router and the micro-inverter (by disconnecting and reconnecting AC power).

7.3 Low Power Production

• Čistota panelu: Dirty solar panels can significantly reduce output. Clean them as described in the maintenance section.
• Stínování: Even partial shading on solar panels can reduce overall system performance.
• Panel Health: Inspect individual solar panels for damage or degradation.
• Funkce MPPT: The individual MPPTs should optimize output. If one panel consistently underperforms, check its connections and health.

If issues persist, contact Hoymiles customer support or a qualified electrician.

8. Specifikace

The following table details the technical specifications for the Hoymiles HMS-1800-4T Micro-inverter.

Obrázek 3: Nadview of the Hoymiles Micro-inverter datasheet, highlighting key features and models including HMS-1800-4T.

Obrázek 4: Detailed technical specifications table for Hoymiles HMS-1600-4T, HMS-1800-4T, and HMS-2000-4T micro-inverters, showing electrical and mechanical data.

9. Záruka a podpora

Information regarding specific warranty periods is not provided in the product description. Please refer to the official Hoymiles webPodrobné záruční podmínky naleznete na webu nebo v místě nákupu.

For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact Hoymiles customer service or your authorized dealer. Ensure you have your product model number (HMS-1800-4T) and purchase details available when contacting support.

Výrobce: Hoymiles

Kontaktní údaje: Refer to the official Hoymiles webweb s nejaktuálnějšími kontaktními údaji a zdroji podpory.
