SONGMICS OMC013S01

SONGMICS Filing Cabinet User Manual

Model: OMC013S01

Značka: SONGMICS

1. Úvod

Thank you for choosing the SONGMICS Multi-Purpose Filing Cabinet. This cabinet is designed to provide reliable storage for various items such as books, documents, tools, and spices. Its versatile design allows for integration into different environments, including study rooms, living rooms, kitchens, and garages. This manual provides essential information for the safe assembly, operation, and maintenance of your new cabinet.

SONGMICS Filing Cabinet in an office setting

Image 1.1: SONGMICS Filing Cabinet in an office environment, showcasinjeho design a užitečnost.

2. Bezpečnostní pokyny

Pro zajištění bezpečného používání a prevenci nehod dodržujte prosím následující bezpečnostní pokyny:

  • Ochrana proti náklonu: Always attach the filing cabinet to the wall using the included tilt protection device. This prevents the cabinet from tipping over, especially in households with children or pets.
  • Nosnost: Do not exceed the maximum static load capacity of the surface (30 kg) or each adjustable shelf (25 kg). Overloading can compromise stability and cause damage.
  • Stabilní umístění: Ensure the cabinet is placed on a flat, stable, and level surface. Use the adjustable screw feet to compensate for slightly uneven floors.
  • Shromáždění: Pečlivě dodržujte všechny montážní pokyny. Nepřeskakujte kroky ani nepoužívejte neschválené díly.
  • Děti: Udržujte děti mimo prostor montáže. Nedovolte dětem lézt na skříňku nebo si s ní hrát.

3. Obsah balení

Před zahájením montáže zkontrolujte, zda jsou všechny součásti přítomny a nepoškozené. Balení by mělo obsahovat:

  • 1 x Metal Cabinet (disassembled components)
  • 1 x Accessory Pack (containing screws, bolts, etc.)
  • 1 x Tilt Protection Device
  • 1 x Návod k použití

If any parts are missing or damaged, please contact SONGMICS customer support for assistance.

4. Montážní návod

Assembly of this metal cabinet is designed to be straightforward. Please follow the clear instructions and use the labeled parts provided in the accessory pack.

  1. Rozbalte komponenty: Opatrně vyjměte všechny díly z obalu a položte je na čistý, měkký povrch, abyste zabránili poškrábání.
  2. Sestavte rám: Follow the step-by-step diagrams in the included instruction manual to connect the main frame components.
  3. Instalace polic: Insert the adjustable shelves into the desired positions. Refer to the 'Operating Instructions' section for details on adjusting shelf height.
  4. Připevnit dveře: Secure the two doors to the cabinet frame, ensuring they open and close smoothly.
  5. Install Legs (Optional): You have the option to use the cabinet with or without legs. If installing legs, attach them securely. The adjustable screw feet can then be used to level the cabinet on uneven floors.
  6. Zajištění ochranou proti převrácení: As a crucial safety measure, attach the tilt protection device to the cabinet and secure it to a wall stud.
SONGMICS Filing Cabinet with and without legs

Image 4.1: Illustration showing the cabinet with and without its optional legs, highlighting the flexible design.

5. Návod k obsluze

5.1. Použití zámku

The cabinet features a premium metal lock with two keys to secure your personal items. Insert the key into the lock on the right door and turn to lock or unlock both doors simultaneously.

5.2. Úprava polic

The two shelves inside the cabinet are height-adjustable, allowing you to customize the storage space for items of various sizes.

  1. Vyprázdněte polici, kterou chcete upravit.
  2. Carefully lift the shelf and disengage it from its current support clips.
  3. Relocate the support clips to the desired height slots on the cabinet's interior side panels.
  4. Place the shelf back onto the support clips, ensuring it is securely seated and level.
Detail mechanismu nastavitelné police

Obrázek 5.1: Detailní view of the adjustable shelf mechanism, showing how to reposition shelves.

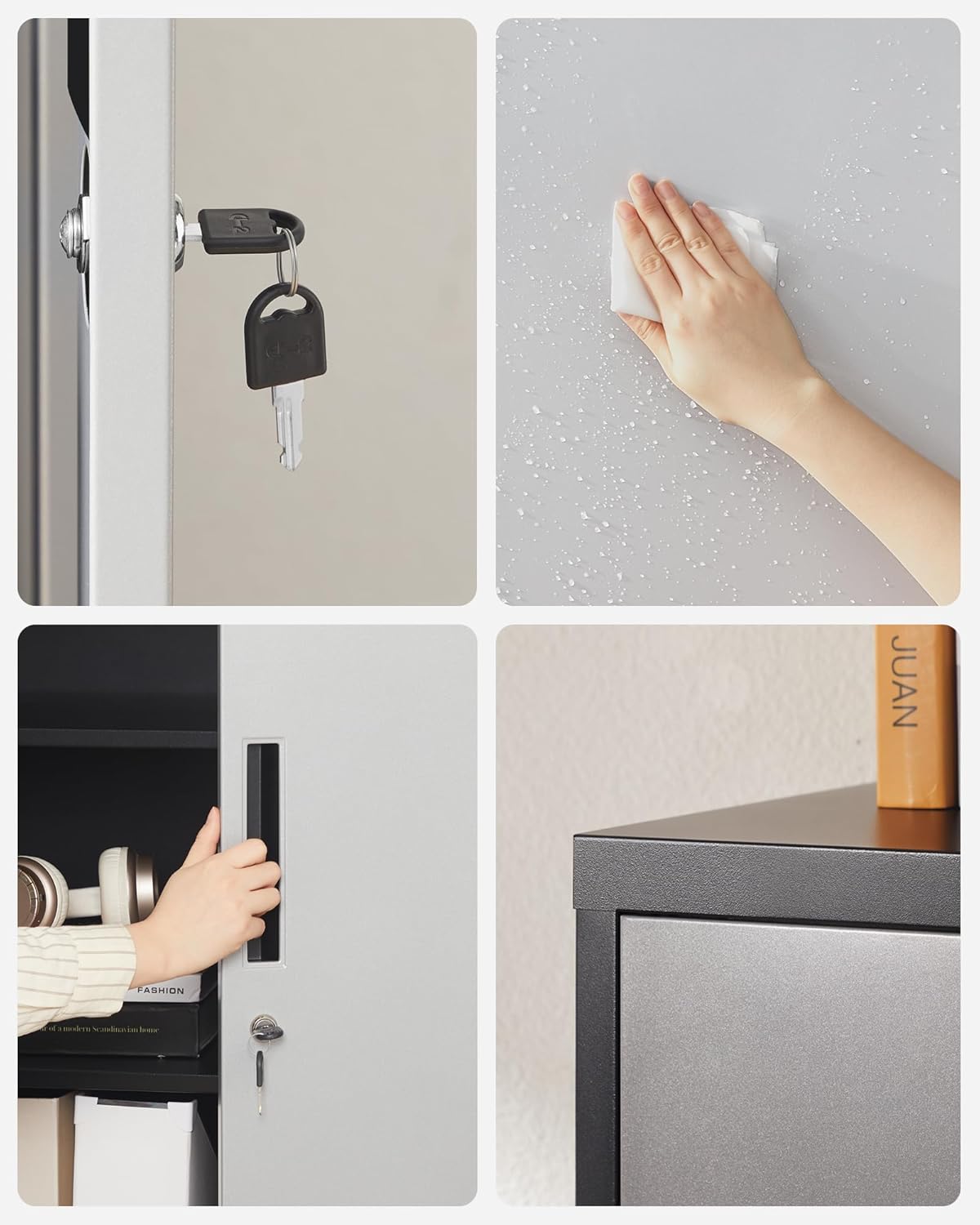

Details of lock, cleaning, handle, and cabinet corner

Image 5.2: Close-up details of the cabinet's features, including the lock, handle, and surface finish.

6. Údržba

To maintain the appearance and longevity of your SONGMICS filing cabinet, follow these simple maintenance tips:

  • Čištění: The cabinet's powder-coated steel surface is water-resistant and easy to clean. Wipe surfaces with a soft, damp hadříkem. Nepoužívejte abrazivní čisticí prostředky ani agresivní chemikálie, které by mohly poškodit povrchovou úpravu.
  • Inspekce: Pravidelně kontrolujte všechny šrouby a spoje, zda jsou pevně utažené. V případě potřeby je dotáhněte.
  • Péče o zámek: If the lock mechanism becomes stiff, a small amount of graphite lubricant can be applied. Do not use oil-based lubricants.
  • Prevence rzi: While the steel is rust-resistant, avoid prolonged exposure to excessive moisture to prevent potential corrosion.

7. Řešení problémů

This section addresses common issues you might encounter with your filing cabinet.

  • Skříň je nestabilní/vraští se:
        - Ensure the cabinet is on a flat surface. Use the adjustable screw feet at the bottom of the legs to level the cabinet. Turn the feet clockwise or counter-clockwise until stability is achieved.
        - Verify that all assembly screws are tightened securely.
  • Dveře se správně nezavírají:
        - Check if the cabinet is level. An uneven cabinet can cause door misalignment.
        - Inspect hinges for any obstructions or loose screws. Adjust if necessary.
  • Zámek je tuhý nebo nefunguje:
        - Ensure the key is fully inserted and turned correctly. Do not force the key.
        - Apply a small amount of graphite lubricant to the lock mechanism if it feels stiff.

If you encounter issues not listed here or require further assistance, please contact SONGMICS customer support.

8. Specifikace

FunkceDetail
Číslo modeluOMC013S01
BarvaStříbrná a černá
MateriálAlloy Steel (Powder Coated Finish)
Product Dimensions (without legs)40 x 80 x 90 cm (D x W x H) / 15.75 x 31.5 x 35.43 inches
Hmotnost položky22.3 kg / 49.1 liber
Max. statická nosnost (povrch)30 kg
Max. statická nosnost (každá nastavitelná police)25 kg
Styl dveříDouble door, Lockable
Montáž VyžadovánaAno
Zahrnuté komponentyShelves, Tilt Protection
Diagram showing dimensions of the SONGMICS Filing Cabinet

Image 8.1: Dimensional diagram of the SONGMICS Filing Cabinet, showing height, width, and depth.

9. Záruka a podpora

SONGMICS is committed to providing high-quality products. For information regarding warranty coverage, product support, or to purchase replacement parts, please visit the official SONGMICS website or contact their customer service department. Please have your model number (OMC013S01) and purchase details ready when contacting support.

Online podpora: www.songmics.com

Služby zákazníkům: Refer to the contact information provided on the SONGMICS webwebu nebo v dokumentaci k nákupu.
