Polyfonní oktávový kytarový pedál STRICH

1. Úvod

The STRICH Polyphonic Octave Guitar Pedal is a compact and versatile digital effect designed for electric guitarists. It provides pristine polyphonic octave shifting, allowing you to add octave-up or octave-down effects to single notes or complex chords with exceptional clarity. Featuring three distinct modes (TOP, BOTH, BOTTOM) and independent control over dry and octave levels, this pedal offers a broad spectrum of sound possibilities for creative guitar playing. Its true bypass circuitry ensures your original signal integrity is maintained when the effect is disengaged.

Obrázek 1: Přední úhel view of the STRICH Polyphonic Octave Guitar Pedal.

2. Obsah balení

Upon opening the package, please ensure all items listed below are present:

• STRICH Polyphonic Octave Guitar Pedal (OCTPUS)
• Návod k obsluze

Note: A DC 9V adapter with negative inside and positive outside is required for power but is NOT included in the package.

Figure 2: Package contents of the STRICH Octave Pedal.

3. Ovládací prvky a funkce

Familiarize yourself with the various controls and features of your STRICH Polyphonic Octave Guitar Pedal:

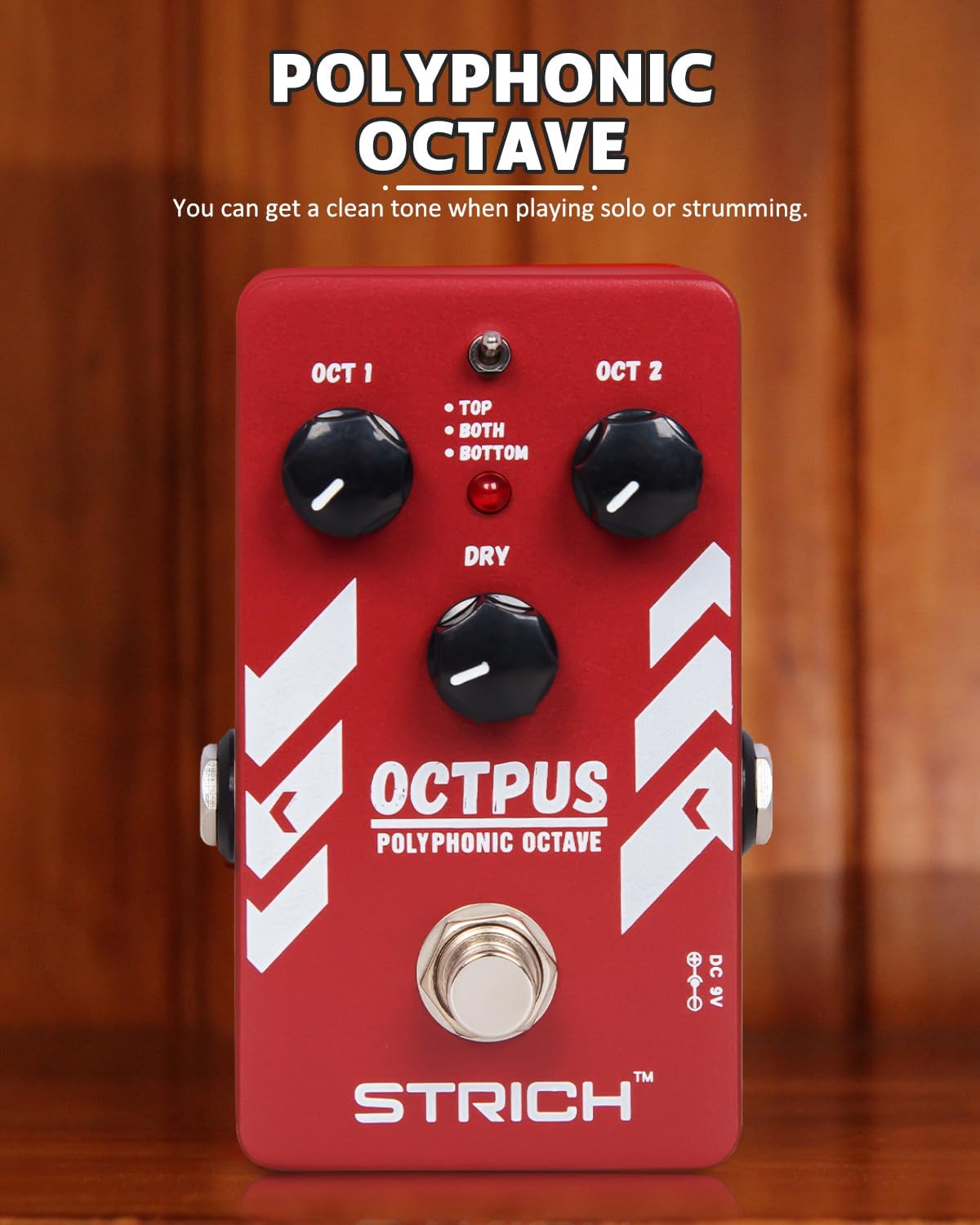

Obrázek 3: Přední strana view of the pedal with controls labeled.

• Mode Switch (Toggle Switch)

  This three-position toggle switch selects the octave layering mode:

  • HORNÍ: Adds higher octave(s) to your signal.
  • OBA: Adds both higher and lower octave(s) to your signal.
  • DNO: Adds lower octave(s) to your signal.

• OCT 1 Knob

  Controls the volume of the first octave voice (e.g., +1 octave in TOP mode, -1 octave in BOTH/BOTTOM modes).

• OCT 2 Knob

  Controls the volume of the second octave voice (e.g., +2 octave in TOP mode, +1 octave in BOTH mode).

• SUCHÝ knoflík

  Adjusts the volume of your original, unprocessed guitar signal. This allows you to blend the octave effect with your clean tone.

• Footswitch

  Engages or disengages the effect. The LED indicator will illuminate when the effect is active.

• Input Jack (1/4" Mono)

  Connect your guitar or the output of a preceding pedal here.

• Output Jack (1/4" Mono)

  Connect this to your amplifier or the input of a subsequent pedal.

• Vstup DC 9V

  Connect a standard 9V DC power adapter (negative center, positive barrel) here. Operating voltage: 9V DC.

Figure 4: Detailed diagram of pedal connections and controls.

4. Nastavení

Follow these steps to set up your STRICH Polyphonic Octave Guitar Pedal:

1. Připojení napájení: Connect a standard DC 9V power adapter (not included) to the DC 9V input jack on the pedal. Ensure the adapter has a negative center and positive barrel polarity.
2. Vstupní připojení: Connect your electric guitar to the 1/4" mono INPUT jack on the pedal using a standard instrument cable. If using other pedals, connect the output of the preceding pedal to the OCTPUS pedal's INPUT.
3. Výstupní připojení: Connect the 1/4" mono OUTPUT jack of the OCTPUS pedal to your amplifier's input or to the input of the next pedal in your signal chain.
4. Počáteční nastavení: Before powering on your amplifier, set the DRY, OCT 1, and OCT 2 knobs to their minimum positions (fully counter-clockwise). Set the mode switch to your desired initial mode (e.g., BOTH).
5. Zapnutí: Zapněte svůj amplifier and then the pedal. The LED indicator will show the pedal's status.

Obrázek 5: Strana view illustrating the input, output, and power connections.

5. Provoz

This section details how to operate your STRICH Polyphonic Octave Guitar Pedal to achieve various octave effects.

Engaging/Disengaging the Effect

Press the footswitch to toggle the effect on or off. When the effect is active, the LED indicator will light up. The pedal features true bypass, meaning your original signal passes through unaffected when the pedal is disengaged, preserving your tone.

Figure 6: The footswitch and LED indicator for True Bypass operation.

Understanding the Modes

The mode switch allows you to select between three distinct octave configurations:

TOP Mode

In TOP mode, the pedal generates higher octave voices. The OCT 1 knob controls the volume of the +1 octave, and the OCT 2 knob controls the volume of the +2 octave. This mode is ideal for creating shimmering, bell-like tones or simulating a 12-string guitar effect.

Figure 7: Visual representation of TOP mode operation.

BOTH Mode

BOTH mode combines both higher and lower octave voices. The OCT 1 knob controls the volume of the -1 octave, and the OCT 2 knob controls the volume of the +1 octave. This mode is excellent for thickening your sound, adding depth, or creating synth-like textures.

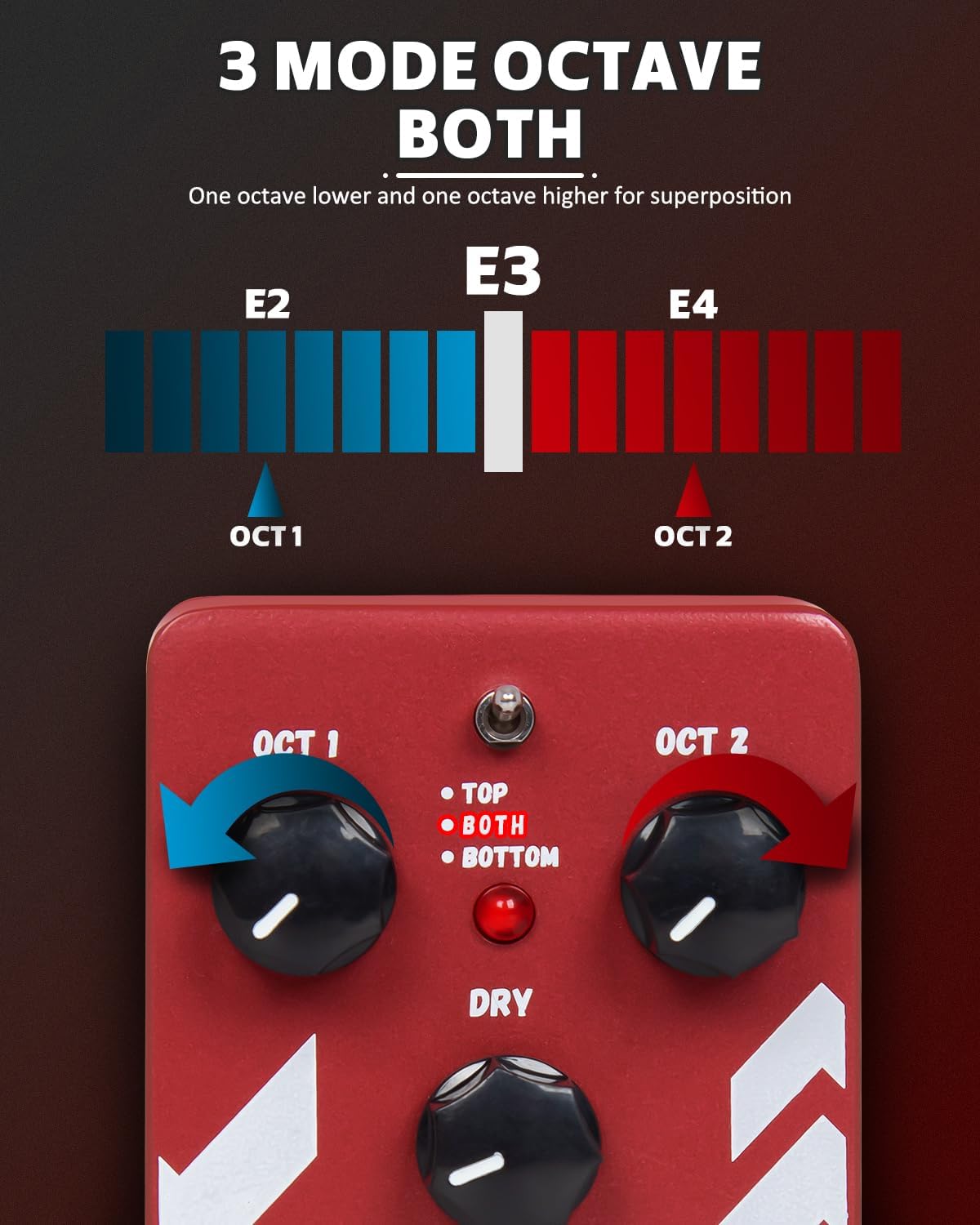

Figure 8: Visual representation of BOTH mode operation.

BOTTOM Mode

BOTTOM mode focuses on lower octave voices. The OCT 1 knob controls the volume of the -1 octave, and the OCT 2 knob controls the volume of the -2 octave. This mode is perfect for adding bass frequencies, creating heavy riffs, or simulating a bass guitar.

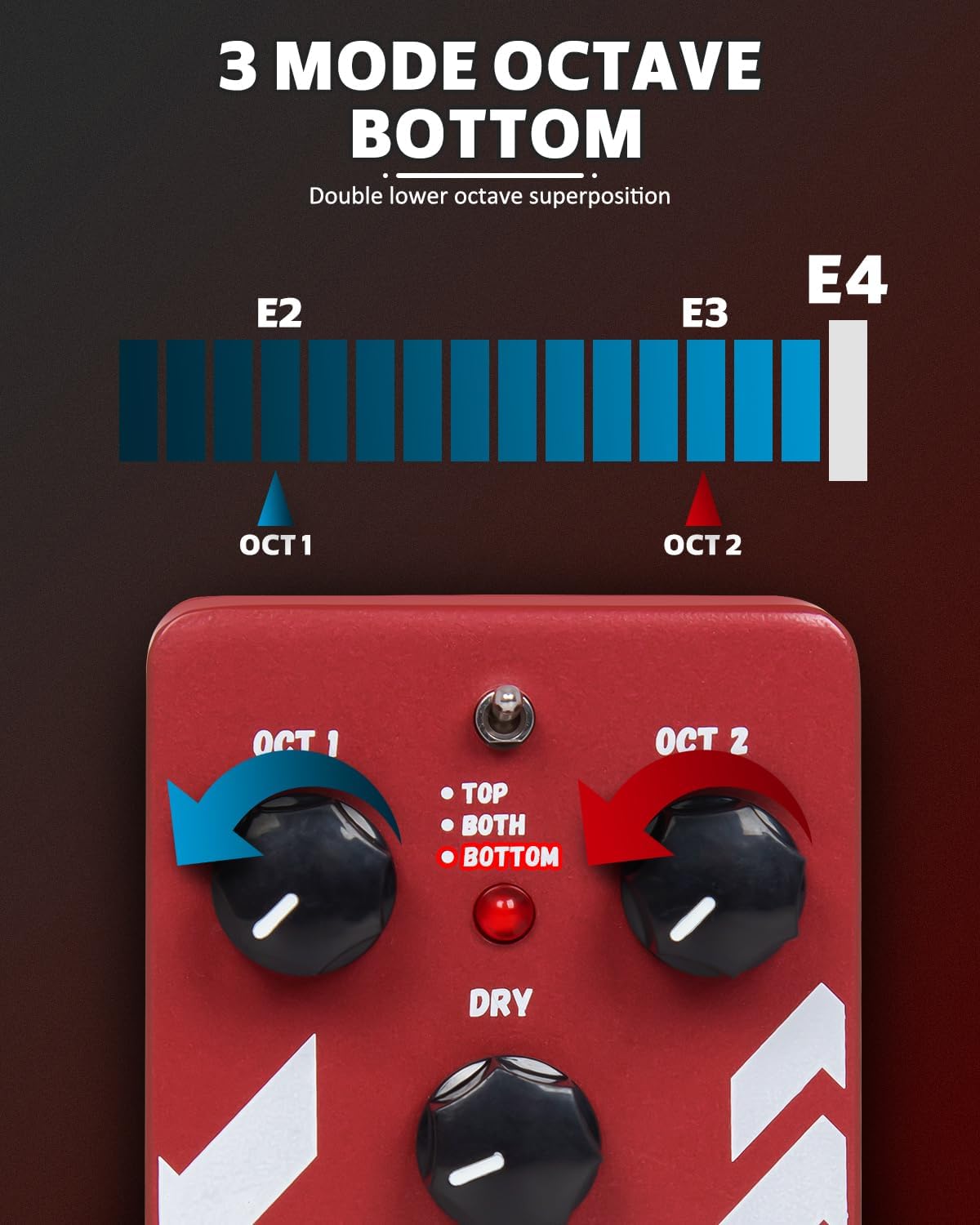

Figure 9: Visual representation of BOTTOM mode operation.

Adjusting Octave and Dry Levels

Experiment with the OCT 1, OCT 2, and DRY knobs to find your desired blend. The DRY knob is crucial for mixing your original signal with the octave effects. For a subtle thickening, keep the DRY level high and add a touch of octave. For a more pronounced octave effect, increase the OCT 1 and/or OCT 2 levels while adjusting the DRY knob to balance the mix.

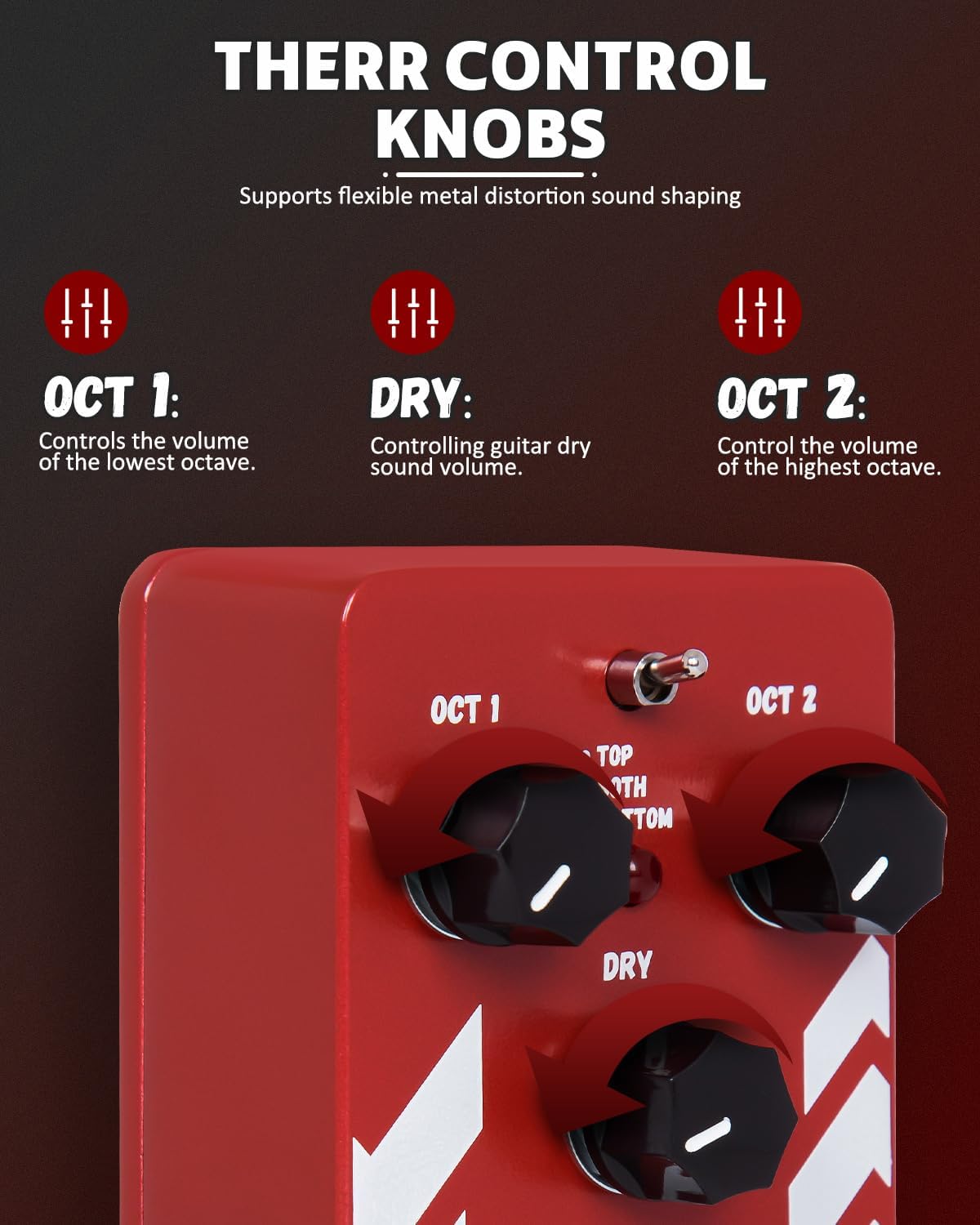

Figure 10: Explanation of the three control knobs.

6. Údržba

Proper care will ensure the longevity and optimal performance of your STRICH Polyphonic Octave Guitar Pedal.

• Čištění: Use a soft, dry cloth to wipe down the pedal's exterior. Avoid using abrasive cleaners or solvents, as they may damage the finish or internal components.
• Skladování: When not in use for extended periods, store the pedal in a cool, dry place away from direct sunlight and extreme temperatures. Disconnect all cables, especially the power supply.
• Zacházení: Handle the pedal with care. Avoid dropping it or subjecting it to strong impacts, which can damage the circuitry or controls.
• Napájení: Always use a compatible 9V DC power adapter with the correct polarity (negative center). Using an incorrect power supply can cause damage and void the warranty.

7. Řešení problémů

If you encounter issues with your STRICH Polyphonic Octave Guitar Pedal, please refer to the following common problems and solutions:

8. Specifikace

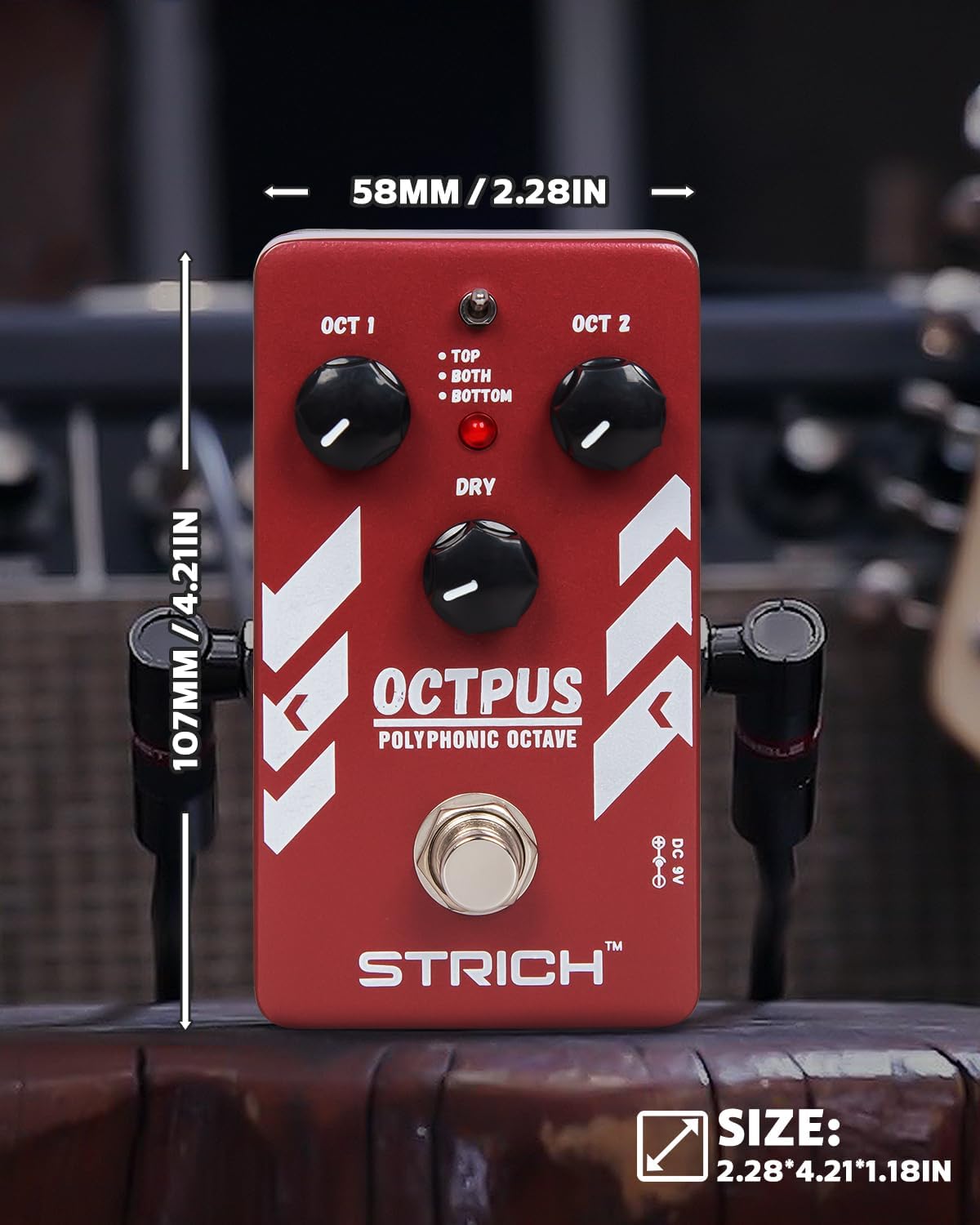

Obrázek 11: Rozměry produktu.

9. Záruka a podpora

Společnost STRICH se zavázala k poskytování kvalitních produktů a vynikajícího zákaznického servisu.

• Záruční servis: The product typically comes with up to a 12-month warranty. Please refer to your purchase documentation for specific warranty terms and conditions.
• Zásady vrácení: A 30-day free return policy is generally available. Consult your retailer's return policy for details.
• Zákaznická podpora: For any inquiries, technical assistance, or warranty claims, please contact STRICH customer support. Prompt email chat assistance is typically available within 24 hours.

Figure 12: STRICH Customer Care overview.
