1. Úvod
Thank you for choosing the FLYLINKTECH JF-H-40DC 2-in-1 Folding Treadmill. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new treadmill. Please read this manual thoroughly before first use and keep it for future reference.
The FLYLINKTECH JF-H-40DC is a versatile fitness machine designed for both high-speed running and under-desk walking, making it suitable for various environments including homes, apartments, and offices. Its compact, foldable design ensures easy storage and portability.
2. Konec produktuview a funkce
The FLYLINKTECH JF-H-40DC treadmill offers a range of features to enhance your workout experience:
- Design 2 v 1: Functions as a traditional running treadmill and an under-desk walking pad.

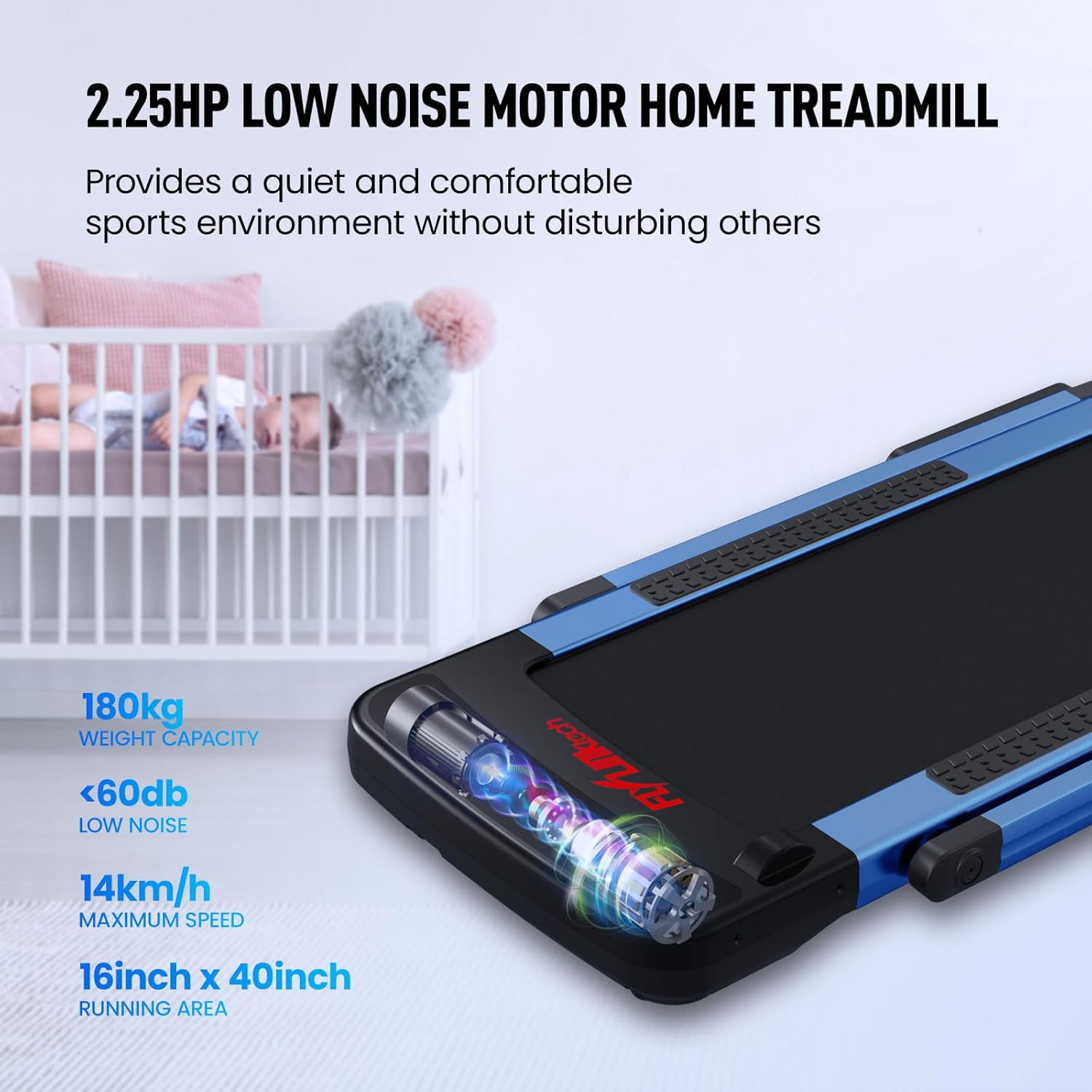

- Powerful 2.25 HP Motor: Provides quiet and consistent performance for both walking and running.
- LED Digital Monitor: Displays key workout data including speed, time, distance, and calories burned.
- Aplikace a dálkové ovládání: Conveniently adjust settings and track progress via a smart app or the included remote control.
- 5-Layer Shock-Absorbing Running Belt: Designed for comfort and joint protection during exercise.
- 12 přednastavených programů: Offers varied workout routines to simulate different terrains.
- Není nutná montáž: Připraveno k použití ihned po vybalení z krabice.
- Kompaktní skládací design: Easy to move and store, saving space.
Režimy produktu
The treadmill supports two primary modes:
- Režim chůze: Speed range of 0.6 – 2.5 MPH (1 – 4 Km/H). Ideal for light exercise or use while working.
- Provozní režim: Speed range of 2.5 – 8.7 MPH (4 – 14 Km/H). Suitable for more intense cardio workouts.

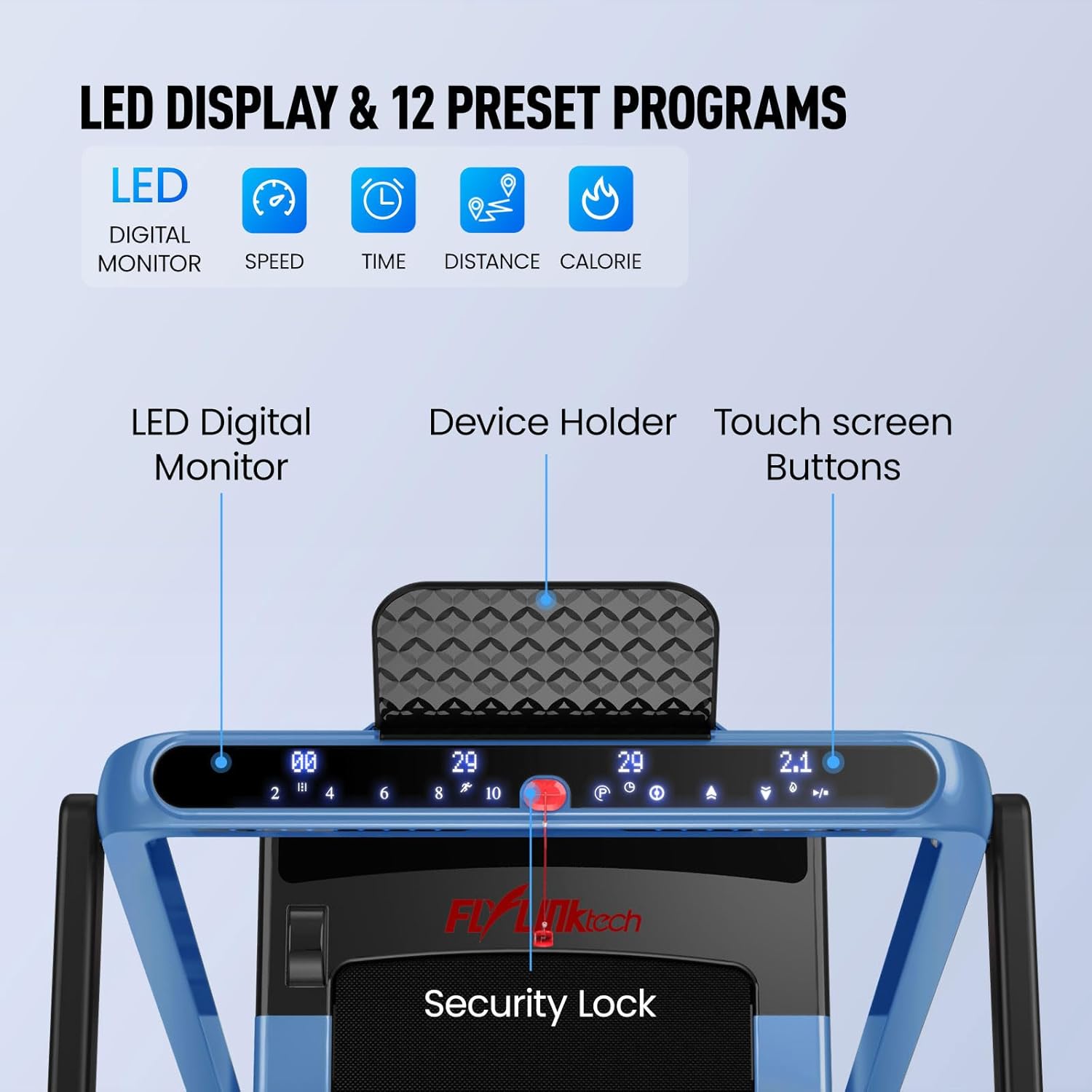

Ovládací panel a displej
The integrated LED digital monitor provides real-time feedback on your workout.

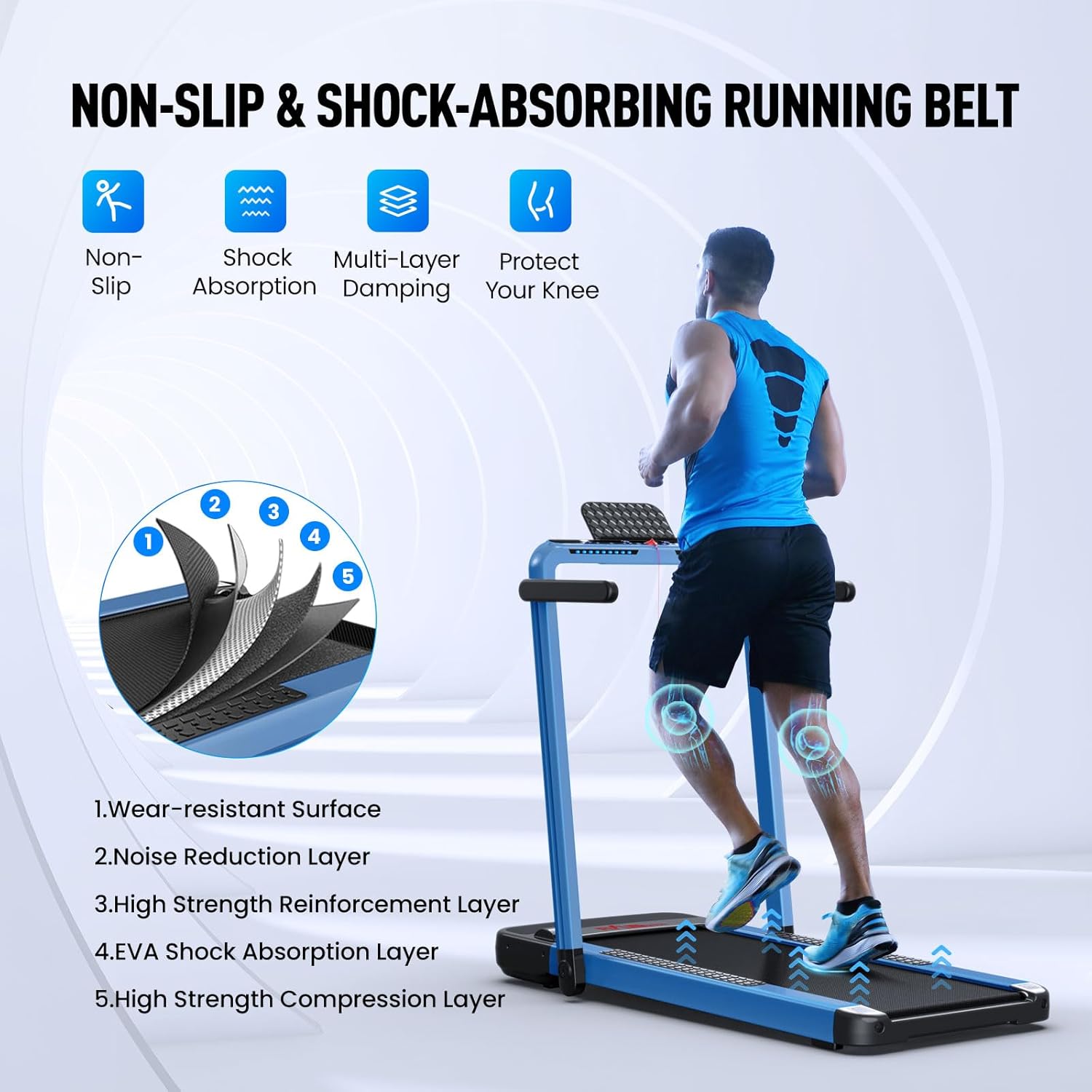

Running Belt Technology
The treadmill features a multi-layer running belt designed for optimal performance and user comfort.
3. Nastavení
The FLYLINKTECH JF-H-40DC treadmill requires no assembly. It is designed for immediate use upon unboxing.
Unfolding and Placement
- Opatrně vyjměte běžecký pás z obalu.
- Běžecký pás umístěte na rovný a stabilní povrch. Zajistěte, aby kolem něj byl dostatek volného prostoru pro bezpečný provoz (alespoň 2 metry za ním a 0.6 metru po každé straně).
- Unfold the treadmill according to the quick start guide included in the box.
- Připojte napájecí kabel do uzemněné elektrické zásuvky.
Prostorově úsporný design
The treadmill's compact folding design allows for easy storage, such as under a couch.
4. Návod k obsluze
Operating your FLYLINKTECH JF-H-40DC treadmill is straightforward.
Zahájení cvičení
- Ensure the treadmill is plugged in and the safety key is properly attached.
- Press the power button on the control panel or remote control to turn on the treadmill.
- Select your desired mode (walking or running) and adjust the speed using the controls.
- Začněte cvičit.

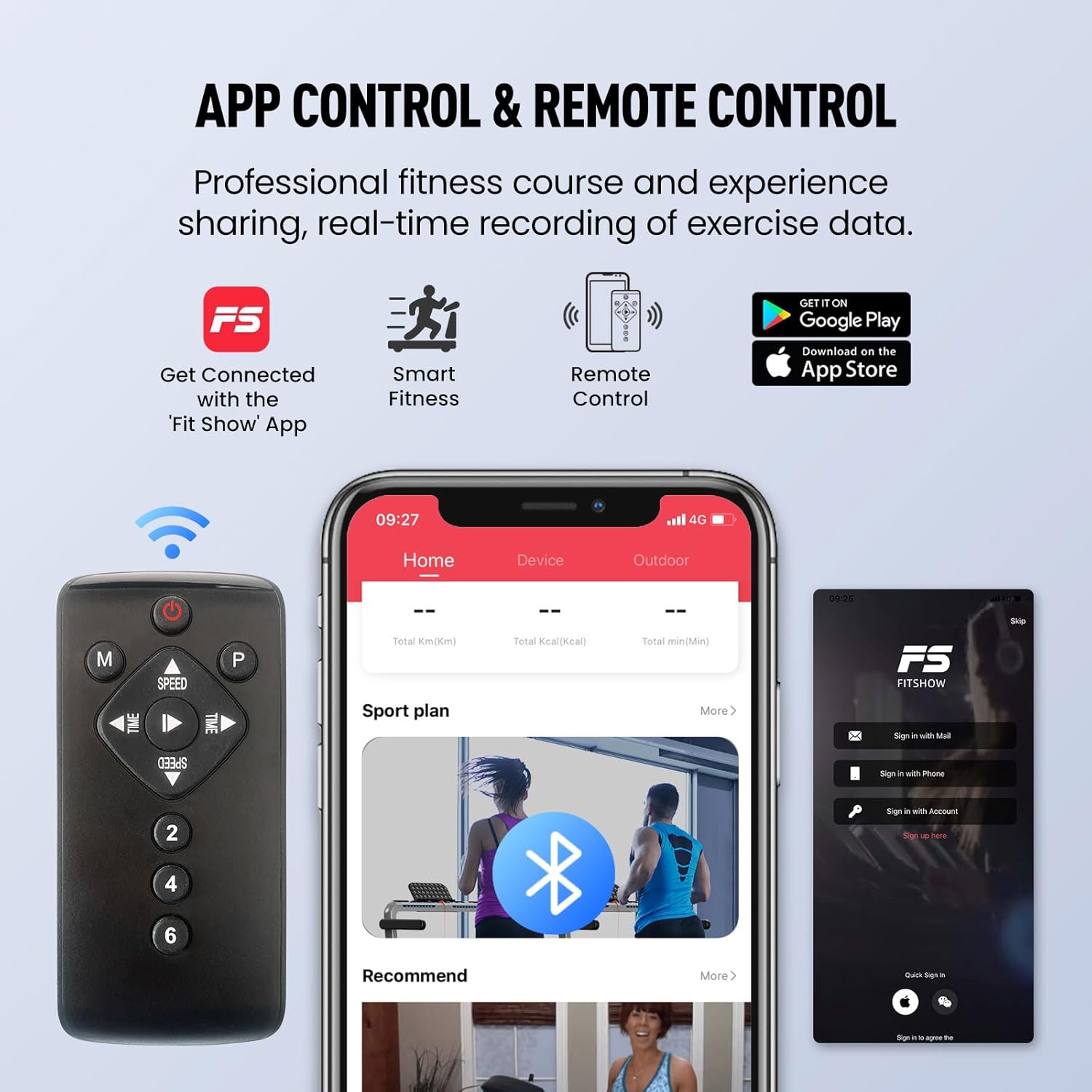

Using the Remote Control and Smart App
The treadmill can be controlled via a remote control or a dedicated smart application.
- Dálkové ovládání: Use the remote to adjust speed, start/stop the treadmill, and select preset programs.
- Chytrá aplikace: Download the "Fit Show" app (available on Google Play and App Store) to connect to your treadmill via Bluetooth. The app allows you to record exercise data, access professional fitness courses, and interact with other users.
Přednastavené programy
The treadmill includes 12 preset programs that simulate various natural terrains, offering diverse workout options. Refer to the quick start guide for details on how to select and use these programs.
5. Údržba
Pravidelná údržba zajistí dlouhou životnost a optimální výkon vašeho běžeckého pásu.
Čištění
- Před čištěním vždy odpojte běžecký pás ze zásuvky.
- Otřete konzoli a další povrchy měkkým hadříkemamp tkanina. Vyhněte se použití abrazivních čisticích prostředků nebo rozpouštědel.
- Regularly vacuum or wipe the area around the treadmill to prevent dust and debris from accumulating under the belt.
Mazání řemene
The running belt may require periodic lubrication to maintain smooth operation. Refer to the quick start guide for specific instructions on how and when to lubricate the belt. Use only approved treadmill lubricant.
Nastavení pásu
If the running belt becomes misaligned or too loose/tight, it may need adjustment. Consult the quick start guide for detailed instructions on how to adjust the belt tension and alignment.
6. Specifikace
| Specifikace | Detail |
|---|---|
| Číslo modelu | JF-H-40DC |
| Značka | FLYLINKTECH |
| Barva | Stříbro |
| Materiál | Legovaná ocel |
| Výkon motoru | 2.25 HP |
| Maximální rychlost | 12 Miles/Hour (Note: Running mode typically reaches up to 8.7 MPH / 14 Km/H as indicated in product features.) |
| Hmotnostní kapacita | 380 Pounds (Note: Also stated as 180 kg / 370 pounds in product features.) |
| Rozměry produktu (D x Š x V) | 141.99 x 73.66 x 14.73 cm (přibližně 55.9 x 29 x 5.8 palce) |
| Hmotnost produktu | 32.88 kg (cca 72.5 lb) |
| Provozní plocha | 40 palce x 16 palců |
| Cílové publikum | Dospělý |
7. Záruka a podpora
The FLYLINKTECH JF-H-40DC treadmill comes with a 12-month warranty.
For any questions, concerns, or support needs regarding your product, please contact our customer support team. We aim to respond to all inquiries within 24 hours.
Please refer to your purchase documentation for specific contact details or visit the official FLYLINKTECH webstránky pro další pomoc.
