Zavedení
Děkuji za nákupasing the Holmes 31-inch Manual Tower Fan. This manual provides essential information for the safe and efficient operation of your new fan. Please read these instructions thoroughly before use and retain them for future reference.

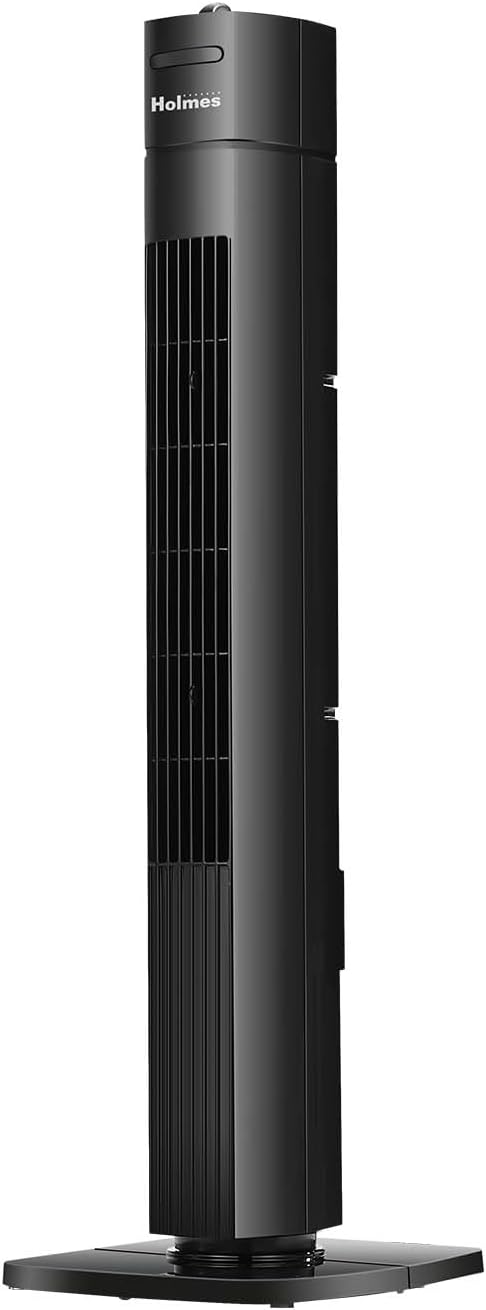

Image: The Holmes 31-inch Manual Tower Fan, a sleek black unit designed for efficient air circulation.
Důležité bezpečnostní pokyny
Při používání elektrických spotřebičů je třeba vždy dodržovat základní bezpečnostní opatření, aby se snížilo riziko požáru, úrazu elektrickým proudem a zranění osob. Patří mezi ně:
- Před použitím tohoto ventilátoru si přečtěte všechny pokyny.
- Ensure the power source matches the electrical requirements of the fan.
- Neprovozujte žádný ventilátor s poškozeným kabelem nebo zástrčkou. Ventilátor zlikvidujte nebo jej vraťte do autorizovaného servisního zařízení ke kontrole a/nebo opravě.
- Neveďte kabel pod koberec. Nezakrývejte kabel kluznými koberci, běhouny nebo podobnými kryty. Kabel umístěte mimo dopravní oblast a tam, kde o něj nikdo nezakopne.
- Nevkládejte ani nedovolte, aby se do větracího nebo výfukového otvoru dostaly cizí předměty, mohlo by dojít k úrazu elektrickým proudem, požáru nebo k poškození ventilátoru.
- Abyste předešli možnému požáru, žádným způsobem neblokujte přívody ani výfuk vzduchu. Nepoužívejte na měkké povrchy, jako je postel, kde by se mohly zablokovat otvory.
- This fan is intended for indoor use only. Do not use outdoors.
- Během provozu vždy umístěte ventilátor na stabilní, rovný povrch, aby se nepřevrátil.
- Odpojte ventilátor ze zásuvky, když jej nepoužíváte, při přemisťování z jednoho místa na druhé a před čištěním.
Shromáždění
The Holmes 31-inch Manual Tower Fan requires minimal assembly. The base needs to be attached to the main fan unit. This typically involves:
- Opatrně vyjměte všechny součásti z obalu.
- Attach the two halves of the base together (if applicable).
- Zarovnejte sestavenou základnu se spodní částí ventilátorové jednotky.
- Secure the base to the fan unit using the provided screws. These screws can typically be tightened by hand, no tools required.
- Ensure the base is firmly attached and the fan is stable before plugging it in.
Návod k obsluze
The Holmes 31-inch Manual Tower Fan features simple manual control knobs for ease of use.

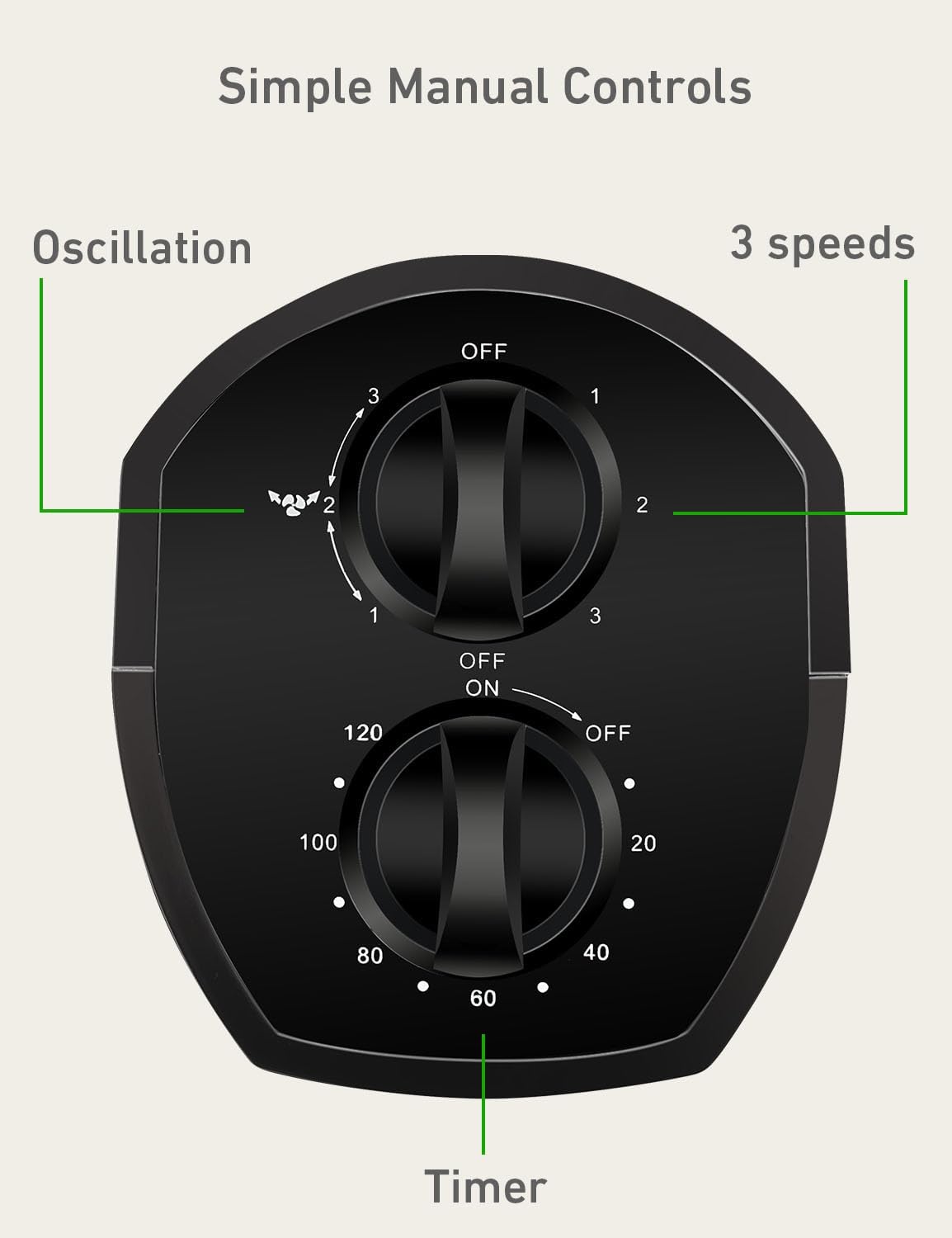

Obrázek: Podrobný view of the fan's manual controls, indicating knobs for oscillation, 3 speeds, and a timer.
Nastavení výkonu a rychlosti
- Zapojte ventilátor do standardní elektrické zásuvky.
- Otočte Rychlost knob to select your desired airflow: 1 (nízká), 2 (střední)nebo 3 (vysoké). To turn the fan off, rotate the knob to the 'OFF' position.
Oscilační funkce
- Otočte Kmitání knob to the 'ON' position to activate the 70-degree motorized oscillation, which sweeps the airflow across a wider area.
- To stop oscillation, turn the knob to the 'OFF' position.
Časovač automatického vypnutí
- The fan includes an up to 2-hour auto shut-off timer. Rotate the Časovač knob to set the desired operating duration (e.g., 60 minutes, 120 minutes).
- The fan will automatically turn off once the set time has elapsed. To operate continuously, set the timer to 'ON'.
Nastavitelné větrací otvory
- The fan features adjustable vents. Manually move the vents up or down to direct the airflow to your preferred area.
Vlastnosti
The Holmes 31-inch Manual Tower Fan is designed with several features to enhance your comfort:
- Jednoduché manuální ovládání: Easy-to-use knobs for speed, oscillation, and timer settings.
- 3 nastavení rychlosti: Choose between low, medium, and high for customized airflow.
- 70° širokoúhlá oscilace: Motorized movement ensures air circulates across a broad area.
- 2-Hour Auto Shut-Off Timer: Conveniently set the fan to turn off automatically after a specified duration, up to 2 hours.
- Nastavitelné větrací otvory: Unique design allows manual adjustment of vents to direct airflow upwards or downwards.
- Integrovaná rukojeť pro přenášení: A built-in handle for easy portability between rooms.
- Compact and Slim Profile: Ideal for spaces with limited floor area, such as bedrooms, kitchens, living rooms, and home offices.
- Tichý provoz: Operates at approximately 58 decibels on the highest speed setting.

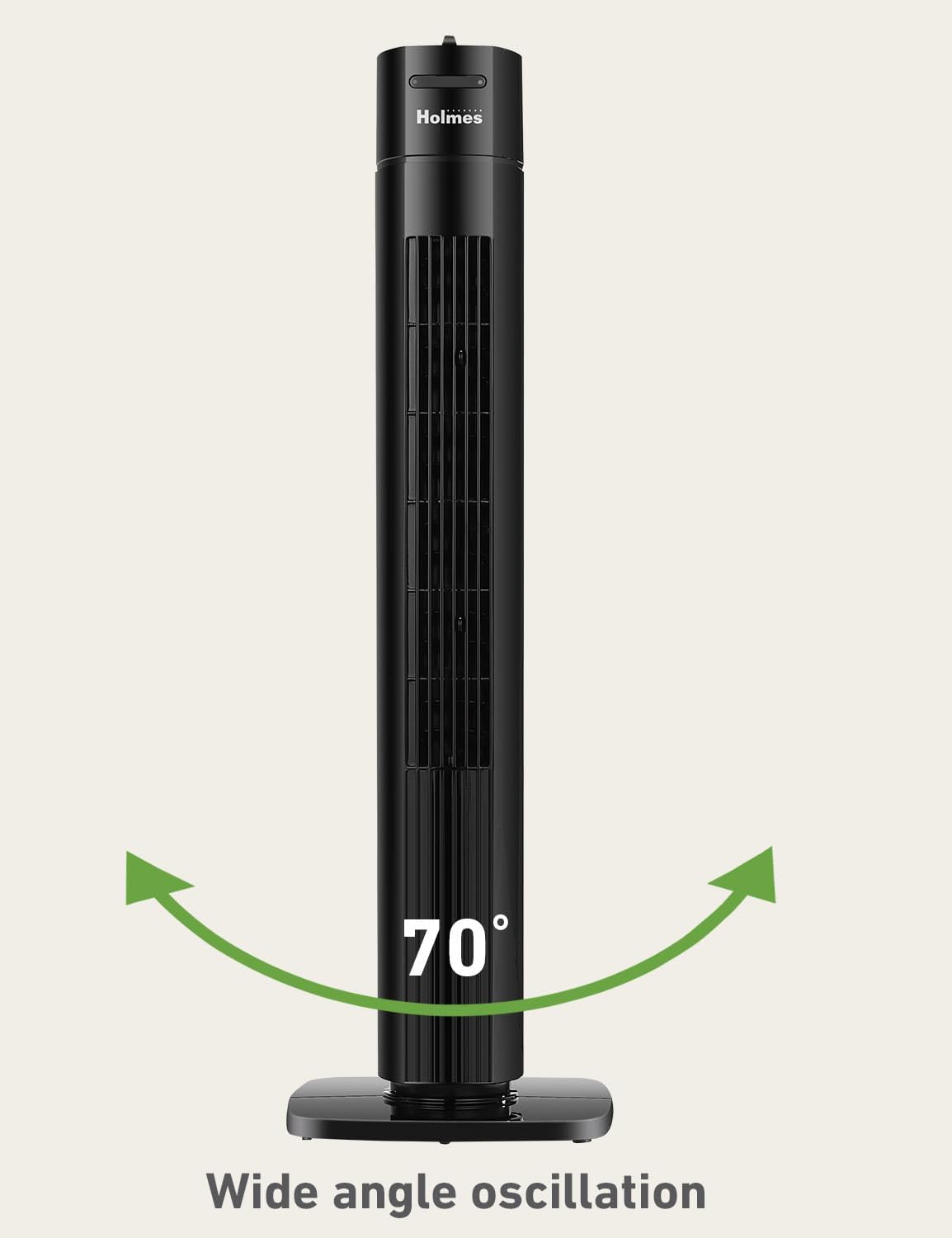

Image: The tower fan demonstrating its 70-degree wide-angle oscillation feature.

Image: A person sleeping peacefully with the fan running, highlighting the utility of the 2-hour auto shut-off timer for nighttime use.

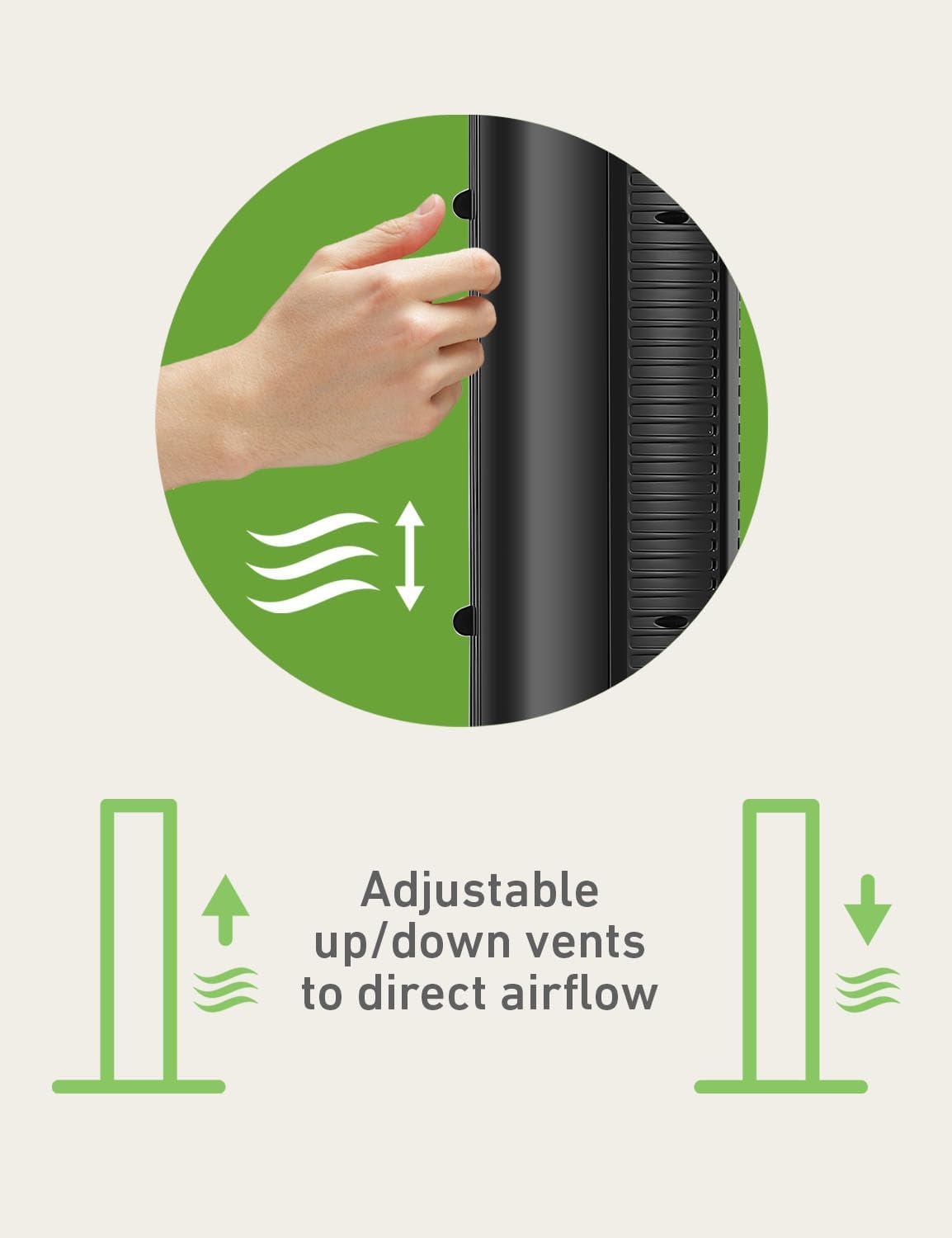

Image: A hand demonstrating the adjustable up/down vents, allowing users to customize airflow direction.

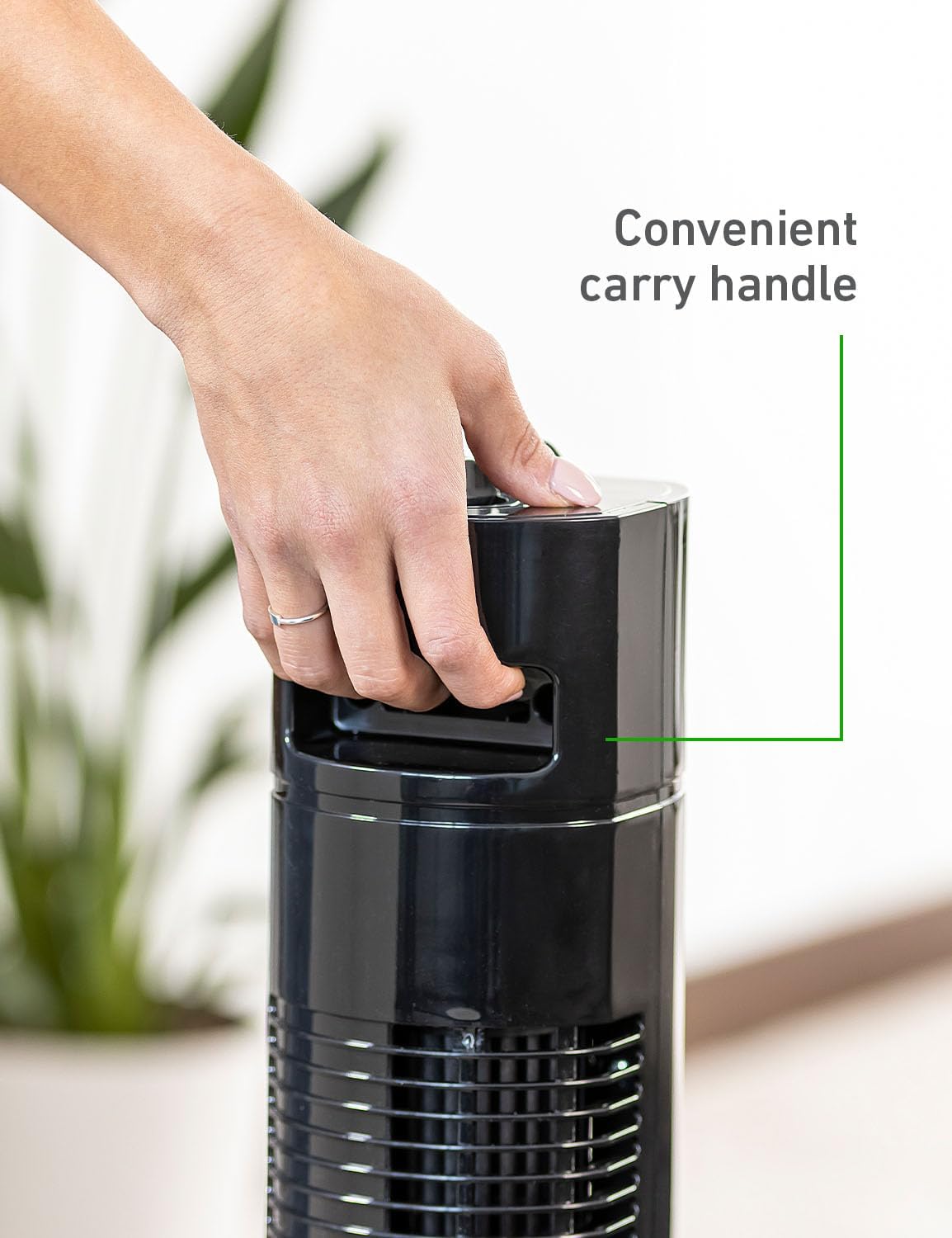

Image: A hand gripping the convenient carry handle located at the top of the fan, emphasizing its portability.

Image: The slim tower fan positioned in a living room, demonstrating its compact size and suitability for various home environments.
Údržba
Regular cleaning and maintenance will help ensure optimal performance and longevity of your fan.
Čištění
- Před čištěním vždy odpojte ventilátor.
- Použijte měkký, damp hadříkem otírejte vnější povrchy ventilátoru. Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla.
- To clean dust from the air intake and exhaust grilles, use a vacuum cleaner with a brush attachment.
- Neponořujte ventilátor do vody a nedovolte, aby voda kapala do krytu motoru.
Skladování
- When storing the fan, keep it in its original packaging or cover it to protect it from dust.
- Uchovávejte ventilátor na chladném a suchém místě.
Odstraňování problémů
If your fan is not operating as expected, please refer to the following common issues and solutions:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Ventilátor se nezapne. | Jednotka není napájena. | Ujistěte se, že je ventilátor bezpečně zapojený do funkční elektrické zásuvky. Zkontrolujte jistič. |
| Slabé nebo žádné proudění vzduchu. | Fan speed set too low; air intake/exhaust blocked. | Increase the fan speed. Ensure air grilles are not obstructed by objects or dust. |
| Ventilátor vydává neobvyklý zvuk. | Fan not on a level surface; internal obstruction; motor issue. | Place the fan on a flat, stable surface. Unplug and check for any visible obstructions. If noise persists, discontinue use and contact customer support. |
| Oscilace nefunguje. | Funkce oscilace je vypnutá. | Ensure the oscillation knob is set to the 'ON' position. |
Specifikace
Detailed specifications for the Holmes 31-inch Manual Tower Fan:
- Značka: HOLMES
- Název modelu: 31" Manual Tower Fan
- Číslo modelu: 17035
- UPC: 694501170357
- Barva: Černý
- Rozměry produktu: 10"H x 31"Š x 9.1"V
- Hmotnost položky: 5.79 liber (2.63 kilogramů)
- Zdroj napájení: AC
- Wattage: 65 wattů
- Hladina hluku: 58 dB (na nejvyšším nastavení)
- Způsob ovládání: Ruční knoflík
- Počet úrovní výkonu: 3
- Speciální funkce: Oscillating, Adjustable Vents, 2-Hour Timer
- Vnitřní/venkovní použití: Krytý

Image: A visual representation of the fan's dimensions, indicating its 31-inch height, 9.1-inch width, and 10-inch depth.
Záruka a podpora
This Holmes 31-inch Manual Tower Fan comes with a 3letá omezená záruka. For warranty claims, technical support, or any questions not covered in this manual, please contact Holmes customer service. Refer to the product packaging or the official Holmes webstránky s aktuálními kontaktními informacemi.
