TEKA Vitroceramic Hob User Manual

Konec produktuview

The TEKA TCC 64310 TTC BK Vitroceramic Hob is designed for modern kitchens, offering intuitive control and efficient cooking. It features Touch Control technology with acoustic sensors for precise operation, a safety lock to prevent accidental changes, and a programmable timer for all cooking zones. The Power Plus function provides an extra boost for rapid heating, while its four High Light cooking zones accommodate various pot and pan sizes. The sleek ceramic glass surface ensures easy cleaning and adds a sophisticated touch to your countertop.

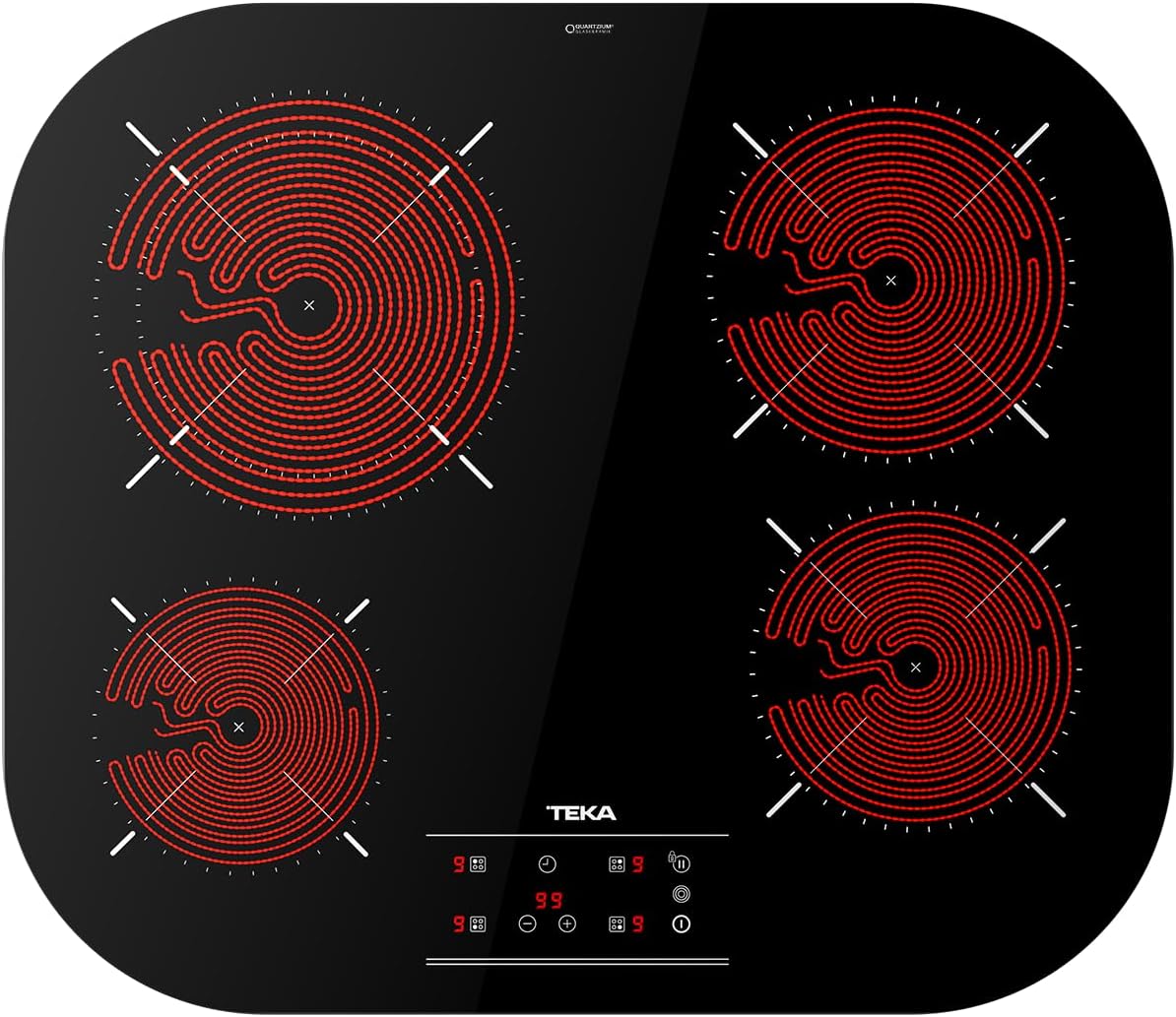

Obrázek: Shora dolů view of the TEKA TCC 64310 TTC BK Vitroceramic Hob with its four heating zones illuminated, indicating active operation. The touch control panel is visible at the bottom center.

Bezpečnostní pokyny

• Před instalací a použitím si pečlivě přečtěte všechny pokyny.
• Zajistěte, aby spotřebič nainstaloval kvalifikovaný technik v souladu s místními předpisy.
• Nedotýkejte se horkých povrchů. Vždy používejte kuchyňské rukavice nebo chňapky.
• Při používání spotřebiče na děti bedlivě dohlížejte.
• Nikdy nenechávejte vaření bez dozoru, zejména při použití vysokých teplot.
• Neskladujte hořlavé materiály na varné desce ani v její blízkosti.
• Před čištěním nebo údržbou odpojte spotřebič od napájení.
• Avoid placing metal objects like knives, forks, spoons, and lids on the hob surface as they can get hot.

Nastavení a instalace

Vybalování

Carefully remove the hob from its packaging. Inspect for any damage during transit. Keep packaging materials for future transport or disposal.

Elektrické připojení

The appliance must be connected to the mains electricity supply by a qualified electrician. Ensure the voltage and frequency match the specifications on the rating plate. The hob requires a dedicated circuit with appropriate fusing.

Mounting into Countertop

Ensure the countertop opening dimensions are accurate. Refer to the diagram below for precise measurements. The hob should be securely fitted and sealed to prevent moisture ingress.

Image: Detailed technical drawing illustrating the precise dimensions (in centimeters) required for cutting the countertop opening for the TEKA TCC 64310 TTC BK Vitroceramic Hob. Key measurements include 590mm width, 510mm depth, and corner radii of R140.

Návod k obsluze

Stiskněte ovládací panel

The hob is operated via a sensitive touch control panel. Lightly touch the desired symbols to activate functions. An acoustic signal confirms each touch.

Obrázek: Podrobný view of the touch control panel on the TEKA TCC 64310 TTC BK Vitroceramic Hob, showing various symbols for power levels, timer, and special functions like Power Plus and safety lock.

Zapnutí/vypnutí

• To turn on: Touch the power symbol (ⓘ).
• To turn off: Touch the power symbol again.

Selecting a Cooking Zone and Power Level

• Touch the symbol corresponding to the desired cooking zone.
• Use the '+' and '-' symbols to adjust the power level from 1 (low) to 9 (high).

Power Plus Function

The Power Plus function provides an immediate boost of power to a selected cooking zone for rapid heating, ideal for boiling water quickly. To activate, select a cooking zone and then touch the Power Plus symbol (P).

Image: A cooking pot on the TEKA TCC 64310 TTC BK Vitroceramic Hob, with steam visibly rising, demonstrating the rapid heating capability, likely due to the Power Plus function.

Funkce časovače

The integrated timer allows you to set cooking durations up to 99 minutes for individual zones or all zones simultaneously. An acoustic alarm will sound when the set time expires.

• To set: Select a cooking zone, then touch the timer symbol (⏱). Use '+' and '-' to adjust the time.
• To cancel: Set the timer to '00' or turn off the cooking zone.

Bezpečnostní zámek

The safety lock prevents accidental operation or changes to settings, especially useful in households with children. To activate, touch and hold the lock symbol (🔒) until the indicator light appears. To deactivate, touch and hold the lock symbol again.

Údržba a čištění

Pravidelné čištění a údržba zajistí dlouhou životnost a optimální výkon vaší varné desky.

Denní úklid

• Po každém použití nechte varnou desku vychladnout.
• Otřete povrch keramického skla reklamouamp cloth and a small amount of mild dish soap.
• Opláchněte čistým damp cloth and dry thoroughly with a soft, clean cloth to prevent water spots.

Odstranění odolných skvrn

• For burnt-on food or stubborn stains, use a specialized ceramic hob cleaner and a scraper designed for glass hobs.
• Apply the cleaner as per its instructions, then gently scrape off residues.
• Never use abrasive sponges, scouring pads, or harsh chemical cleaners as they can scratch or damage the surface.

Odstraňování problémů

If the problem persists after attempting these solutions, please contact Teka customer support.

Specifikace

Záruka a podpora

This TEKA product comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including warranty period and coverage details.

For technical assistance, spare parts, or to schedule a service appointment, please contact Teka customer support. You can find contact information on the Teka official webna webu nebo v dokumentaci dodané se spotřebičem.

When contacting support, please have your model number (TCC 64310 TTC BK) and serial number ready. The serial number is typically located on a label on the underside of the hob or within the appliance compartment.
