1. Konec produktuview
The HALO LCR 2-inch Regressed Canless LED Downlight offers a sleek, recessed lighting solution without the need for traditional can housings. This versatile LED downlight is suitable for both indoor and covered outdoor spaces, featuring selectable color temperatures and dimmable functionality.
Klíčové vlastnosti:
- Canless design for easy installation.
- 6 selectable color temperatures (2700K-6500K).
- Dimmable down to 5% with most dimmers (0-10V and phase-cut).
- IC-rated for direct contact with insulation.
- Wet location listed for use in showers and covered outdoor areas.
- ENERGY STAR certified with a 50,000-hour lifespan.
2. Důležité bezpečnostní pokyny
Read all instructions carefully before installation. Failure to follow these instructions may result in electric shock, fire, or other hazards.
- VAROVÁNÍ: Nebezpečí úrazu elektrickým proudem. Před instalací nebo servisem odpojte napájení pojistkou nebo jističem.
- Installation must be performed by a qualified electrician in accordance with national and local electrical codes.
- Do not install in areas with direct exposure to water spray unless specifically rated for such conditions.
- Ujistěte se, že všechna elektrická připojení jsou bezpečná a řádně izolovaná.
- Neupravujte svítidlo ani jeho součásti.
- Toto zařízení není určeno pro použití s nouzovými východy.
3. Obsah balení
Před zahájením instalace ověřte, zda jsou všechny komponenty přítomny:

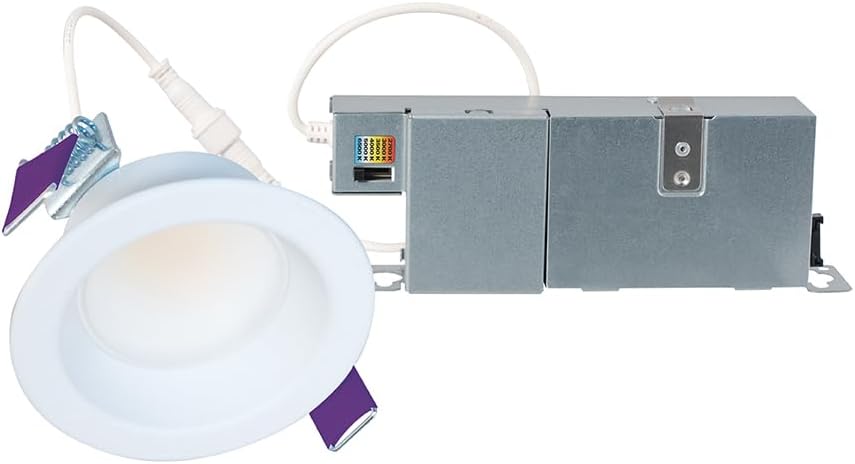

- HALO LCR 2-inch Regressed Canless LED Downlight
- Dálkový ovladač / spojovací skříň
- Installation Hardware (e.g., spring clips, wire connectors)
4. Nastavení a instalace
The HALO LCR downlight is designed for easy installation in drywall or suspended ceilings without the need for a recessed housing or J-box.
Tools Required (suggested):
- Hole Saw (2.75 inches / 7 cm diameter)
- Šroubovák
- Odizolovače drátů
- Měřicí páska
- Ochranné brýle
Instalace krok za krokem:
- Vypnout napájení: Ujistěte se, že je napájení v oblasti instalace odpojeno jističem.
- Cut ceiling hole: Use a 2.75-inch (7 cm) hole saw to cut a circular opening in the ceiling at the desired location.
- Wire the junction box: Open the remote driver/junction box. Connect the building's electrical supply wires (hot, neutral, ground) to the corresponding wires inside the junction box using appropriate wire connectors. Secure the junction box to a ceiling joist or other structural element if required by local codes, or simply place it through the ceiling hole.
- Vyberte teplotu barev (CCT): Before inserting the light fixture, locate the CCT selection switch on the remote driver/junction box. Choose your desired color temperature (2700K, 3000K, 3500K, 4000K, 5000K, or 6500K).
- Connect fixture to driver: Plug the connector from the downlight fixture into the corresponding receptacle on the remote driver/junction box.
- Insert fixture: Gently push the spring clips on the sides of the downlight fixture upwards and insert the fixture into the ceiling hole. The spring clips will secure the fixture in place.
- Obnovení napájení: Znovu zapněte napájení na jističi.
5. Návod k obsluze
Výběr teploty chromatičnosti (CCT)
The HALO LCR downlight features a selectable color temperature switch located on the remote driver/junction box. This switch allows you to choose from six different color temperatures: 2700K (Soft White), 3000K, 3500K, 4000K, 5000K, and 6500K (Daylight). Make your selection before the final installation of the fixture into the ceiling.
Stmívání
This downlight is compatible with most standard dimmers, supporting both 0-10V and phase-cut dimming systems. It can be dimmed smoothly down to 5% of its full brightness. Ensure your dimmer switch is compatible with LED lighting for optimal performance.
6. Péče a údržba
The HALO LCR LED Downlight is designed for long-term, maintenance-free operation with a rated lifespan of 50,000 hours, eliminating the need for bulb changes.
- To clean the fixture, ensure power is off and wipe gently with a soft, dry or slightly damp tkanina. Nepoužívejte abrazivní čisticí prostředky nebo rozpouštědla.
- Regularly inspect the fixture for any signs of damage or loose connections.
7. Průvodce odstraňováním problémů
If the downlight is not functioning correctly, refer to the following common issues and solutions:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Světlo se nerozsvítí | Zařízení není napájeno | Check circuit breaker and wall switch. Ensure all wiring connections in the junction box are secure. |
| Light flickers or dims erratically | Incompatible dimmer switch or loose wiring | Ensure your dimmer is compatible with LED lighting. Check wiring connections. |
| Nesprávná teplota barev | Nesprávně nastavený spínač CCT | Access the remote driver/junction box and adjust the CCT selection switch to the desired setting. |
| Světlo je příliš slabé nebo příliš jasné | Dimmer setting or CCT selection | Adjust the dimmer switch. Consider if a different CCT setting might appear brighter or dimmer to the eye. |
If issues persist, contact HALO customer support.
8. Specifikace produktu
| Funkce | Detail |
|---|---|
| Model | LCR208RD9FSE020 |
| Značka | SVATOZÁŘ |
| Velikost | 2 palců |
| Wattage | 9.26 wattů |
| Jas | 800 XNUMX lumenů |
| Teplota barev (CCT) | 6 Selectable (2700K, 3000K, 3500K, 4000K, 5000K, 6500K) |
| Stmívatelnost | Yes, down to 5% (0-10V and Phase-Cut) |
| svtage | 120 voltů |
| Materiál | Aluminum, Acrylic (Shade) |
| Dokončit | Hladká bílá |
| Rozměry produktu | 3.51 cm D x 3.51 cm Š x 2.24 cm V |
| Hmotnost položky | 1.06 libry |
| Vnitřní/venkovní použití | Indoor, Covered Outdoor |
| Certifikace | IC Rated, Wet Location Listed, ENERGY STAR |
| Životnost | 50,000 hodin |
| UPC | 080083259144 |
9. Záruka a podpora
The HALO LCR 2-inch Regressed Canless LED Downlight is backed by a 5letá omezená záruka. Tato záruka se vztahuje na vady materiálu a zpracování při běžném používání.
Zákaznická podpora
For technical assistance, warranty claims, or further information, please contact HALO customer service. HALO products are designed, tested, and supported in the USA.
Visit the official HALO store for more products and information: HALO Store
