1. Úvod
This manual provides essential information for the proper handling, installation, and maintenance of the Mopar 06512205AA 6-Lobe External Head Bolt. This component is an Original Equipment Manufacturer (OEM) part designed to meet specific vehicle requirements for fit, form, and function. Adhering to these instructions will help ensure the longevity and correct performance of the bolt within its intended application.
2. Popis produktu
The Mopar 06512205AA is a specialized 6-lobe external head bolt, manufactured from alloy steel. It is designed for specific automotive applications, ensuring a precise fit and reliable fastening. Key features include:
- Genuine Mopar OEM part, ensuring compatibility and quality.
- Constructed from durable alloy steel for strength and longevity.
- Features a 6-lobe external head for secure torque application.
- Manufactured to precise specifications for optimal fit and function.
Obrázek 2.1: Úhlové view of the Mopar 06512205AA bolt, showing the 6-lobe head and threaded shaft with red threadlocker.
3. Specifikace
Detailed technical specifications for the Mopar 06512205AA bolt are provided below:
| Atribut | Detail |
|---|---|
| Číslo dílu | 06512205AA |
| Značka | Mopar |
| Materiál | Legovaná ocel |
| Velikost závitu | M12x1.75 |
| Vnější povrch | Obrobené |
| Třída výrobce | Grade 8 8 |
| Styl hlavy | Byt |
| Barva | Red (on threads, indicating threadlocker) |
| Typ spojovacího prvku | Šestihranný šroub |
| Typ závitu | Metrický |
| Styl vlákna | Pravá ruka |
| Tvrdost položky | 8. třída |
| Typ hlavy | Lalok |
| Počet kusů | 1 |
| Hmotnost položky | 1 liber |
| Rozměry balení | 1 x 1 x 1 palce |
4. Obsah balení
The package for the Mopar 06512205AA bolt typically includes:
- One (1) Mopar 06512205AA 6-Lobe External Head Bolt
5. Instalace
Proper installation is crucial for the safety and performance of your vehicle. It is recommended that installation be performed by a qualified technician. Refer to your vehicle's service manual for specific torque specifications and procedures.
- Příprava: Ensure the mating surfaces are clean and free from debris, rust, or old threadlocker.
- Umístění: Carefully align the bolt with the intended mounting hole. Refer to the exploded diagram (Figure 5.1) for typical placement.
- Počáteční upevnění: Hand-tighten the bolt to ensure proper thread engagement and prevent cross-threading.
- Aplikace krouticího momentu: Using a calibrated torque wrench, tighten the bolt to the manufacturer's specified torque value. Over-tightening can damage the bolt or component, while under-tightening can lead to loosening and failure. The red coating on the threads indicates a pre-applied threadlocker, which aids in securing the bolt.
- Závěrečná kontrola: Verify that the bolt is securely fastened and that all associated components are correctly aligned and stable.
Figure 5.1: Exploded diagram illustrating the typical location and orientation of the bolt (item 9) within an automotive suspension or engine assembly. Consult your vehicle's specific service manual for exact placement.

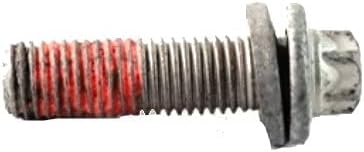

Obrázek 5.2: Strana view of the Mopar 06512205AA bolt, highlighting the threads with red threadlocker and integrated washer.
6. Aplikace
The Mopar 06512205AA bolt is designed for specific fastening points within a vehicle's engine or chassis components. Its alloy steel construction and precise threading make it suitable for applications requiring high strength and resistance to vibration. Always ensure this bolt is used in the exact location specified by the vehicle manufacturer to maintain structural integrity and safety.
7. Péče a manipulace
To ensure the integrity and performance of the bolt:
- Store in a dry environment to prevent corrosion.
- Avoid dropping or impacting the bolt, which could damage threads or the head.
- Do not reuse bolts that show signs of stretching, thread damage, or head deformation. Many automotive bolts are designed for single use.
- If the pre-applied threadlocker (red coating) is damaged or removed, apply an appropriate threadlocking compound as specified by the vehicle manufacturer before installation.
Obrázek 7.1: Shora dolů view of the Mopar 06512205AA bolt, showing the integrated washer and the top of the 6-lobe head.
8. Běžné problémy a jejich řešení
While this is a simple component, issues can arise from improper handling or application:
- Šroub se nešroubuje:
- Ensure the correct bolt (M12x1.75) is being used for the application.
- Check for cross-threading. If resistance is met, back out the bolt and re-align.
- Inspect threads on both the bolt and the receiving component for damage.
- Šroub se po instalaci uvolní:
- Verify that the bolt was torqued to the vehicle manufacturer's specifications.
- Ensure the pre-applied threadlocker was intact or an appropriate threadlocking compound was used.
- Inspect for excessive vibration in the assembly.
- Head Damage During Tightening:
- Ensure the correct 6-lobe socket or tool is used.
- Avoid using worn or ill-fitting tools.
- Do not exceed specified torque values.
Obrázek 8.1: Detail view of the Mopar 06512205AA bolt head, showing the 6-lobe design for tool engagement.
9. Informace o záruce
As an OEM Mopar part, this bolt is typically covered by Mopar's standard parts warranty. For specific warranty terms and conditions, please refer to the official Mopar warranty documentation provided with your purchase or visit the official Mopar website. Warranty coverage generally applies to defects in material and workmanship under normal use and service.
10. Zákaznická podpora
For further assistance, technical inquiries, or to locate authorized service centers, please contact Mopar customer support or visit their official webmísto:
- Mopar Official Webmísto: www.mopar.com
- Amazon Mopar Store: Visit the Mopar Store on Amazon
