Ibergrif Bidet Attachment User Manual

Zavedení

This manual provides detailed instructions for the installation, operation, and maintenance of your Ibergrif M41050 non-electric bidet attachment. Please read this manual thoroughly before installation and use to ensure proper function and safety.

Konec produktuview

The Ibergrif M41050 is a non-electric bidet attachment designed for easy integration with most standard toilets. It features a dual retractable nozzle system and adjustable cold water pressure for personalized cleaning.

• Vysoce kvalitní konstrukce: Made from durable ABS material with a stainless steel T-adapter and hose for long-lasting performance.
• Dual Retractable Nozzles: Includes two nozzles for different cleaning modes.
• Tři režimy čištění:
  • Nozzle Self-Cleaning: For maintaining nozzle hygiene.
  • Rear Wash: For general posterior cleaning.
  • Front (Feminine) Wash: For gentle feminine hygiene.
• Nastavitelný tlak vody: Control the water spray intensity for comfort.
• Non-Electric Design: Operates solely on water pressure, requiring no electricity.
• Pouze studená voda: This model provides cold water spray.

Image: The ultra-slim design of the Ibergrif M41050 bidet attachment, highlighting its minimal thickness for seamless toilet integration.

Image: Close-up of the control knob, illustrating the different cleaning modes: Rear, Front, and Nozzle Cleaning.

Bezpečnostní informace

• Ujistěte se, že všechny spoje jsou těsné, aby nedošlo k úniku.
• Do not use excessive force when operating the control knob.
• This bidet uses cold water only. Do not attempt to connect to a hot water supply unless specifically designed for it.
• Pravidelně kontrolujte hadice a spoje, zda nejsou opotřebované nebo poškozené.
• Keep out of reach of small children when not in use, or supervise during use.

Obsah balení

Před zahájením instalace ověřte, zda jsou všechny komponenty přítomny:

• Ibergrif Bidet Attachment (M41050)
• T-Adaptér
• Hadice z nerezové oceli
• Mounting Accessories (washers, seals, etc.)
• Uživatelská příručka

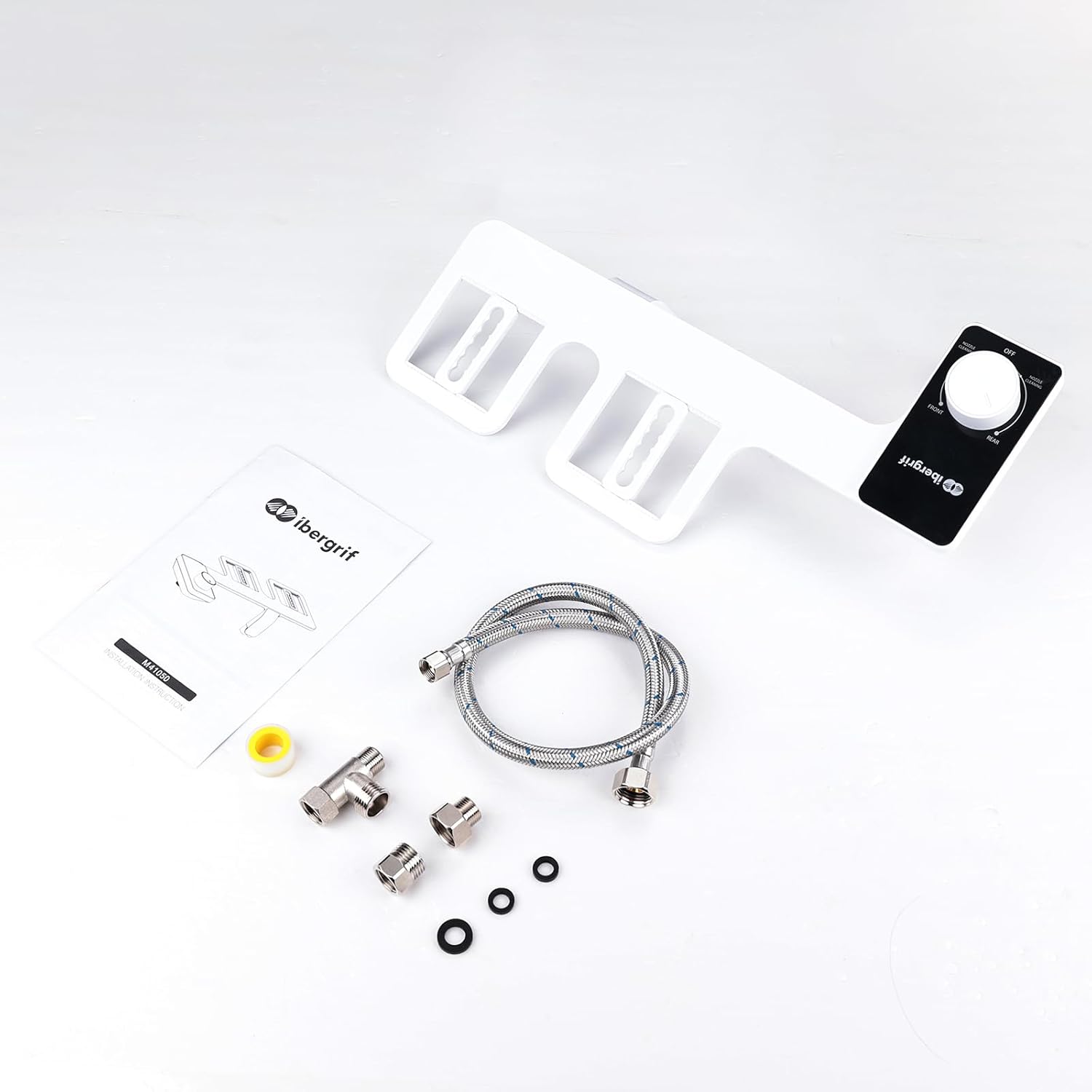

Image: All included components for the Ibergrif M41050 bidet attachment, laid out for inspection.

Nastavení a instalace

The Ibergrif M41050 bidet attachment is designed for easy, non-electric installation. Follow these steps:

1. Vypněte přívod vody: Locate the water shut-off valve for your toilet and turn it clockwise until the water flow stops. Flush the toilet to drain the tank.
2. Odstraňte záchodové sedátko: Unscrew the bolts holding your current toilet seat to the toilet bowl. Keep the bolts and nuts as they will be reused.
3. Position Bidet Attachment: Place the bidet attachment on the toilet bowl, aligning the mounting holes with the holes on the toilet bowl. Adjust its position to ensure the nozzles are centered and clear.
4. Znovu nainstalujte toaletní sedátko: Place your toilet seat back over the bidet attachment and secure it with the original bolts and nuts. Ensure the bidet is firmly in place.
5. Připojení T-adaptéru: Disconnect the existing water supply hose from the toilet tank's fill valve. Connect the T-adapter to the fill valve.
6. Připojte přívod vody: Connect the original water supply hose to the bottom of the T-adapter.
7. Connect Bidet Hose: Connect one end of the provided stainless steel bidet hose to the side of the T-adapter and the other end to the water inlet on the bidet attachment.
8. Zkontrolujte netěsnosti: Slowly turn the water supply valve counter-clockwise to restore water flow. Check all connections for any leaks. Tighten gently if necessary.
9. Test funkčnosti: Once installed, test the bidet's functions as described in the Operating Instructions section.

Image: The Ibergrif M41050 bidet attachment correctly installed on a toilet, with the water supply hose connected.

Návod k obsluze

The bidet is operated using the control knob located on the side panel.

1. Vyberte režim čištění: Rotate the control knob to select your desired cleaning mode:
   • "REAR" Mode: For posterior cleaning.
   • "FRONT" Mode: For feminine cleaning.
   • "NOZZLE CLEANING" Mode: For self-cleaning the nozzles.
2. Adjust Water Pressure: Continue rotating the knob in the selected mode's direction to increase water pressure. Rotate back towards "OFF" to decrease pressure.
3. Vypnout: Rotate the knob back to the "OFF" position to stop the water flow. The nozzles will retract automatically.

Poznámka: This bidet provides cold water spray only. The water pressure is adjustable to suit individual comfort levels.

Image: A hand demonstrating the operation of the bidet's control knob to select modes and adjust water pressure.

Image: The bidet nozzle extended and spraying water for the Rear Wash mode.

Image: The bidet nozzle extended and spraying water for the Front (Feminine) Wash mode.

Image: The bidet nozzle undergoing its self-cleaning process, with water spraying downwards.

Údržba

• Čištění trysek: Regularly use the "NOZZLE CLEANING" mode to rinse the nozzles. For a more thorough cleaning, gently wipe the nozzles with a soft cloth and mild soap when they are extended (e.g., by partially turning the knob to a wash mode while the water supply is off).
• Čištění exteriéru: Clean the exterior of the bidet attachment with a soft, damp cloth and mild, non-abrasive cleaner. Avoid harsh chemicals that could damage the finish.
• Kontrola těsnosti: Periodically check all water connections for any signs of leaks. Tighten connections gently if needed.
• Zazimování (pokud existuje): If the bidet is in an unheated area subject to freezing temperatures, disconnect the water supply and drain the bidet to prevent damage from freezing water.

Odstraňování problémů

Specifikace

Image: Technical drawing showing the precise dimensions of the Ibergrif M41050 bidet attachment.

Záruka a podpora

Ibergrif products are manufactured with quality and durability in mind. For warranty information, technical support, or to inquire about replacement parts, please contact Ibergrif customer service directly. Refer to the product packaging or the official Ibergrif webstránky pro kontaktní údaje.

Poznámka: Dostupnost náhradních dílů není v informacích o produktu uvedena.
