1. Úvod
Thank you for choosing the STRICH SEP-80 88-Key Digital Piano. This portable digital piano is designed for beginners and experienced musicians alike, offering a full-size, touch-sensitive keyboard with a wide range of features. Please read this manual carefully to ensure proper setup, operation, and maintenance of your instrument.
Figure 1: STRICH SEP-80 88-Key Digital Piano with included accessories.
2. Co je v krabici
Your STRICH SEP-80 package includes the following items:
- STRICH SEP-80 88-Key Digital Piano
- X-shaped Keyboard Stand
- Sustain pedál
- Notový stojan
- USB napájecí adaptér
- Návod k použití
Figure 2: All components included in the SEP-80 package.
3. Nastavení
3.1 Assembling the X-Stand
- Unfold the X-shaped keyboard stand.
- Adjust the height to your preferred playing position using the locking mechanism. Ensure the stand is stable before placing the piano.
Figure 3: The X-shaped keyboard stand.
3.2 Placing the Digital Piano on the Stand
Carefully place the SEP-80 digital piano onto the assembled X-stand. Ensure it sits securely on the stand's arms.
3.3 Připojení příslušenství
- Sustain pedál: Connect the sustain pedal cable to the 'SUS' jack on the rear panel of the piano.
- Stojan na noty: Insert the sheet music stand into the designated slots on the top panel of the piano.
- Moc: Connect the USB power adapter to the DC 5V port on the rear panel and plug it into a power outlet. The piano also features a built-in rechargeable battery for portable use.
Obrázek 4: Zadní panel s různými možnostmi připojení.
Figure 5: The included sustain pedal.
Figure 6: The sheet music stand.
Figure 7: The USB power adapter.
4. Návod k obsluze
4.1 Zapnutí/vypnutí a hlasitost
- Stiskněte tlačítko Moc button to turn the piano on or off.
- Použijte - a + buttons next to the LED display to adjust the master volume.
4.2 Výběr tónů a rytmů
- The SEP-80 features 128 tones and 128 rhythms.
- Stiskněte tlačítko Nastavení button twice quickly to enter tone selection mode. Use the - a + buttons to browse.
- Stiskněte tlačítko Nastavení button once to enter rhythm selection mode. Use the - a + buttons to browse.
4.3 Speciální funkce
- Režim rozdělení: Divides the keyboard into two sections, each with its own tone.
- Vibrovat: Adds a vibrato effect to the sound.
- Přemístit: Shifts the pitch of the keyboard up or down.
- Tempo: Adjusts the speed of rhythms and demo songs.
- Metronom: Poskytuje stabilní rytmus pro cvičení.
- Záznam: Allows you to record and playback your performances.

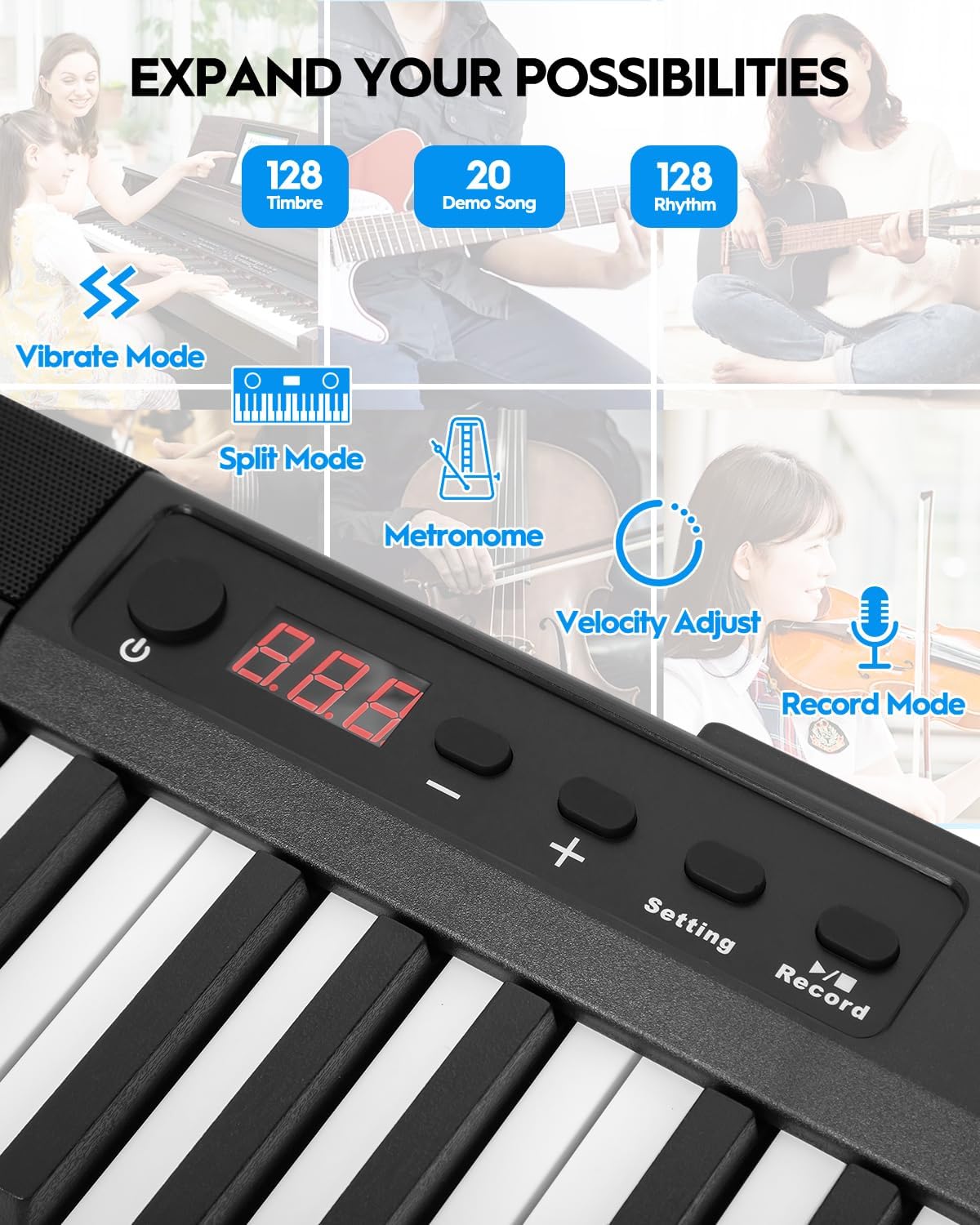

Figure 8: Control panel with various function buttons.
4.4 Konektivita
- Jack pro sluchátka (3.5 mm): Pro soukromou praxi.
- Audio vstup (3.5mm): Připojte externí zdroje zvuku.
- MIDI Interface (via USB port): Connect to external software for learning and practice.
- Wireless Connect (GZUT-MUSIC): For wireless connectivity options.
Obrázek 9: Detailní view ovládacího panelu a portů pro připojení.
4.5 Videa o produktech
Video 1: STRICH SEP-80 Velocity-Sensitive Piano Keyboard 88 Keys DEMO. This video demonstrates the velocity-sensitive keys and overall sound of the SEP-80 digital piano.
Video 2: STRICH SEP-80 Rechargeable 88-Keys Portable Electric Piano. This video highlights the portability and rechargeable battery feature of the SEP-80.
Video 3: Sound Sample | SEP-80 Comparison of lively and gentle rhythms. This video provides audio samples demonstrating different rhythms and tones.
Video 4: SEP-80 Keyboard Playing Audition. This video showcases a performance on the SEP-80 keyboard.
5. Údržba
- Čištění: Use a soft, dry cloth to clean the surface of the piano. Do not use abrasive cleaners or solvents.
- Skladování: Store the piano in a dry, cool place away from direct sunlight and extreme temperatures.
- Péče o baterie: Pro optimální životnost baterie se vyvarujte častého úplného vybíjení. Pravidelně ji nabíjejte, i když ji delší dobu nepoužíváte.
6. Řešení problémů
- Žádný zvuk: Check if the volume is turned up. Ensure headphones are not plugged in if you intend to use the built-in speakers. Verify power connection or battery charge.
- Klávesy nereagují: Ujistěte se, že je piano zapnuté. Pokud určité klávesy nereagují, kontaktujte zákaznickou podporu.
- Problémy s připojením: For MIDI via USB, ensure the correct drivers are installed on your computer. For wireless connection, ensure Bluetooth is enabled on your device and select "GZUT-MUSIC".
7. Specifikace
| Funkce | Detail |
|---|---|
| Značka | STRICH |
| Název modelu | SEP-80 |
| Počet klíčů | 88 |
| Typ klíče | Touch-Sensitive, Reduced-Weighted |
| Zvuky/Tóny | 128 |
| Rytmy | 128 |
| Demo písně | 20 |
| Konektivita | 3.5mm Headphone Jack, 3.5mm Audio Input, USB (MIDI), Wireless Connect (GZUT-MUSIC) |
| Zdroj napájení | Corded Electric (USB Adapter), Built-in Rechargeable Battery |
| Životnost baterie | Up to 5 hours (built-in battery) |
| Rozměry produktu | 14.76"H x 53.74"Š x 5.31"V |
| Hmotnost položky | 19.56 libry |
| Speciální funkce | Built-In Speaker, Portable, Recording, Touch-Sensitive Keys |
Figure 10: Dimensions of the STRICH SEP-80 Digital Piano.
8. Záruka a podpora
The STRICH SEP-80 Digital Piano comes with a standard manufacturer's warranty. For detailed warranty information, product support, or service inquiries, please refer to the contact information provided in your product packaging or visit the official STRICH webmísto.
