Atletica Hackenschmidt Combo 2-1 Leg Press and Hack Squat Machine User Manual

1. Důležité bezpečnostní informace

Before operating the Atletica Hackenschmidt Combo 2-1 machine, please read and understand all safety instructions. Failure to follow these instructions may result in serious injury.

• Poraďte se s lékařem: Před zahájením jakéhokoli nového cvičebního programu se vždy poraďte se zdravotníkem.
• Shromáždění: Ensure the machine is correctly assembled according to the instructions. Verify all bolts and nuts are securely tightened before use.
• Inspekce: Before each use, inspect the machine for any signs of wear, damage, or loose components. Do not use the machine if it is damaged.
• Nosnost: Nepřekračujte maximální nosnost 550 kg (1212 liber).
• Správná forma: Use proper exercise form to prevent injury. If you are unsure, seek guidance from a qualified fitness professional.
• Safety Catches: Always engage the safety catches when starting or finishing an exercise, or when resting between repetitions.
• Odbavení: Maintain adequate clear space around the machine during operation.
• Děti a domácí mazlíčci: Během provozu držte děti a domácí zvířata mimo dosah stroje.
• Stabilní povrch: Place the machine on a flat, stable, and non-slip surface.

2. Nastavení a montáž

The Atletica Hackenschmidt Combo 2-1 is designed for quick conversion between Leg Press and Hack Squat modes. Initial assembly involves securing the main frame components and ensuring all moving parts function smoothly.

2.1 Počáteční montáž

1. Vybalte všechny součásti a ověřte je podle seznamu dílů (není součástí tohoto dokumentu, viz obal).
2. Assemble the main frame structure using the provided hardware. Ensure all bolts are finger-tightened initially.
3. Attach the sled rails and footplate mechanism.
4. Install the seat/backrest padding and shoulder pads.
5. Once all components are in place, securely tighten all bolts and nuts. Double-check for stability.

2.2 Converting Between Leg Press and Hack Squat

The machine features a rapid conversion system. This involves adjusting the backrest/seat and footplate positions.

1. For Leg Press Mode: Position the backrest to support your back and the footplate for leg pressing. Ensure the safety pins are engaged in the appropriate slots for the leg press sled.
2. For Hack Squat Mode: Remove the backrest/seat pad. Adjust the footplate to the lower position and the shoulder pads to comfortably rest on your shoulders. Engage the safety pins for the hack squat sled.
3. Always ensure all locking pins and adjustment mechanisms are fully engaged and secure before beginning an exercise.

3. Návod k obsluze

This section details how to use your Atletica Hackenschmidt Combo 2-1 for effective leg training.

3.1 Loading Weights

The machine is equipped with double weight pins to accommodate standard Olympic weight plates.

• Slide desired weight plates onto the weight pins located on the sled.
• Ensure weights are evenly distributed on both sides of the sled to maintain balance and prevent uneven loading.
• Secure plates with collars (not included) if necessary, especially when performing dynamic movements.

3.2 Leg Press Exercise

1. Ensure the machine is in Leg Press mode.
2. Sit comfortably on the seat with your back firmly against the backrest. Adjust the backrest to one of the 8 available positions for optimal comfort and range of motion.
3. Položte nohy na podložku na šířku ramen.

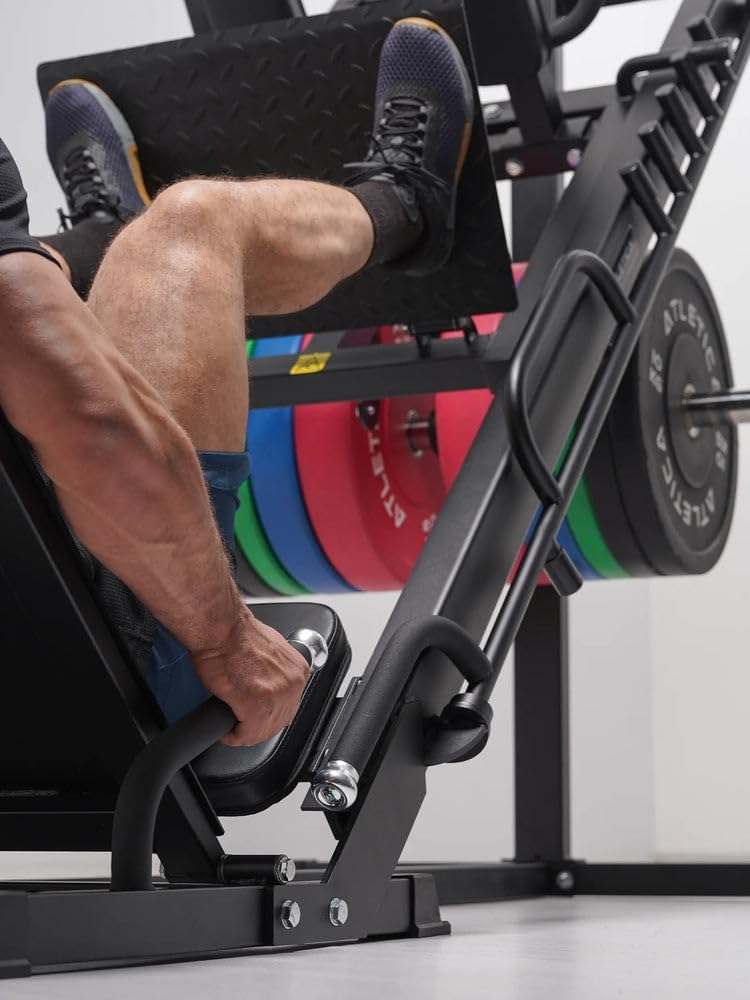

4. Disengage the safety catches by pushing the sled up slightly and rotating the handles.
5. Slowly lower the sled by bending your knees until your thighs are parallel to the footplate or as far as comfortable without lifting your hips.
6. Push the sled back up to the starting position, extending your legs but without locking your knees.
7. Upon completion, engage the safety catches before exiting the machine.

3.3 Hack Squat Exercise

1. Ensure the machine is in Hack Squat mode (backrest removed, footplate adjusted).
2. Position yourself with your shoulders under the pads and your feet shoulder-width apart on the footplate.
3. Disengage the safety catches.
4. Slowly lower your body by bending your knees, keeping your back straight and shoulders pressed against the pads. Descend until your thighs are parallel to the footplate or as far as comfortable.
5. Push back up to the starting position, extending your legs without locking your knees.
6. Upon completion, engage the safety catches before exiting the machine.

4. Údržba

Regular maintenance ensures the longevity and safe operation of your Atletica Hackenschmidt Combo 2-1 machine.

• Čištění: Wipe down the machine, especially the pads and handles, with a damp cloth after each use to remove sweat and dirt. Use a mild cleaner if necessary. Avoid abrasive cleaners.
• Mazání: Periodically apply a silicone-based lubricant to the sled rails to ensure smooth movement. Do not over-lubricate.
• Kontrola hardwaru: Every month, check all bolts, nuts, and pins for tightness. Retighten as needed.
• Opotřebení: Inspect cables, pulleys (if any), and padding for signs of wear, fraying, or damage. Replace worn parts immediately.
• Skladování: Stroj skladujte v suchém a čistém prostředí mimo dosah přímého slunečního záření a extrémních teplot.

5. Řešení problémů

If you encounter issues with your Atletica Hackenschmidt Combo 2-1, refer to the following common problems and solutions.

• Sled Movement is Not Smooth:
  • Check if the rails are clean and free of debris. Clean if necessary.
  • Apply a silicone-based lubricant to the rails.
  • Ensure no components are obstructing the sled's path.
• Machine Feels Unstable:
  • Verify all assembly bolts and nuts are securely tightened.
  • Ujistěte se, že je stroj umístěn na rovném a rovném povrchu.
• Safety Catches Not Engaging/Disengaging Properly:
  • Inspect the safety pin mechanism for any obstructions or damage.
  • Ensure the sled is positioned correctly for the catches to engage.

If the problem persists, contact Atletica customer support for assistance.

6. Specifikace

7. Záruka a podpora

Atletica is committed to providing high-quality fitness equipment. For specific warranty details, please refer to the warranty card included with your product or visit the official Atletica webmísto.

For technical support, replacement parts, or any inquiries regarding your Atletica Hackenschmidt Combo 2-1 machine, please contact Atletica customer service:

• Webmísto: www.atletica.com (Napřample link, please refer to actual product documentation for correct contact information)
• E-mail: support@atletica.com (Exampe-mail)
• Telefon: +1-XXX-XXX-XXXX (Example phone number)

Před kontaktováním podpory si prosím připravte číslo modelu (555-1152) a datum nákupu.
