Echo CS-4010-18 Chainsaw User Manual

1. Úvod

Thank you for choosing the Echo CS-4010-18 Chainsaw. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new chainsaw. Please read this manual thoroughly before operating the unit and keep it for future reference.

Figure 1: Echo CS-4010-18 Chainsaw with 18-inch bar and chain.

2. Bezpečnostní informace

Operating a chainsaw can be dangerous if proper safety precautions are not followed. Always wear appropriate personal protective equipment (PPE) including a helmet, eye protection, hearing protection, gloves, and chainsaw protective trousers/chaps. Ensure a clear work area and be aware of your surroundings. Never operate the chainsaw under the influence of alcohol or drugs. Refer to local regulations and safety standards for additional guidelines.

• Always inspect the chainsaw before each use for loose parts, damage, or leaks.
• Ensure the chain brake is functional and engaged when starting the saw or moving between cuts.
• Maintain a firm grip with both hands on the chainsaw handles.
• Buďte si vědomi zpětného rázu a podnikněte kroky, abyste mu zabránili.
• Do not operate the chainsaw in poor weather conditions or on unstable ground.

3. Nastavení

3.1 Vybalení a montáž

Carefully remove all components from the packaging. The Echo CS-4010-18 Chainsaw typically comes with the powerhead, guide bar, and saw chain. Follow these steps for initial assembly:

1. Umístěte motorovou pilu na rovný a stabilní povrch.
2. Odstraňte matice krytu řetězu a kryt řetězu.
3. Mount the guide bar onto the studs, ensuring the chain tensioner pin aligns with the hole in the bar.
4. Carefully place the saw chain around the sprocket and into the guide bar groove. Ensure the cutting edges of the chain are facing the correct direction.
5. Nasaďte kryt řetězu a ručně utáhněte matice. Zatím je úplně neutahujte.

3.2 Fueling and Oiling

This chainsaw operates on a gasoline-oil mixture (2-stroke engine) and requires bar and chain oil for lubrication.

• Palivo: Use a fresh mixture of unleaded gasoline and high-quality 2-stroke engine oil at the ratio specified in your separate engine manual (typically 50:1). Fill the fuel tank, avoiding overfilling.
• Olej na řetěz: Fill the chain oil reservoir with good quality bar and chain oil. The chainsaw features an automatic adjustable oiller to match cutting conditions, ensuring proper lubrication during operation.

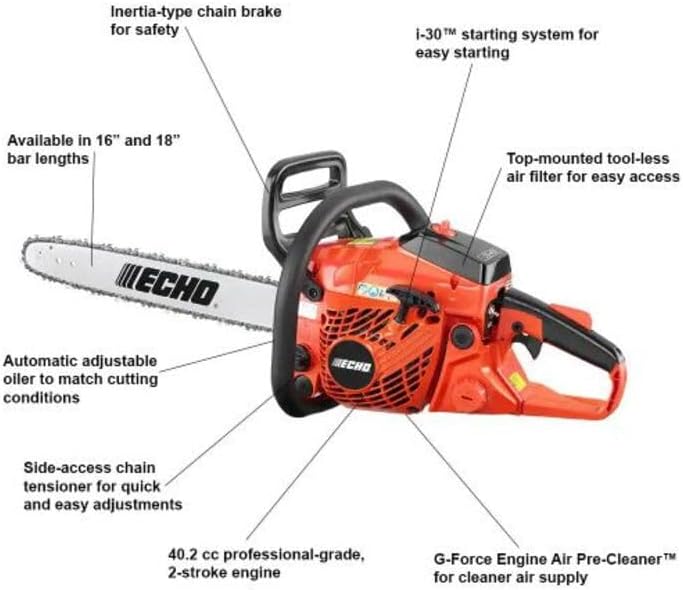

Figure 2: Key features of the Echo CS-4010-18 Chainsaw, including the automatic adjustable oiller and i-30 starting system.

4. Obsluha motorové pily

4.1 Startování motoru

The Echo CS-4010-18 features an i-30™ starting system designed for easy starting. Always ensure the chain brake is engaged before attempting to start the engine.

1. Umístěte motorovou pilu na pevný, rovný povrch.
2. Engage the chain brake by pushing the front hand guard forward.
3. Set the choke and primer bulb according to the engine's starting procedure (refer to the engine manual for specific steps).
4. Pull the starter cord firmly until the engine fires.
5. Once the engine starts, disengage the choke and allow the engine to warm up before use.

4.2 Techniky řezání

The 18-inch bar provides versatility for various cutting tasks. Always maintain a balanced stance and firm grip. Let the chainsaw do the work; do not force it through the cut. Be mindful of the wood's tension to avoid pinching the bar or kickback.

Figure 3: Chainsaw in operation, demonstrating cutting capability.

The 41.6CC engine delivers 3.6 horsepower, providing ample power for demanding tasks while maintaining a lightweight design for easy maneuverability.

5. Údržba

Regular maintenance ensures optimal performance and extends the life of your chainsaw. Always disconnect the spark plug wire before performing any maintenance.

• Napnutí řetězu: Adjust chain tension regularly using the side-access chain tensioner for quick and easy adjustments. A properly tensioned chain should be snug but still allow you to pull it around the guide bar by hand.
• Vzduchový filtr: The chainsaw features a top-mounted tool-less air filter for easy access. Clean or replace the air filter as needed to maintain engine performance and prevent debris from entering the engine.
• Zapalovací svíčka: Pravidelně kontrolujte a čistěte zapalovací svíčku. Vyměňte ji, pokud je opotřebovaná nebo znečištěná.
• Vodicí lišta: Vyčistěte drážku vodicí lišty a olejové otvory. Vodicí lištu pravidelně obraťte, aby se zajistilo rovnoměrné opotřebení.
• Ostření řetězu: Keep the saw chain sharp. A dull chain increases effort, reduces cutting efficiency, and can lead to kickback.
• Generální úklid: Clean the exterior of the chainsaw after each use, removing sawdust, oil, and debris.

6. Řešení problémů

Tato část se zabývá běžnými problémy, se kterými se můžete setkat. V případě problémů, které zde nejsou uvedeny, nebo pokud řešení problém nevyřeší, obraťte se na kvalifikovaný servisní personál.

7. Specifikace

• Model: CS-4010-18
• Zdvihový objem motoru: 41.6 CC
• Výkon: 3.6 hp
• Délka tyče: 18 palců
• Zdroj napájení: Plynový pohon
• Hmotnost položky: 50 libry
• Výrobce: Echo
• UPC: 743184024645
• První k dispozici: 28. července 2023

8. Záruka a podpora

For warranty information, please refer to the warranty card included with your product or visit the official Echo website. For customer support, technical assistance, or to locate an authorized service center, please contact Echo customer service.

Zákaznická podpora: Echo-USA.com

Poznámka: This item is subject to hazardous materials regulation and may have specific handling and return policies. Please review the product listing or contact the seller for details.
