LOVMOR Pull Out Cabinet Organizer Instruction Manual

1. Konec produktuview

The LOVMOR Pull Out Cabinet Organizer is designed to maximize storage space and provide easy access to items within your kitchen, bathroom, laundry, or pantry cabinets. Featuring a heavy-duty wire construction and a smooth ball-bearing slide system, this organizer offers durability and convenience. The unique high-end oak solid wood handle adds both robustness and aesthetic appeal.

Image: A LOVMOR Pull Out Cabinet Organizer shown with various kitchen items such as a coffee maker, blender, and food containers, demonstrating its storage capacity and functionality.

2. Bezpečnostní informace

Please read all instructions carefully before assembly and use. Keep these instructions for future reference.

• Ensure the cabinet surface is clean, dry, and stable before installation.
• Do not overload the organizer. The maximum weight recommendation is 25 pounds (11.3 kg).
• Během instalace používejte vhodné nástroje a noste ochranné brýle.
• Uchovávejte malé díly a obalové materiály mimo dosah dětí.
• Verify that the installed organizer does not interfere with cabinet doors or other internal components.

3. Obsah balení

Před zahájením montáže ověřte, zda jsou všechny komponenty přítomny:

• 1 x Pull Out Cabinet Organizer Basket (Wire construction with wooden handle)
• Slide Rails (integrated)
• Montážní hardware (šrouby)
• Installation Template (Paper template)
• Návod k použití

Image: Diagram showing the dimensions of the 1-Tier LOVMOR Pull Out Cabinet Organizer: 19.5 inches width, 21.5 inches depth, and 4 inches height.

4. Specifikace

Note: This organizer is designed to fit cabinet openings of 21 inches or larger. Please measure your cabinet's interior width and depth carefully before installation.

Image: A visual guide illustrating how to measure the interior width and depth of a cabinet to ensure proper fit for the pull-out organizer.

5. Nastavení a instalace

The LOVMOR Pull Out Cabinet Organizer is designed for quick and easy assembly. A screw gun is recommended for drilling pilot holes.

Požadované nástroje:

• Screw Gun / Drill
• Šroubovák s křížovou hlavou
• Měřicí páska
• Tužka
• Safety Glasses (Recommended)

Kroky instalace:

1. Připravte si kabinet: Clear the cabinet of all items. Ensure the bottom surface is clean and dry.
2. Umístění šablony: Place the provided mounting template inside the cabinet, aligning the folded edge with the front edge of the cabinet. Ensure it is centered horizontally.
3. Označte pilotní otvory: Using a pencil, mark the four pilot hole locations indicated on the template.
4. Vrtací pilotní otvory: Using a drill with a 2.5mm (or appropriate size for included screws) drill bit, carefully pre-drill holes at the marked locations.
5. Install Slide Rails: Align the slide rails of the organizer with the pre-drilled holes. Secure the rails to the cabinet floor using the provided screws. Ensure the rails are firmly attached and parallel.
6. Test funkčnosti: Gently pull the organizer in and out to ensure smooth operation.

Instalační videonávod:

Vizuální návod k procesu instalace naleznete v oficiálním videu níže:

Image: A cabinet interior showcasing the fully extended slide rails of the LOVMOR organizer, highlighting the three-section slide rail, wooden handle design, and thicker iron wire construction.

6. Návod k obsluze

To use your LOVMOR Pull Out Cabinet Organizer:

• Načítání: Place items evenly distributed within the basket. Avoid concentrating heavy items in one area.
• Vytahování: Grasp the wooden handle and gently pull the organizer outwards. The ball-bearing slides will allow for smooth, full extension.
• Zatlačení: Push the organizer back into the cabinet until it is fully retracted.

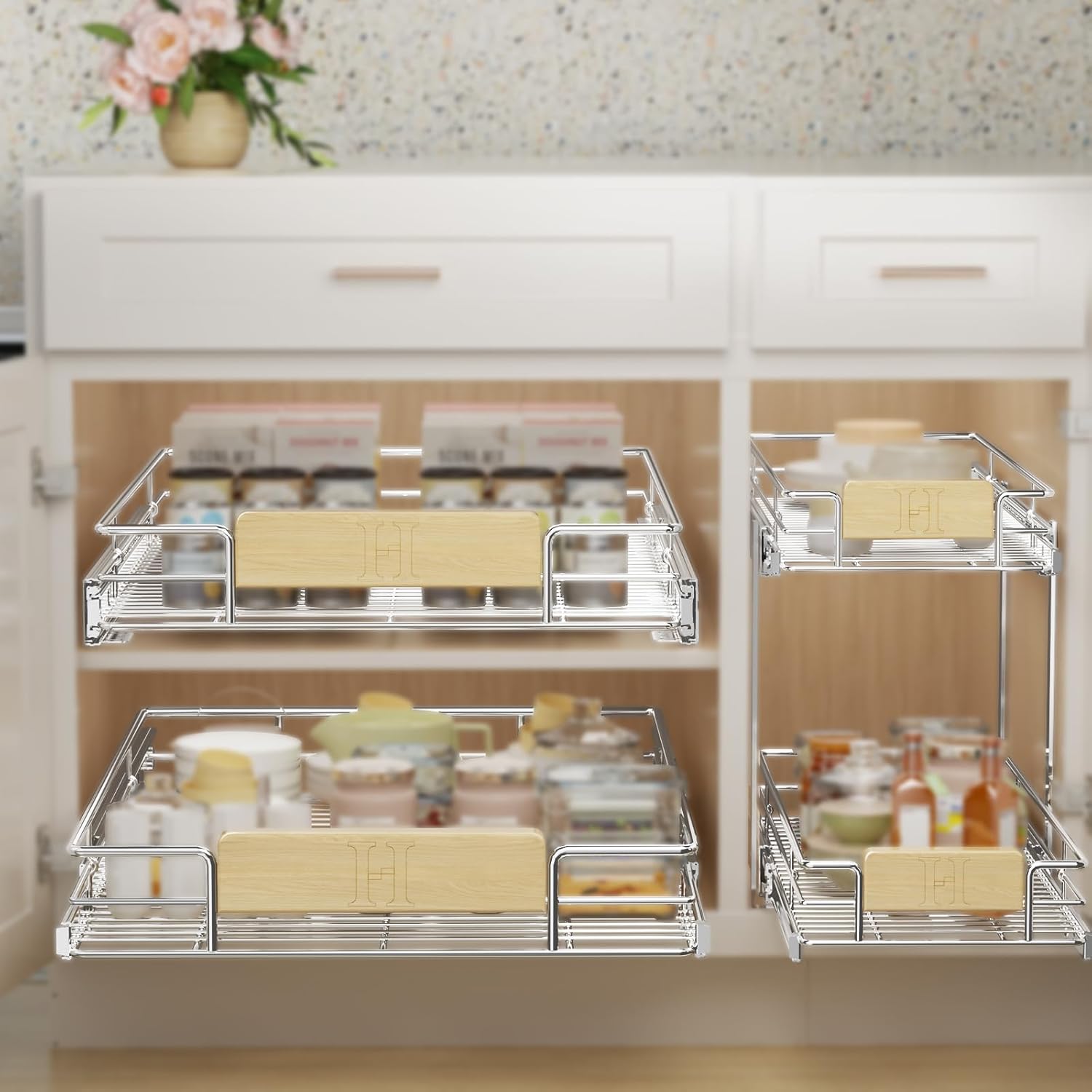

Image: A kitchen cabinet setup featuring multiple LOVMOR pull-out organizers, demonstrating how they can be used to store various kitchen items and improve accessibility.

7. Údržba

Regular maintenance will ensure the longevity and smooth operation of your organizer:

• Čištění: Wipe down the metal basket and wooden handle with a damp cloth and mild detergent. Dry thoroughly. Avoid abrasive cleaners.
• Slide Lubrication: Periodically apply a silicone-based lubricant to the slide rails to maintain smooth movement. Do not use oil-based lubricants as they can attract dust and debris.
• Kontrolní šrouby: Occasionally check all mounting screws to ensure they are tight. Re-tighten if necessary.
• Vyhněte se přetížení: Adhere to the maximum weight capacity to prevent damage to the organizer and cabinet.

8. Řešení problémů

If you encounter issues with your LOVMOR Pull Out Cabinet Organizer, refer to the following common problems and solutions:

9. Záruka a podpora

LOVMOR products are designed for quality and durability. For specific warranty information or technical support, please refer to the product packaging or contact LOVMOR customer service directly. You can also visit the official LOVMOR store on Amazon for more information and assistance.

LOVMOR Store: Navštivte obchod LOVMOR na Amazonu
