Zavedení
Thank you for choosing the Agunto AGU-OC1 Outdoor Security Camera. This manual provides detailed instructions for setting up, operating, and maintaining your camera to ensure optimal performance and security for your property. The AGU-OC1 is designed for outdoor surveillance, featuring 1080p video resolution, advanced night vision, motion and sound detection, and seamless integration with smart home systems like Google Assistant.
Obrázek 1: Přední strana view of the Agunto AGU-OC1 Outdoor Security Camera.
Bezpečnostní informace
- Ensure the camera is installed in a location where it is protected from direct tampering.
- Use only the provided USB-C cable and power adapter.
- Nevystavujte fotoaparát extrémním teplotám mimo jeho provozní rozsah.
- Neumisťujte kameru do blízkosti silných elektromagnetických polí.
- Před čištěním nebo údržbou odpojte napájení.
Obsah balení
Zkontrolujte prosím balení, zda neobsahuje následující položky:
- Agunto AGU-OC1 Outdoor Security Camera
- USB-C Power Cable (3 meters)
- Montážní šrouby a hmoždinky
- Uživatelská příručka (tento dokument)
Nastavení
1. Montáž kamery
The Agunto AGU-OC1 is designed for wall mounting. Choose a location that provides the desired viewúhlu a je v dosahu elektrické zásuvky.
- Mark the drilling points on the wall using the camera's mounting base as a template.
- Drill holes at the marked points. Insert the wall plugs if necessary.
- Secure the mounting base to the wall using the provided screws.
- Attach the camera to the mounted base and adjust the angle as needed. The camera features a 180-degree rotatable function for optimal positioning.
Obrázek 2: Úhlové view of the Agunto AGU-OC1, showing its mounting bracket.

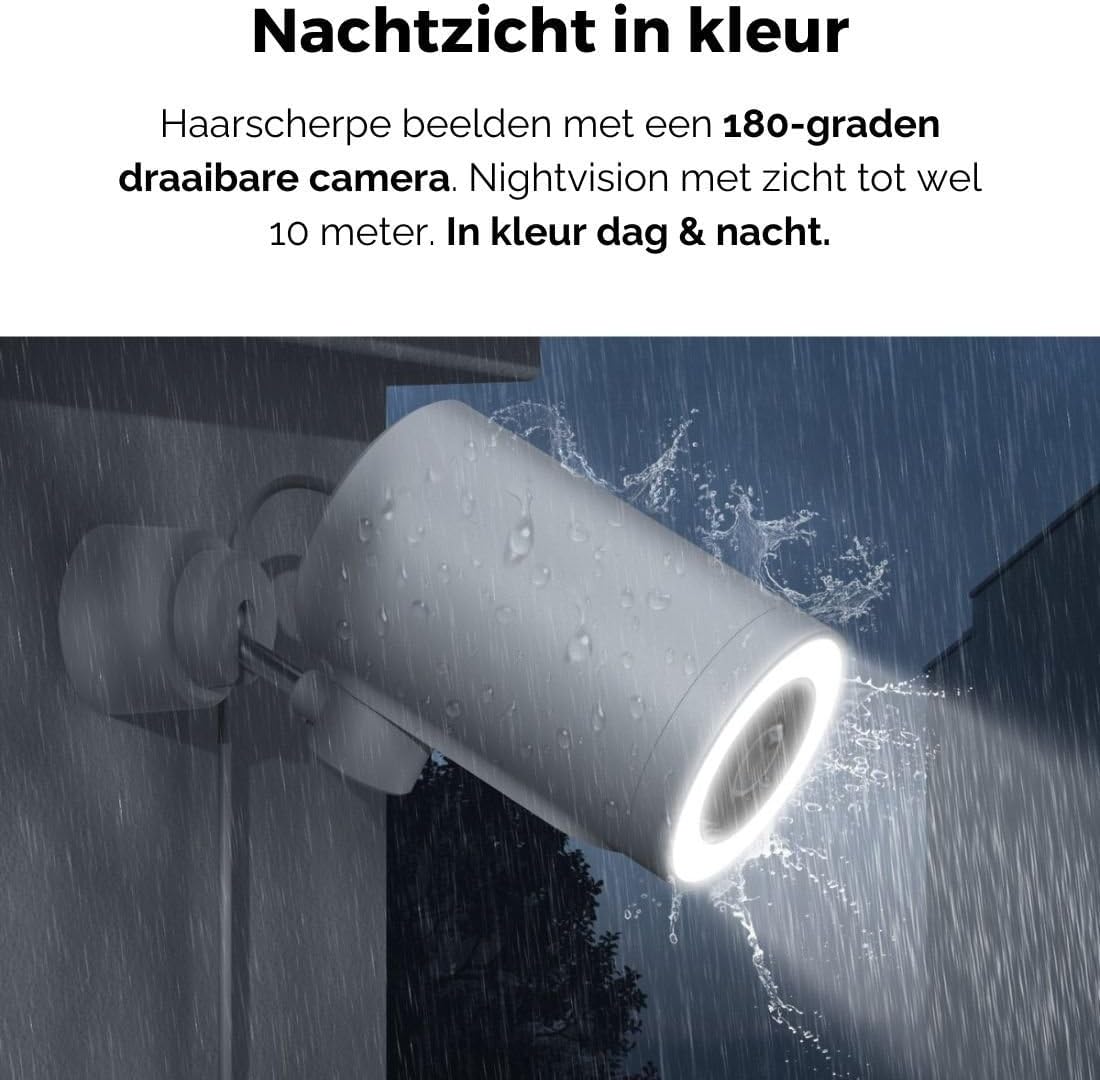

Figure 3: The camera installed outdoors, demonstrating its weather resistance.
2. Připojení napájení
Connect the provided 3-meter USB-C cable to the camera's USB-C port and plug the other end into a suitable power adapter (not always included, but implied by "Elektrisch met snoer" and "USB-C").
Figure 4: USB-C power connection for the Agunto AGU-OC1 camera.
3. Instalace a párování aplikace
K ovládání a view your camera, you will need to install the dedicated Agunto app on your smartphone or tablet. The app is available for both iOS and Android devices.
- Download the "Agunto Smart" app from the App Store (iOS) or Google Play Store (Android).
- Otevřete aplikaci a vytvořte si nový účet nebo se přihlaste, pokud jej již máte.
- Follow the in-app instructions to add your new AGU-OC1 camera. This typically involves scanning a QR code on the camera or entering a device ID.
- Ensure your smartphone is connected to a 2.4GHz Wi-Fi network during the pairing process, as the camera uses Wi-Fi connectivity.
Obsluha fotoaparátu
Žít View a Nahrávání
Once paired, you can access the live video feed from your camera through the Agunto Smart app. From the live view obrazovce, můžete:
- View foo v reálném časetage.
- Manually record video clips or capture screenshots.
- Access recorded events stored on a microSD card (if installed) or cloud storage (if subscribed).
Noční vidění
The AGU-OC1 features advanced night vision capabilities, providing clear images even in low-light conditions. It supports color night vision for enhanced detail up to 10 meters.
Figure 5: The camera's color night vision in action, providing clear images in the dark.
Detekce pohybu a zvuku
The camera is equipped with intelligent motion and sound detection. When activity is detected, you will receive instant notifications on your smartphone or tablet, allowing you to monitor your property effectively.
You can customize detection zones and sensitivity settings within the app to minimize false alarms.
Google Assistant Integration
The Agunto AGU-OC1 seamlessly integrates with Google Assistant. You can link your camera to Google Home and stream live footage to compatible devices such as Google Nest Hub or Chromecast-enabled displays by voice command.
Examppříkaz le: "Hey Google, show me the backyard camera."
Údržba
- Čištění: Jemně otřete objektiv a tělo fotoaparátu měkkým, suchým hadříkem. Nepoužívejte agresivní chemikálie ani abrazivní čisticí prostředky.
- Aktualizace softwaru: Regularly check the Agunto Smart app for firmware updates. Keeping your camera's software up-to-date ensures optimal performance, security, and access to new features.
- Kontrola kabelů: Periodically inspect the USB-C cable for any signs of wear or damage, especially if exposed to outdoor elements.
Odstraňování problémů
| Problém | Možné řešení |
|---|---|
| Fotoaparát se nezapíná. | Check the USB-C cable connection and ensure the power adapter is plugged into a working outlet. Try a different outlet or adapter if available. |
| Nelze se připojit k Wi-Fi. | Ensure your Wi-Fi network is 2.4GHz. Check Wi-Fi signal strength at the camera's location. Restart your router and the camera. Re-attempt pairing through the app. |
| Špatná kvalita videa. | Clean the camera lens. Ensure adequate lighting. Check your internet connection speed. |
| Detekce pohybu nefunguje. | Verify motion detection is enabled in the app settings. Adjust sensitivity and detection zones. Ensure there are no obstructions blocking the camera's view. |
| Oznámení nebyla přijata. | Check app notification settings on your phone. Ensure the app has permission to send notifications. Verify your phone has an active internet connection. |
Specifikace
| Funkce | Detail |
|---|---|
| Číslo modelu | AGU-OC1 |
| Efektivní rozlišení videa | 1080 XNUMX pixelů |
| Materiál | Plast |
| Wattage | 4 wattů |
| Rozměry položky (D x Š x V) | 10 x 4.4 x 7.3 centimetrů |
| Hmotnost položky | 78 gramů |
| Technologie připojení | Wireless, Wired (USB-C) |
| Speciální funkce | Night Vision (Color), Motion Detection, Sound Detection, 180-degree rotatable |
| Prostředí použití | Venkovní |
| Kompatibilní zařízení | Smartphone (via Agunto Smart app), Google Assistant devices |
| Zdroj napájení | Elektrické kabelové (USB-C) |
| Typ montáže | Držák na zeď |
Záruka a podpora
Agunto products are designed for reliability and performance. For information regarding warranty coverage, technical support, or service, please refer to the warranty card included with your product or visit the official Agunto website. You can also contact Agunto customer support through the contact information provided on their website or within the Agunto Smart app.
For the latest information and FAQs, please visit: Agunto Official Store
